    Don't show me nice Milling machines I am getting a serious itch!

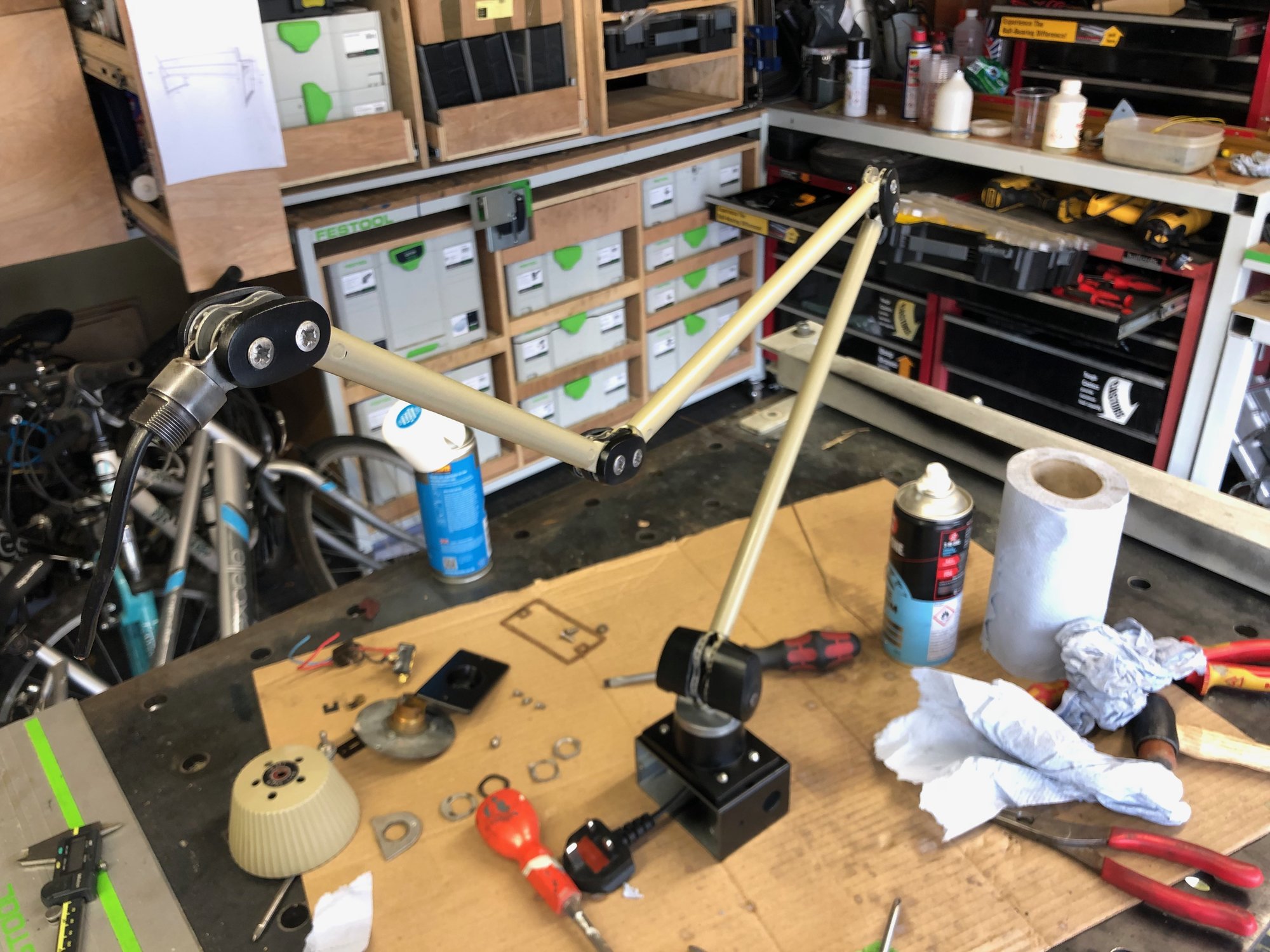

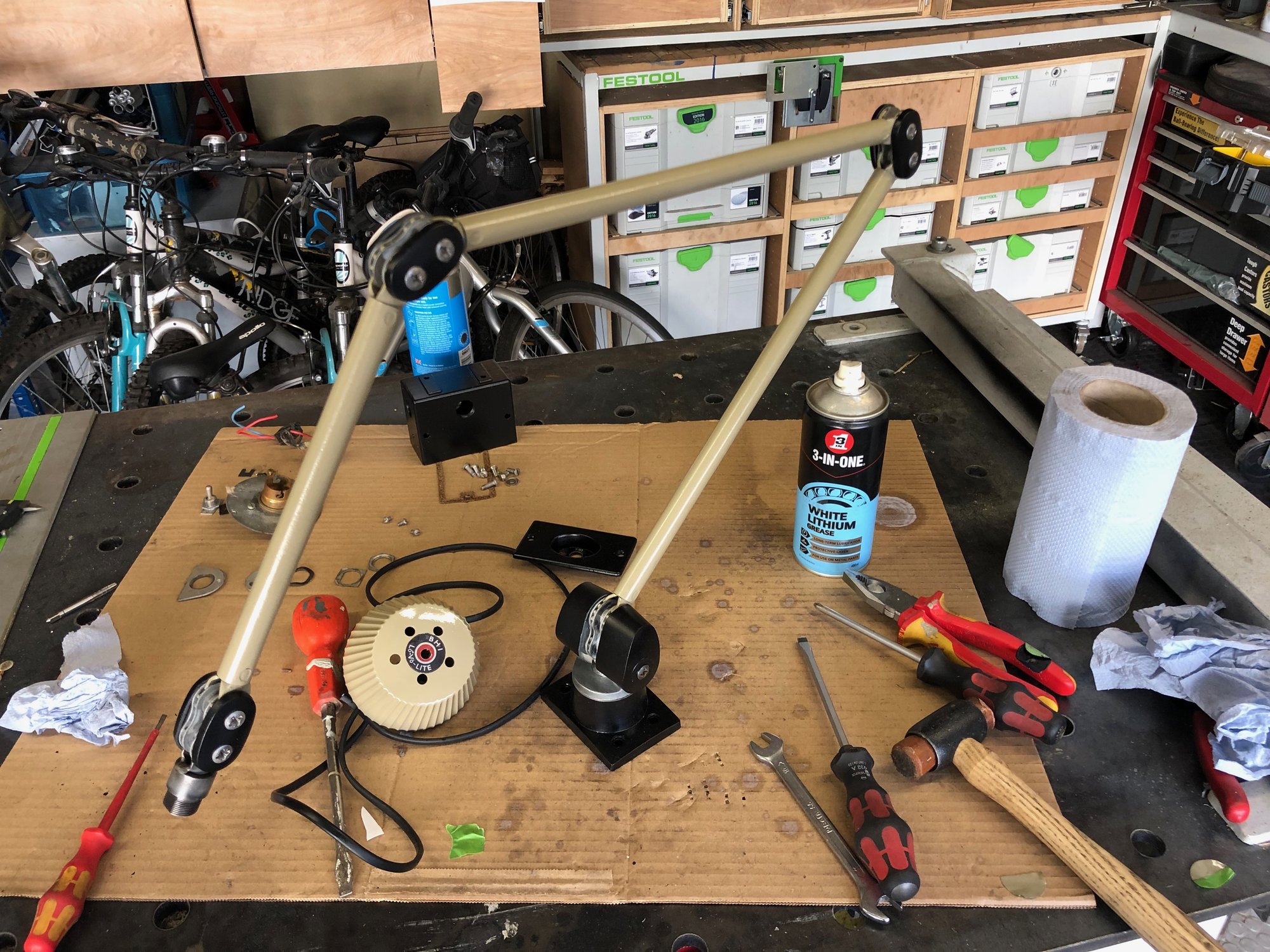

    Took a lunch hour and got it broken down into pieces, I love very well made stuff like this every part is properly engineered with a quality feel to it. It came apart easy, those people stripping these, rewiring and selling for £300 as fancy lounge lamps are on easy money!


    slim_boy_fat likes this.
  2. armalites Member

    Messages:
    4,894
    Herefordshire
    You should get a job in advertising/media with the pictures you take :laughing:

    It's amazing the amount of compenents that go into this old quality kit.

  3. Carl Wilson Member

    Messages:
    1,697
    Location:
    Moray
    Regarding the mill, I'm loathe to describe it as nice just yet! Maybe in another 6 months time...A lot of it is quite nasty at the moment!

    Really nice seeing the lamp dismantled. Sacrilege making them into a table lamp!

  4. R-D-R Forum Supporter

    Messages:
    1,114
    Location:
    Derbyshire - England
    Pictures are vital for my own health I have a habit of diving in then not being able to get things back together :-/

    I was surprised by this light, when the delivery guy handed it over this morning I felt the weight and thought this is not like the new ones! all the threaded inserts and spring washes to hold the friction, it was built to last.

    slim_boy_fat likes this.
  5. armalites Member

    Messages:
    4,894
    Herefordshire
    I was looking at the lamp and thinking what it would be like if you put all those bits in a plastic tub and came back to it next year there would be some head scratching if you didn't have the picture.

  6. R-D-R Forum Supporter

    Messages:
    1,114
    Location:
    Derbyshire - England

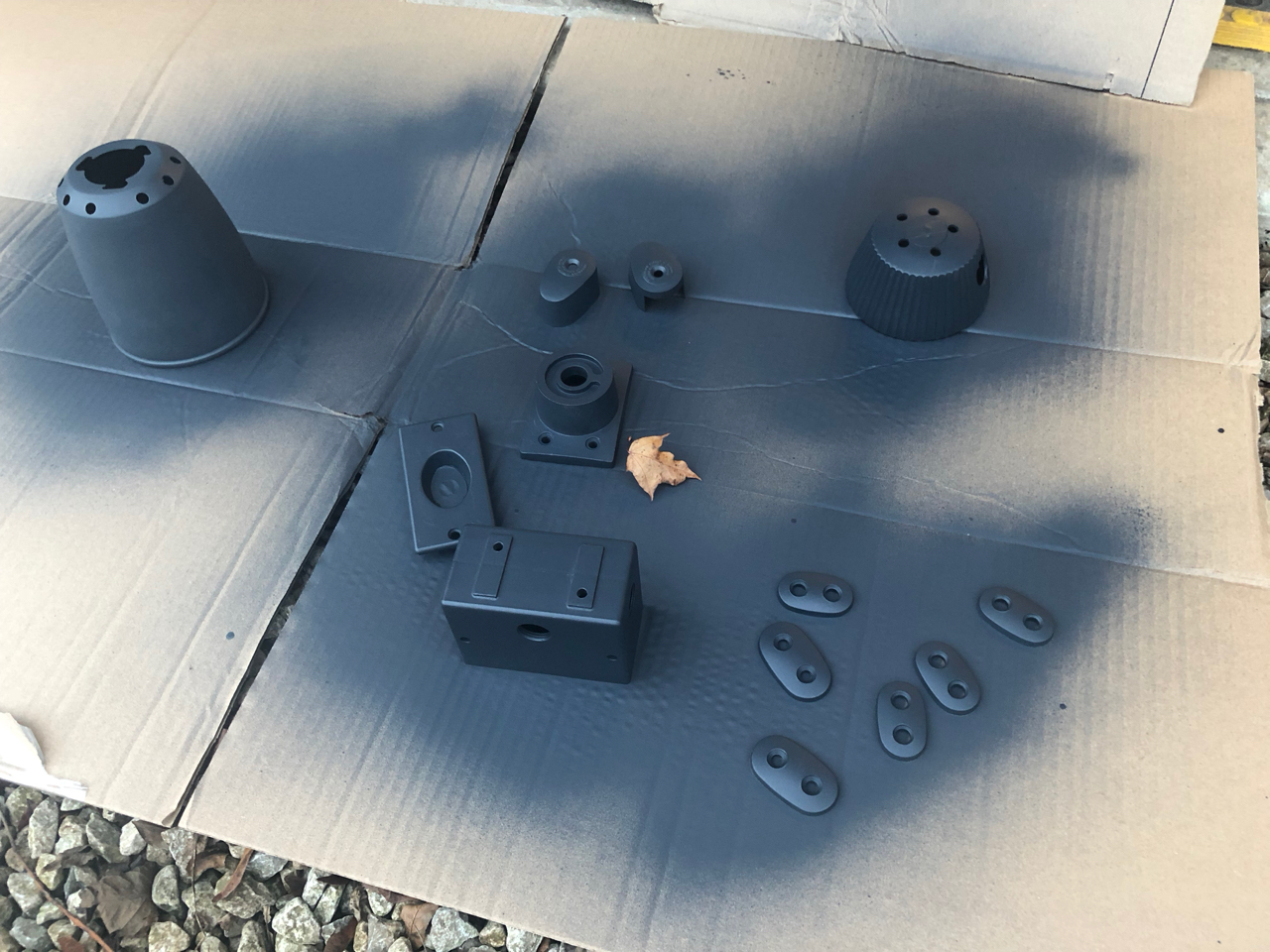

    Used the wire wheel to strip paint off, then primed.


  7. R-D-R Forum Supporter

    Messages:
    1,114
    Location:
    Derbyshire - England
    Between primer coats i used my new M6 tap and started making v2.0 of the part I had trouble with, used the tailstock to keep the Tap true and it looks nice and centric now - much better :laughing: This is a Presto Tap I like these, they seem to cut well and the shank allows deeper threading. I had a set of BETA taps, don't know who they sub them off but they are crud compared to their spanners and sockets.


  8. grim_d

    grim_d Unlikeable idiot.

    Messages:
    2,754
    Location:
    Scotland - Ayrshire
    £115 for a bendy lamp? :o

    IKEA do em for a tenner. That's what's on my machines.

    Parm and addjunkie like this.
  9. Brad93

    Brad93 M J B Engineering

    Messages:
    8,497
    Location:
    Essex
    £1400 lathe, £10 light.

    I think I’d rather something more in keeping and designed for a workshop

  10. Milkybars

    Milkybars Forum Supporter

    Messages:
    365
    Location:
    Essex
    Brad to be honest, I have Ikea as well mounted on the back of the saddle, these are safe 12v and easily replaceable.
    You can look straight down the bore of a job in the chuck and and move them to any angle.
    One added bonus is you don't bang your head on it !!

    Each to there own

    Phil

  11. addjunkie

    addjunkie Member

    Messages:
    5,992
    Location:
    Northumberland. Reet oot in the sticks
    Yes I use Ikea lights too, you can never have enough light turning and milling!

  12. R-D-R Forum Supporter

    Messages:
    1,114
    Location:
    Derbyshire - England
    I fitted a £6 gooseneck LED lamp to my FOBCO Star - works a treat. I wanted something overhead for turning, this lamp will reach up tall and hopefully with a decent LED bulb should improve things. When I was boring the sleeve for the Tacho sensor I ended up positioning a torch to see down the bore. Would be great to have a Lamp on the tailstock like modern drills have to see where your drilling.

  13. R-D-R Forum Supporter

    Messages:
    1,114
    Location:
    Derbyshire - England

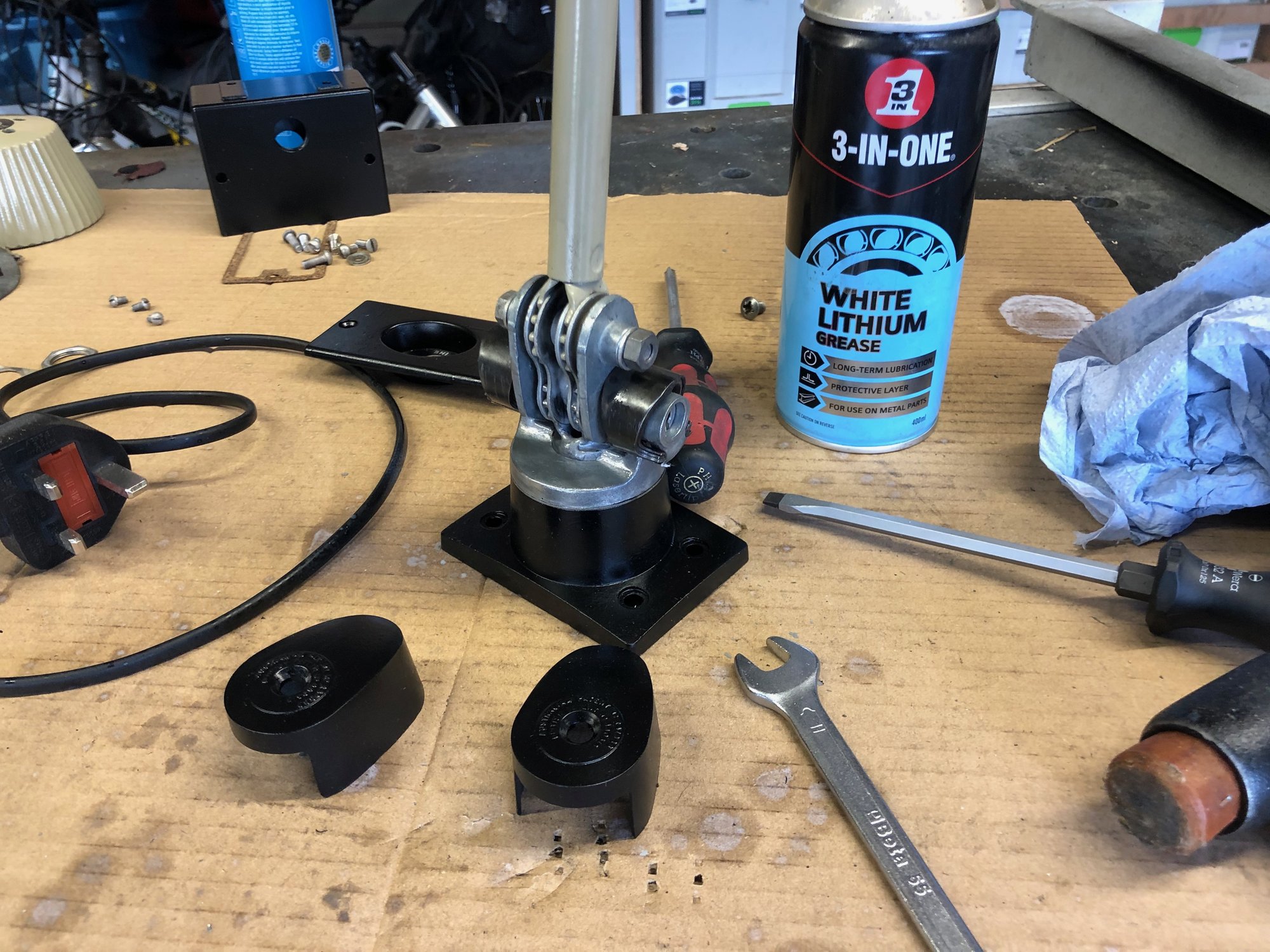

    took lunch today and started putting it back together, pretty pleased with how its looking for a 24hr restoration

    Parts all went back nicely although I've lost one screw! sure it will turn up as I'm packing away. I do love the design of the mechanism the way the tension is held and clutched is really nice.


    Cut up a 2 core power cord for the flex which was just about long enough. This was the most fiddly task, if doing it again thread it as your building it up!


    The casting on the base is really nice, Ive found 3 M4 holes on the back of the headstock which I will make a bracket for this to attach too.

    indy4x, slim_boy_fat and dobbslc like this.
  14. dobbslc

    dobbslc Forum Supporter

    Messages:
    5,285
    Location:
    Hertfordshire UK
    Does it not need a 3 core cable to earth it?
    Lovely paint job btw.
    I saved this from a school days before it was demolished!
    I'll tart it up one day if I ever get the big workshop built!

    slim_boy_fat likes this.
  15. R-D-R Forum Supporter

    Messages:
    1,114
    Location:
    Derbyshire - England
    It needs 3 core to the base but not the bulb holder. The base has an earth point, I did ponder taking it all the way up but it would be tight. Going to make sure I have conductivity all the way up through the components.

    dobbslc and slim_boy_fat like this.
  16. R-D-R Forum Supporter

    Messages:
    1,114
    Location:
    Derbyshire - England

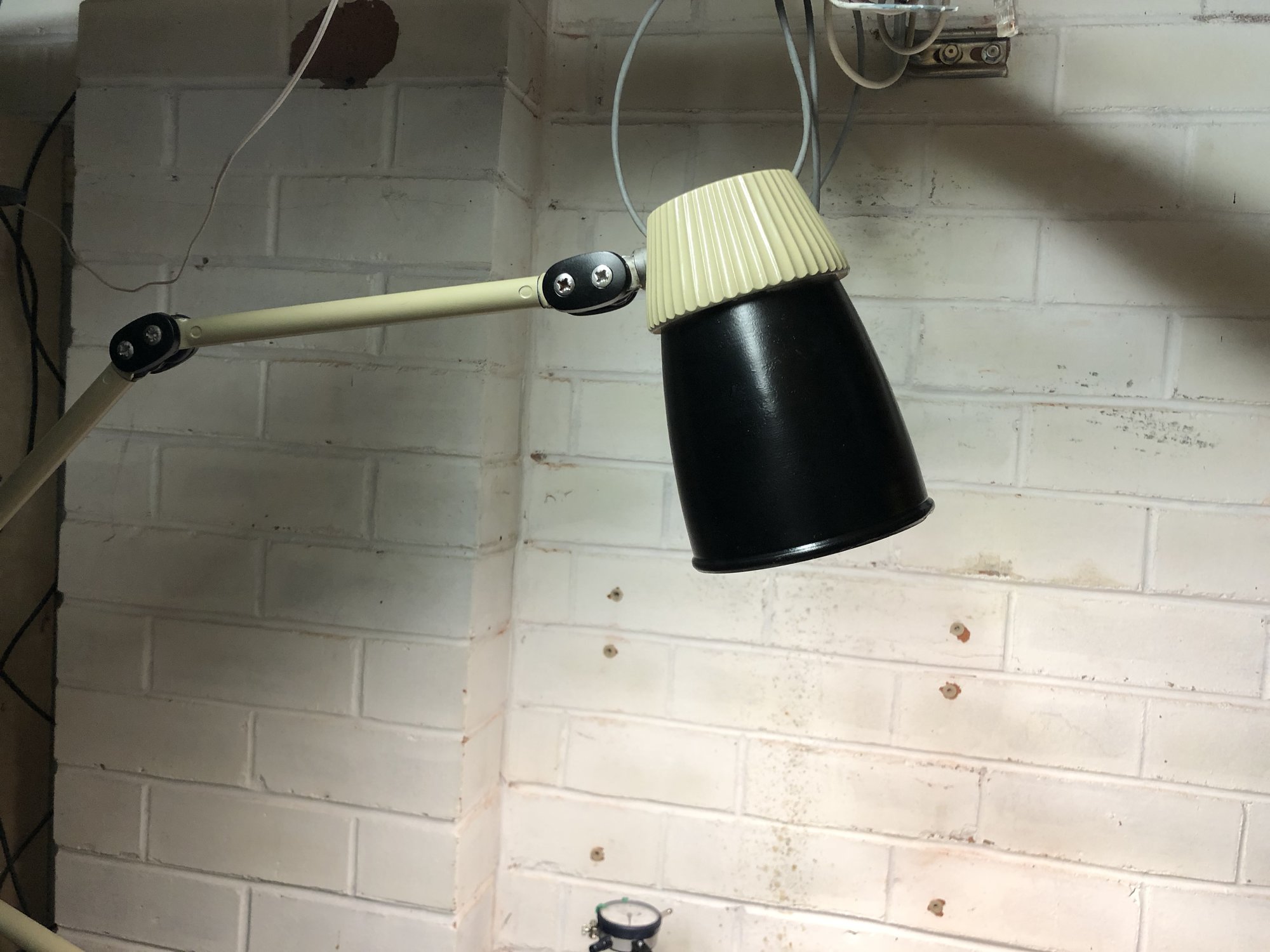

    Test run with bulb nicked from a standard lamp.



    • 6B59FDCA-3CA3-4D32-8558-98EFB72DCC3E.jpeg
    indy4x, zx9 and slim_boy_fat like this.
  17. R-D-R Forum Supporter

    Messages:
    1,114
    Location:
    Derbyshire - England

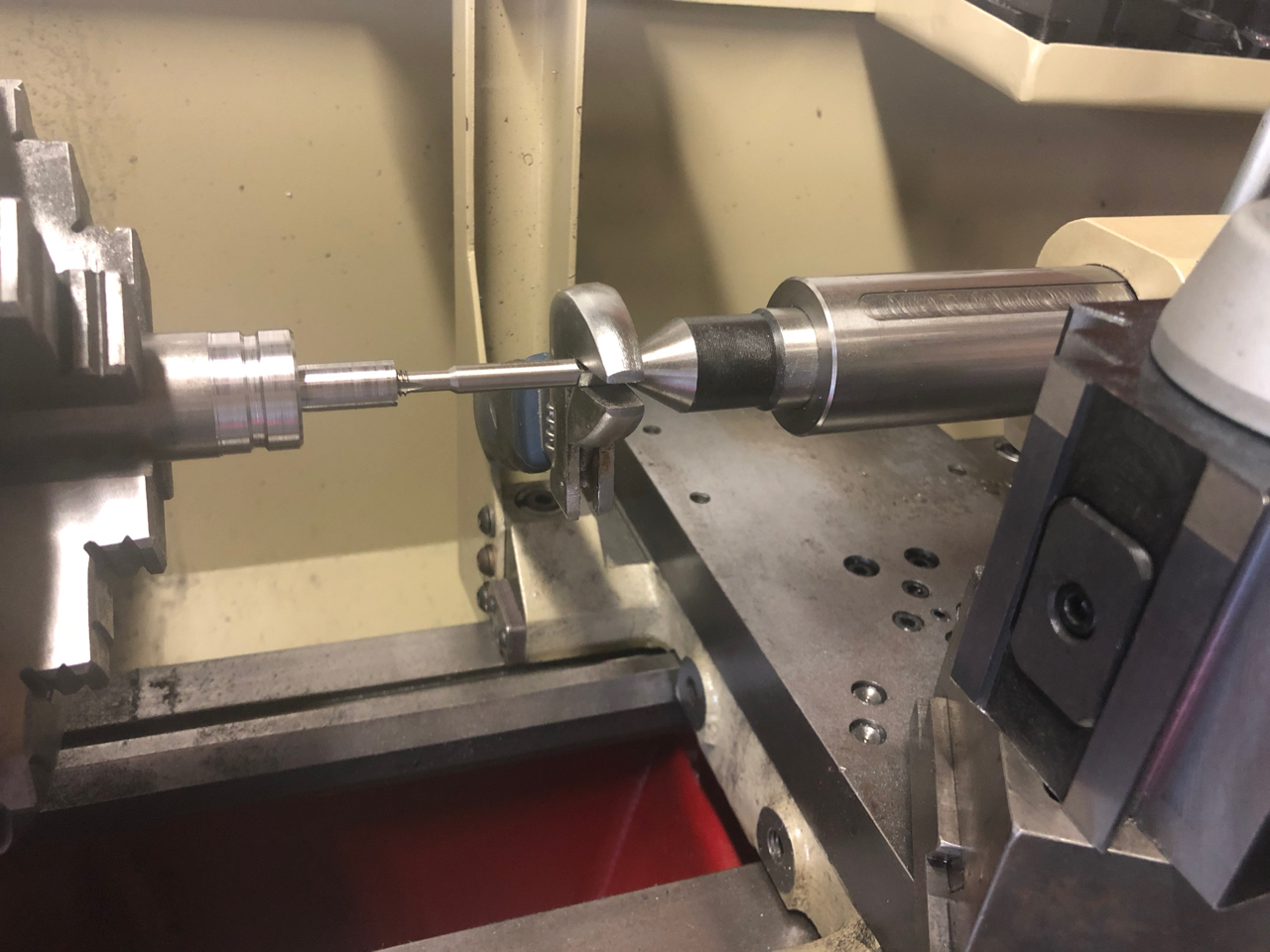

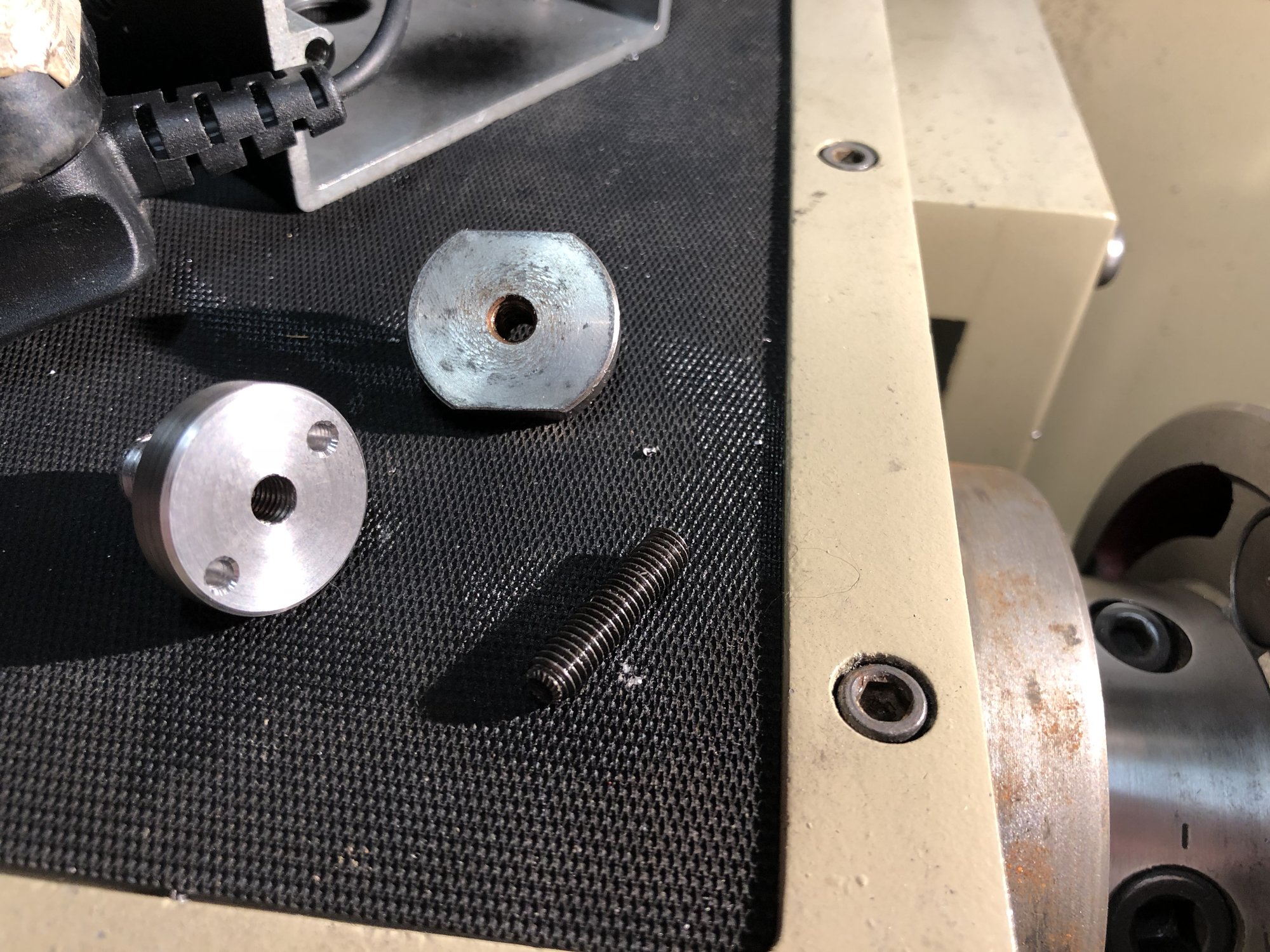

    Finished off the part under the light was much better even with the test bulb.

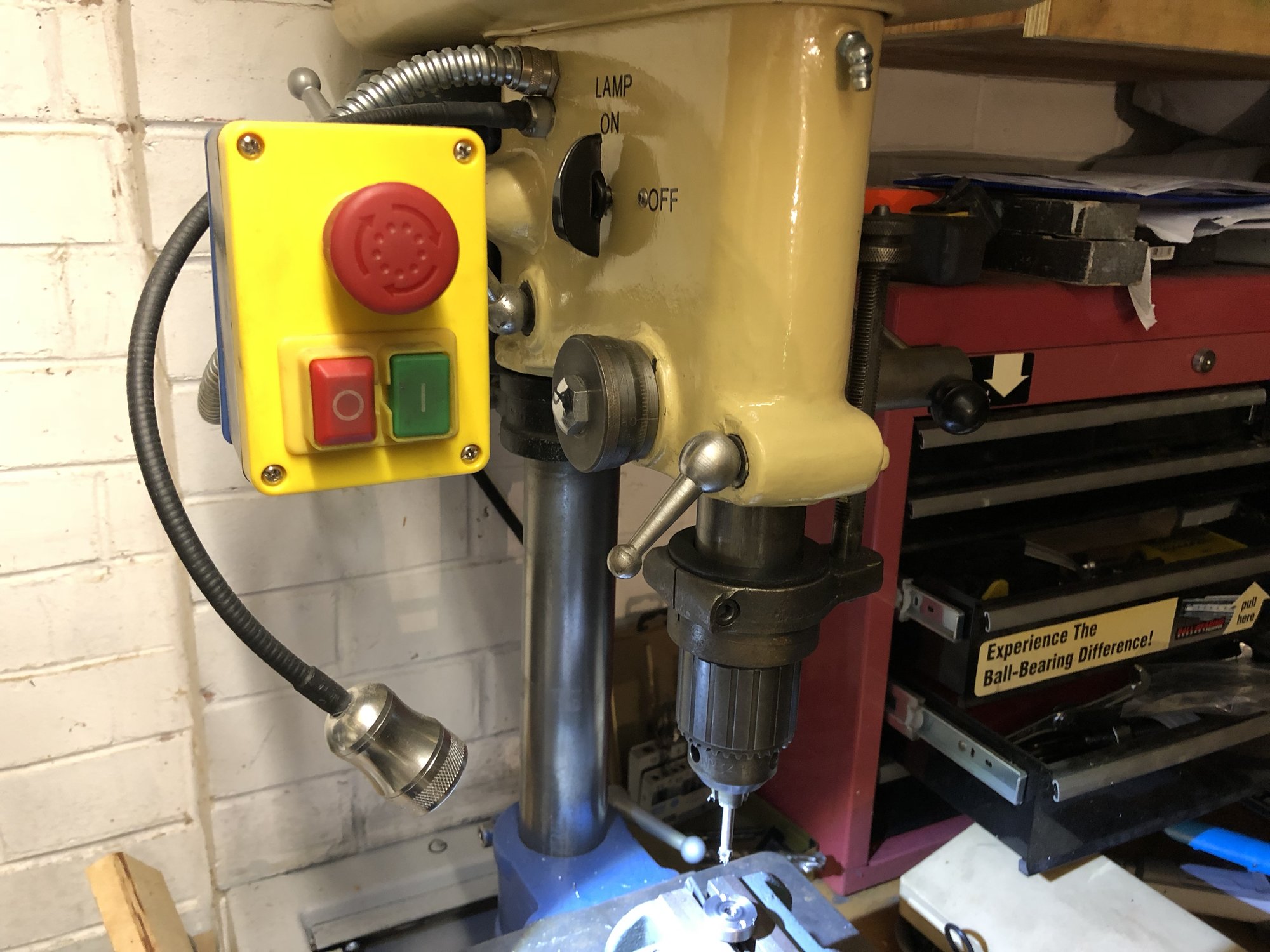

    This is the gooseneck I grafted onto the fobco


    Because I don’t have a mill I added holes for the pin spanner instead

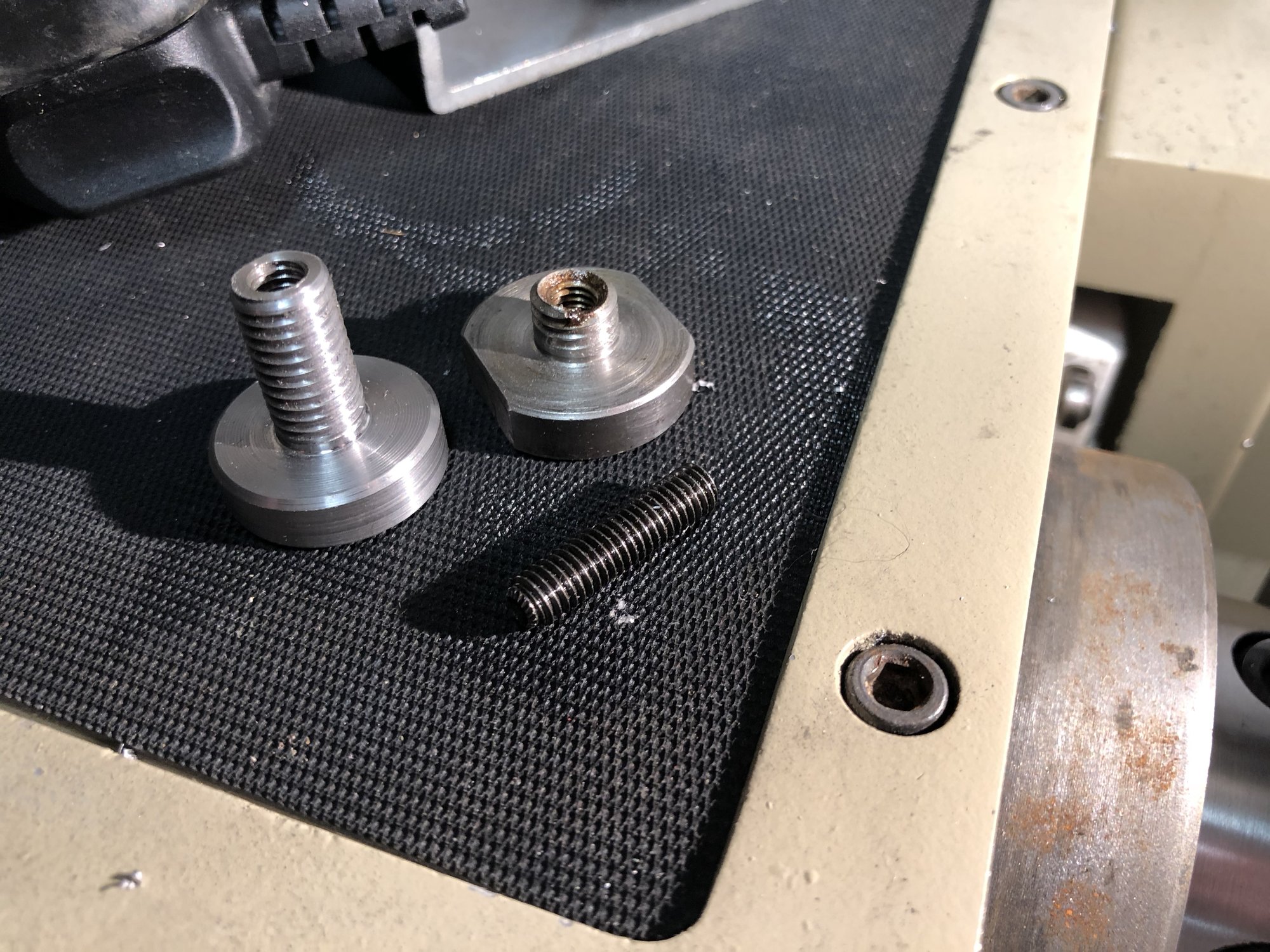

    Finished part all nice and centric this time.



    slim_boy_fat likes this.
  18. slim_boy_fat

    slim_boy_fat Forum Supporter

    Good job :thumbup:

  19. Brad93

    Brad93 M J B Engineering

    Messages:
    8,497
    Location:
    Essex
    If I can get my scabby old one looking like that I’ll be well pleased!!

  20. zx9

    zx9 Member

    Messages:
    3,979
    Location:
    South East London
    The holes for the pin spanner are a good solution but I expect you could have got the finished part in a four jaw and taken the flats off on the lathe, very interrupted cut so very noisy and lots of vibration and hard on the tooling but doable.
