Harrison 140 Project

[Carl Wilson]

Sent to Doubleboost eh? Using a Harrison 140 to repair another Harrison 140.



[Shox Dr]

So I got this mounted temporarily today. Made the spacer 8mm thick...

By the looks you need that spacer to get the tool on centre, or hasn’t it been set up yet?



[Brad93]

By the looks you need that spacer to get the tool on centre, or hasn’t it been set up yet?

Yes. The spacer is needed to get the boring bars and the 30mm bore tool holder on centre.



[NickMc]

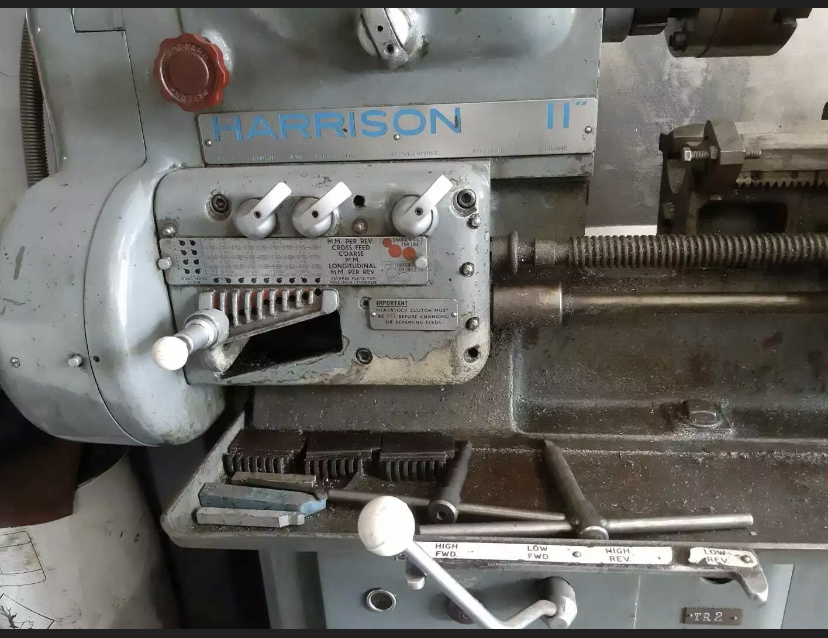

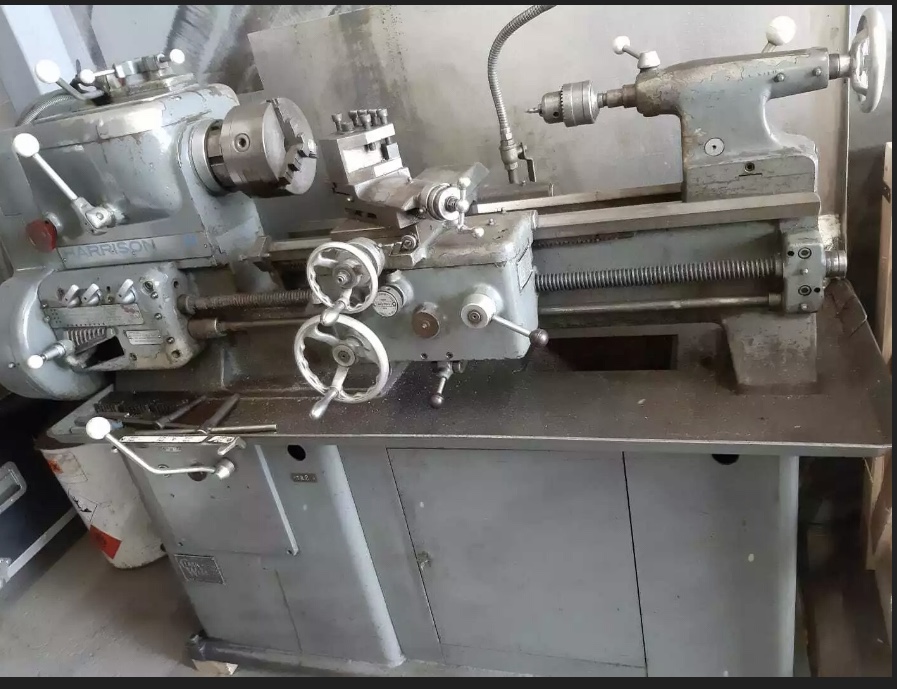

I bought one of these this week, metric gearbox on it, looks exactly the same as yours but labelled as a 11” Harrison.



[zzr1200]

I bought one of these this week, metric gearbox on it, looks exactly the same as yours but labelled as a 11” Harrison.


View attachment 242498 View attachment 242499

Harrison L5A



[NickMc]

Thanks, anyone got a manual/parts manual for it?



[Tinbasherdan]

I bought one of these this week, metric gearbox on it, looks exactly the same as yours but labelled as a 11” Harrison.


View attachment 242498 View attachment 242499

Identical to mine, great machines. Is yours a high speed headstock version too?



[Brad93]

Thanks, anyone got a manual/parts manual for it?

I’ve got one I can scan to you



[Brad93]

I bought one of these this week, metric gearbox on it, looks exactly the same as yours but labelled as a 11” Harrison.


View attachment 242498 View attachment 242499

Yeah, basically a spec’d up L5A. So a pretty late model.
L00 Spindle Taper, 3 lever gearbox giving 32 or 36 metric speeds (I forget), but it does have the earlier dog drive assembly of the leadscrew typical of the two lever gearboxes.

looks like you’ve got the two speed motor, quite a spendy option, should be a top speed of 2000RPM in high.
instead of 8 speeds normally from 40 - 1000RPM, you will have 8 addition speeds doubling the lower speeds.



[doubleboost]

Harrison L5A

Has it got imperial or metric dials



[Tinbasherdan]

It’s worth noting that the 2 speed motor is 3 phase 415v only, I did look into running one on a VFD and it’s a no go. RPC or nothing



[Tinbasherdan]

Has it got imperial or metric dials

Will be metric John, same as mine



[roofman]

Identical to mine, great machines. Is yours a high speed headstock version too?

how can you tell if it is a high speed



[Tinbasherdan]

how can you tell if it is a high speed

2 speed motor, and the headstock bearings are dofferent



[doubleboost]

how can you tell if it is a high speed

The speed range goes up to 2000 for the high speed the motor switch has 4 positions 2 forward 2 reverse



[NickMc]

thanks for the replies

I’ve got one I can scan to you

I’ve found on on Keith Rucker’s site don’t know if it’s exactly right as you say, it’s very like a 140, but not.
http://vintagemachinery.org/pubs/detail.aspx?id=12728
http://vintagemachinery.org/pubs/detail.aspx?id=12728





I bought it over the pond, should be landed here next week- got fed up with the stupid prices here or the machine dealers never bothering to call you back or just not interested. Long gone are the days of buying them for few hundred quid(not that I thought I would!). I’ve a bit of experience on a Colchester, but not in about 10 years.

I have a single phase 4hp motor, and a single speed 4.5hp 3ph motor, that I was going to run off a VFD.



[NickMc]

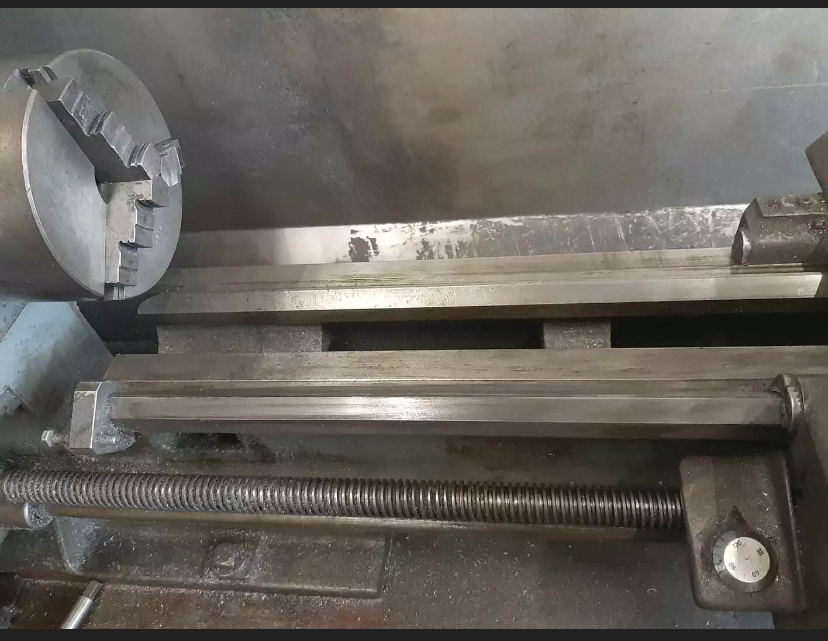

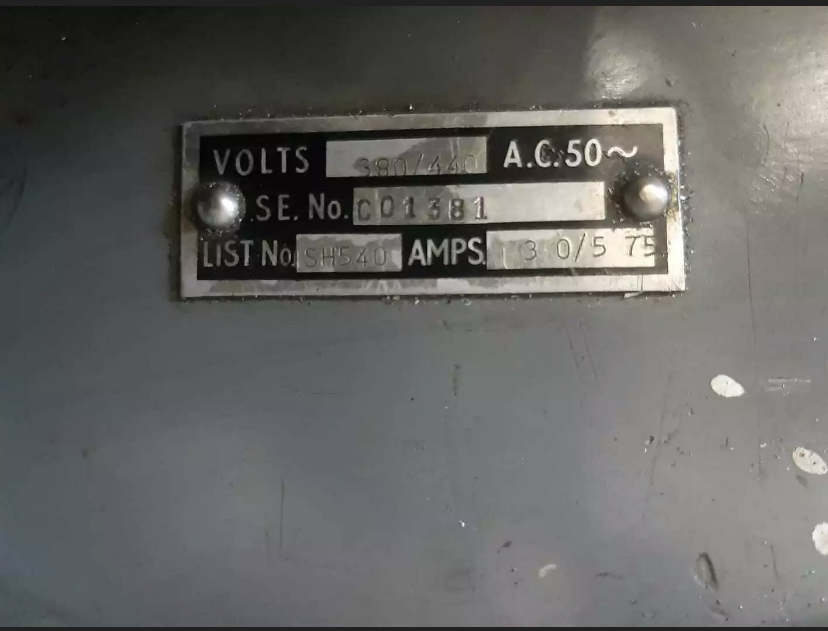

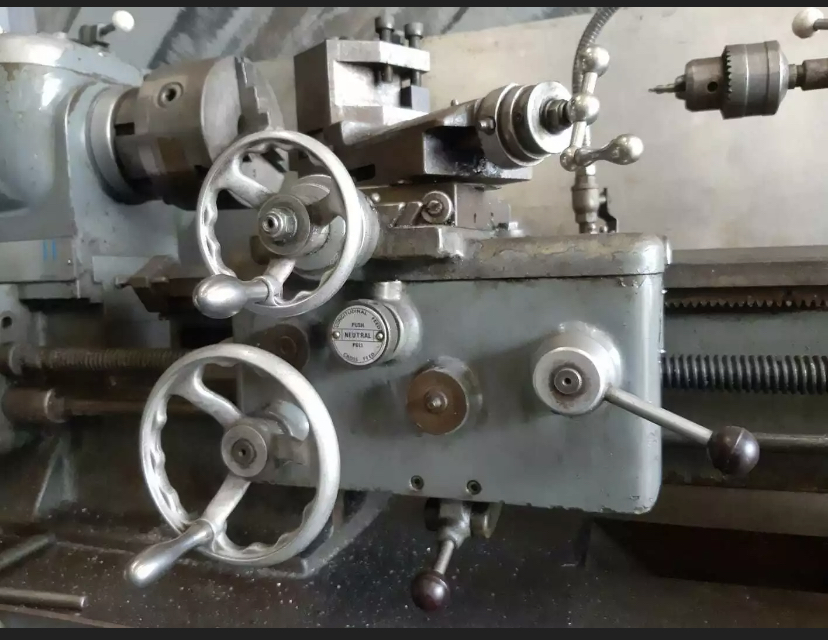

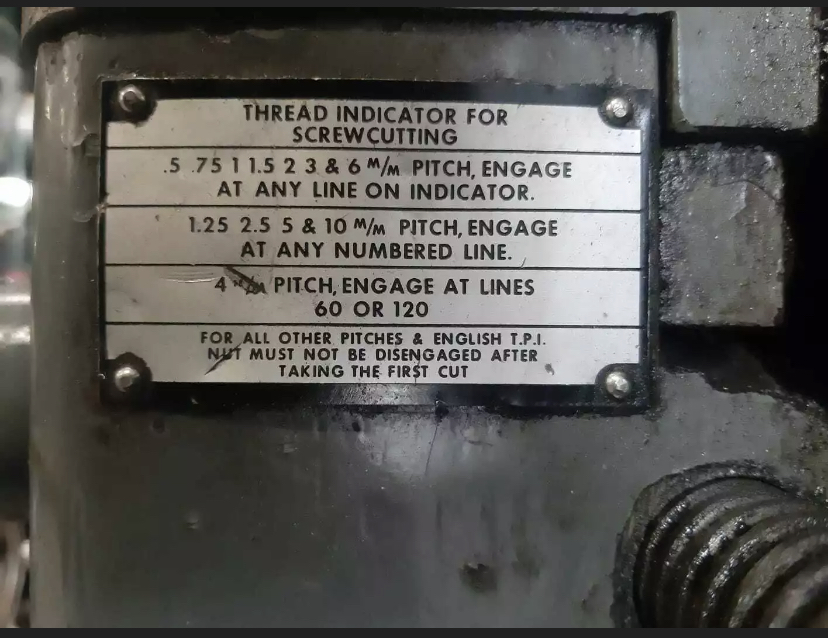

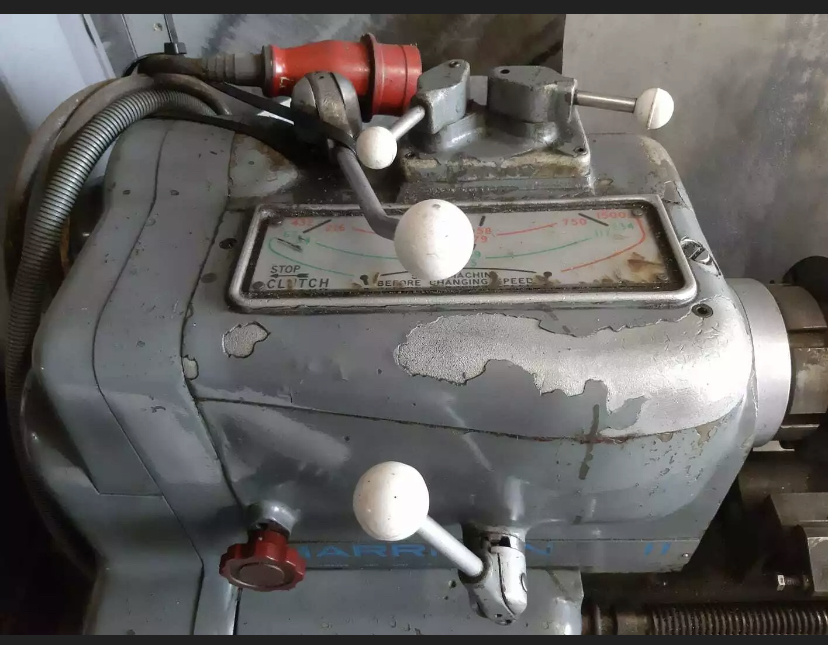

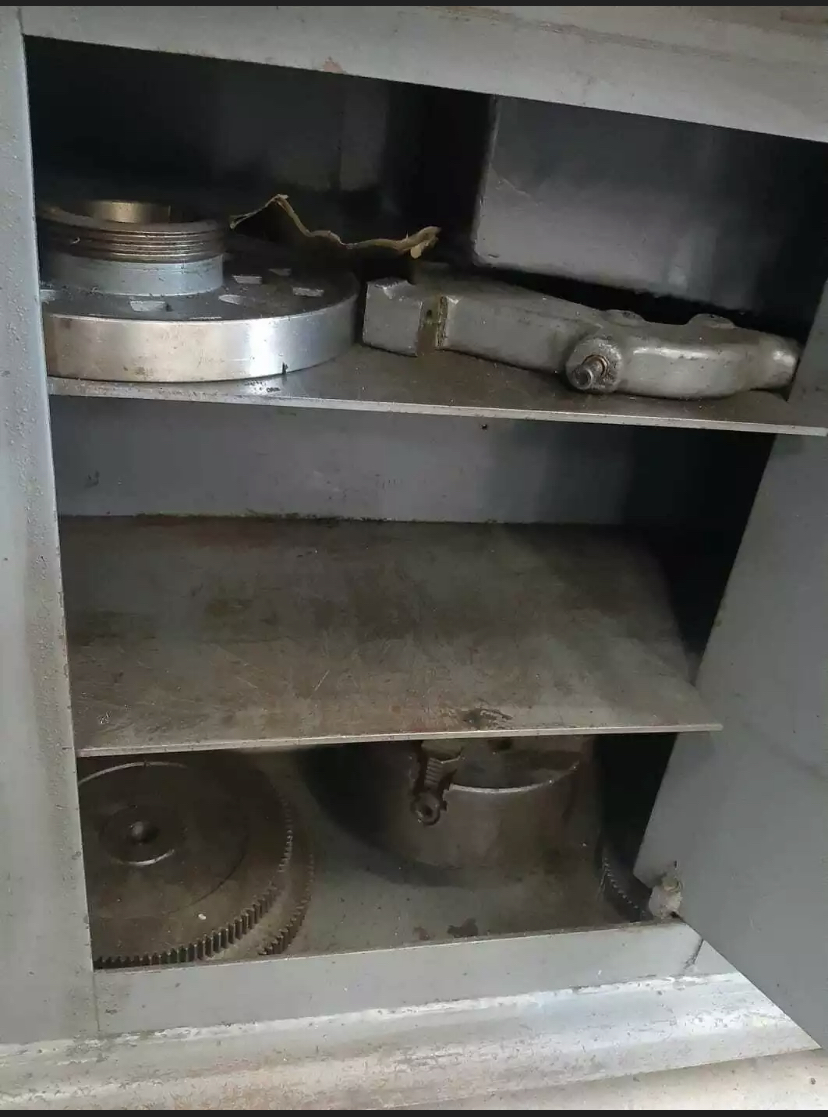

Few more pics



[NickMc]

The speed range goes up to 2000 for the high speed the motor switch has 4 positions 2 forward 2 reverse

Thanks John I’ve been watching your videos on yours - watched the DRO series, but the last video (No4) in the series is missing?!



[roofman]

s

Few more pics

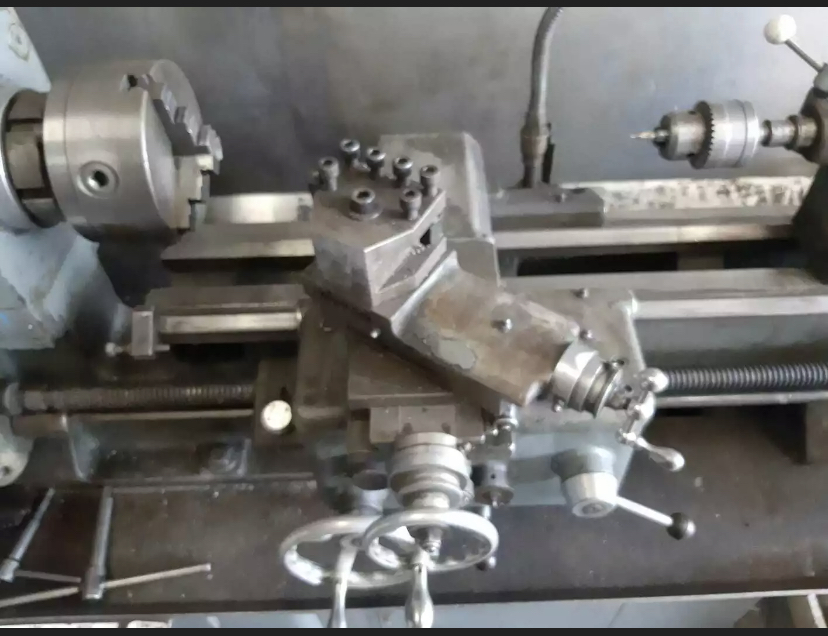

View attachment 242533 View attachment 242534 View attachment 242535 View attachment 242536 View attachment 242537 View attachment 242538 View attachment 242539

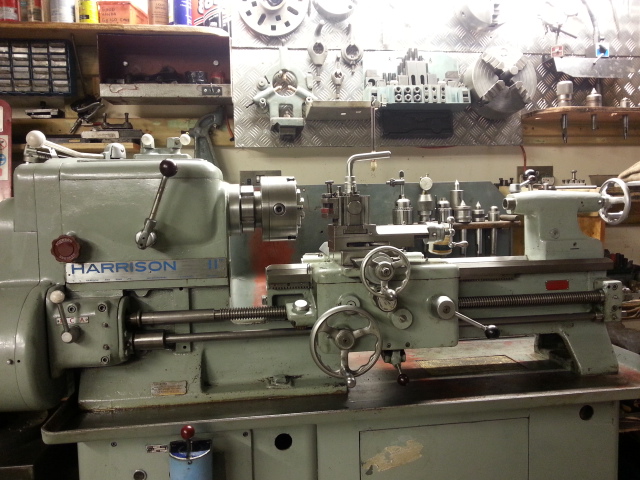

seems identical to mine without the gearbox



[NickMc]

Very nice! are these the run outs before the 140 Was introduced I wonder?


Where are you guys picking up
tooling? The local market here is closed because of CV, eBay and the like?
