Help offered cheap lathe but....

[paradipiro]

@paradipiro have you seen this site he seems to have loads of spares but never answers my messages I guess google translate didnt work too well

E3N Eszterga Szervíz, Gép és Szerszám kereskedés - G-Portál

Ooooo yes.. rhis is the site, that you never open the owner is mostly not awailable, and if you reach him, he will give you a price, what you can buy two machine from... A cross slide screw for example around 500£..



[dieselsamurai]

Ooooo yes.. rhis is the site, that you never open the owner is mostly not awailable, and if you reach him, he will give you a price, what you can buy two machine from... A cross slide screw for example around 500£..

Ah ok cheers , it the sort of site where if you need to ask a price you cant afford it ! I really could do with a 160mm back plate as I have a lovely 4 jaw that size, the one with the lathe is 200mm and its just too big sometimes



[fizzy]

I've never heard someone say he actually replied.

He has to me a couple of times.



[dieselsamurai]

He has to me a couple of times.

I might try again with a few more photos i think he likes detail



[Agroshield]

I really could do with a 160mm back plate

Please remind me what the spindle nose is. I think it is an A-taper. We could then look at the possibility of adapting a much more common D-taper backplate.

If you do know what it is, it is worth giving Rotagrip a call about sources for one. Worst they will say is they cannot help.



[dieselsamurai]

Please remind me what the spindle nose is. I think it is an A-taper. We could then look at the possibility of adapting a much more common D-taper backplate.

If you do know what it is, it is worth giving Rotagrip a call about sources for one. Worst they will say is they cannot help.

Its called ISO short taper with bayonet fitting or DIN 55027

Lathe chuck backplate 200mm DIN 55027 & 55022, size 4 (SEMI-MACHINED)*, ISO702-3 | eBay

Find many great new & used options and get the best deals for Lathe chuck backplate 200mm DIN 55027 & 55022, size 4 (SEMI-MACHINED)*, ISO702-3 at the best online prices at eBay! Free delivery for many products.

www.ebay.co.uk

the nose fitting dimensions are exactly the same as D1-4 camlock but the camlock studs are on a different PCD

Lathe Spindle Fittings Page 3

How the lathe works. Names of lathe parts. Screwcutting. Generating changewheel charts. countershafts. backgears. tumble reverse. Stuck chucks. Quick-change toolposts. Fitting a chuck Spindle nose fittings, backplates, Oiling

www.lathes.co.uk

Would just be a case of drilling and tapping for the bayonet studs



[Agroshield]

9 page preview of ISO 702-3 here:

https://cdn.standards.iteh.ai/samples/4905/d58f4f39b7324f229b56229b1efe80b9/ISO-702-3-1975.pdf

Backplates here from Germany:

DIN 55027

Stahl - Flansche für Drehfutter und Planscheiben. Spindelseitig Kurzkegelaufnahme nach DIN 55027 (alte DIN 55022) mit Stehbolzen und Bundmutter

www.shop.santool.de

Hoffmann Group have Rohm ones in their UK shop, but expensive.



[dieselsamurai]

9 page preview of ISO 702-3 here:

https://cdn.standards.iteh.ai/samples/4905/d58f4f39b7324f229b56229b1efe80b9/ISO-702-3-1975.pdf

Backplates here from Germany:

DIN 55027

Stahl - Flansche für Drehfutter und Planscheiben. Spindelseitig Kurzkegelaufnahme nach DIN 55027 (alte DIN 55022) mit Stehbolzen und Bundmutter

www.shop.santool.de

Hoffmann Group have Rohm ones in their UK shop, but expensive.

Yeah thats the problem they are very pricey , I can buy a 160mm D1-4 for about £110 or less secondhand

I'll have to make the studs as the cheapest I can find are £40 a set plus shipping



[paradipiro]

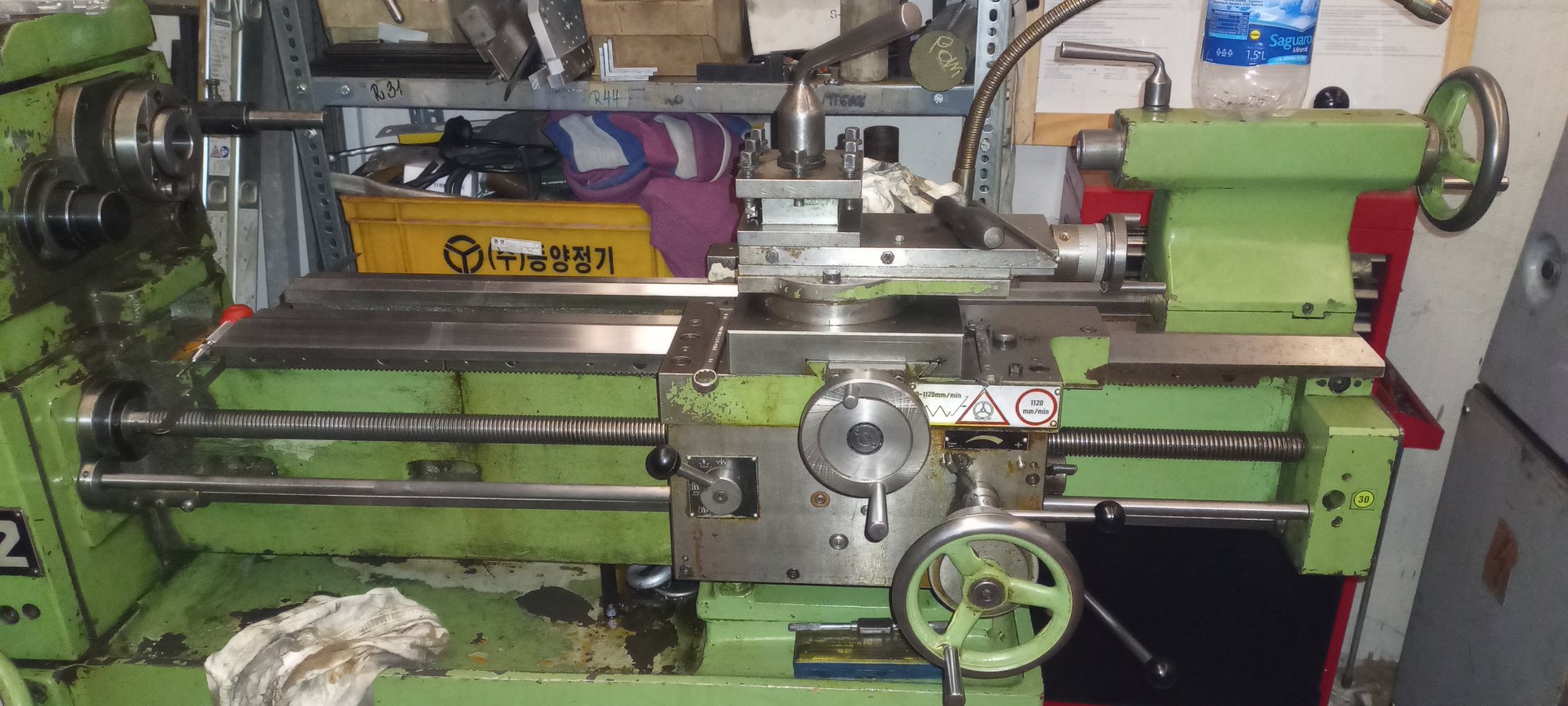

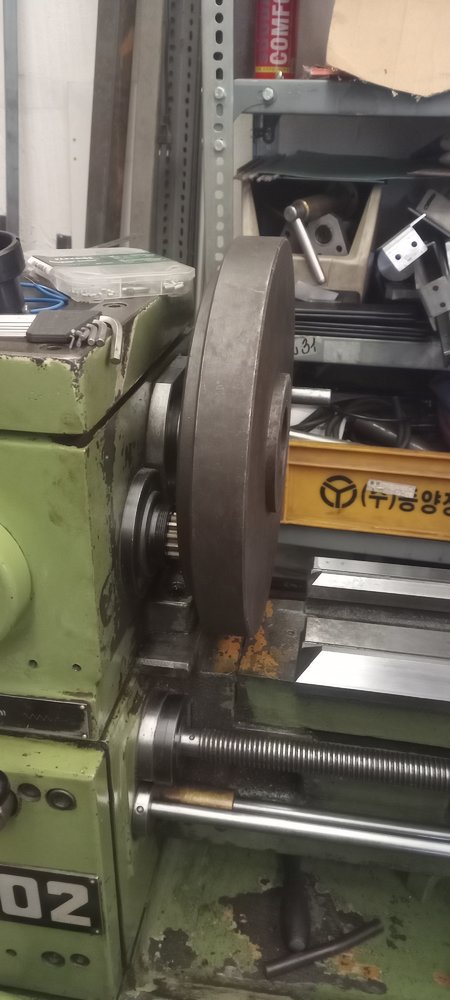

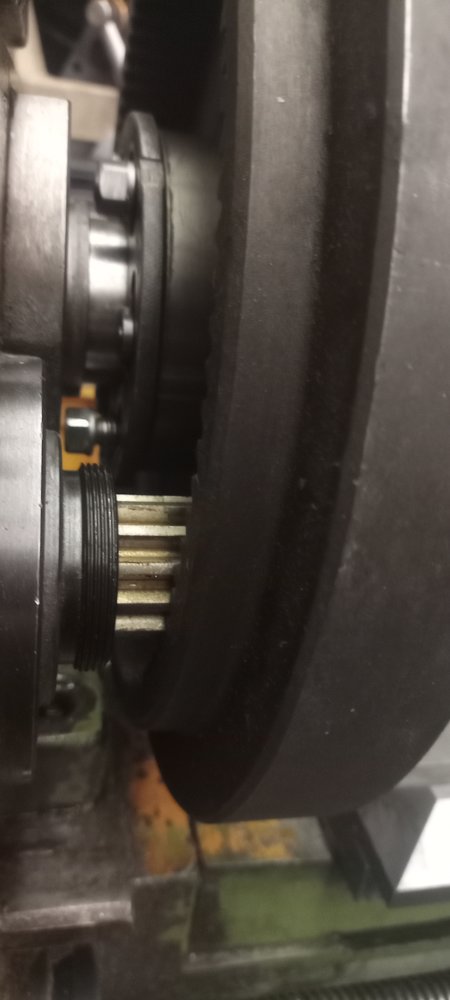

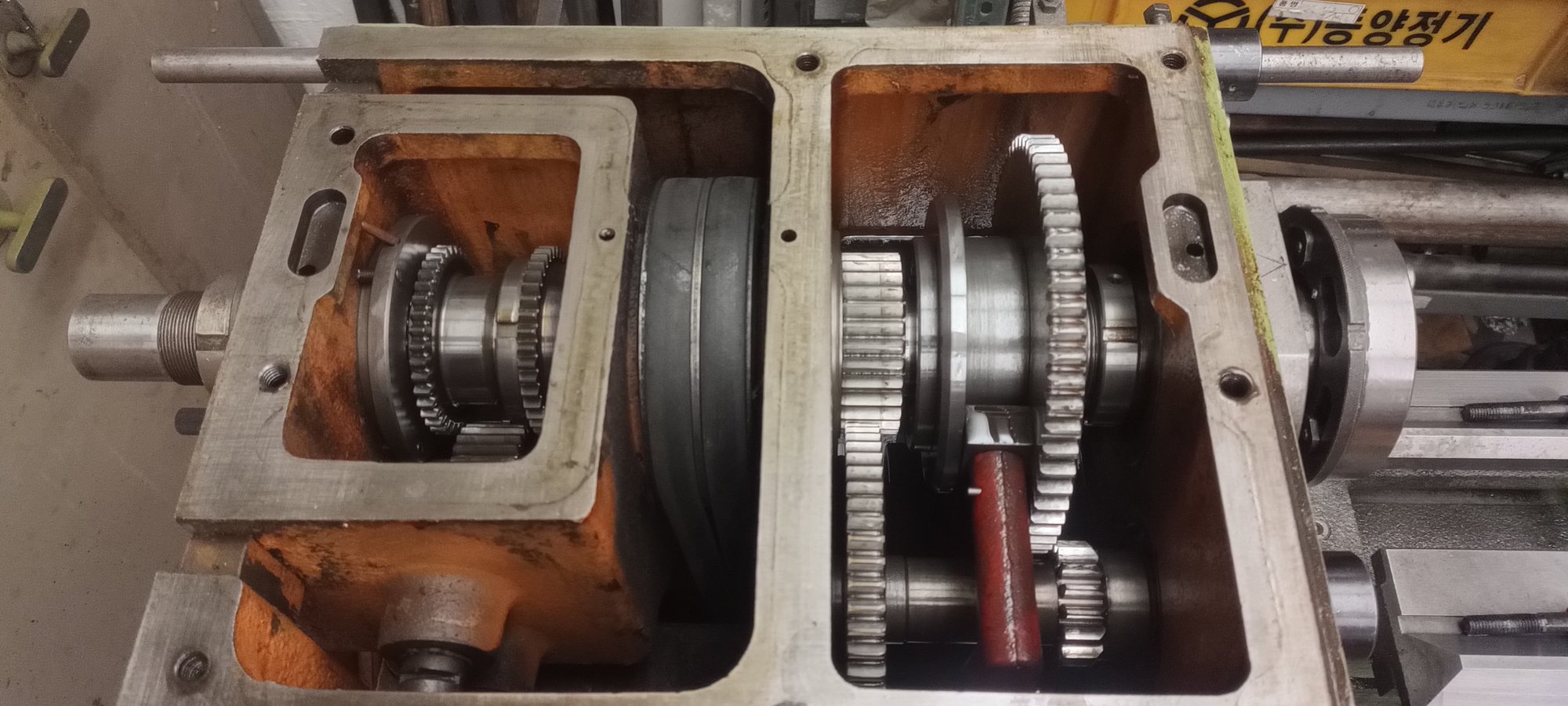

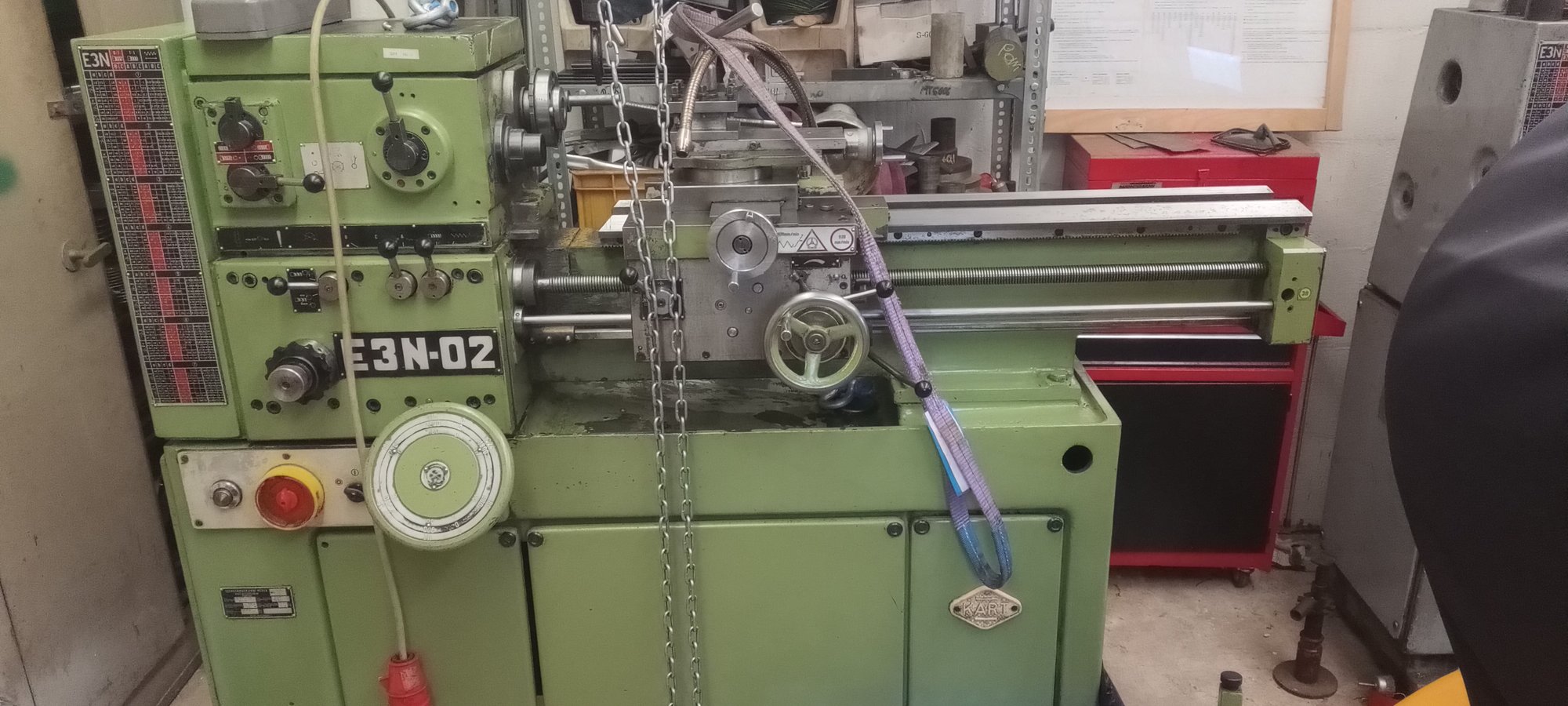

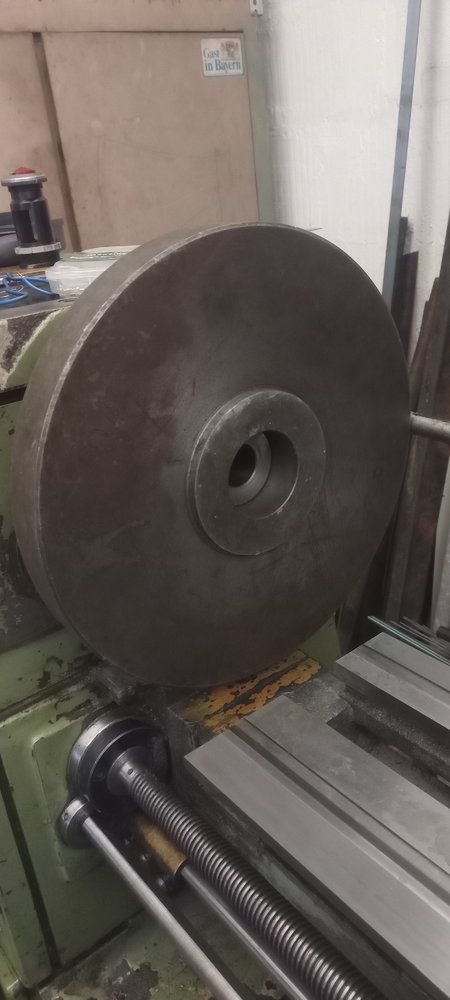

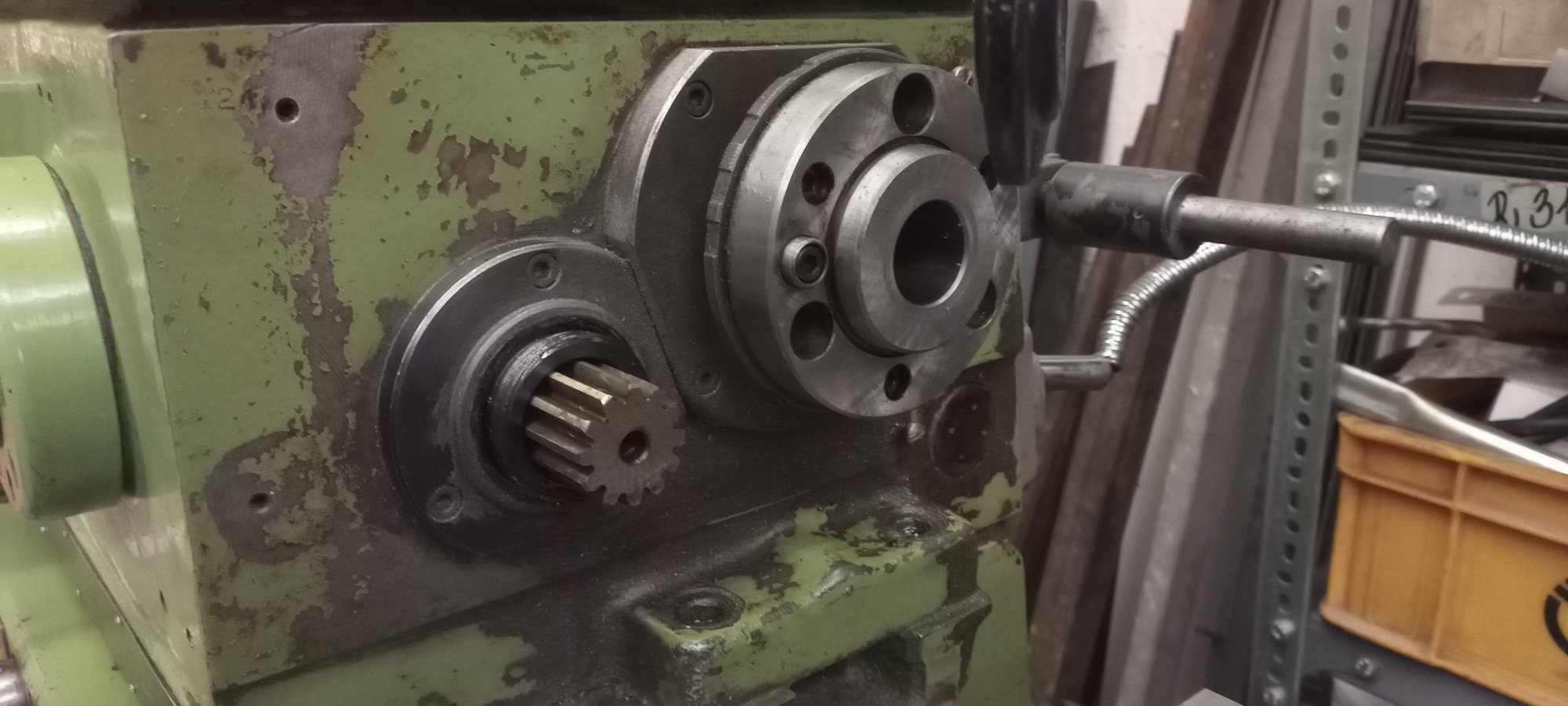

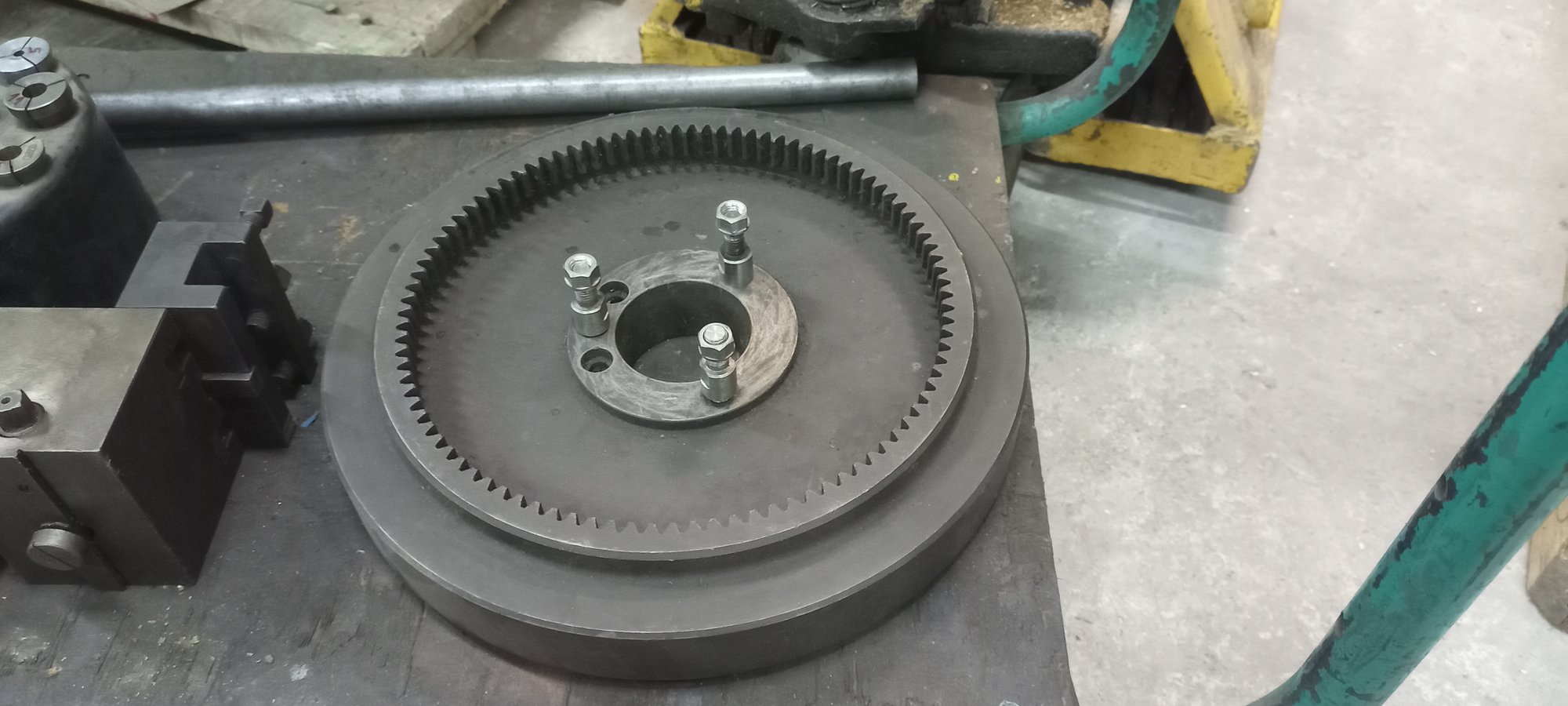

Just to warm up this topic. Recently I was able to buy the "military" edition E3N-02 variant. Really happy with that, and also able to get the special flathead, with the internal gear!



[dieselsamurai]

Very nice , looks almost unused ! it has some interesting differences to mine maybe its a later one

If you are able to source parts It would be very interesting to know !



[paradipiro]

Very nice , looks almost unused ! it has some interesting differences to mine maybe its a later one

If you are able to source parts It would be very interesting to know !

Yes, it seemst to be barely used. I measured 0,02mm sag in the longitudal slide. The cross slide has rhe original scraping on the ends, while in the middle is faded a bit.
It has no taper attaxhment, nor the T slot on the back of the bed, to mantle it sadly. Beside of this, all the "normal" attachments seems to be compatible with it.
