In a short break from making pepper mills, I'm making something that required drilling a (self-cut) pen blank. I've done this with normal jaws in the past (and that's worked okay), but Axminster do some rather expensive chuck jaws that dedicated to the job: https://www.axminstertools.com/axminster-woodturning-chucks-pen-jaws-103670

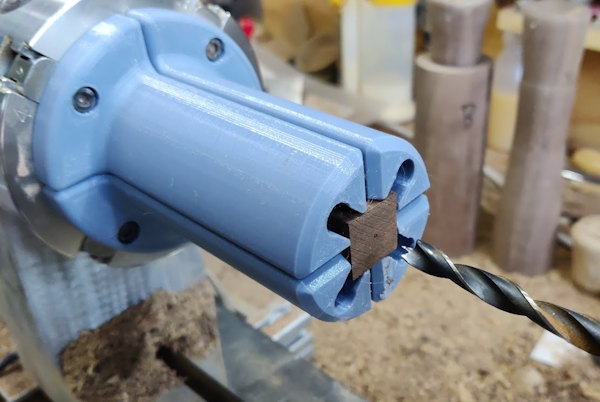

Jaws holding a blank for drilling aren't working very hard, so I thought a 3D-printed version would be ideal (and a heck of a lot cheaper!)

View attachment 488225

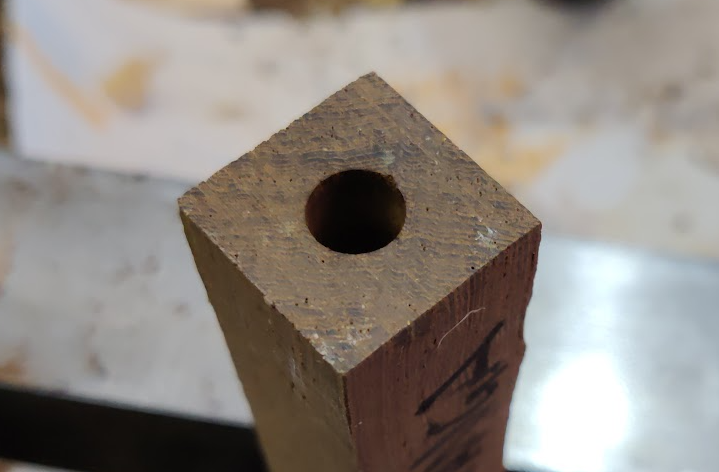

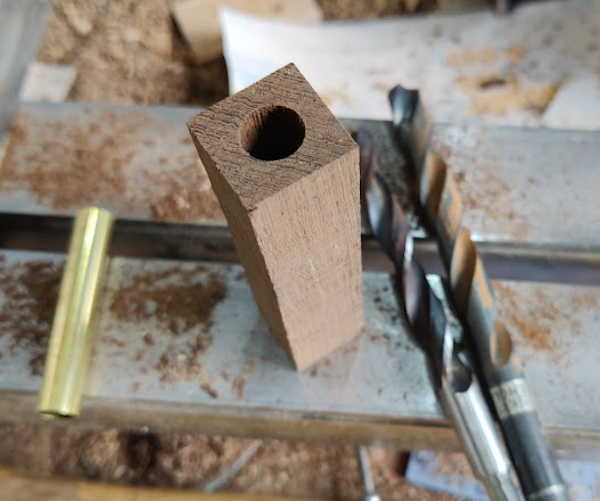

The "exit wound" from the drill was central enough for me:

View attachment 488226

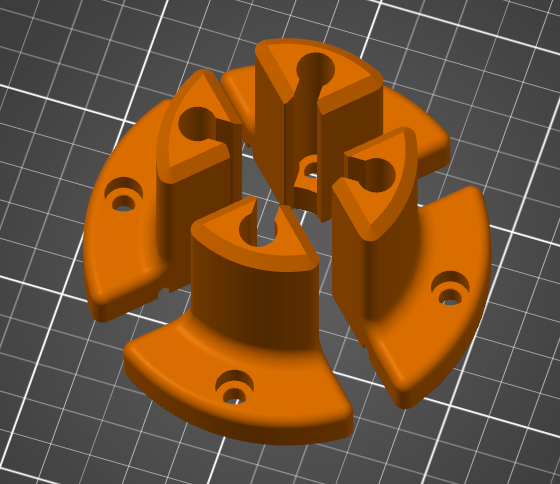

The printer's currently printing a newer version with slightly shorter jaws (the outer end of the current ones is a bit too bendy to be doing any good) and with more gap between the jaws so they can close up on shorter stock:

View attachment 488227

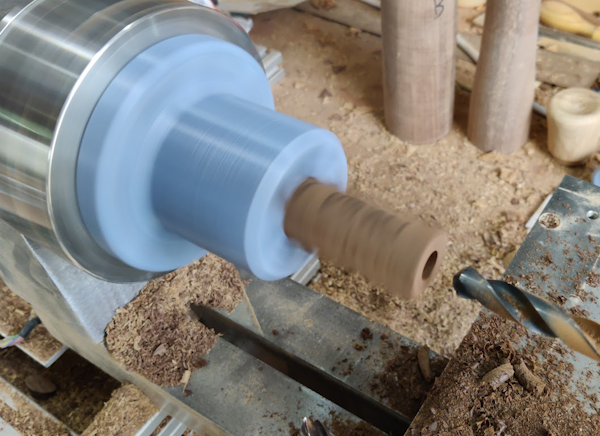

The new jaws work well; action shot:

You can see the extra clearance between the jaws here (holding the same size blank):

The "exit wound" is nice and central again:



[Onoff]

Btw @Onoff, thanks for the advice/opinion regarding their gear. Appreciated.

Quality wise the first Anycubic printer's prints were nigh on as good as the Bambu X1C if it was dialled in properly, bed levelled etc. Of course there was that faff factor & it was miles slower.



[My Old Landy]

I've got to wait until July for the delivery of my Elegoo Centuri Carbon. I ordered within the first 24 hours but that was too slow! Still, the P1S does a great job and the new one is for a specific task so happy to wait as it was only £300



[MattF]

I've got to wait until July for the delivery of my Elegoo Centuri Carbon. I ordered within the first 24 hours but that was too slow! Still, the P1S does a great job and the new one is for a specific task so happy to wait as it was only £300

That's a nice looking machine.



[Onoff]

the new one is for a specific task

What's that then?



[My Old Landy]

What's that then?

I have spotted a gap in the market and will dedicate it to producing them until folk catch on and undercut me



[Onoff]

I have spotted a gap in the market and will dedicate it to producing them until folk catch on and undercut me

So it's a gap filling device then?



[My Old Landy]

So it's a gap filling device then?

Certainly is and if I manage to make £300 profit it will have filled the gap in my bank balance!



[MattF]

I have spotted a gap in the market and will dedicate it to producing them until folk catch on and undercut me

That machine most suited to the task, or merely an excuse to buy a new toy?



[My Old Landy]

That machine most suited to the task, or merely an excuse to buy a new toy?

Just an excuse, I didn't need much convincing



[MattF]

Top man. You do us proud.



[My Old Landy]

Top man. You do us proud.

Trying to redeem myself after the diesel heater failure



[My Old Landy]

I designed a box, slightly different to my usual style. I specifically wanted a cutout in the sides.

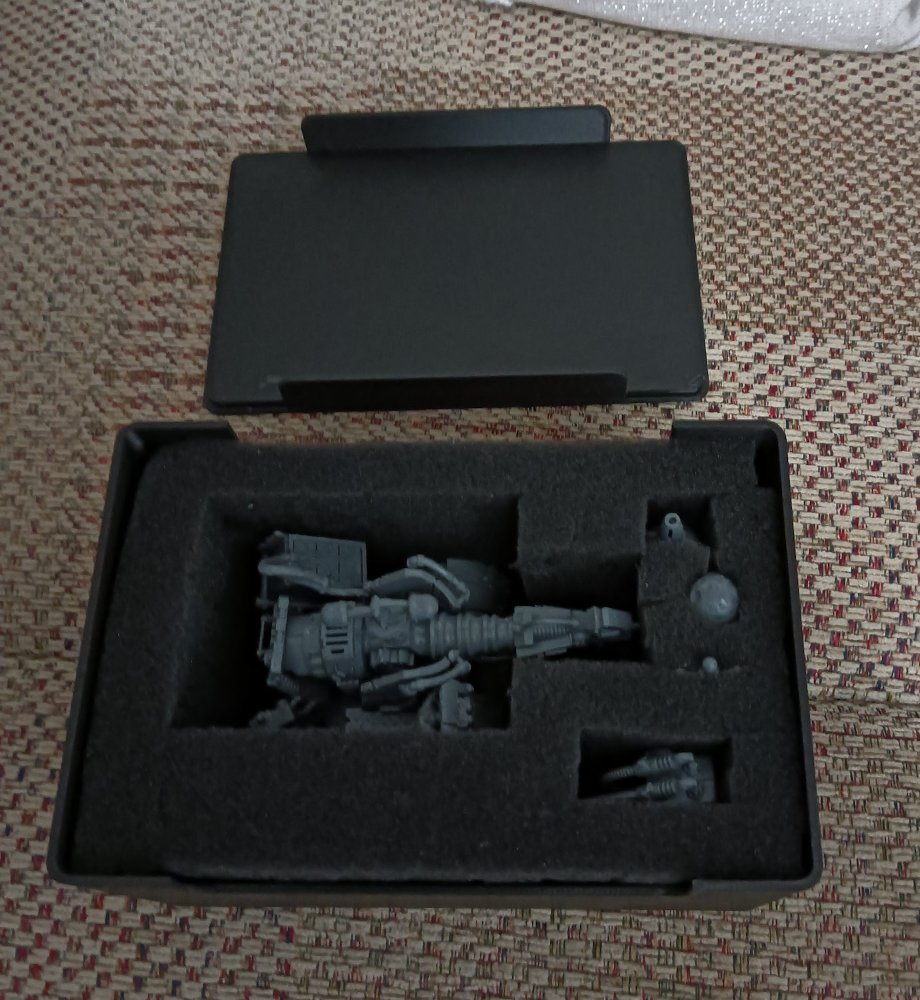

It's to hold a model that has interchangeable parts.



[Bki26]

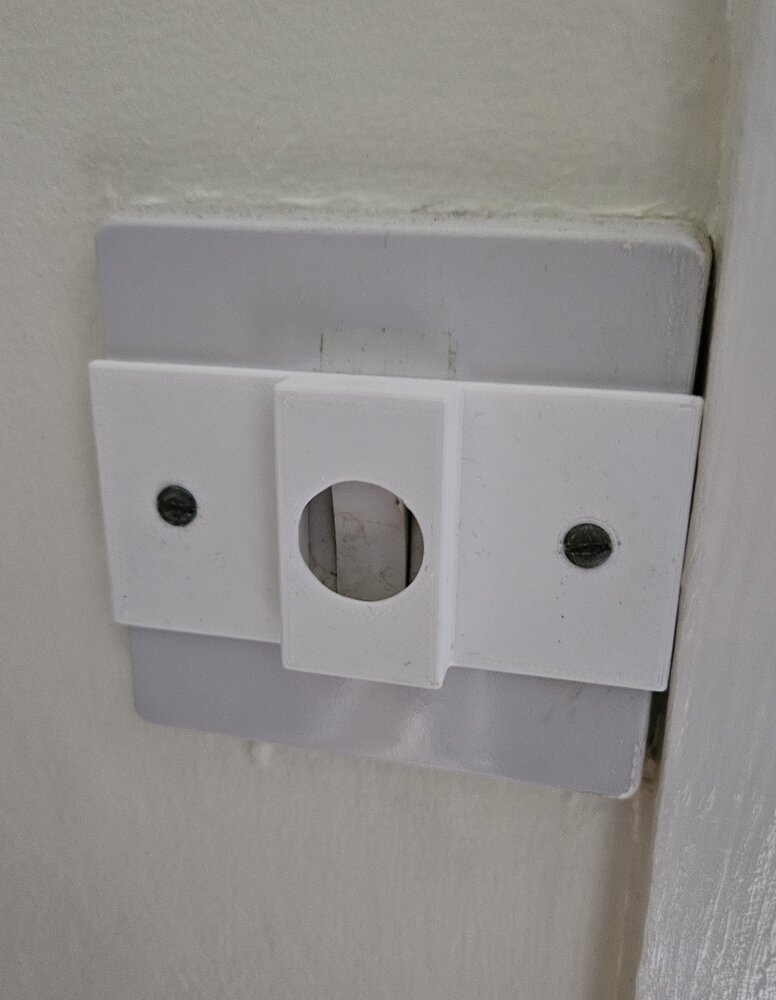

25m later and a perfect support interface later the taped switch is no more!



[Dev]

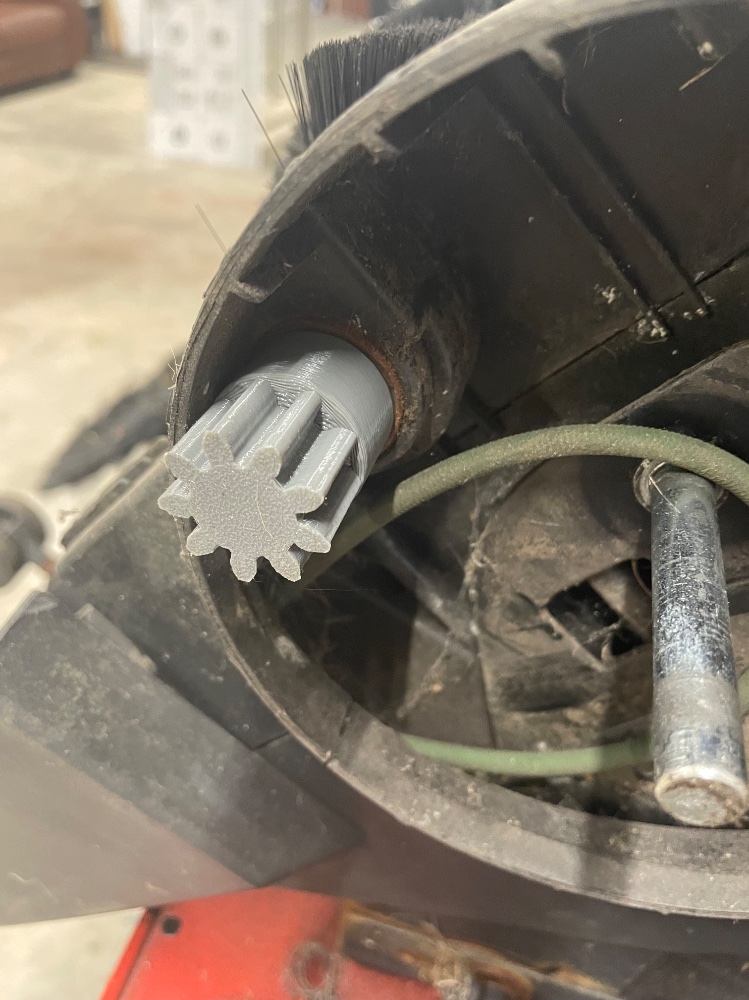

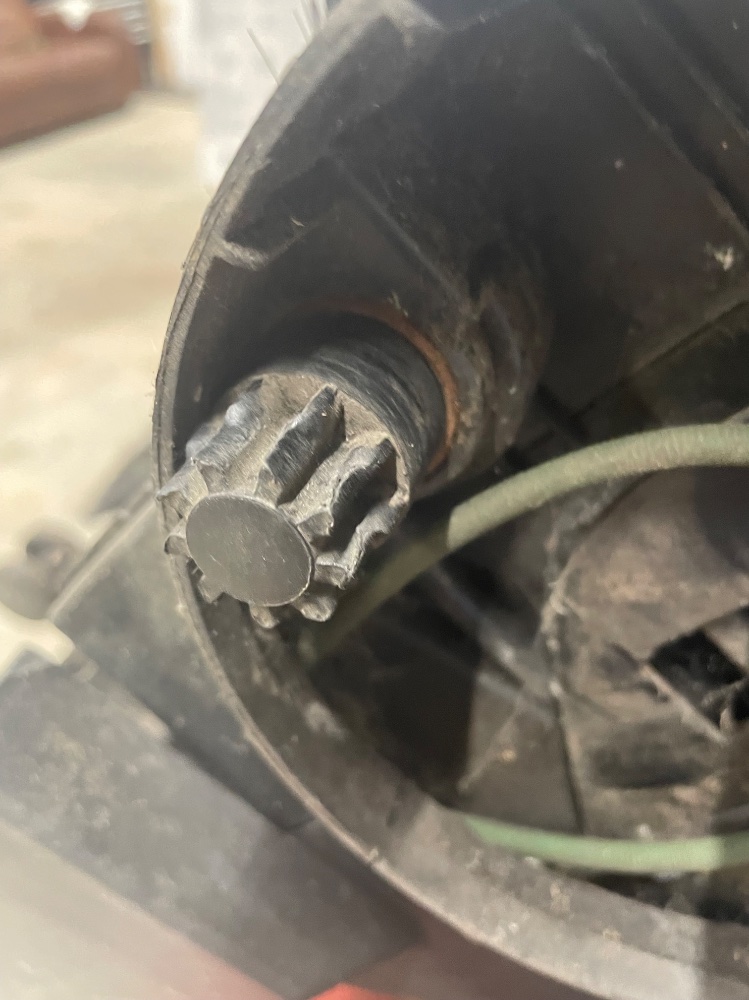

Parkside sweeper - some spares are available but suspiciously not the spur gear that drives the brush from the wheels.

No idea how long it’ll last but that’s what these tests are for.



[DAPPH]

Parkside sweeper - some spares are available but suspiciously not the spur gear that drives the brush from the wheels.

No idea how long it’ll last but that’s what these tests are for.

View attachment 488615View attachment 488617

What material & density did you use? What 3D drawing set up?



[Agroshield]

No idea how long it’ll last but that’s what these tests are for.

It will last longer if you put proper fillets at the tooth roots - the largest that will not clash with the mating gear. You can model the swept path of a tooth from that gear and fill in any gaps.

The root detail of most gears is dictated by the normally-subtractive machining process: you need space for the cutter to enter. With an additive item, that clearance is not required and can be used to increase the strength of the printed gear.

Unfortunately most 3D modelling s/w is still set up with traditional manufacturing in mind. You, the designer, are smarter than that s/w and can overcome its limitations by thinking. It is common sense - design the item for the manufacuring process used to produce it. The fundamental issue is that a good design is material- and process-specific. What works for a cut gear in metal is not the right solution for an extruded item in plastic.



[Dev]

There’s a root fillet of 1mm - the involute spur gear calculator I used said it had to be 1.5mm or less for that module of gear

So far so good (once I realised I had to mirror the file for the other side)
