MysterG
Member
- Messages
- 1,298
- Location
- Wiltshire, UK
Like something from under the bed in Toy Story.That's just a bit creepy, imo.
The_Yellow_Ardvark
https://www.death-clock.org/
- Messages
- 20,244
- Location
- Going Away.
I was board.
I had a few coffees.
I hatched a plan.
So after a learning curve on this Frankenstein hammer.
It was lonely
So I made him a sister.
Meet Phyllis.

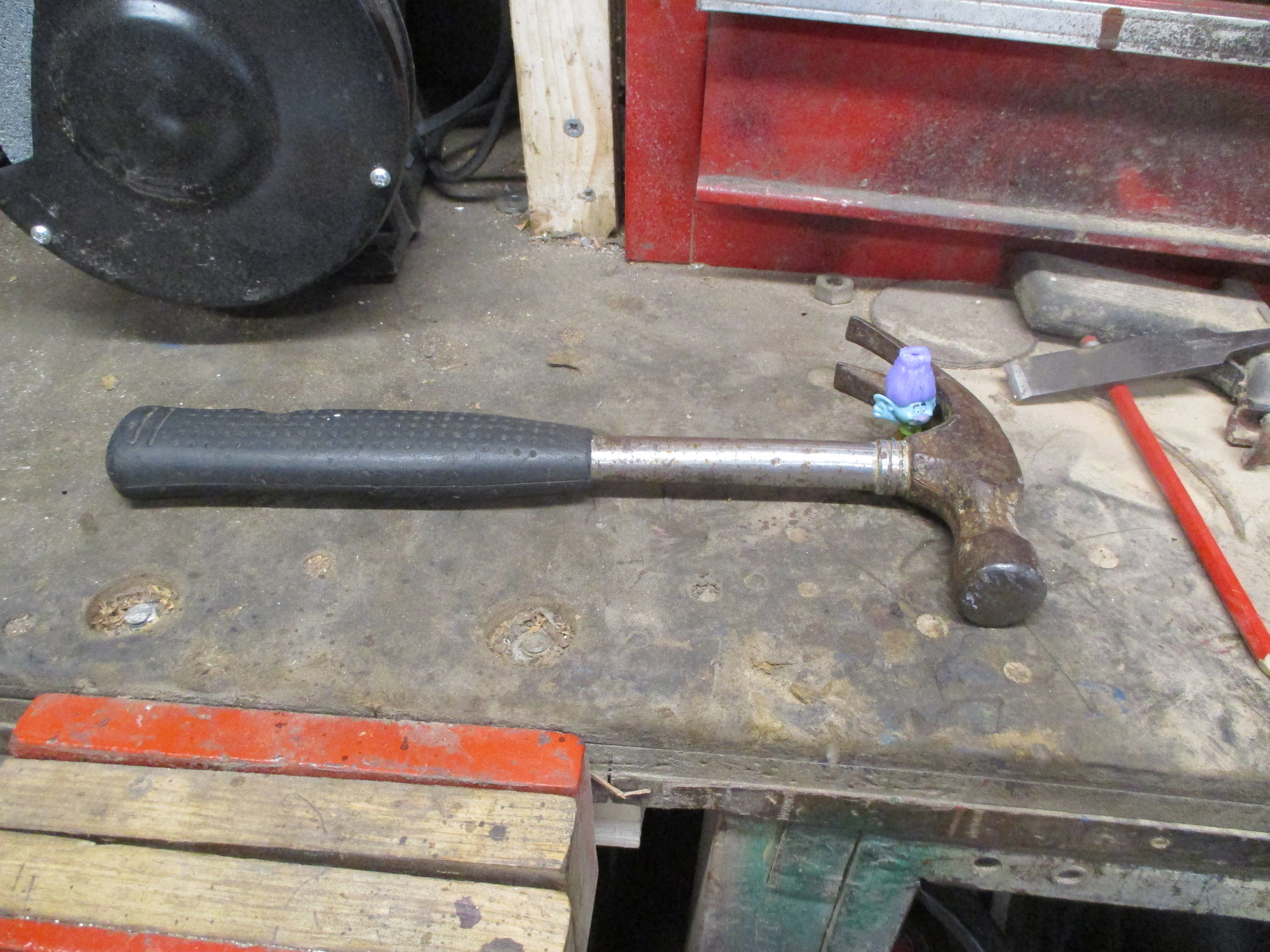

This is how I got it.
The rubber grip was hard and splitting.
The Nail claws were also bent.
Rubber grip removed, you can see the Nail claws out of line.
But when I was melting some alloy, I got the metal warm. Then it was a simple job of bending back in to line.

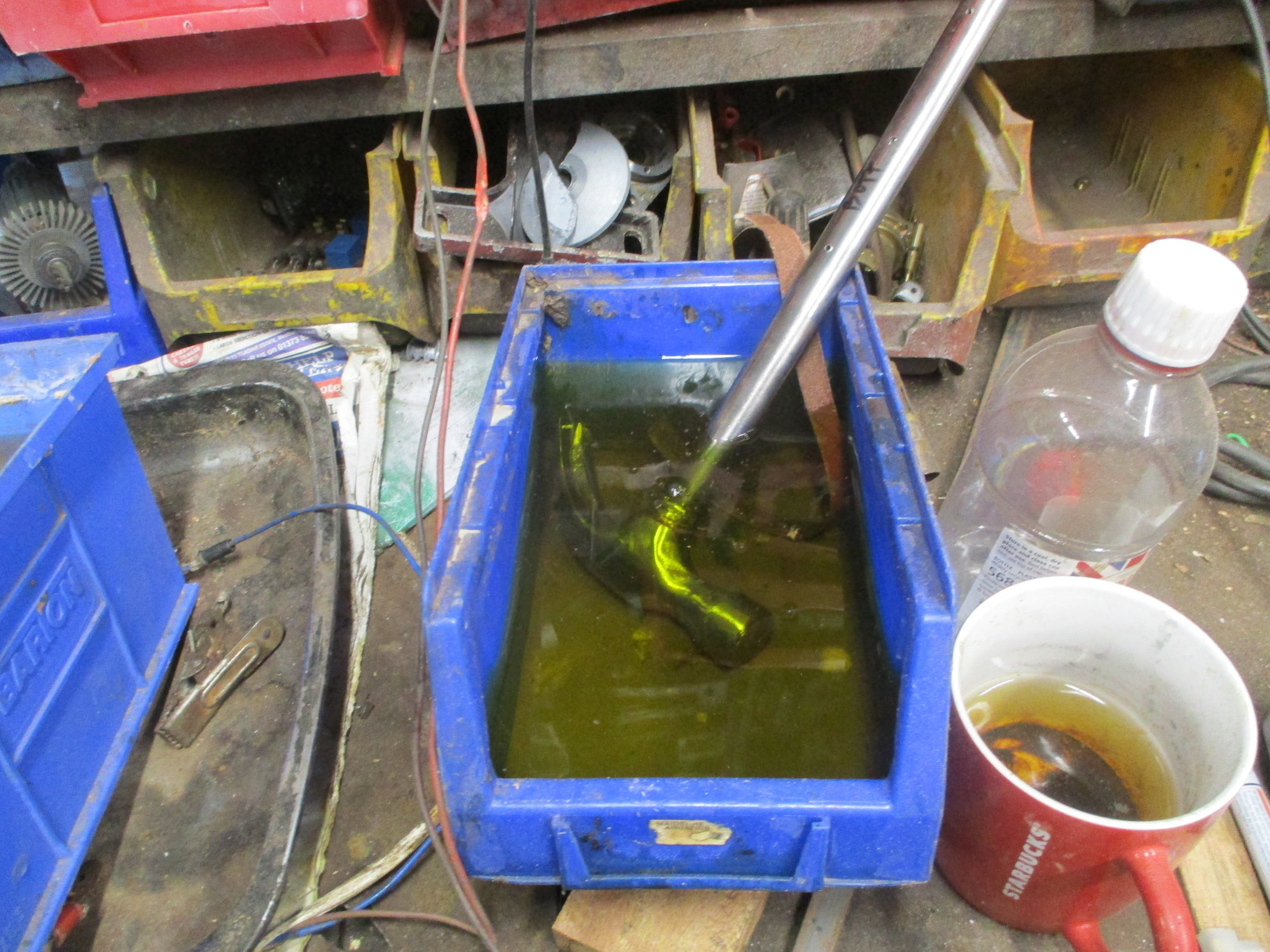

Into a Cooper sulphate mix.
This was an experiment to see if this mix would be a success this time.

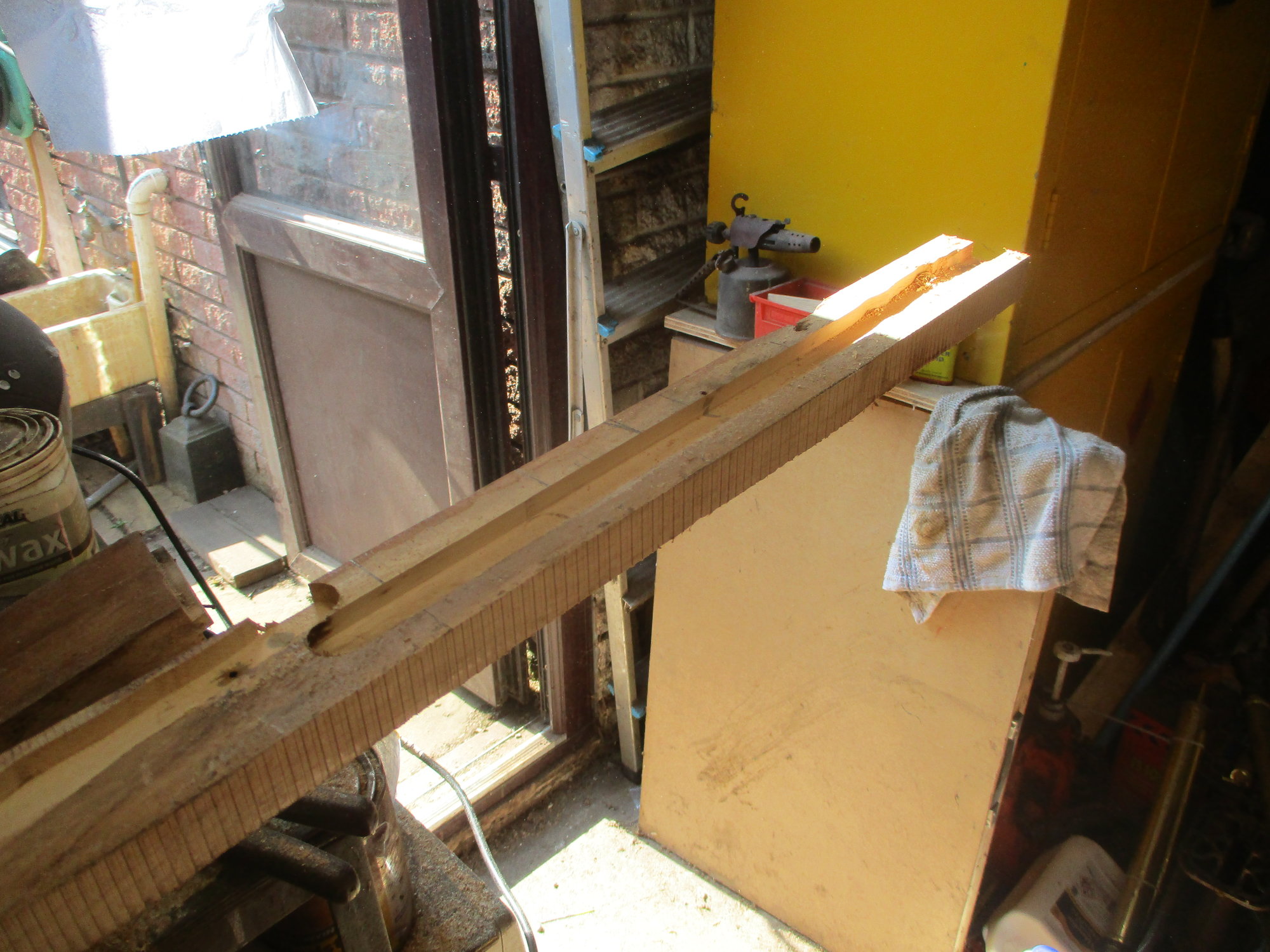

Hard wood with a router cut to hold the shaft.
I know that if you flatten the main shaft from oval to flat will remove 99.9% of it's strength and it will fail.

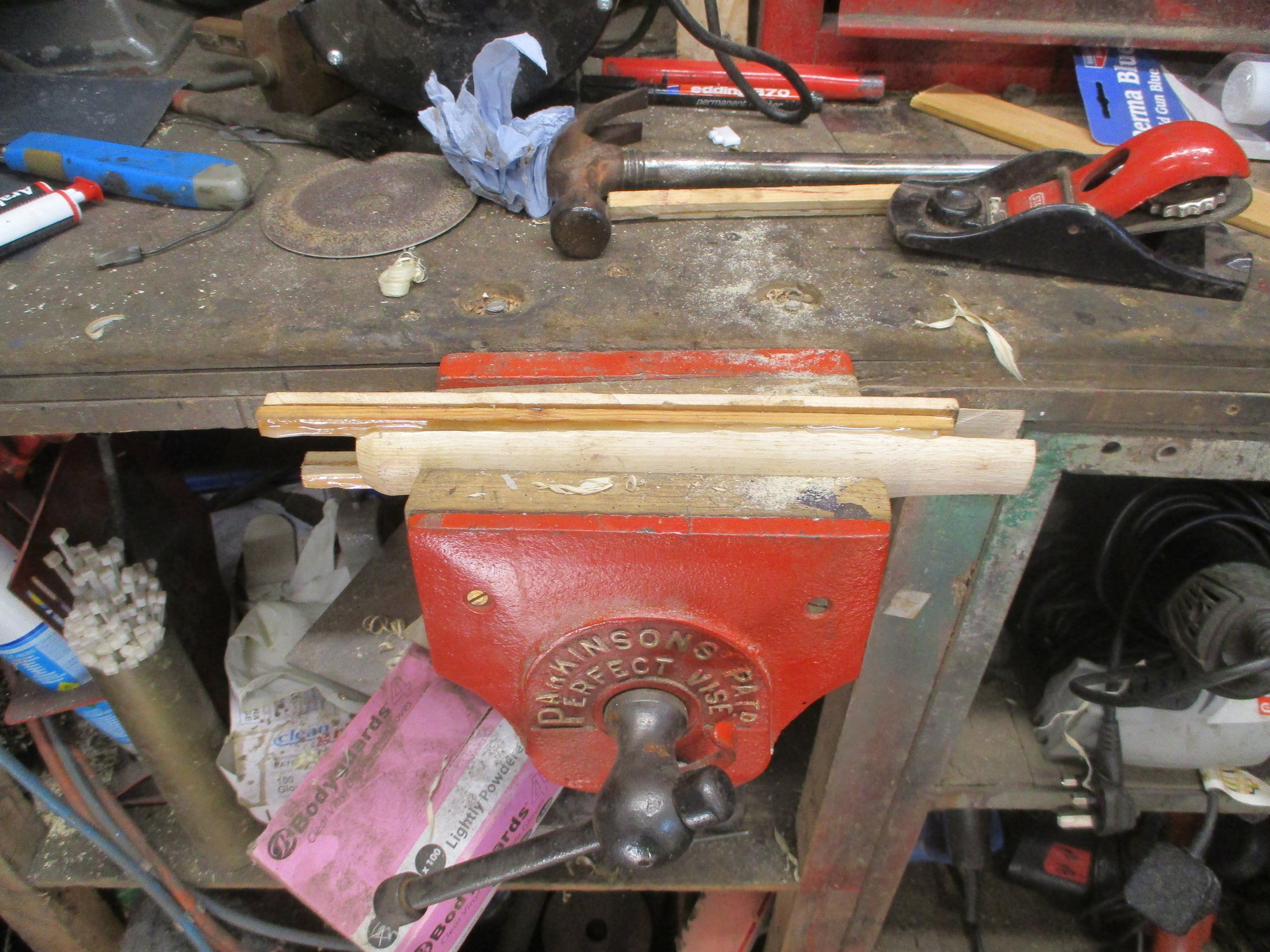

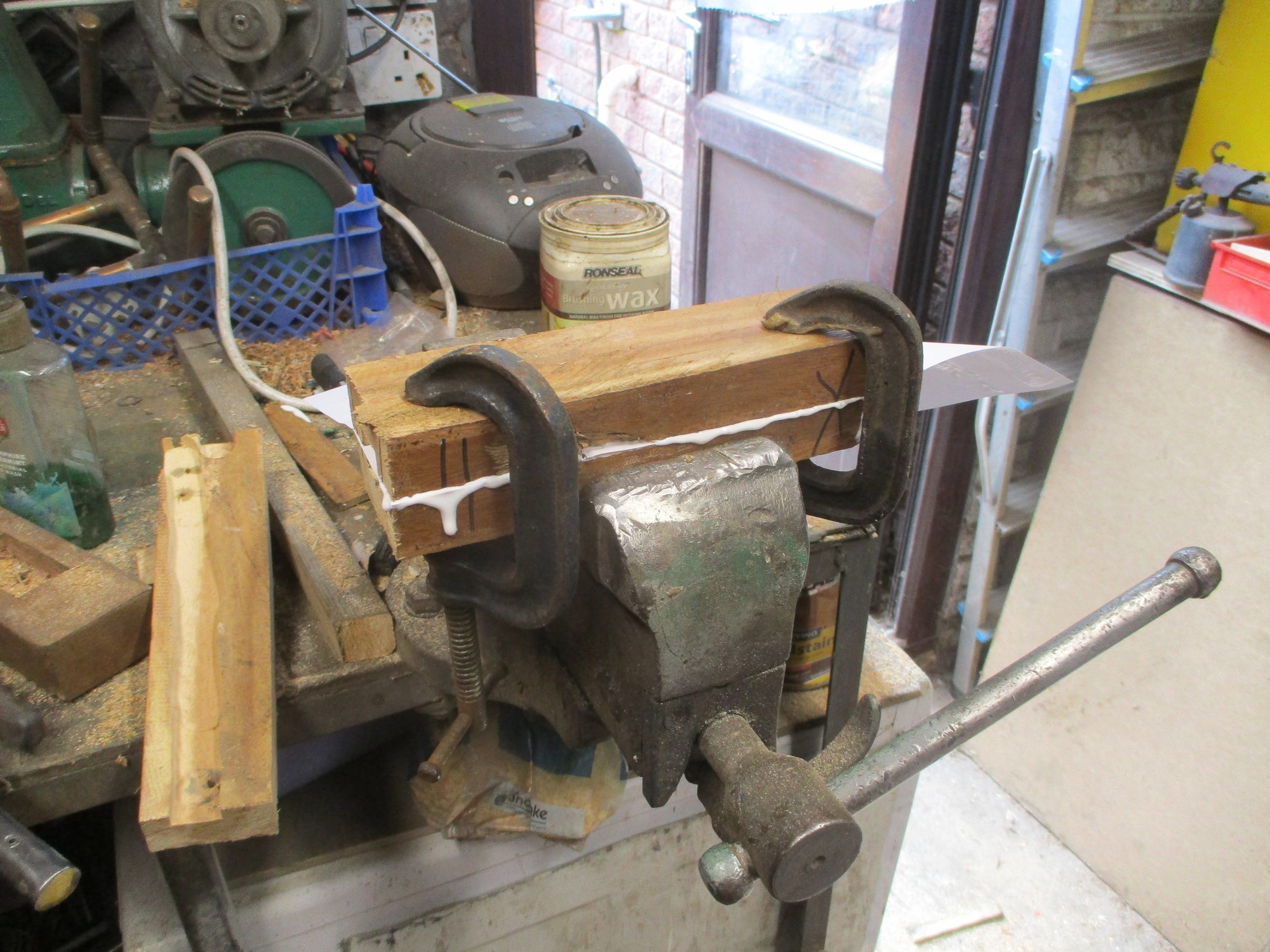

Clamped up.
Yes that is paper between the joints. I need to separate the joint to add packers if needed.
A mistake.
A third peace was added at the end to pack it out to allow a heel to be turned.

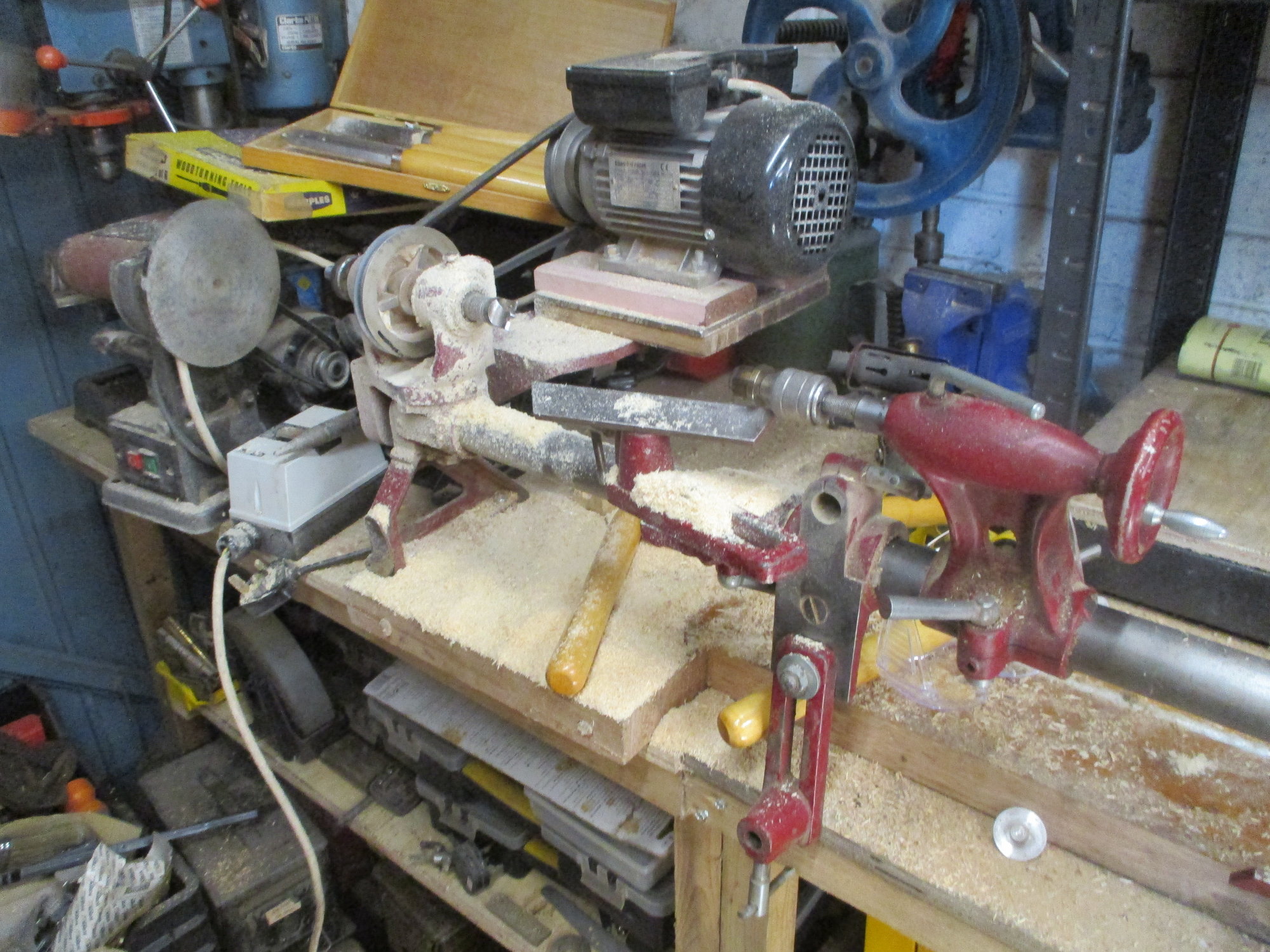

That plan did not being turned on the lathe.
As you can see, it did not stay in place.
Plan B, was hatched.
Turn another block of beech down, split and packed out.
5 minute glue is not what it claims.

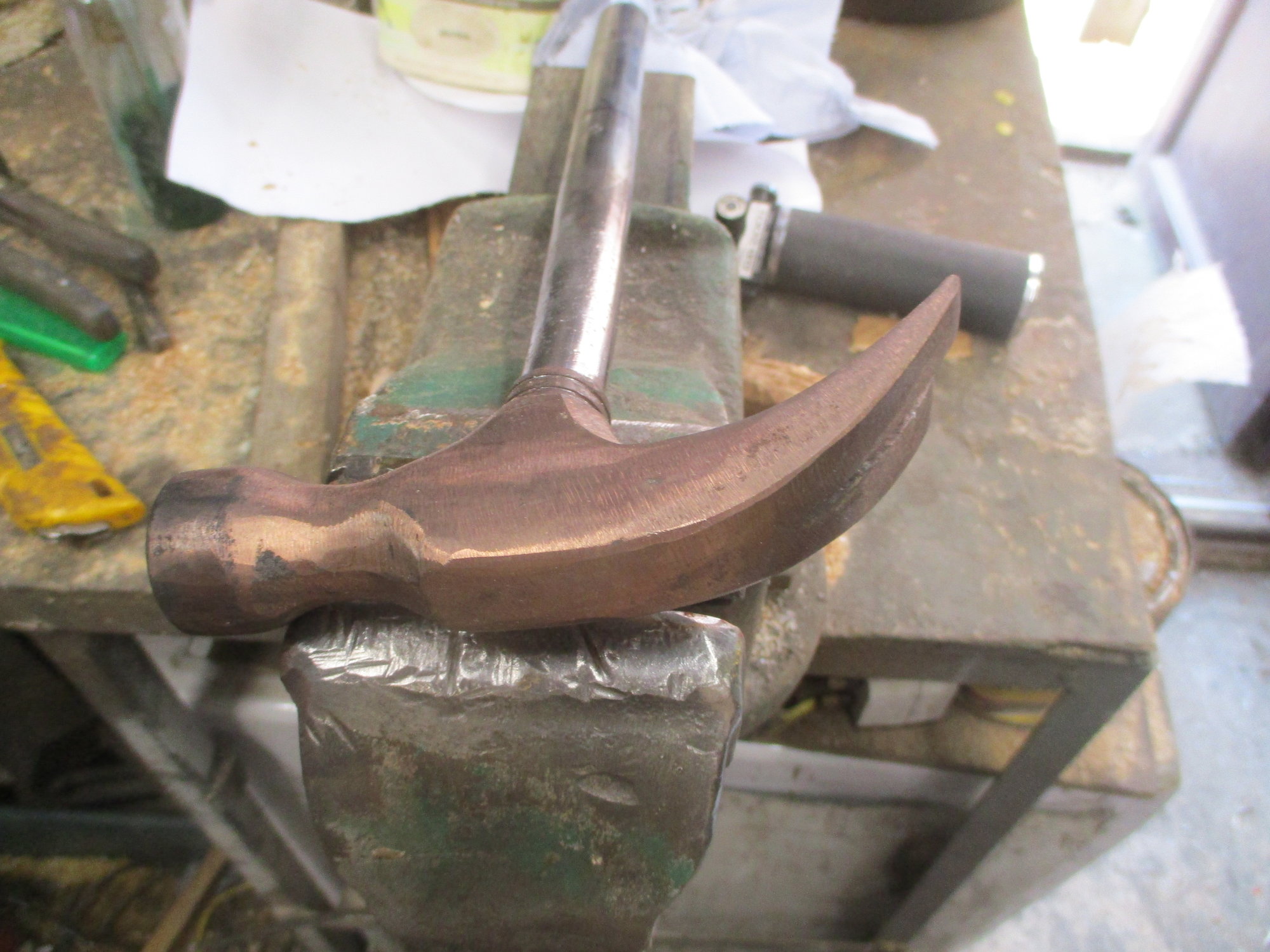

Copper plating did work and is a even coverage.
Now sealed with a rattle can clear coat.
The wooden shaft was fitted.
What is not shown are the 10 pens that were driven through the metal shaft.
As the shaft was fitted the pins will bend and form "Barbs" to grip the wood.

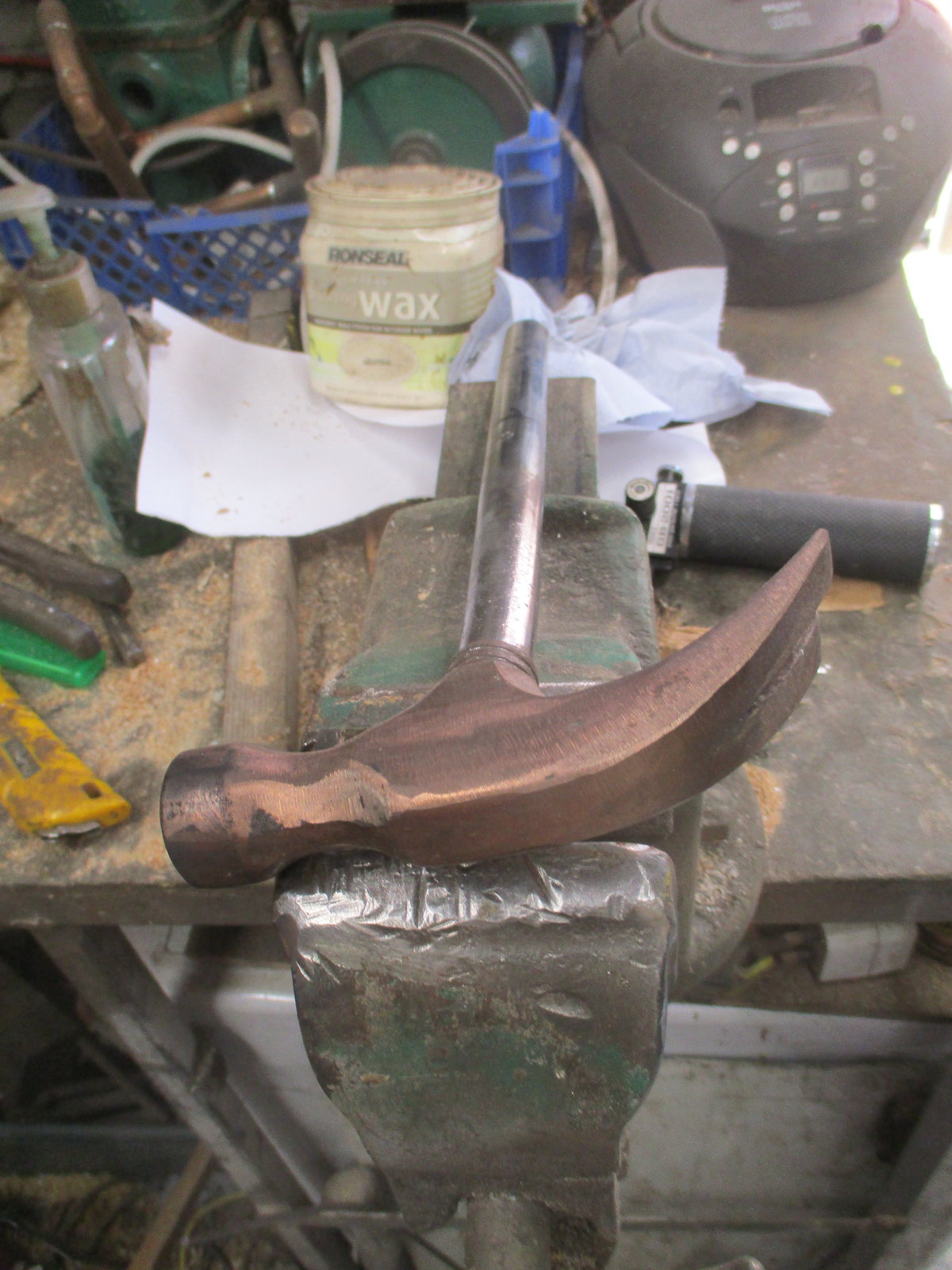

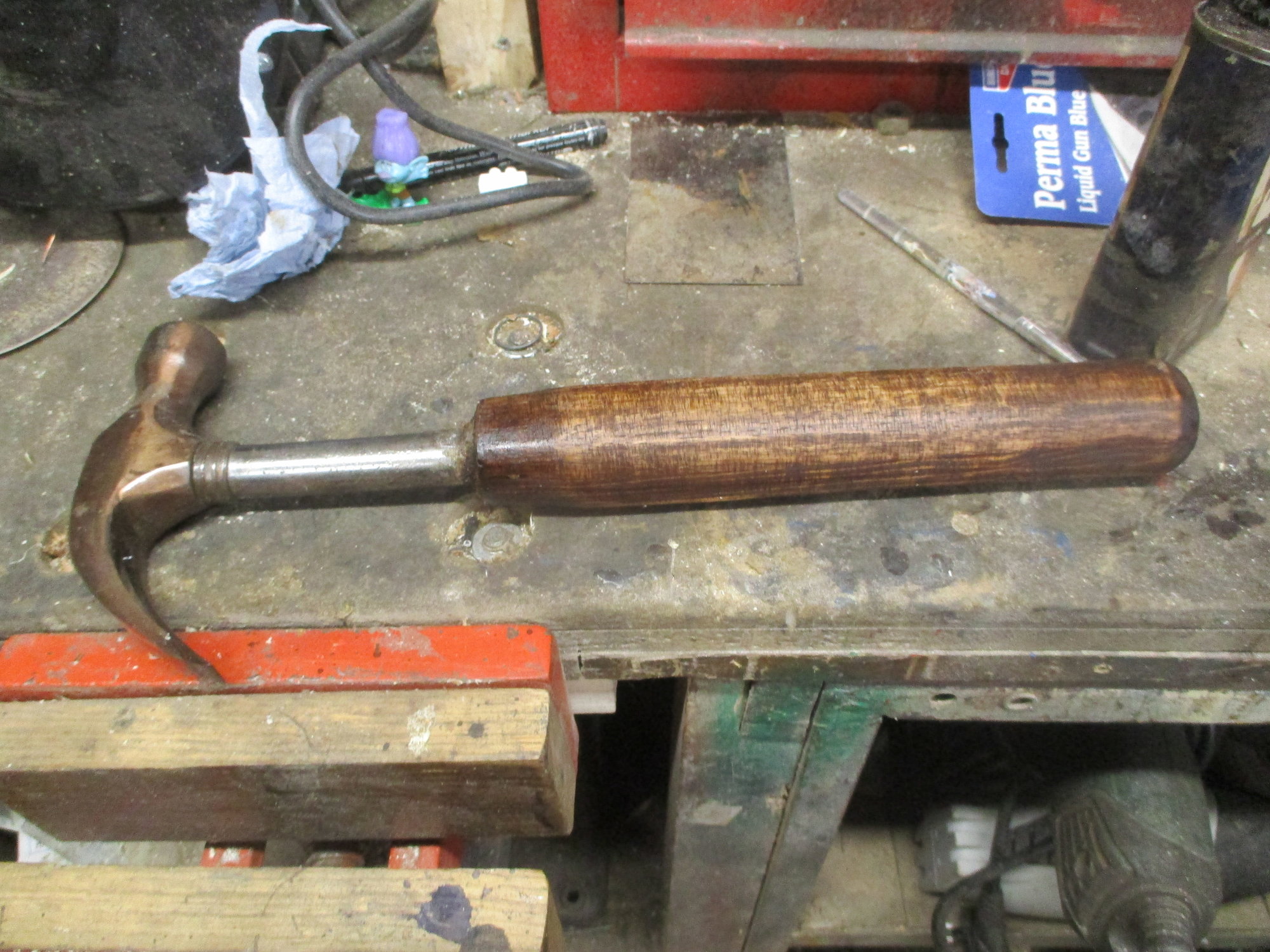

Stained, waxed and now waiting it's use and more wax.
I had a few coffees.
I hatched a plan.
So after a learning curve on this Frankenstein hammer.
It was lonely
So I made him a sister.
Meet Phyllis.
This is how I got it.
The rubber grip was hard and splitting.
The Nail claws were also bent.
Rubber grip removed, you can see the Nail claws out of line.
But when I was melting some alloy, I got the metal warm. Then it was a simple job of bending back in to line.
Into a Cooper sulphate mix.
This was an experiment to see if this mix would be a success this time.
Hard wood with a router cut to hold the shaft.
I know that if you flatten the main shaft from oval to flat will remove 99.9% of it's strength and it will fail.
Clamped up.
Yes that is paper between the joints. I need to separate the joint to add packers if needed.
A mistake.
A third peace was added at the end to pack it out to allow a heel to be turned.
That plan did not being turned on the lathe.
As you can see, it did not stay in place.
Plan B, was hatched.
Turn another block of beech down, split and packed out.
5 minute glue is not what it claims.
Copper plating did work and is a even coverage.
Now sealed with a rattle can clear coat.
The wooden shaft was fitted.
What is not shown are the 10 pens that were driven through the metal shaft.
As the shaft was fitted the pins will bend and form "Barbs" to grip the wood.

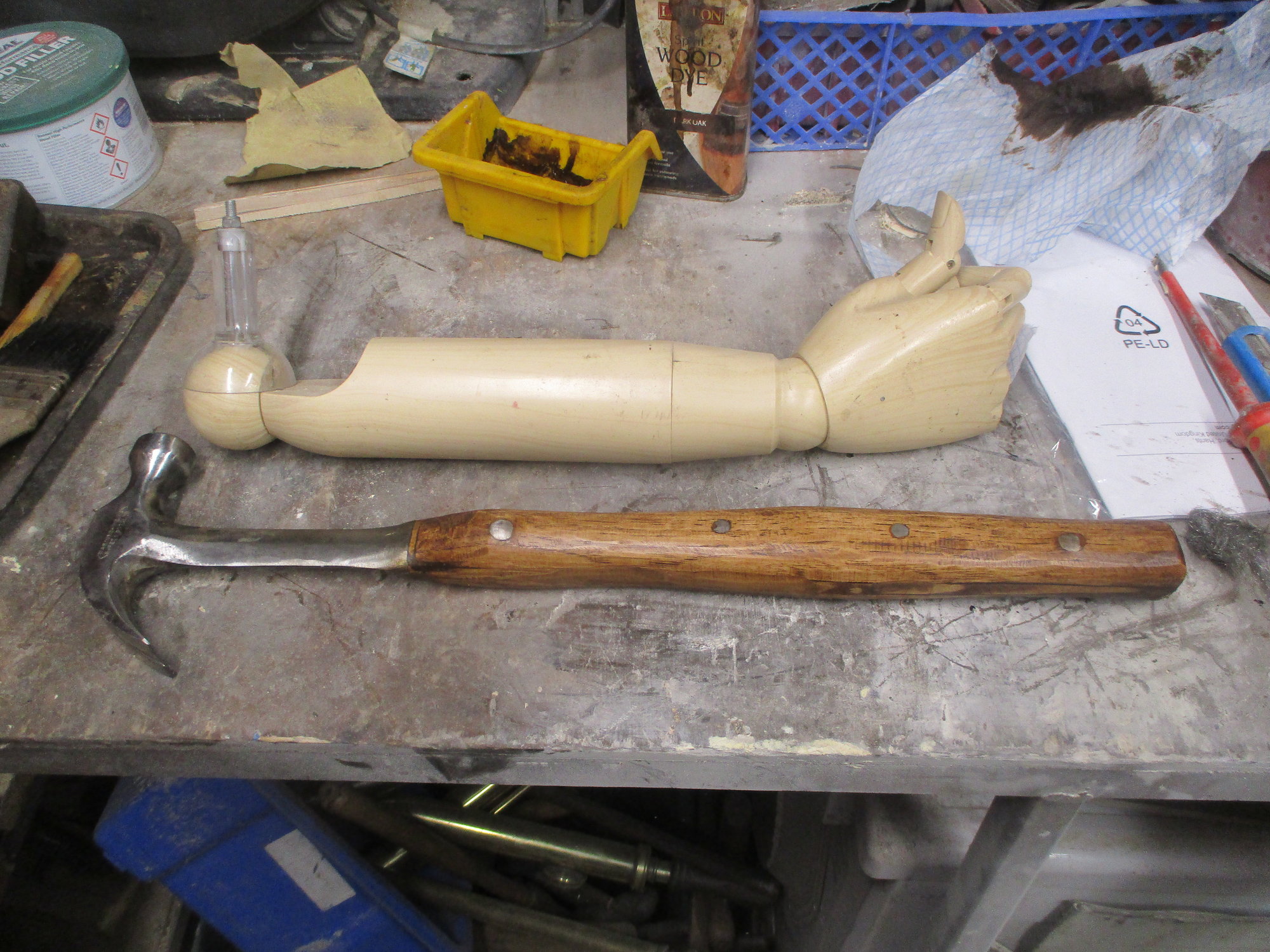

Stained, waxed and now waiting it's use and more wax.
The_Yellow_Ardvark
https://www.death-clock.org/
- Messages
- 20,244
- Location
- Going Away.
chriscase
Member
- Messages
- 88
You gave me an idea , I've got some thin copper tape in the shed so decided to see what it would look like and i think it just finishes nicely , thankyou selectedgrub
varnished over it so hopefully it'll stay looking good , just another five coats of varnish and it'll be ready for use .
qwakers
Member
- Messages
- 2,449
- Location
- cornwall, united kingdom
today it was supposed to be 'stuff i bolted together and worked first time out of the box today'
unfortunately, that didn't go to plan.
so mend modify and overcome!
bought this:
https://www.amazon.co.uk/gp/product/B01NA0LZLT/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1
to park my tyre machine on. as you can see from the pics, the castor mount is about as strong as a sheet of a4 paper.
unsurprisingly it folded as soon as i dropped any weight on it...
so, i remade them to take decent sized castors. i would like to have fitted a pair of self levelling castors, but they are overbudget.
so, casters off a old engine dolly welded on, reinforced and tested...
and painted.
couple of hours work, not bad
unfortunately, that didn't go to plan.
so mend modify and overcome!
bought this:
https://www.amazon.co.uk/gp/product/B01NA0LZLT/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1
to park my tyre machine on. as you can see from the pics, the castor mount is about as strong as a sheet of a4 paper.
unsurprisingly it folded as soon as i dropped any weight on it...
so, i remade them to take decent sized castors. i would like to have fitted a pair of self levelling castors, but they are overbudget.
so, casters off a old engine dolly welded on, reinforced and tested...
and painted.
couple of hours work, not bad
The_Yellow_Ardvark
https://www.death-clock.org/
- Messages
- 20,244
- Location
- Going Away.
A nice simple job.
Blue flames.

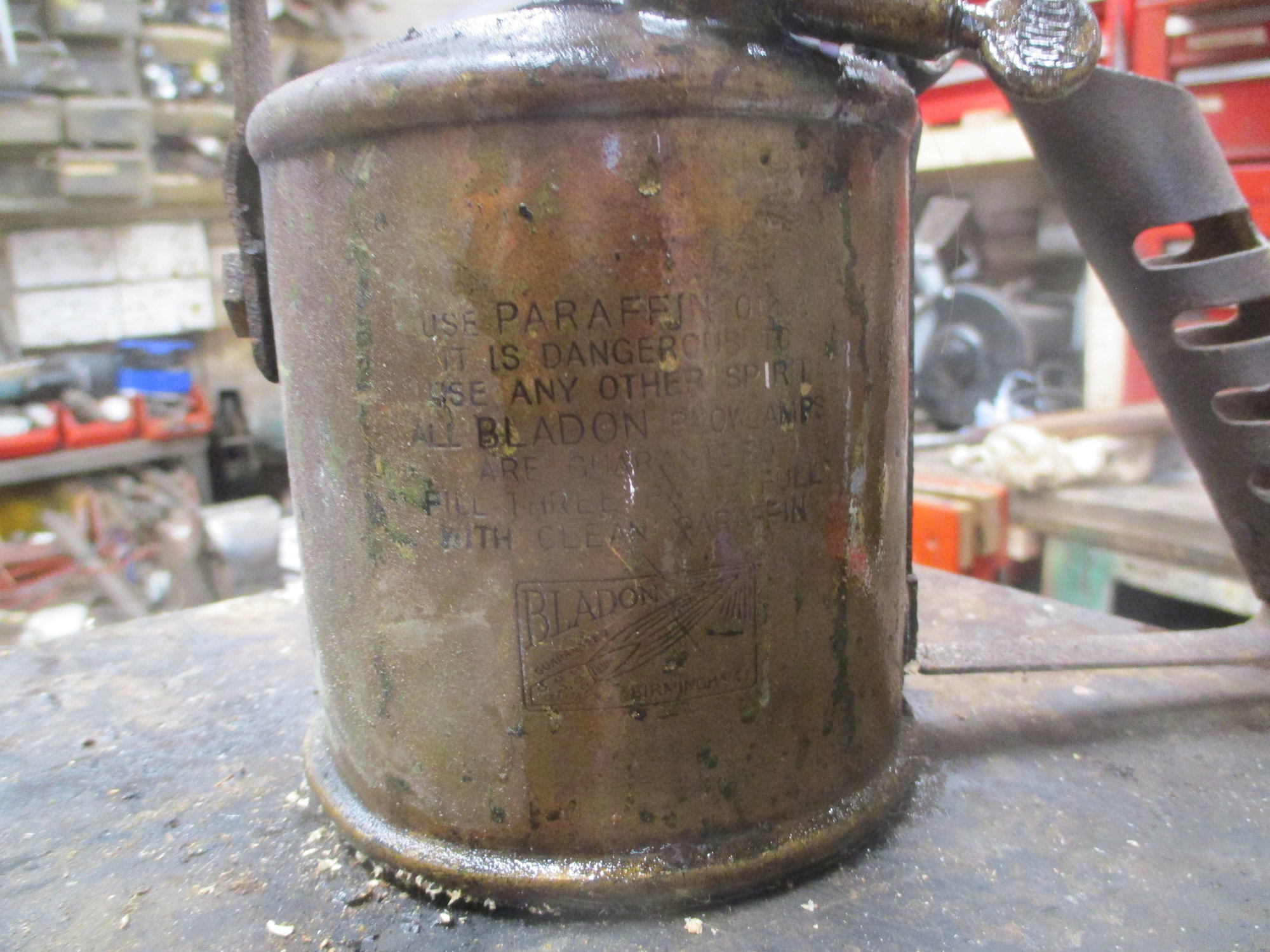

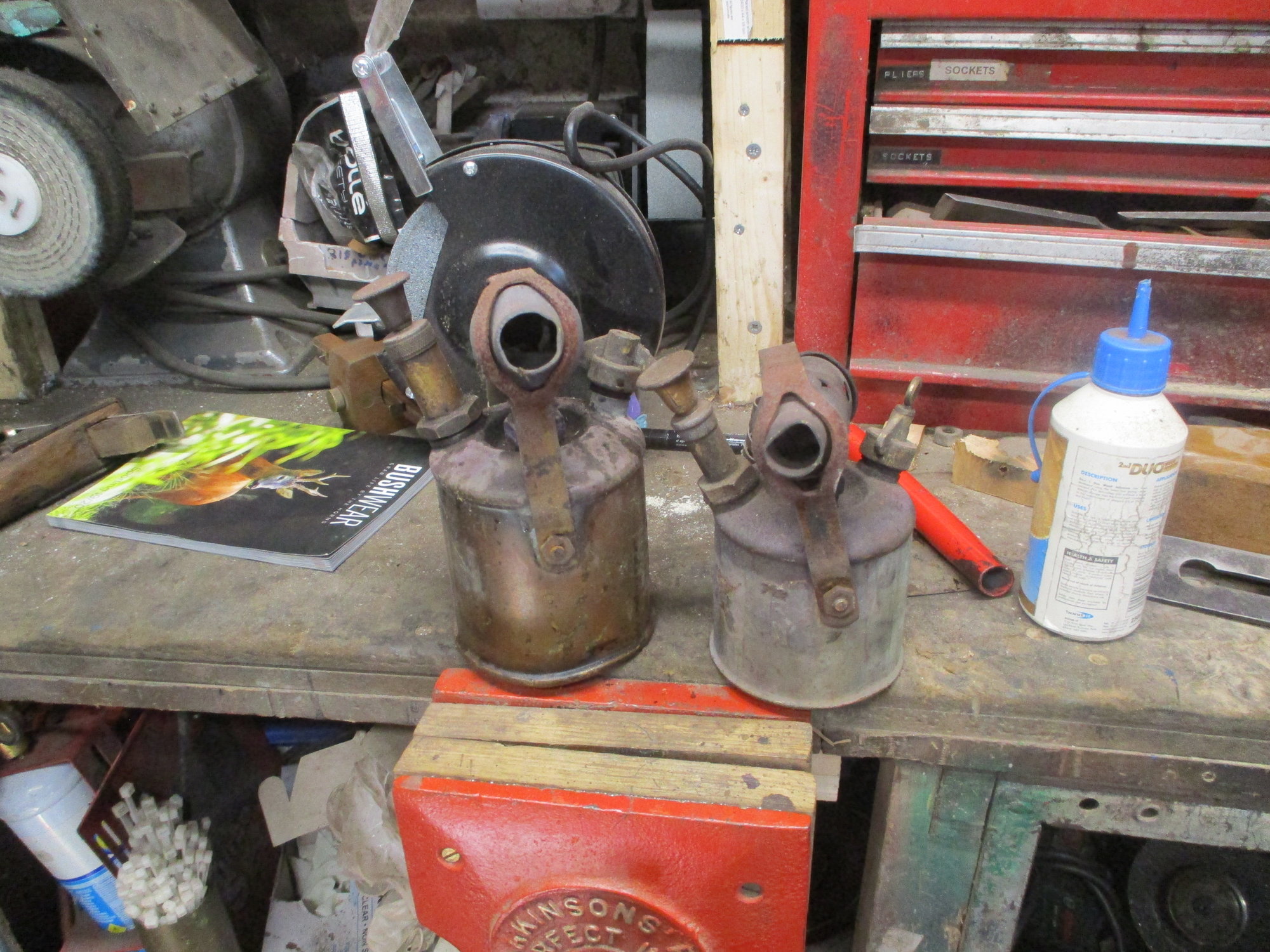

I got theses two Paraffin Blow lamps, more to my collection.
To be honest they are almost "2 a penny."
Cost of parts will always be more than they are worth.
So what to do with them?
I have a few, I do use them. But I now know a few friends want some for the same reasons I use mine for.
Drying out parts from De-rusting tanks.
Baking Black oxide onto metal after de-rusting.
Warming metal parts up before wax/oiling.
Heating metal parts up before bending.
Adding patterns to wood parts.
Almost like they were designed to do more than plumbing.
First job.
See if they are a unique item or have stampings that mark them out.
This one has some markings what will need more research.
Second job.
Check the pump washer. If it has failed, they are about £3:00 to buy, P&P. Worth it if the torch has value.
The smaller one did not have a "Cup washer" but a Classic war department flat rubber washer. This was a common modification in WW2. What is odd, as we had enough leather. But were short on rubber.
Third job.
Next is check the Taper on the Pressure relief screw. If the tip is bent or deformed, it can be reshaped. But if seized or broken, walk away. There is a seal under the filler cap and in the pump tube. They are about £5 for a complete set, if you can find them. Again we are pushing the limits if it is worth it.
Forth job.

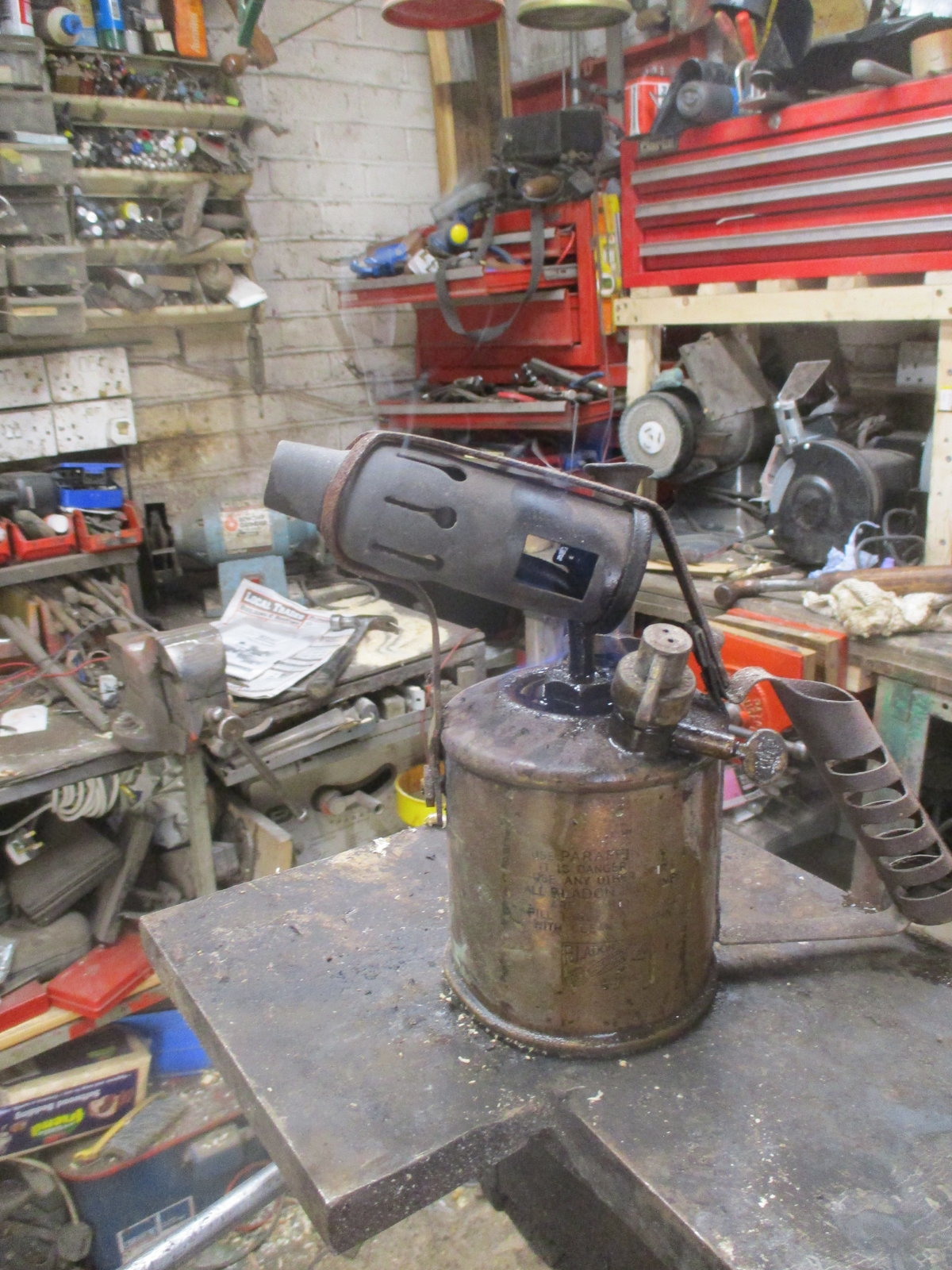

Fill and fire.
Fill the body with paraffin, refit the cap and shake.
Any leaks will show up, I have soldered a few up. But I did it for the fun and experience.
Give the pump 20 to 30 strokes, until there is firm resistance on the pump.
Fill the well with "Meths." and light.
This can be unnerving to the ones who are not familiar with the operation.
As it heats up, the paraffin will burn with a smoky flame.
Do this in a safe and open space, with correct safety gear near by. This image was staged for effects.
It will start to "Roar". Then the flame will go blue.
Keep the pressure up on the pump and it will settle down to a good even blue flame.
Plus a good sound.

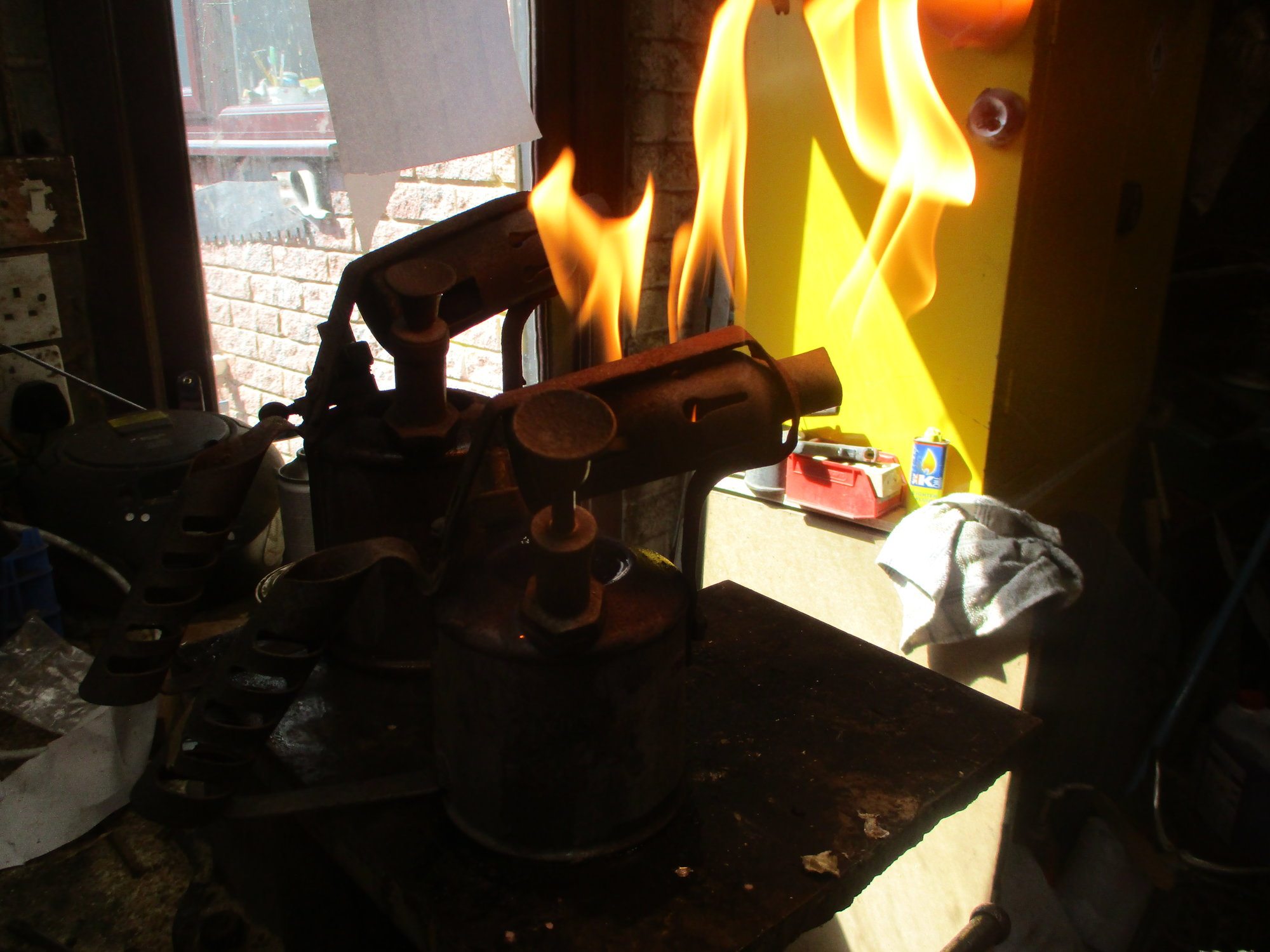

In flame and going strong.
There is a few safety reason to post this.

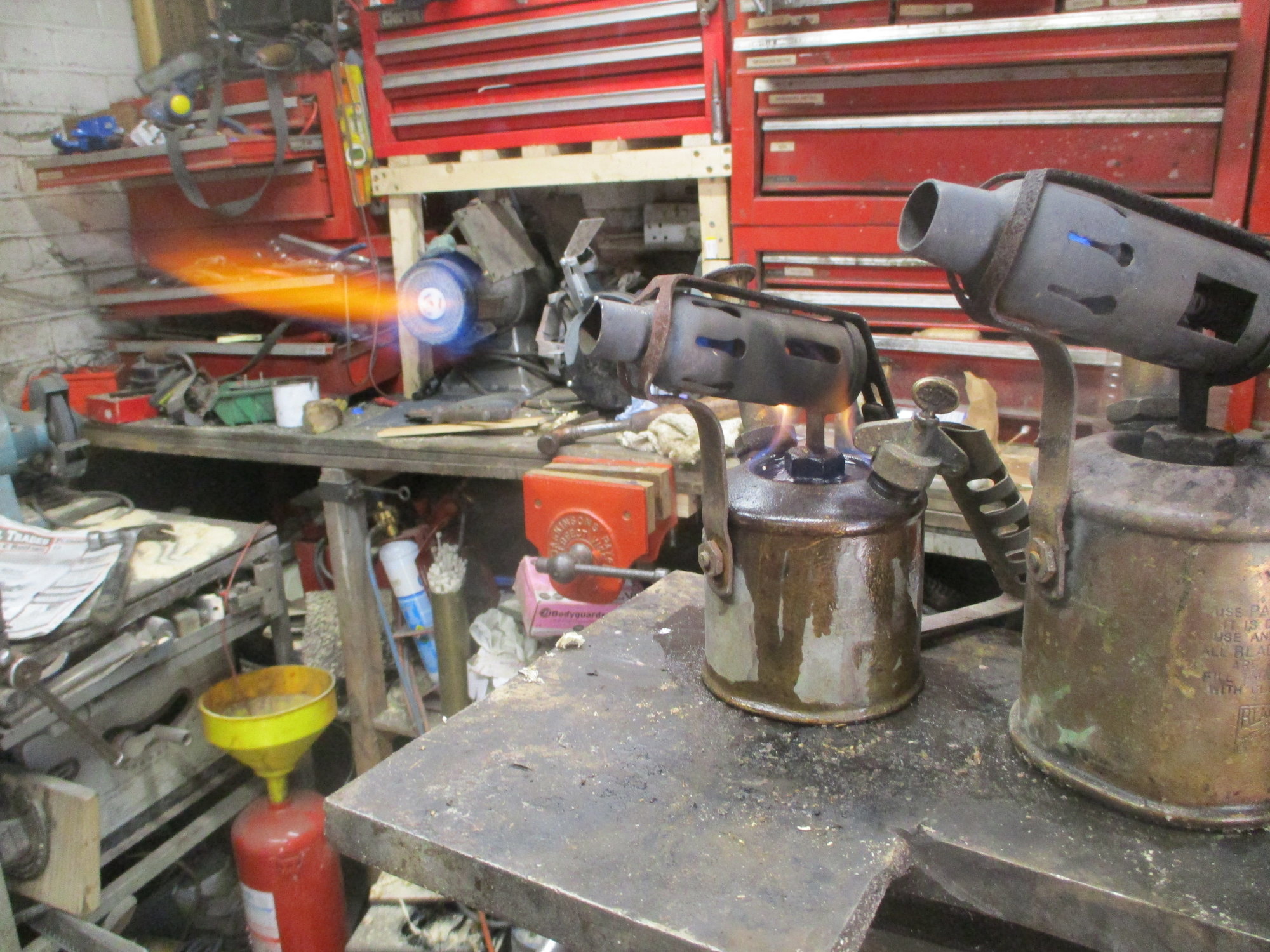

LHS side torch is in flame and going well. But you will see the "Meths." still burning. This can effect the main flame.
Do Not Be Tempted to blow it out.
Let it burn out on it's own.
The RHS is also in full flame, at maximum pressure.
But the flame is nearly invisible.
So it may look that it is out, if you can't hear the roar of the torch.
This pair will be place don the "To do" list and donated or swopped for something else to play with.
Blue flames.
I got theses two Paraffin Blow lamps, more to my collection.
To be honest they are almost "2 a penny."
Cost of parts will always be more than they are worth.
So what to do with them?
I have a few, I do use them. But I now know a few friends want some for the same reasons I use mine for.
Drying out parts from De-rusting tanks.
Baking Black oxide onto metal after de-rusting.
Warming metal parts up before wax/oiling.
Heating metal parts up before bending.
Adding patterns to wood parts.
Almost like they were designed to do more than plumbing.
First job.
See if they are a unique item or have stampings that mark them out.
This one has some markings what will need more research.
Second job.
Check the pump washer. If it has failed, they are about £3:00 to buy, P&P. Worth it if the torch has value.
The smaller one did not have a "Cup washer" but a Classic war department flat rubber washer. This was a common modification in WW2. What is odd, as we had enough leather. But were short on rubber.
Third job.
Next is check the Taper on the Pressure relief screw. If the tip is bent or deformed, it can be reshaped. But if seized or broken, walk away. There is a seal under the filler cap and in the pump tube. They are about £5 for a complete set, if you can find them. Again we are pushing the limits if it is worth it.
Forth job.
Fill and fire.
Fill the body with paraffin, refit the cap and shake.
Any leaks will show up, I have soldered a few up. But I did it for the fun and experience.
Give the pump 20 to 30 strokes, until there is firm resistance on the pump.
Fill the well with "Meths." and light.
This can be unnerving to the ones who are not familiar with the operation.
As it heats up, the paraffin will burn with a smoky flame.
Do this in a safe and open space, with correct safety gear near by. This image was staged for effects.
It will start to "Roar". Then the flame will go blue.
Keep the pressure up on the pump and it will settle down to a good even blue flame.
Plus a good sound.
In flame and going strong.
There is a few safety reason to post this.
LHS side torch is in flame and going well. But you will see the "Meths." still burning. This can effect the main flame.
Do Not Be Tempted to blow it out.
Let it burn out on it's own.
The RHS is also in full flame, at maximum pressure.
But the flame is nearly invisible.
So it may look that it is out, if you can't hear the roar of the torch.
This pair will be place don the "To do" list and donated or swopped for something else to play with.
