This was me moving an M300

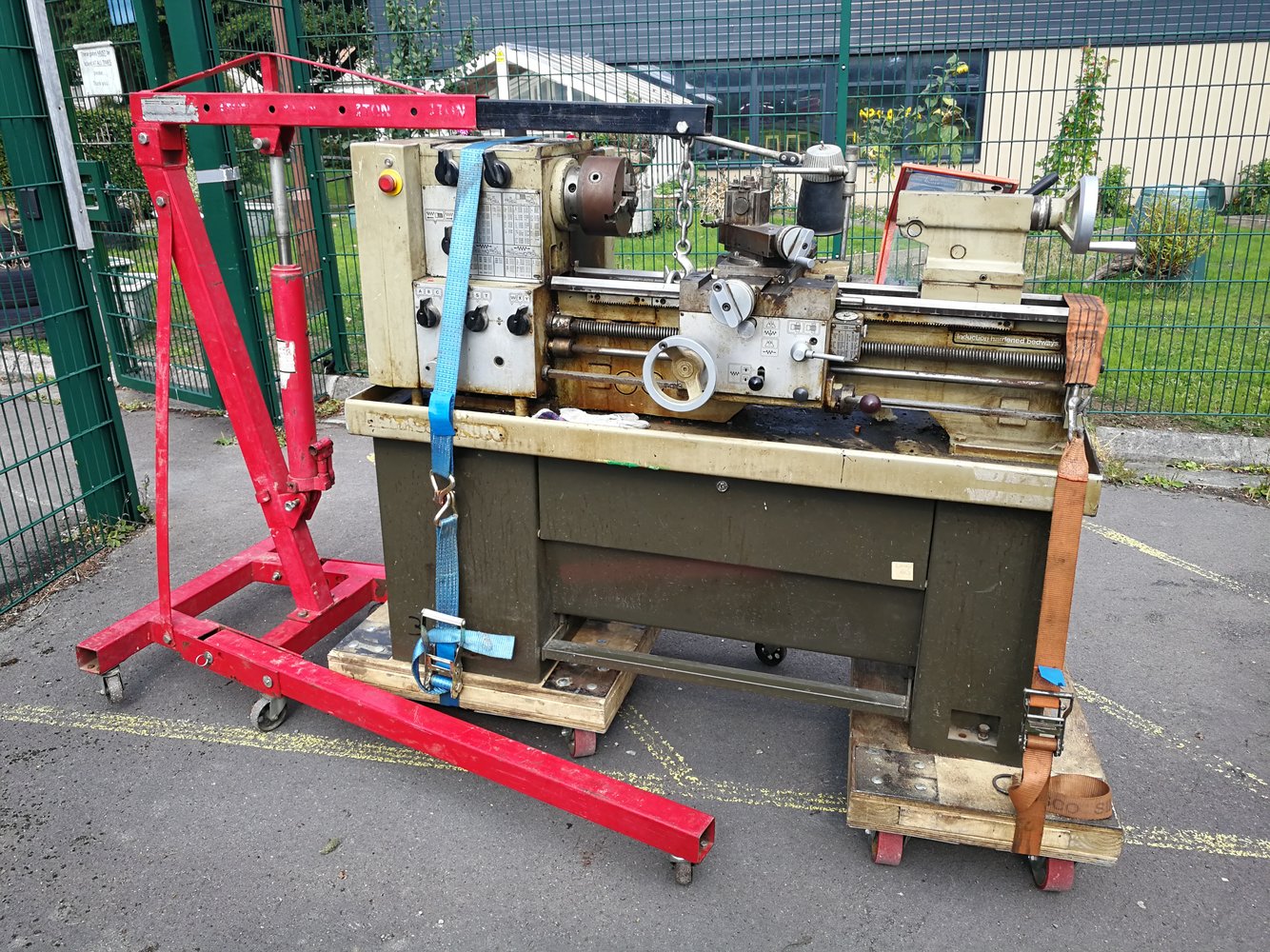

Skates are homemade on large castors, lifted lathe onto the skates with an engine crane.
Came from a school so skates allowed me to push it from the DT workshop, through the school, down the ramp to the trailer.
Engine crane to lift it up in the air and then reverse the trailer underneath
Strap down and drive home
This was the 4th M300 I had shifted
Skates are homemade on large castors, lifted lathe onto the skates with an engine crane.
Came from a school so skates allowed me to push it from the DT workshop, through the school, down the ramp to the trailer.
Engine crane to lift it up in the air and then reverse the trailer underneath
Strap down and drive home
This was the 4th M300 I had shifted
Agroshield
Member
- Messages
- 6,003

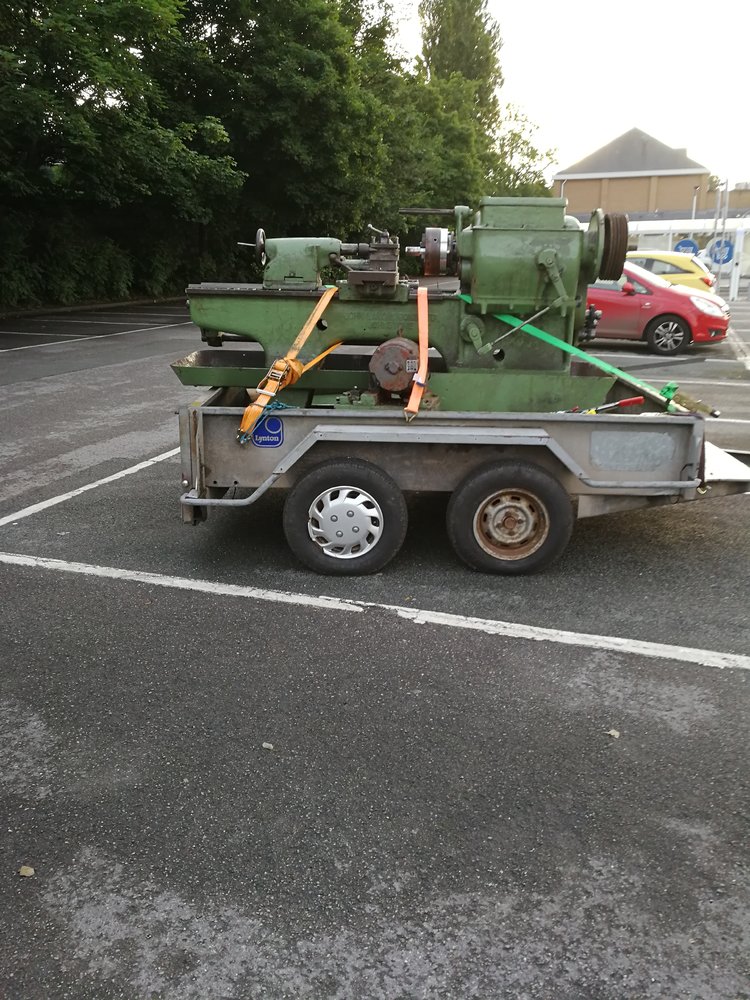

On a rather smaller scale, putting a Boxford shaper onto a motorbike trailer is much aided by removing the trailer wheels and keeping it hitched to the car - it becomes its own tilt bed.
Yes, it takes time to remove the wheels (or deflate the tyres), jack it up afterwards and reinstall, but the equipment required for this is more likely to be on hand. You can exchange time and brains for lifting equipment.
Also:
Wood Crib Engineering Method & Design
Table of Contents As voids are created because of the extraction of coal underground, artificial support systems, in addition to roof bolting, often are required to stabilize the mine opening to provide a safe working environment. Various constructions of cribs made from wood timbers are used...
www.911metallurgist.com
Stueeee
Old git
- Messages
- 1,078
- Location
- N W Kent

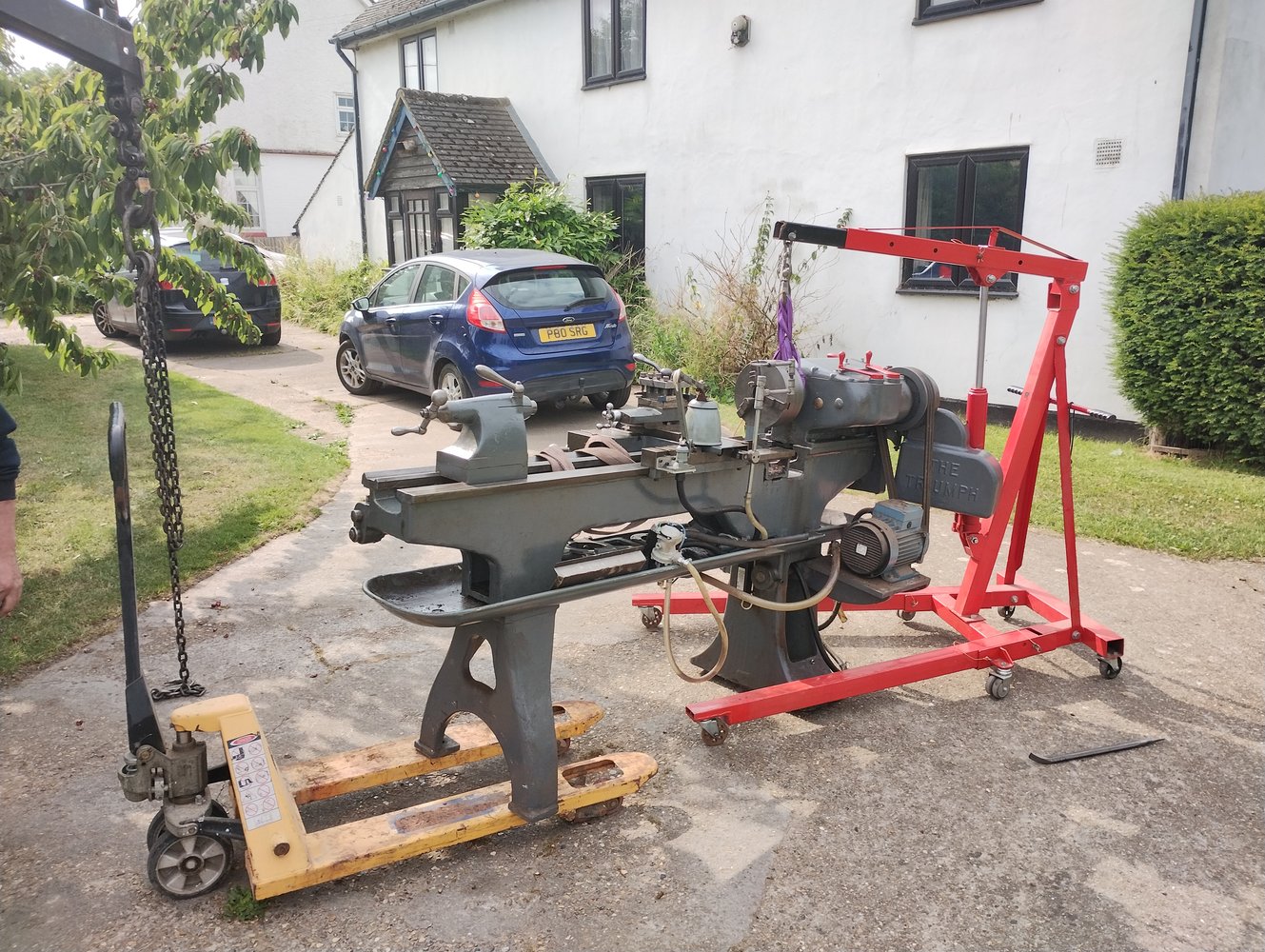

This is the shifting method we used getting my old Colchester Triumph loaded when I discovered we couldn't get the HIAB truck all the way down my driveway.
Looks a bit precarious, but the lathe couldn't go over with the engine crane being attached at spindle height. BTW, delivery to the buyer was £1 per mile on a 200 mile round trip, so worked out at £50 per hour -but this was really a 'mates rate' from the trucker who I occasionally do machining/engineering stuff for.
Looks a bit precarious, but the lathe couldn't go over with the engine crane being attached at spindle height. BTW, delivery to the buyer was £1 per mile on a 200 mile round trip, so worked out at £50 per hour -but this was really a 'mates rate' from the trucker who I occasionally do machining/engineering stuff for.
That looks to have a strop around the spindle. You only need to put the slightest bend in the spindle to create a problem that can be very expensive to put right. I learned this from bitter experience!
I've shifted dozens of lathes single handed. A toe jack (if you have one) to lift onto dollies can be easier than an engine crane, if the base of the lathe lends itself to it. I do have a homemade gizmo, 2 pallet truck wheels on axles welded to a piece of angle with threaded rod joining them. Lift the lathe onto these and tighten the rod to secure. A steerable dolly under the other end and you can move a very heavy machine on a smooth surface single handed. (I learned this from you tube, but can't find the video now). It's a lot safer and easier with two people, particularly when it comes to winching onto a trailer, but it can be done. It has the advantage of having a wider footprint than skates, as well as much bigger wheels than dollies, whist still keeping the CoG low.
quick edit, lathe dollies as described above, here;
I've shifted dozens of lathes single handed. A toe jack (if you have one) to lift onto dollies can be easier than an engine crane, if the base of the lathe lends itself to it. I do have a homemade gizmo, 2 pallet truck wheels on axles welded to a piece of angle with threaded rod joining them. Lift the lathe onto these and tighten the rod to secure. A steerable dolly under the other end and you can move a very heavy machine on a smooth surface single handed. (I learned this from you tube, but can't find the video now). It's a lot safer and easier with two people, particularly when it comes to winching onto a trailer, but it can be done. It has the advantage of having a wider footprint than skates, as well as much bigger wheels than dollies, whist still keeping the CoG low.
quick edit, lathe dollies as described above, here;
the artfull-codger
Member
- Messages
- 481
- Location
- north yorkshire england
I got him to move a lathe I bought from "darn south" up to north Yorkshire, as you say great bloke knows what he's doing.
Well, it looks like we're going for a Colchester Student Mk1.
Is there anybody local-ish to me (Cowbridge, South Wales) who has the lifting/ transport kit and know-how to collect it (about 650kg and 5' long) from north of Bridgend (Bettws) to Cowbridge for a reasonable price? It's in a garage with fairly easy access, and going into the same in Cowbridge. It's about a 30 minute drive in a car.
Chris
Is there anybody local-ish to me (Cowbridge, South Wales) who has the lifting/ transport kit and know-how to collect it (about 650kg and 5' long) from north of Bridgend (Bettws) to Cowbridge for a reasonable price? It's in a garage with fairly easy access, and going into the same in Cowbridge. It's about a 30 minute drive in a car.
Chris
Yeah, that was very reasonable! Same lathe moved easily with a strop around the bed to an engine hoist and an old M&S dolley at the other end. Slow and steady and amazing what one or two people can shift
Hopefuldave
Intergalactic pot-mender
- Messages
- 2,545
- Location
- The Shed of Danger, surrey, England

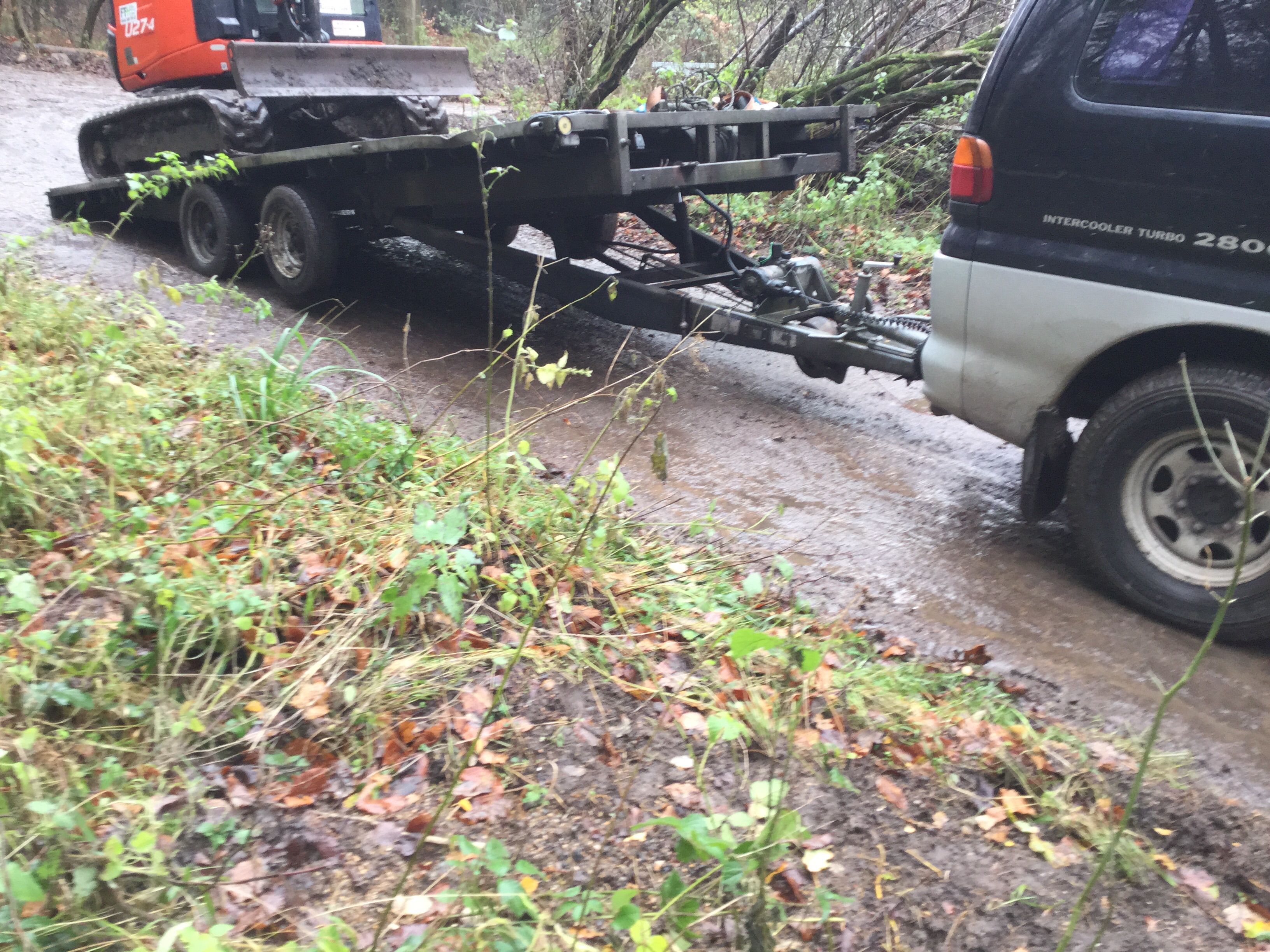

I've moved the Holbrook (a bit over two tons) and the Test no.2U mill (at least a ton and a half, probably more like two and a half) single-handed with a rented Hilux and plant trailer with drop-down ramp and a small winch on the tongue, scaffold pole offcuts as rollers:
