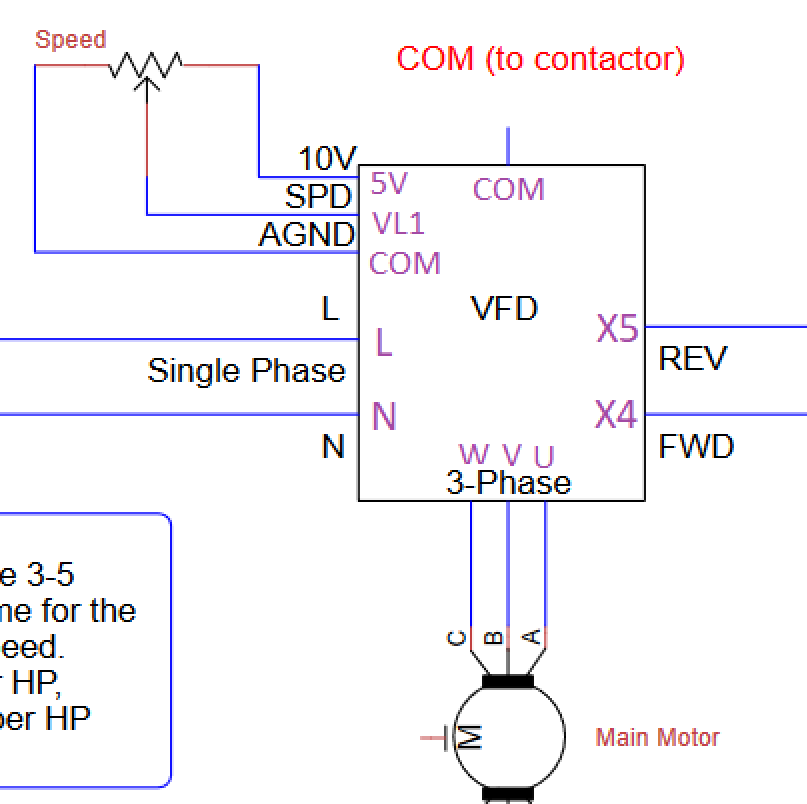

Where's your rectifier on that drawing?
The rectifier is in the same place you have indicated it on your mark up in post #116.
I have taken the 24V DC positive from the rectifier to the mushroom as per original circuit drawing; you've got the negative side going up to the mushroom.
Essentially its wired as per post #116, but the - and + are flipped over from the rectifier.
