    yes clever that. quite simple but very effective. I was going to have a go at making a tank but for various reasons a bulldozer is easier to make. tracks for one thing. I looked long and hard at both. this is my first build so I went for the easy one. by the way please don't put anymore links to interesting things on I was sat here for nearly four hours watching vids. once I get on that's it I don't go to bed till the sun comes up

    KimB, julianthegypsy and brokenbiker like this.
  2. Maker

    Maker nEw mEmBeR

    Messages:
    6,822
    Location:
    Don't ask questions
    I'm very interested to see how you make the tracks themselves, keep up the good work:clapping:.( And don't forget to post more pictures)

  3. darren.a.roberts Member

    Messages:
    113
    Cambridge
    Just like the original Sherman where the transmission just bolted to the front of the hull.....

    brokenbiker likes this.
  4. atconut

    atconut Member

    Messages:
    440
    west yorks uk

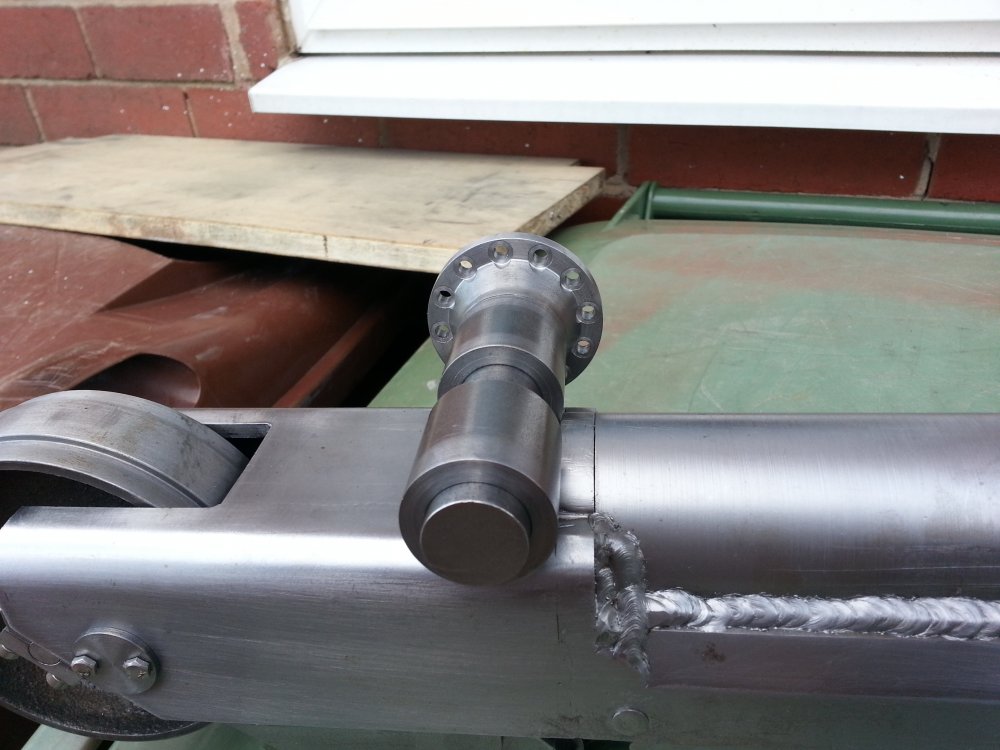

    got a bit more done. mounted the front and rear axles and made the flanges that mount the whole track assembly to the body. I've got a 30mm hole to bore through the roller frame. I've just sat the flange and pin on top. the flange sat on it's own is for the other side when it's done

    • 20140721_194507.jpg
  5. atconut

    atconut Member

    Messages:
    440
    west yorks uk
    i'll put more pics on when I've sorted them out they are still upsidedown i'll get it sorted (if it kills me)

  6. atconut

    atconut Member

    Messages:
    440
    west yorks uk

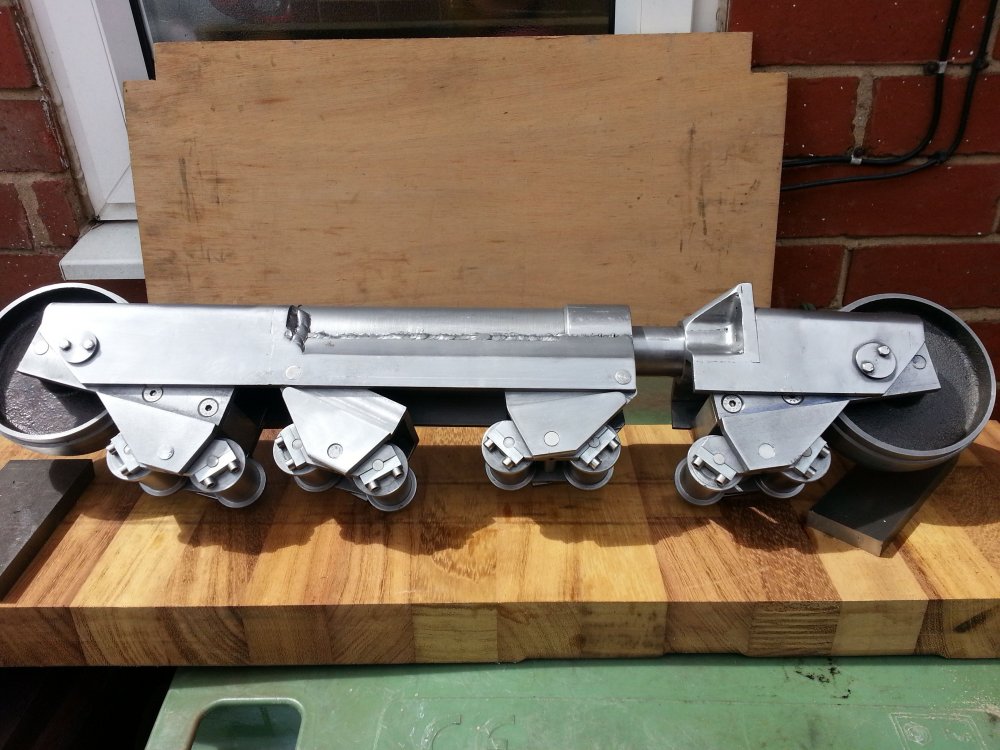

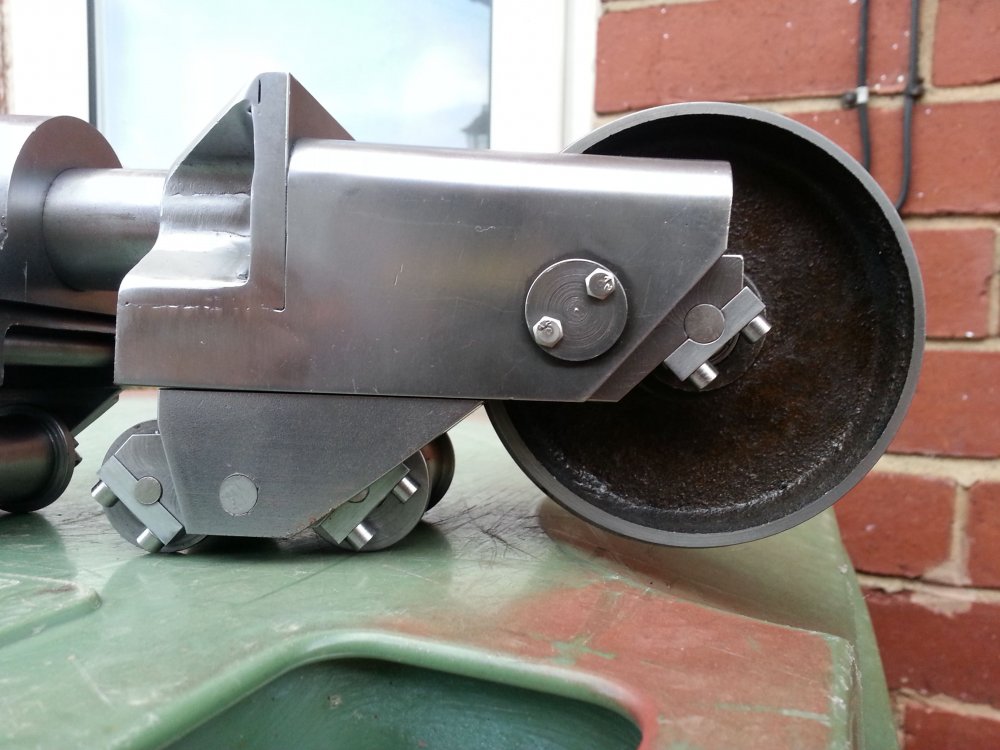

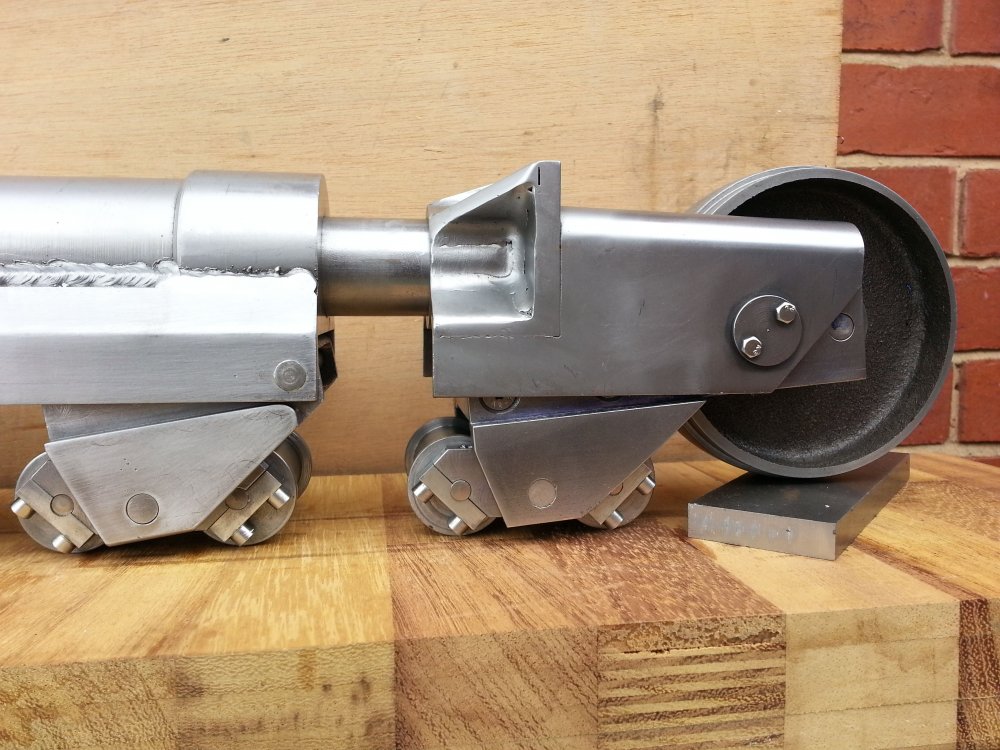

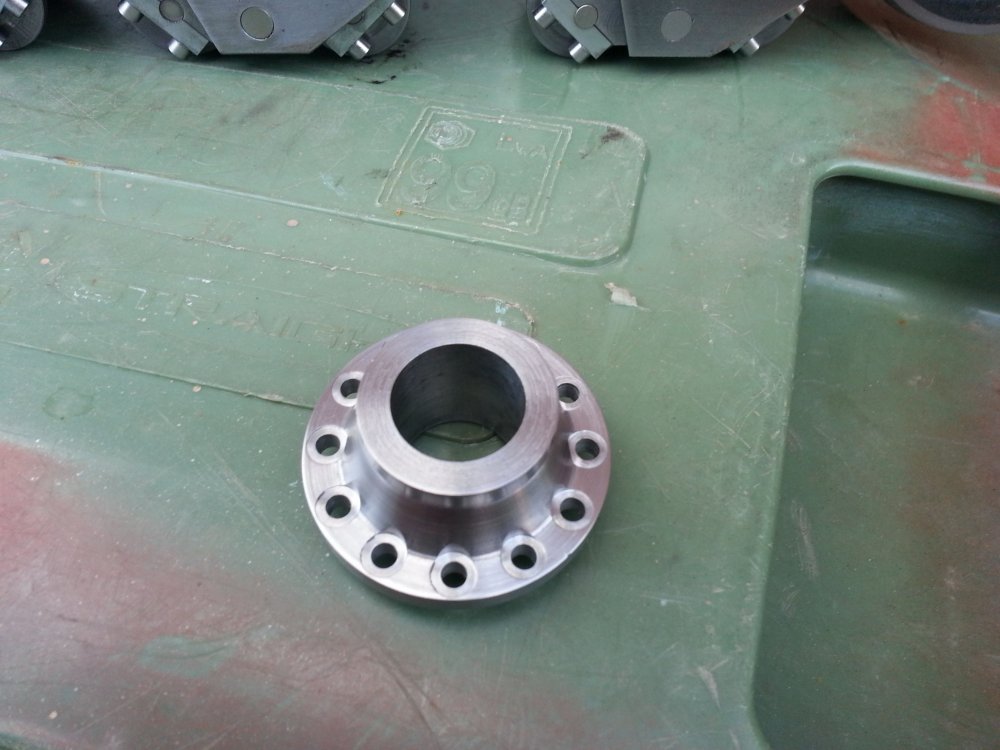

    front assembly. when the bulldozer is on uneven ground the track rollers drop down to stay on the track. all the parts need more work (rubbing down fettling) before painting. the welding down the side will be filled over before painting. The front idler assembly is spring loaded to stop damage when a rock gets between the track and rollers or idlers There's a threaded rod inside the spring loaded piston to adjust the track tension. All the track rollers and idlers are on steel sealed bearings. I keep altering this side so feel free to comment or make suggestions

    • 20140721_194536 - Copy.jpg
    • 20140716_123919 - Copy.jpg
    • 20140716_123959 - Copy.jpg
    • 20140721_194544 - Copy.jpg
    Last edited: Jul 22, 2014
    Fazerruss, KimB, Maker and 2 others like this.
  7. atconut

    atconut Member

    Messages:
    440
    west yorks uk

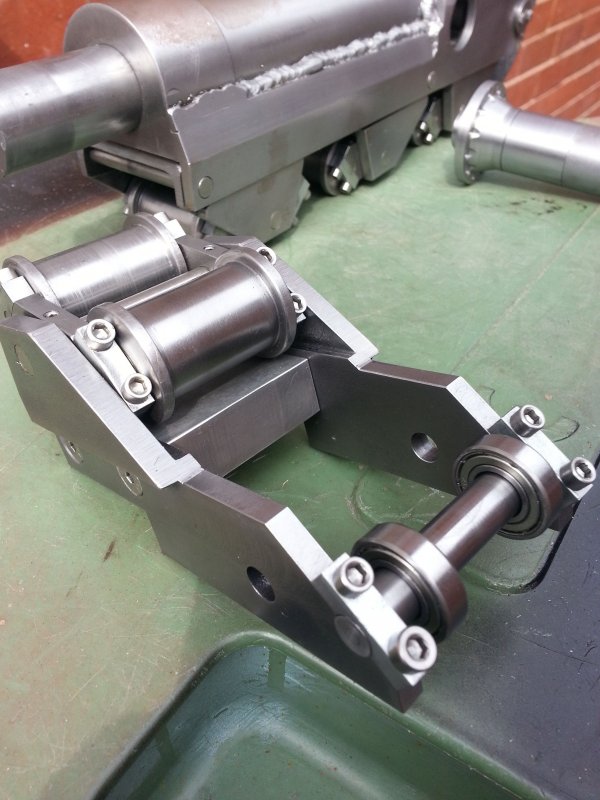

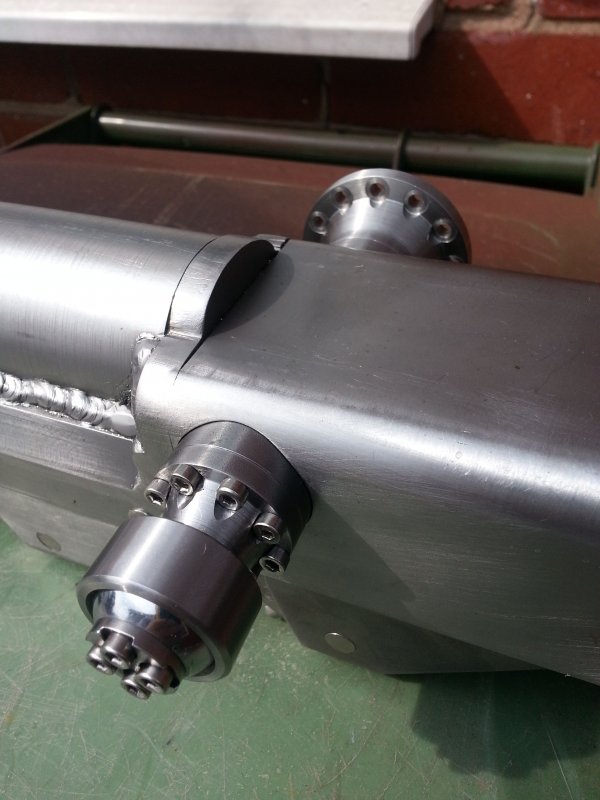

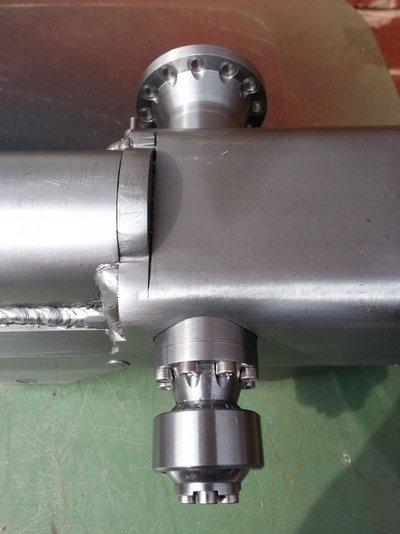

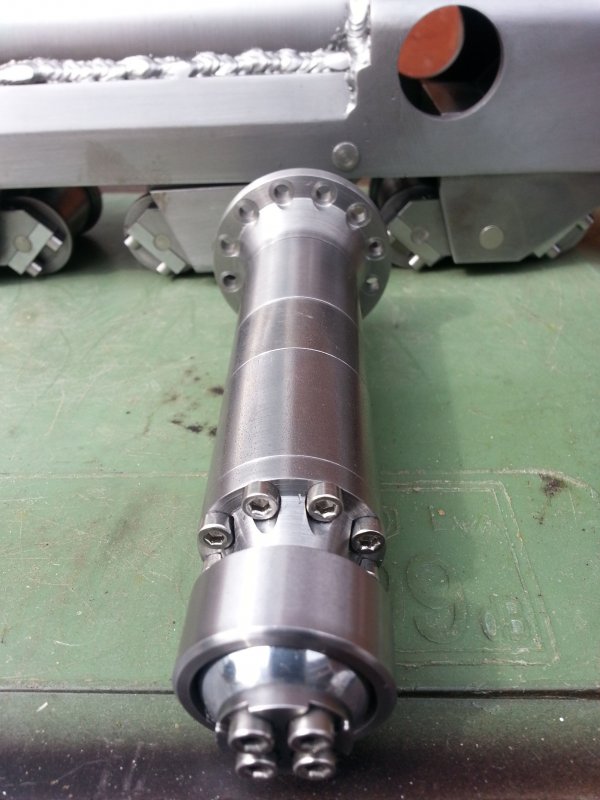

    made a bit of progress. bored a hole through the roller frame to take the mounting. made the mounting with the spherical bearing on the end this is what the arms for the blade will fasten to. the mounting will be welded to the roller frame on the inside . also altered the front axle made it 10mm instead of 8mm. I've still to bore out the wheels to take the bigger bearings. ideas and comments are always welcome

    • 20140731_105118.jpg
    • 20140731_105052.jpg
    • 20140731_105244.jpg
    • 20140731_105304.jpg
    Fazerruss, KimB and Maker like this.
  8. atconut

    atconut Member

    Messages:
    440
    west yorks uk

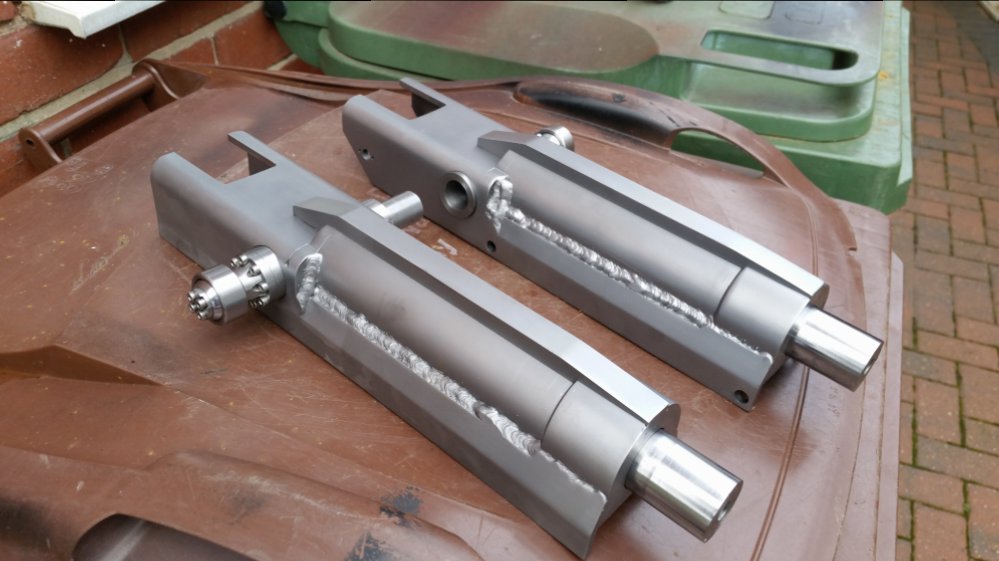

    thought I would update with some pics. I've not posted for a while. as the title says this will take a while to complete (if I ever do) I'm trying to build a scale model of a Caterpillar D10 bulldozer about 1/8 scale. 3foot six long and around 150kg scratch built no drawings or plans just looking at pics and using a kids toy for general dimentions. ive done the undercarriage for both sides. front axle rear axle. front bar now i'm tackling the track plates

    • 20141119_125336.jpg
    Fazerruss, KimB and Maker like this.
  9. atconut

    atconut Member

    Messages:
    440
    west yorks uk

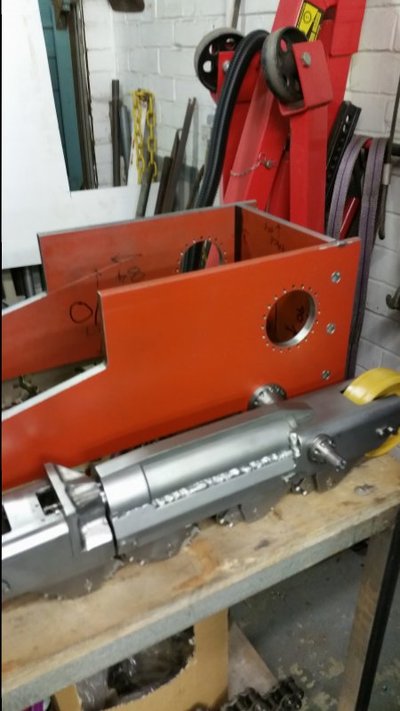

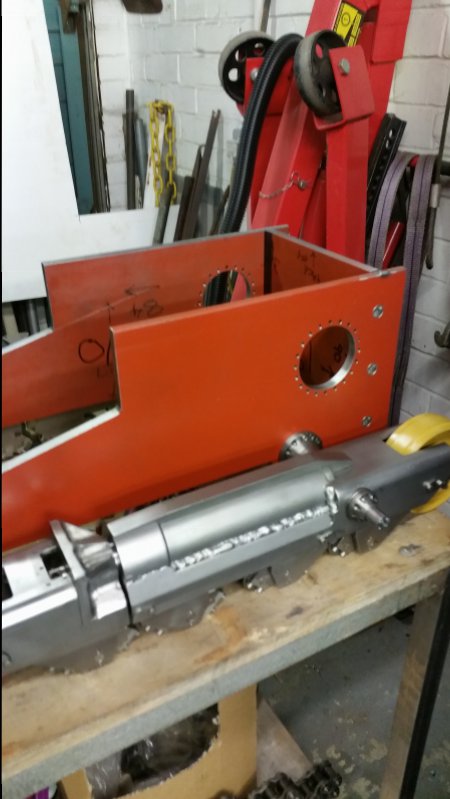

    side plates (body)

    • 20150513_211924.jpg
    Fazerruss likes this.
  10. atconut

    atconut Member

    Messages:
    440
    west yorks uk

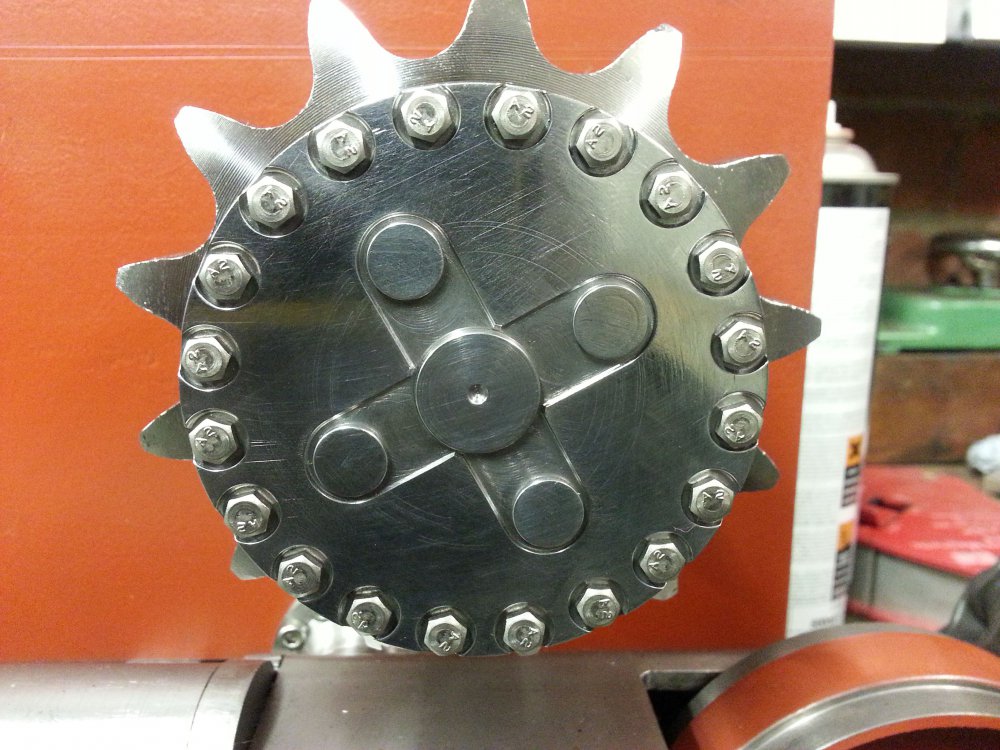

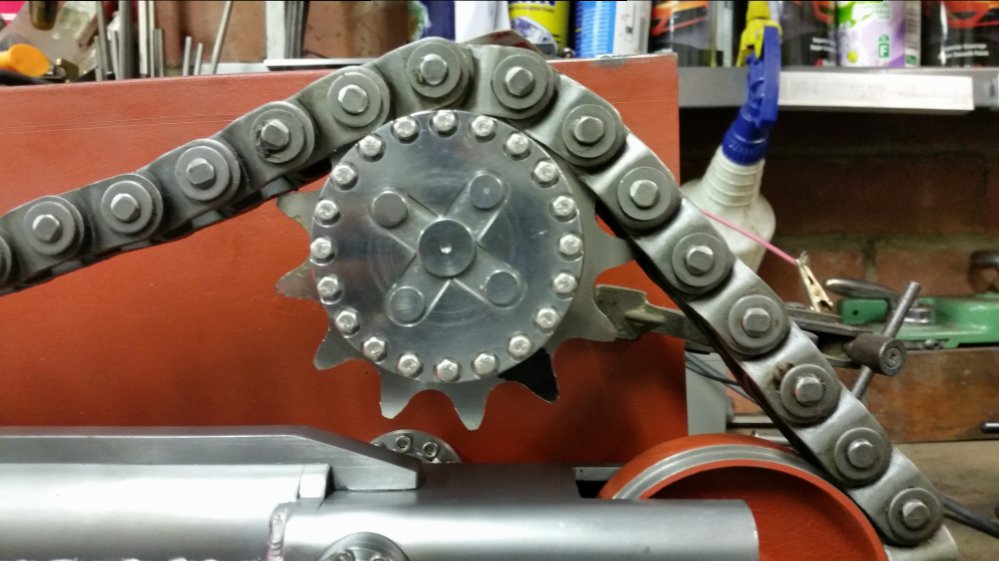

    drive hub

    • 20141217_215553.jpg
    • 20141014_150909.jpg
    • 20150620_205654.jpg
    Fazerruss, KimB, rockweasel and 3 others like this.
  11. atconut

    atconut Member

    Messages:
    440
    west yorks uk

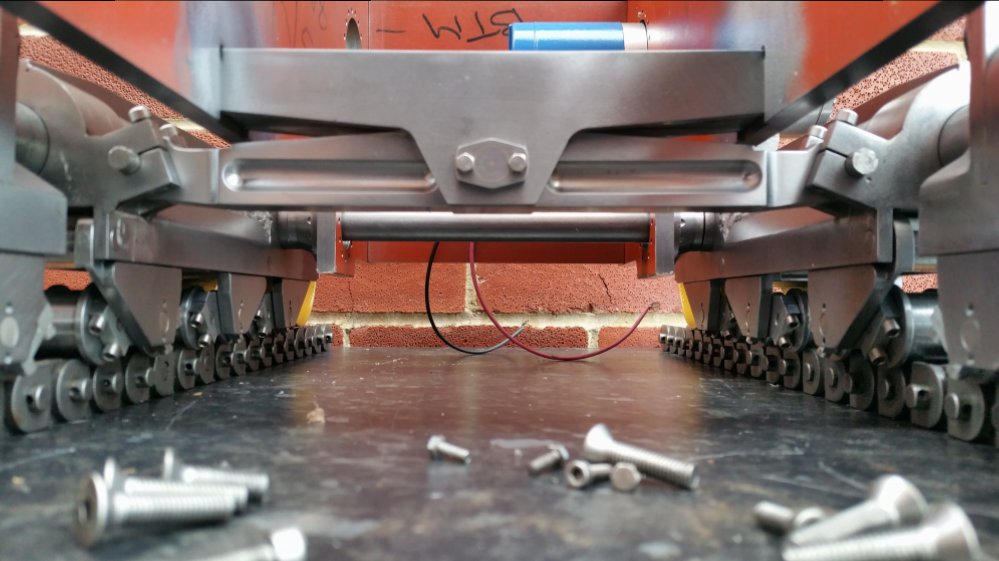

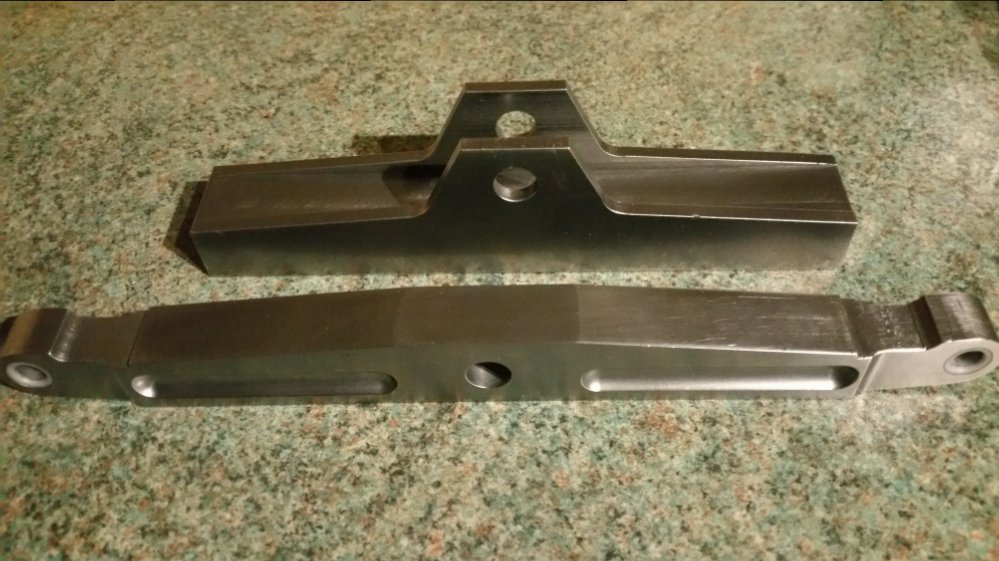

    front axle

    • 20150620_203100.jpg
    • 20150604_000615.jpg
    Fazerruss, MattF, lchris21 and 3 others like this.
  12. lchris21

    lchris21 Member

    Messages:
    1,186
    Location:
    South Wales
    great skills :clapping:

    thanks for the update..............looking forward to the 2016 installment :D:D:D

    KimB and eSCHEn like this.
  13. decca

    decca Forum Supporter

    Messages:
    674
    Location:
    Crawcrook, Gateshead.
    Really high standard of work there. Pleases continue to post updates from your build. I and I'm sure many other people are interested in this.

    KimB and julianthegypsy like this.
  14. slim_boy_fat

    slim_boy_fat Forum Supporter

    Bomb disposal robot thingy?

  15. atconut

    atconut Member

    Messages:
    440
    west yorks uk

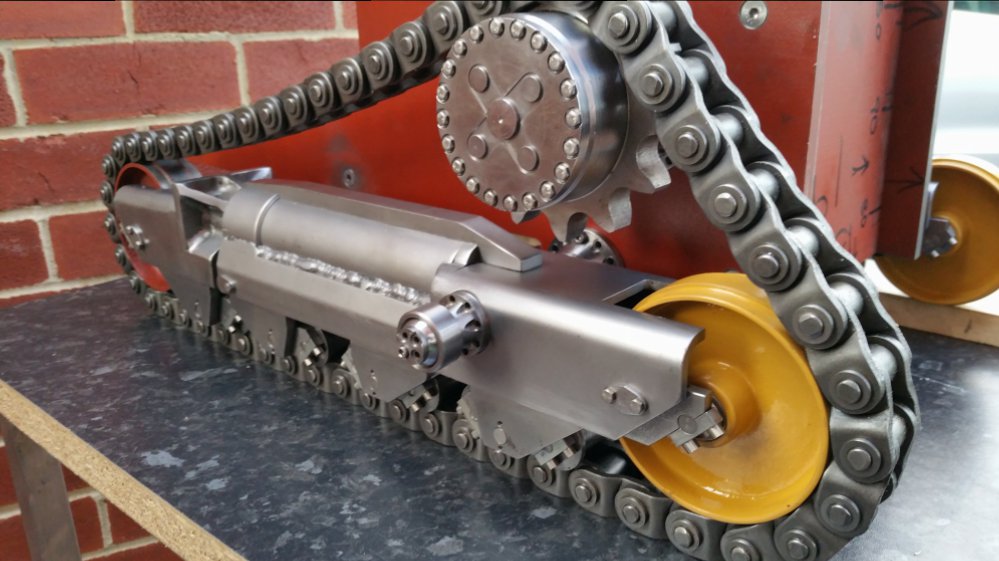

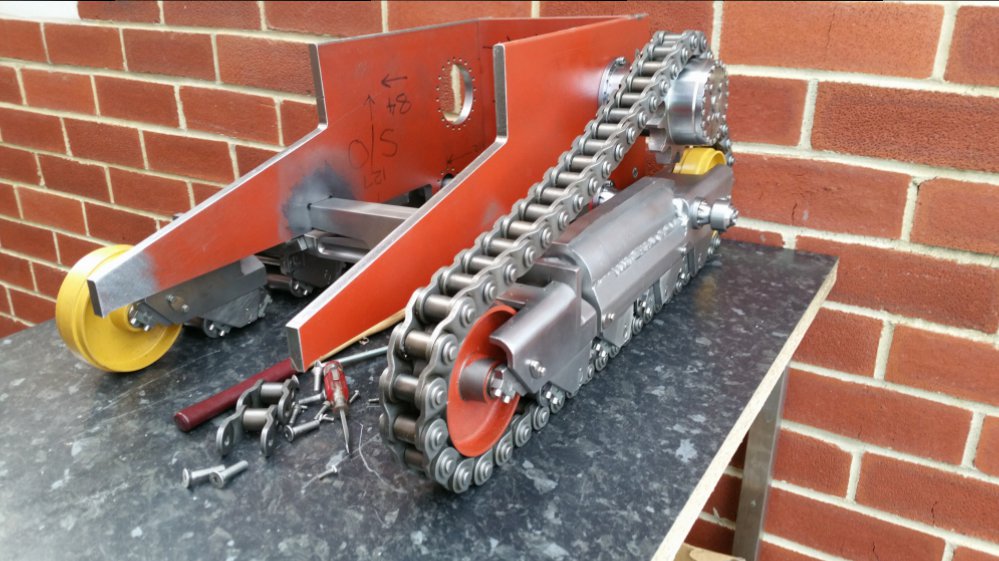

    The drive comes from two 24 volt motors one for each drive hub. The gearboxes are is inside the hubs. they are a four stage planetary gearbox. it's going to be radio controlled

    • 20150620_204322.jpg
    Fazerruss and KimB like this.
  16. atconut

    atconut Member

    Messages:
    440
    west yorks uk
    yes sort of I wanted to make a model but it seems every model maker makes steam engines I want to make something different

  17. atconut

    atconut Member

    Messages:
    440
    west yorks uk

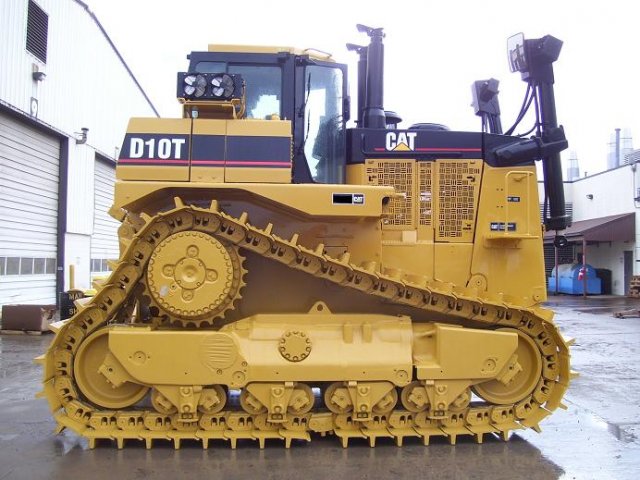

    This is the real thing phoca_thumb_l_Certified%20rebuild%20D10T%20RJG75003%20006.jpg

    KimB likes this.
  18. atconut

    atconut Member

    Messages:
    440
    west yorks uk

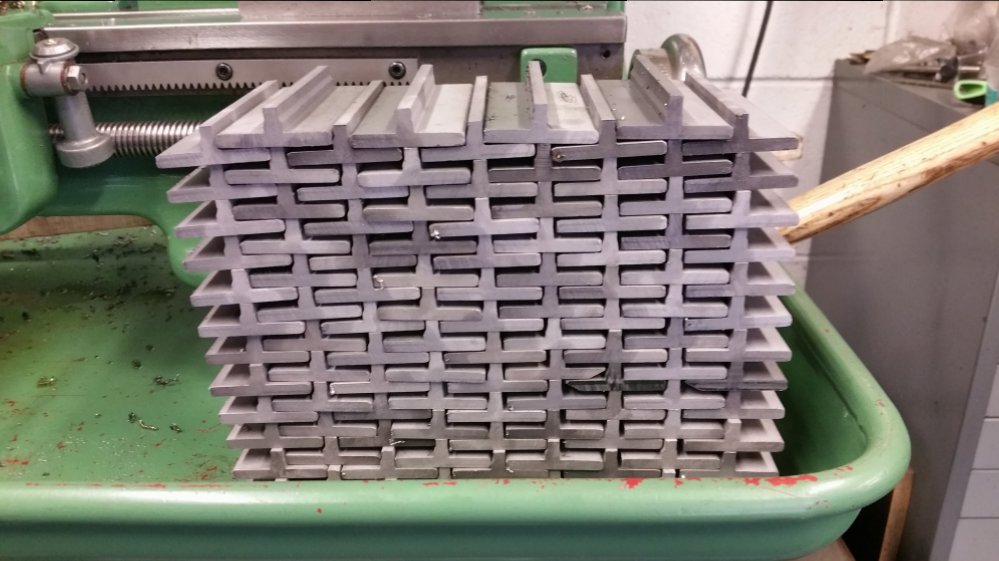

    pile of track plates needing loads of work

    • 20150804_135652.jpg
    Fazerruss likes this.
  19. atconut

    atconut Member

    Messages:
    440
    west yorks uk

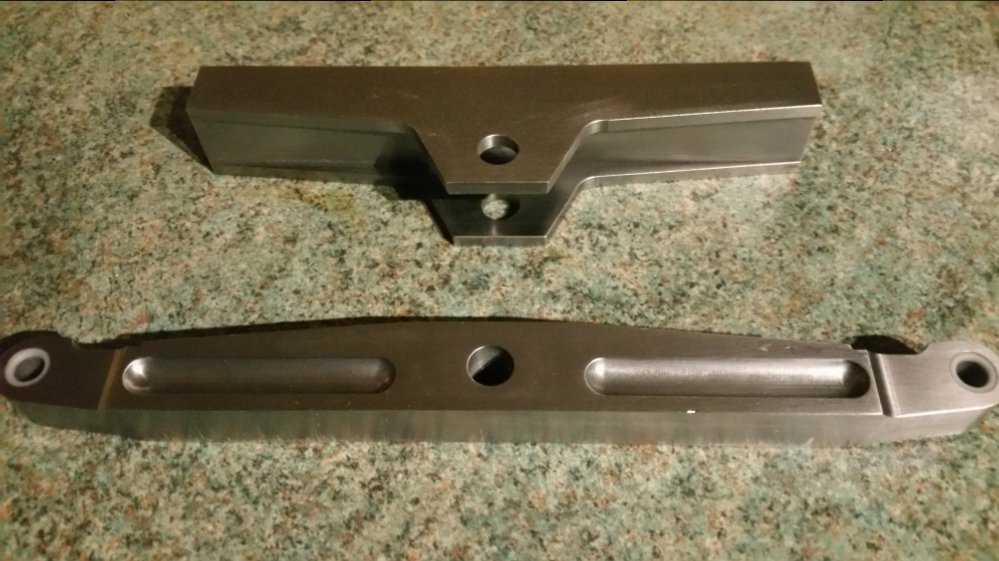

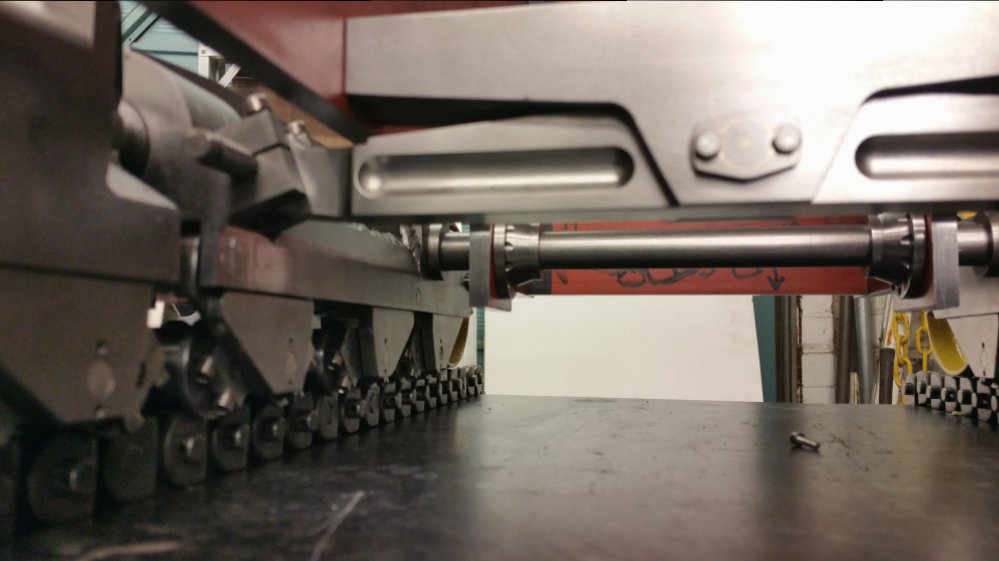

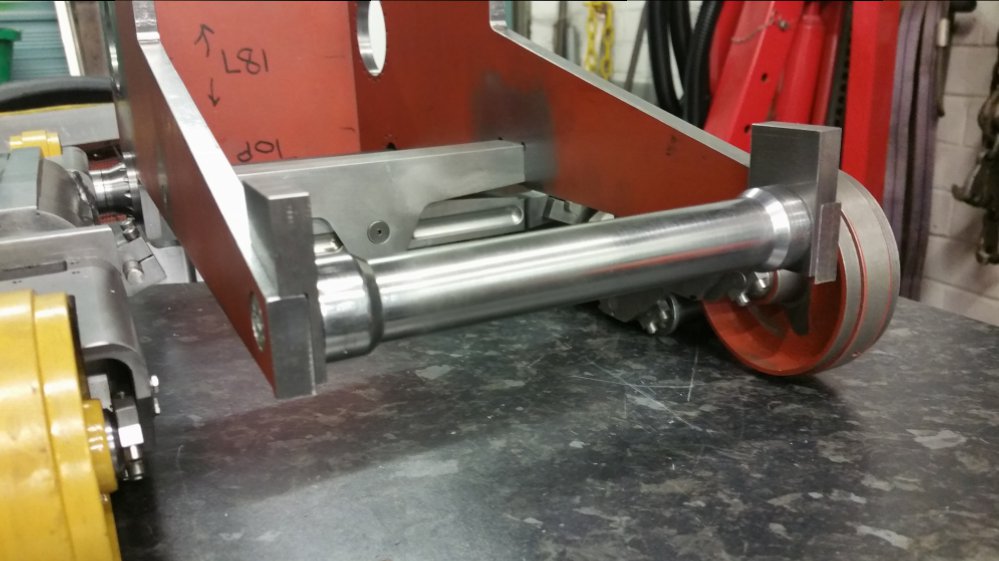

    some more pics some of the wheels are yellow because I was messing about with paint colours

    • 20150604_000549.jpg
    • 20150705_233029.jpg
    • 20150605_222448.jpg
    Fazerruss likes this.
  20. atconut

    atconut Member

    Messages:
    440
    west yorks uk

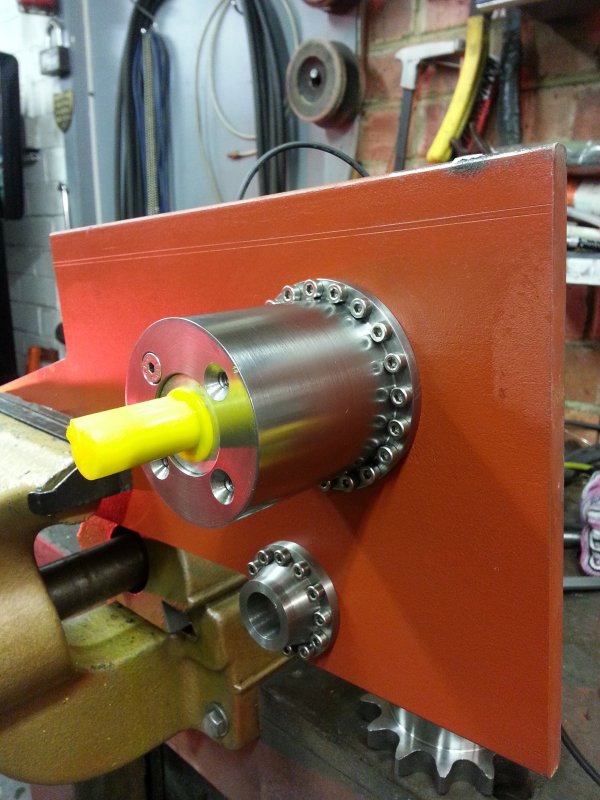

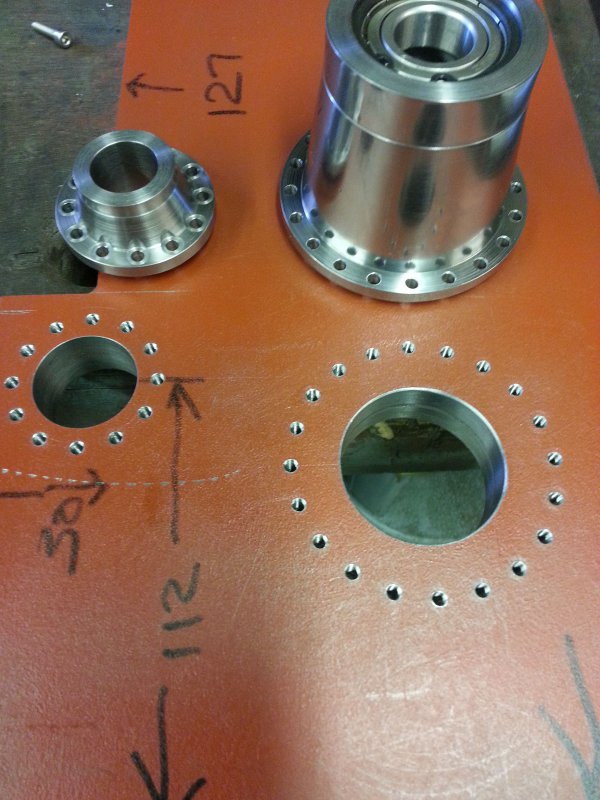

    Drilling an tapping the side plates for rear axle and drive hubs. plates are 10mm thick 20140901_145531.jpg 20141008_213821.jpg 20140901_145531.jpg 20141008_213821.jpg

    Dieselkid 63, Fazerruss, KimB and 3 others like this.
