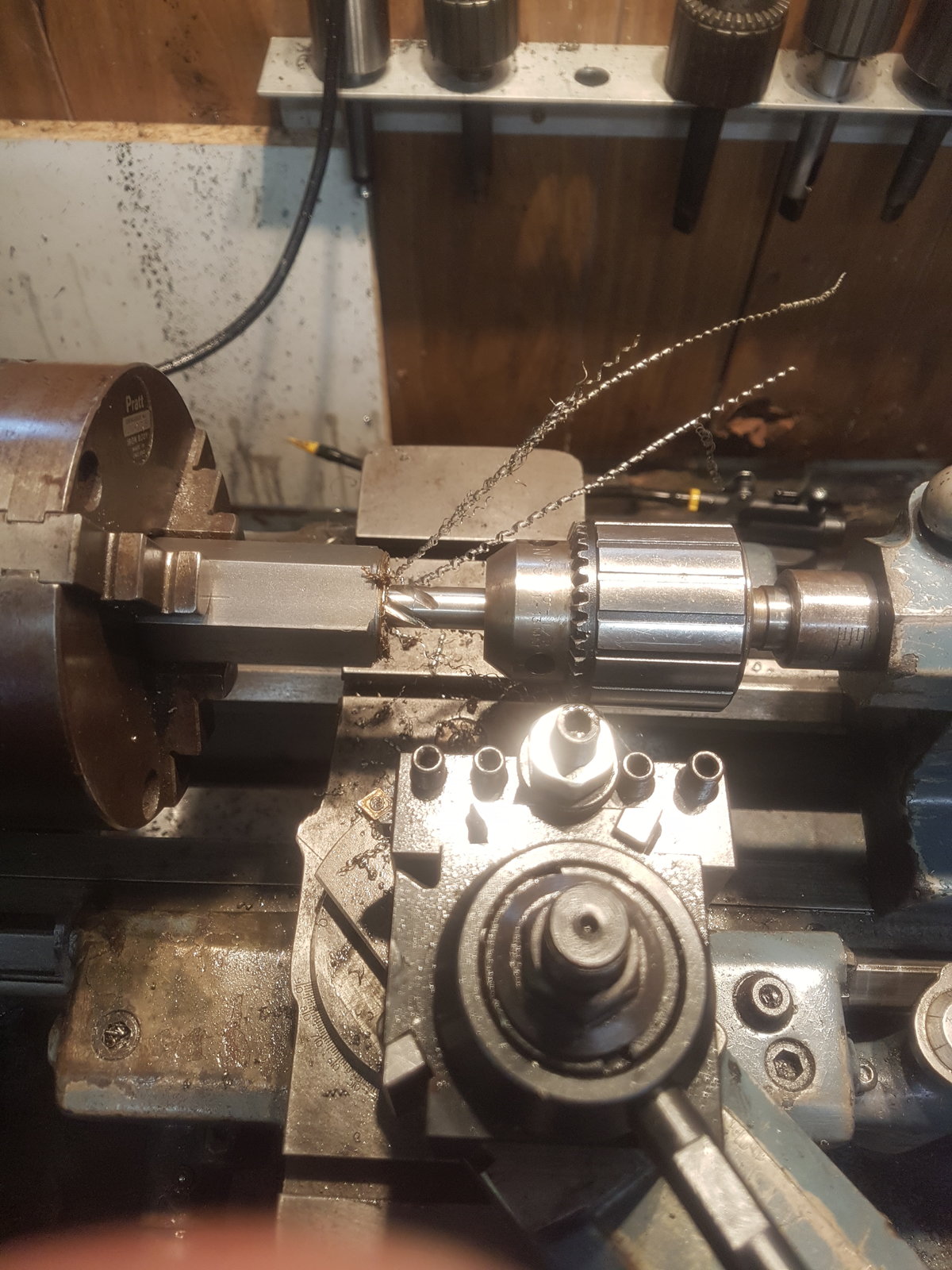

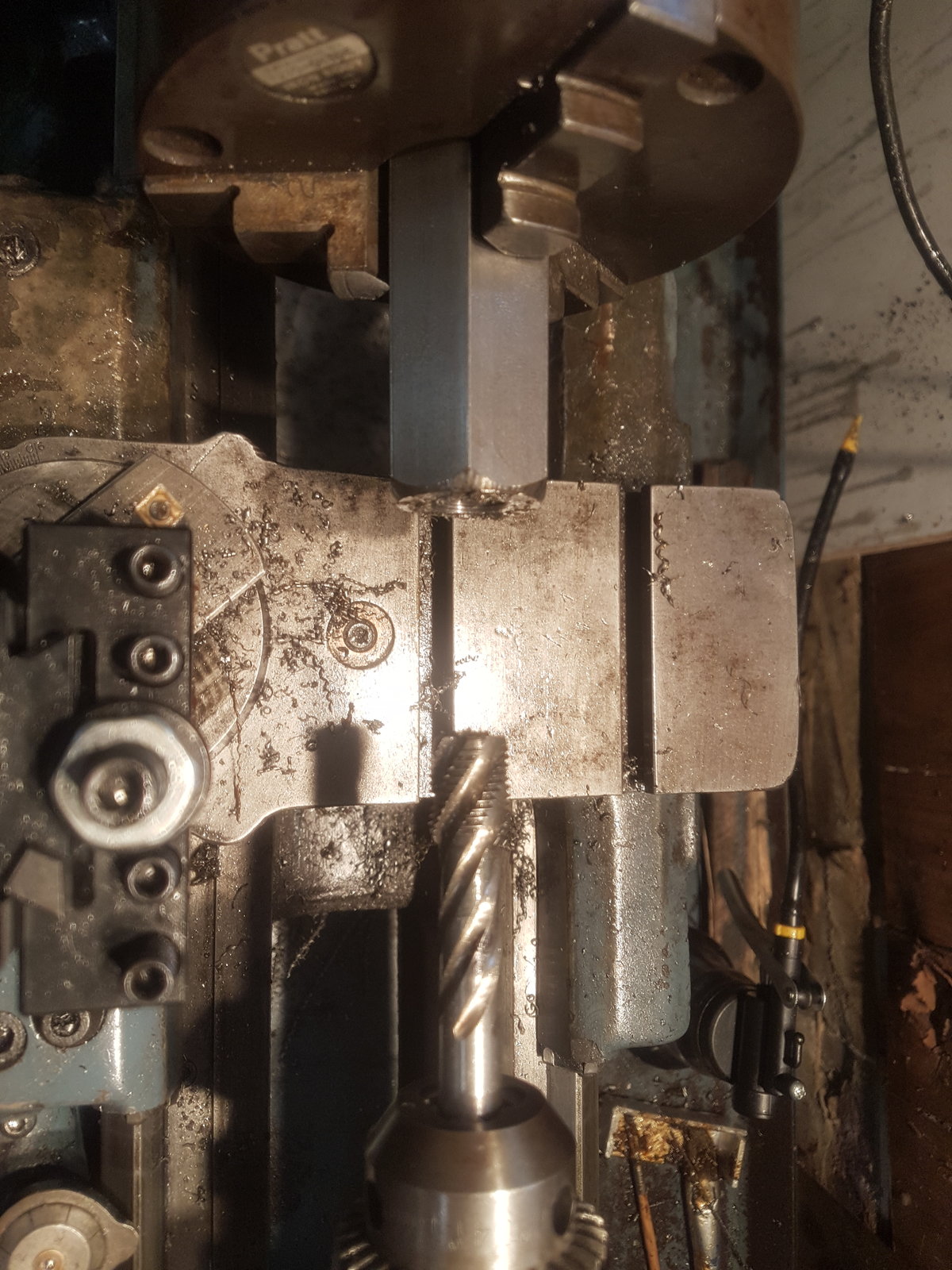

I have just purchased a Boxford Lathe

[Dcal]

What do you mean "grade"?

Mine were a direct replacement, I had to machine the slot but that was a simple process when I had a way of holding them.
At the time I had very little tooling with the Bangood cutoff tool it would be a doddle.



[slimjim]

I thought they were acme threads though, am I mistaken?



[Seadog]

Square usually I seem to recall.



[Dcal]

Mine were just a straight forward whitworth thread.
Screw one out and take a look at it.



[123hotchef]

What do you mean "grade"?

Mine were a direct replacement, I had to machine the slot but that was a simple process when I had a way of holding them.
At the time I had very little tooling with the Bangood cutoff tool it would be a doddle.

Not grade should have said grade. But I see now you had to machine the thinner part in the middle



[123hotchef]

Mine were just a straight forward whitworth thread.
Screw one out and take a look at it.

Need to knock the pin out to remove the whole screw



[Dcal]

Different from mine then.
I was just able to screw them out.
It's a simple job to reverse the jaws on my chuck.



[123hotchef]

the jaws come out easy but the screw does not



[123hotchef]

actually i did not take the rear part off of this chuck i should take another closer look



[123hotchef]

@123hotchef

The front grease cover is relieved to provide a locking diameter. A collar is made which is a close fit on the spindle diameter and backplate spigot. No dimensions I'm afraid, just photos.
The collar looks to be held on to the backplate by a single grub screw. When the clamp screw is tightened it grips both the backplate spigot and spindle.


View attachment 185930 View attachment 185931 View attachment 185932 View attachment 185933 View attachment 185934

looking at doing this do you think just drilling the chuck and using a bolt it would lock sufficienly onto the spindle? or would it in time damage the threads?



[eLuSiVeMiTe]

looking at doing this do you think just drilling the chuck and using a bolt it would lock sufficienly onto the spindle? or would it in time damage the threads?

Someone did that with one of my backplates.
I'd be wanting a slug of something soft to contact the threads if I stuck a bolt in it.



[123hotchef]

Someone did that with one of my backplates.
I'd be wanting a slug of something soft to contact the threads if I stuck a bolt in it.

yes defiantly or the thread will get damaged and the lathe will be fooked! the collar is the better idea



[123hotchef]

I really need to sort the reverse switch out it takes so long to wind these out by hand



[123hotchef]

Just trying to get my.head around wiring up.the switch



[Woody.v8]

Just trying to get my.head around wiring up.the switch

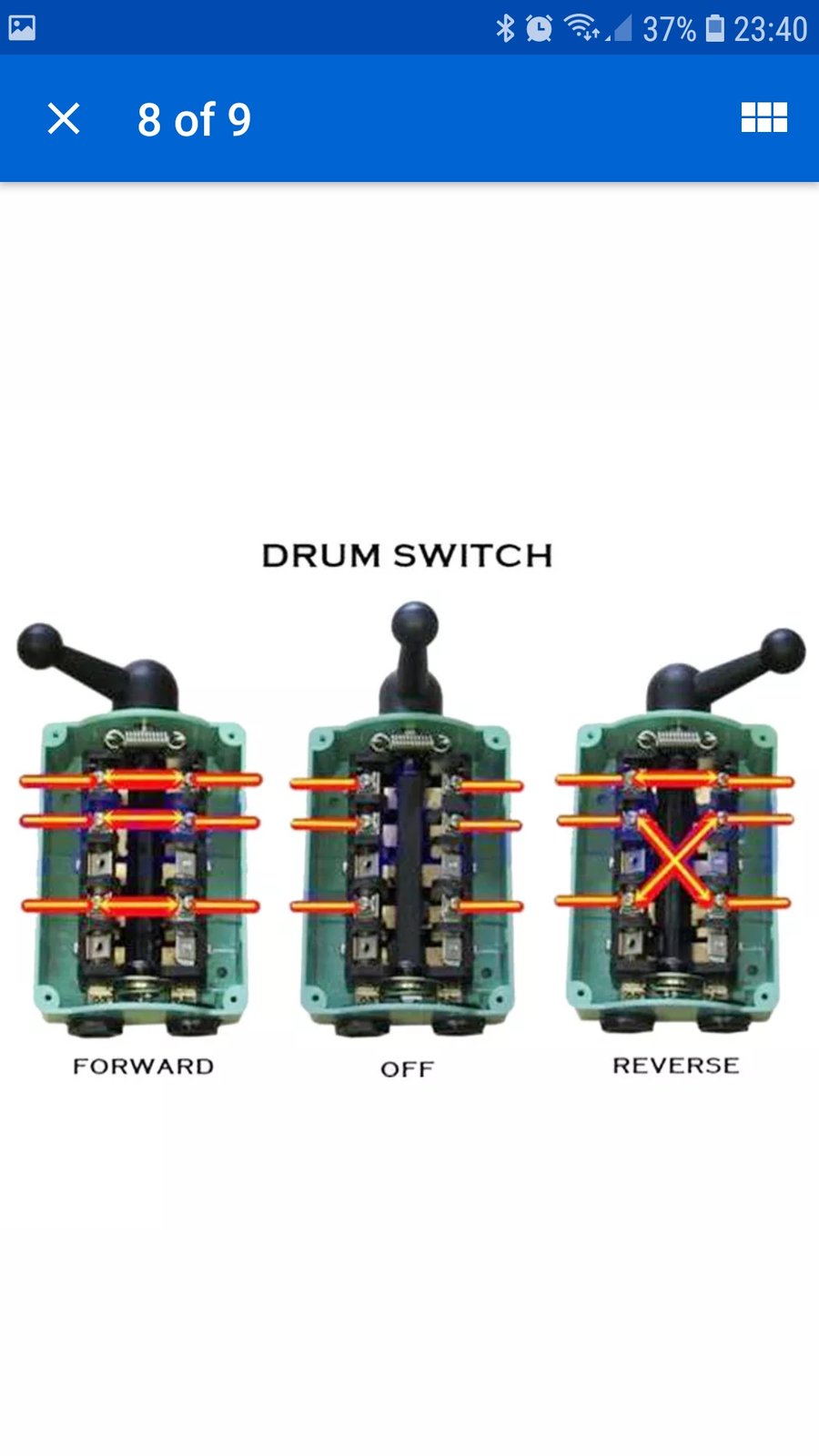

It's easy ,3 phase straight through in position 1 , No phases connected in position 2 , and 2 phases swapped over in position 3.



[Hopefuldave]

It's easy ,3 phase straight through in position 1 , No phases connected in position 2 , and 2 phases swapped over in position 3.

Or for a single phase motor, live to the top two, neutral to the bottom, top to one winding and it's return straight to neutral, other two to the other winding so only one reverses.

Dave H. (the other one)



[123hotchef]

It is a single phase motor. Dave you lost me.



[123hotchef]

like this



[Hopefuldave]

Which switch? The first one on its own or the second with the motor in the pic?

Dave H. (the other one)



[123hotchef]

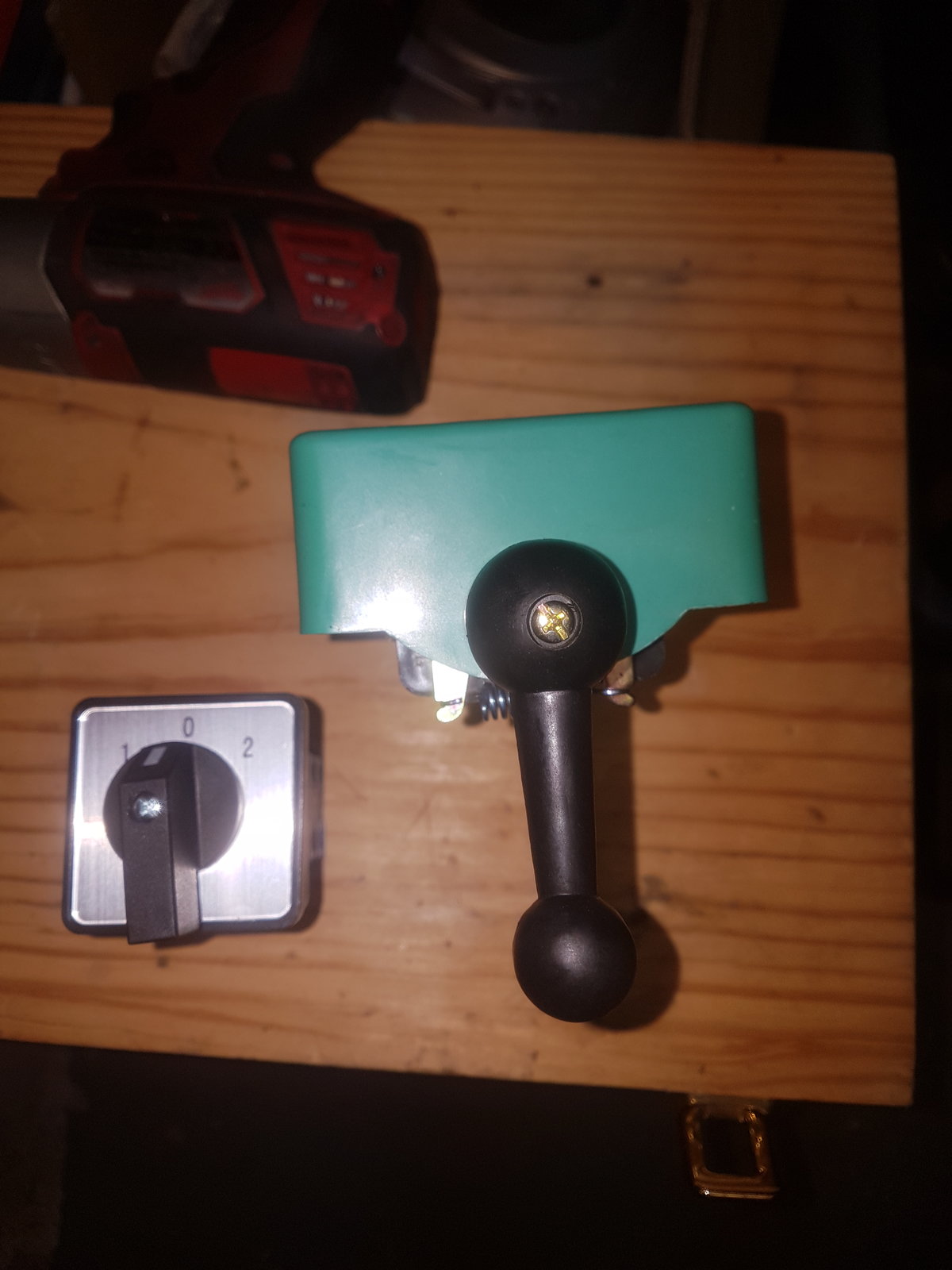

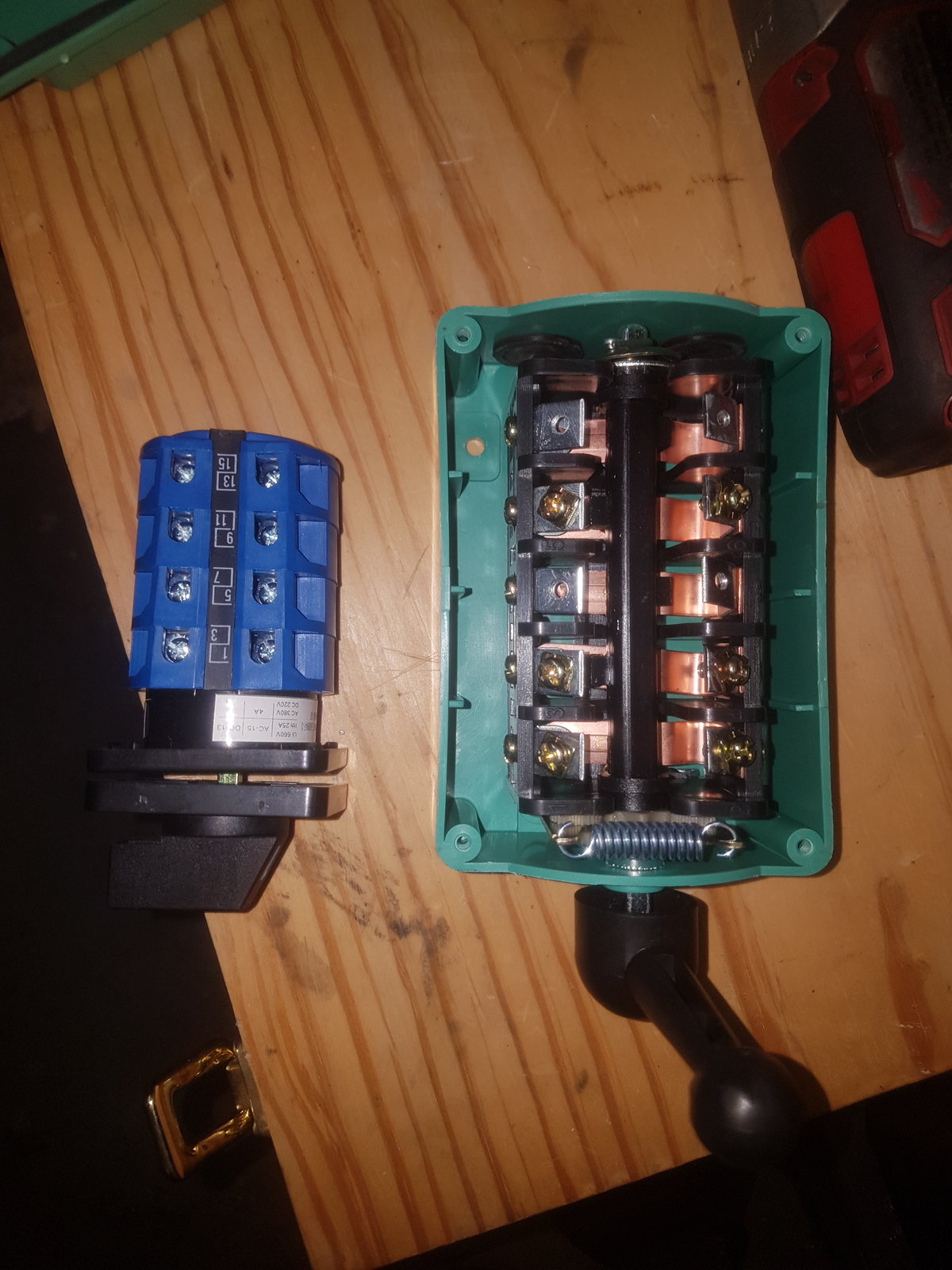

Here are the 2 switches I have to hand.

What one would be better. The green perhaps
