Harrison 140 . metric screw cutting gearbox

  1. foxbat452

    foxbat452 Forum Supporter

    Messages:
    13
    Location:
    Wiltshire UK
    Am new to forum .

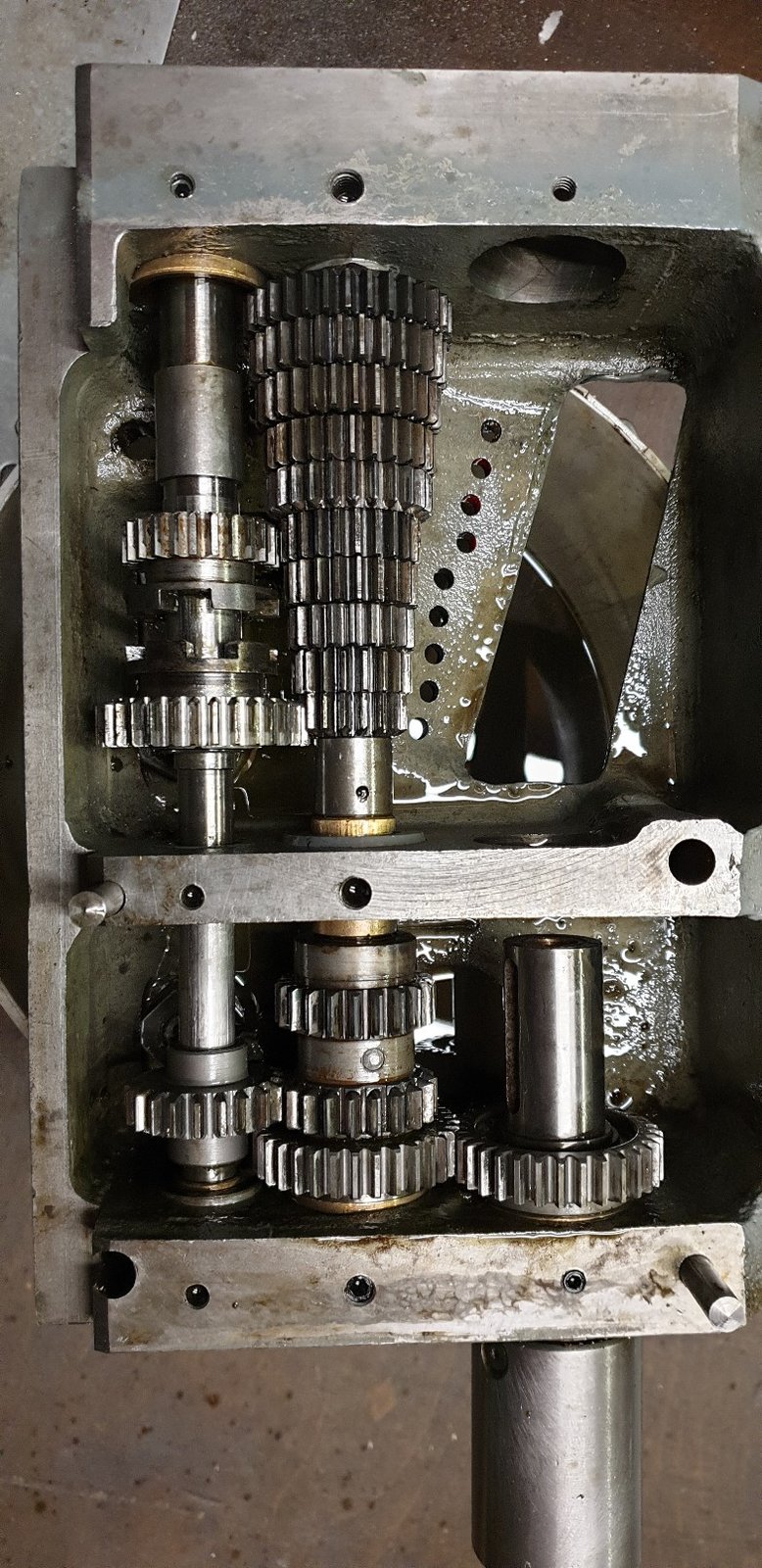

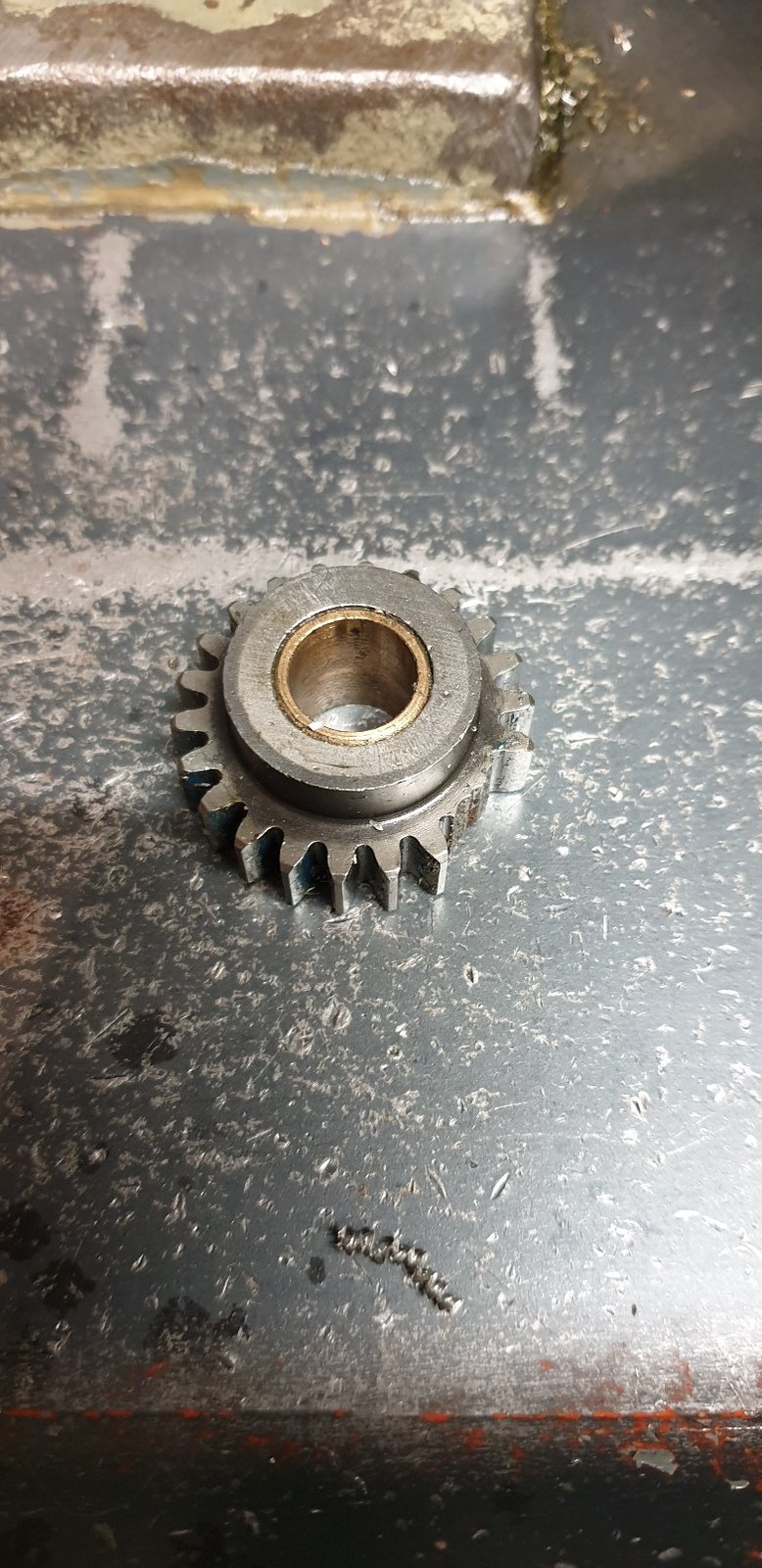

    so my 140 harrison has a problem . in the gear selector is a little 22 tooth gear wheel as of last night it has 2 teeth missing . while cutting a screw something happend came out of gear bounced back and hit the gears . . questions 1 has anyone got a gearbox . 3 knobs across the top and selector at the bottom . metric .
    2 anyone happen to have one .. a gear that is .
    3 does anyone have part number or the spec of that gear .
    help much appreciated



    poor lathe needs help please .

  2. Seadog

    Seadog Forum Supporter

    Messages:
    5,659
    Location:
    NE London - UK
    Ouch. There's no way that it should be able to drop out of gear unless the tumbler lever wasn't properly engaged.

  3. foxbat452

    foxbat452 Forum Supporter

    Messages:
    13
    Location:
    Wiltshire UK

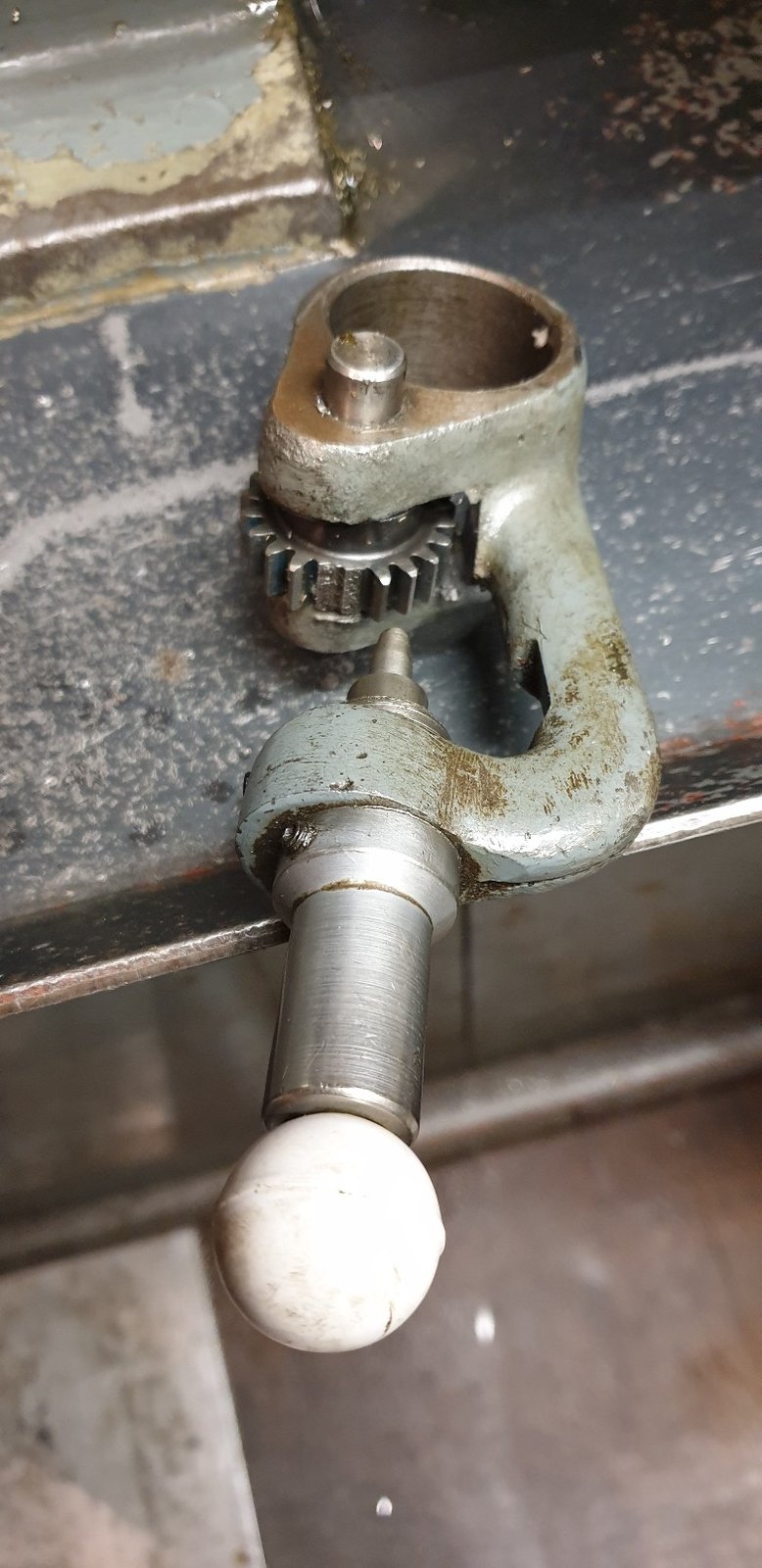

    i found the problem broken spring in the latch . thats fixed . tirned out a previous own thought it was a good idea to use grease in the screw cutting gearbox where is days use oil .

    Brad93 likes this.
  4. Tinbasherdan

    Tinbasherdan Bodger in chief

    Messages:
    5,061
    Location:
    Bolton, England
    Think I would carefully build up with weld and file it back

    hunter27 and Hopefuldave like this.
  5. Pete.

    Pete. Member

    Messages:
    9,024
    Location:
    Kent, UK
    Give me the OD and tooth count. If it's less than 12DP I can probably make one.

    EDIT: just seen the 22 teeth. What's the OD?

    Hopefuldave likes this.
  6. Hopefuldave Intergalactic pot-mender

    Messages:
    1,426
    Location:
    The Shed of Danger, surrey, England
    I've done that a couple of times, braze is probably a better idea as that gear's likely to be cast iron - or there's always HPC Gears, they're surprisingly reasonable for smaller gears and you can bore/bush to fit, won't need power feeds / threading while making it.
    You'll need to measure it for DP and pressure angle, DP take the outside diameter (over the teeth), add 2 to the number of teeth and divide that by te diameter, should come out as a whole number, pitch angle roll it over a piece of plasticene and inspect the angle from "vertical" that the rack you rolled out makes, will be either 20 or 14.5 degrees

    Dave H. (the other one)

    Kram and waddycall like this.
  7. foxbat452

    foxbat452 Forum Supporter

    Messages:
    13
    Location:
    Wiltshire UK
    so the gear has 22 teeth . OD is 38mm gear teeth width is 10mm tooth depth is 2.66 mm .then 7.2 mm shoulder. 12.6mm bore .

  8. Pete.

    Pete. Member

    Messages:
    9,024
    Location:
    Kent, UK
    38mm = 1.5" diameter. Teeth+2/diameter =24/1.5= 16DP gear.

    Give me the tooth thickness, total thickness, shoulder diameter, press the bush out and give me the hole diameter, in inches please.

  9. Hopefuldave Intergalactic pot-mender

    Messages:
    1,426
    Location:
    The Shed of Danger, surrey, England
    Put that in Inches! 22 teeth, 1.5" so add 2 - 24 / 1.5 so a 16 DP gear, 3/8" wide, 1/2" bore
    :)

    *looks like* 20 PA, but best to measure it

    Dave H. (the other one)

  10. foxbat452

    foxbat452 Forum Supporter

    Messages:
    13
    Location:
    Wiltshire UK
    bore is 15.8mm . shoulder 25.4 mm. tooth thickness ??? right down in the rad at the bottom 3.5mm to 3.7 mm they are so worn .

  11. Pete.

    Pete. Member

    Messages:
    9,024
    Location:
    Kent, UK
    So, 1" shoulder and 5/8" bore.

    Tooth width and overall width please. Does your caliper not measure in inches>

    Seadog likes this.
  12. foxbat452

    foxbat452 Forum Supporter

    Messages:
    13
    Location:
    Wiltshire UK

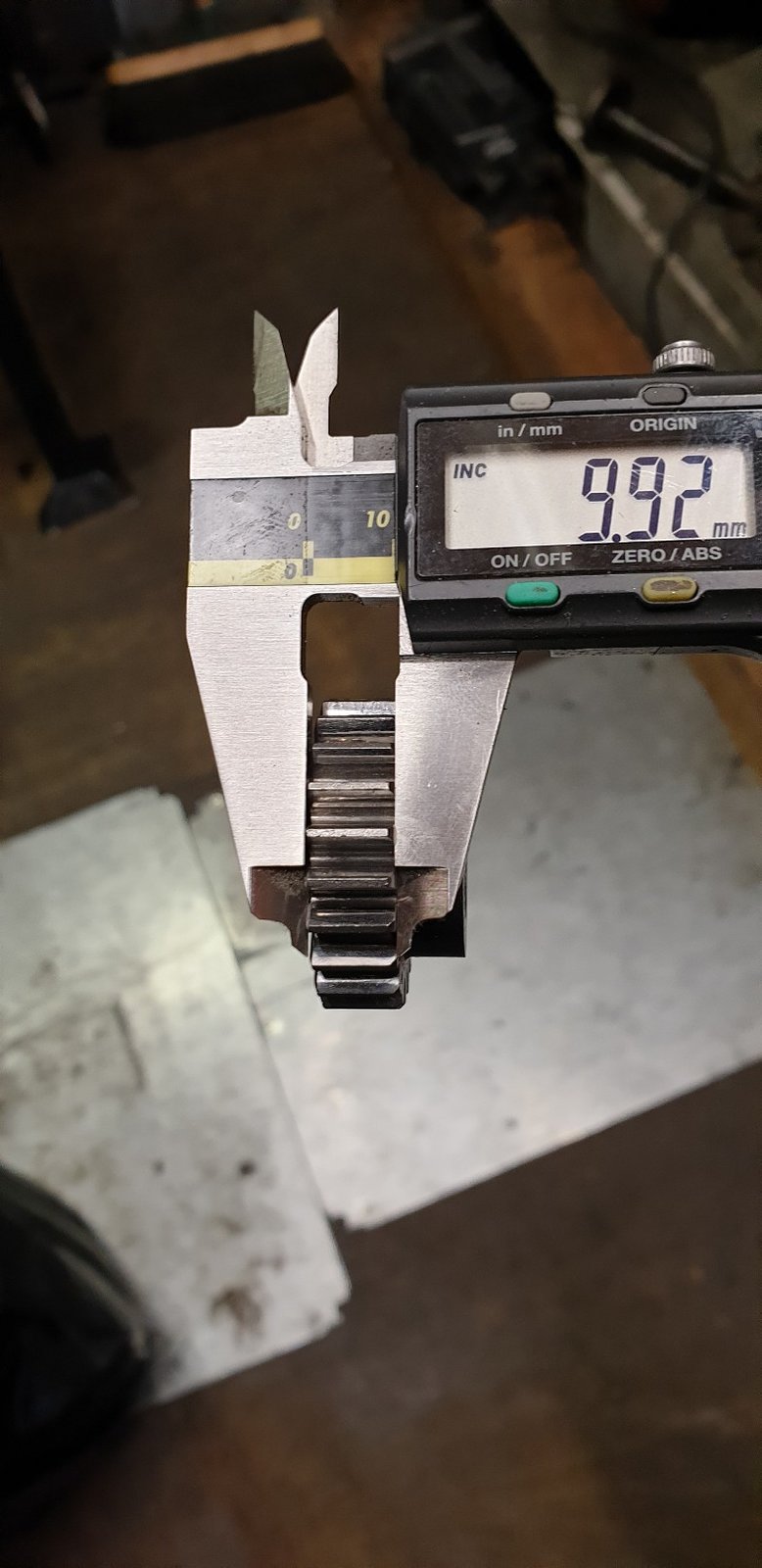

    width of the the tooth is 10 mm . it does but stupid little button dont work
    very strange the rest of this gearbox is mint

  13. Pete.

    Pete. Member

    Messages:
    9,024
    Location:
    Kent, UK
    Overall width?

  14. foxbat452

    foxbat452 Forum Supporter

    Messages:
    13
    Location:
    Wiltshire UK
    17.20 mm sorry not having a good day

  15. Pete.

    Pete. Member

    Messages:
    9,024
    Location:
    Kent, UK
    11/16" wide are you sure the teeth are 10mm wide not 9.53mm?

  16. foxbat452

    foxbat452 Forum Supporter

    Messages:
    13
    Location:
    Wiltshire UK
    i would say originally was 10 mm

  17. Pete.

    Pete. Member

    Messages:
    9,024
    Location:
    Kent, UK
    29/64" exactly Unusual size but there you go.

  18. foxbat452

    foxbat452 Forum Supporter

    Messages:
    13
    Location:
    Wiltshire UK
    all the other gears in the box are 11mm . suppose gives clearance on shift . so mr pete whats a gear going to cost good sir .

  19. Tinbasherdan

    Tinbasherdan Bodger in chief

    Messages:
    5,061
    Location:
    Bolton, England
    I might have a norton box off a Kerry, wonder if the selector gears are the same?

  20. Pete.

    Pete. Member

    Messages:
    9,024
    Location:
    Kent, UK
    *sucks through teeth*

    Well, you know there's a lot of work involved in making a gear. You have to make all the teeth exactly the same and then try to fix them all on spaced out evenly. Plus it's the weekend, and a bank holiday so that pushes the rate up.

    Not really, I think you've had a bad enough day. Pay the postage and a small donation to the forum and we'll call it quits :)

    Here's your gear, try not to break this one :D :D :D

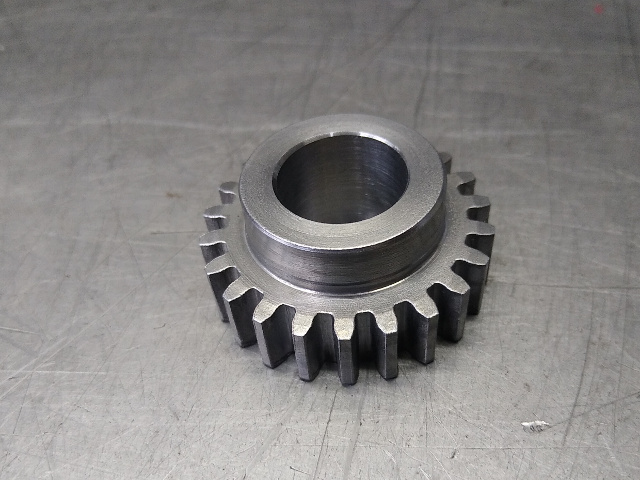

    M300 tumbler gear.jpg

    P.S. I made it quicker than you measured it :D

    MBB, Kram, Dcal and 11 others like this.
