Well the good news is that there are plenty more pictures to go...

I certainly could have done this years ago but I keep wanting to do things "properly" and that takes 10x longer. So things like the fuel tanks. Some people have fitted them using rivnuts... I made top hats, drilled through the chassis rails, welded them both sides and ground flush.

(Before welding)

Then there is the gearchange. Which is a copy of the original

This of course has a bushed centre.

And mounts on the sill side so the lever is a short reach from the wheel.

That then operates a rod shift.

Which goes back here...

Through the gap.

...and then we haven't linked it up to the gearbox yet (mostly because said gearbox is sat under the car atm).



[Nick DV]

Nice work and enjoying the build, so keep the updates coming



[stuvy]

Love it! I continue to massively favour build threads like this rather than youtube vids of builds. Write up with pics etc is so much better (IMO!)

Same here I can’t stand YouTube videos of people waffling on about rubbish



[slim_boy_fat]

Thanks for this so far, I've thoroughly enjoyed the read so far and am in awe of your skills and ingenuity. Keep it coming please!



[piman]

Hello all,

looking at them it's easy to forget when they were first built (1965 maybe?). I remember the inimitable Denis Jenkinson road testing one for Motor Sport magazine and it had wire wheels.

Alec



[Fastdruid]

Originally the chassis came with a roll cage. After some serious consideration I decided I didn't want a roll cage in a car that was predominately going to be a road car. The risks of life changing injury (at best) from a otherwise minor crash with a solid bar mere cm from my head wasn't worth it. After having a sit in and seeing just how easy it would be to hit my head without moving it very far a helmet would be *essential* and I didn't want to make it something I *HAD* to always wear a helmet in.

That said...I quite wanted to keep my options open. So I settled for welding on a substantial plate with 8 weld nuts to the rear roll hoop.

This left the option of a future bolt on roll cage to be (re)fitted without having to cut apart the rear bulkhead or leave the stubs (which were still at a dangerous level).

I could have angled it to the rear bulkhead but then it would be problematic to fit anything to it so it's slightly proud.



[Fastdruid]

Centre tunnel... Centre tunnel runs two water pipes, aircon #10 and #8 lines, a power cable, clutch, brake tubing, throttle, handbrake and electrics. It's f***ing rammed in there.

Started off with some CAD and then 3D printing to get an idea of how things can fit.

Water pipes beaded then lagged with silvered fibreglass heat tape and slices of silicon hose to provide protection from rubbing.

Tunnel itself is split in a rear section that is "framed" by the chassis and then the front which isn't.

I've split this further into "zones" so that the heat from the coolant doesn't affect the other "services". This sticks a vertical "wall" into the tunnel with the clutch, brake, throttle and wiring on the left side then the rest the other with one side easy to access, the other not so much.
It also gives mount points so the brake/clutch piping is adequately supported.

This is the centre "wall"

With the cover on (still rocking the protective plastic).

And the other side of the front tunnel.

The entire tunnel is then lined with the fibreglass backed heat proof tape. There is a sealed air gap between the "hot" zone and the driver/passenger (how well this actually works we'll see).

Then the piping inserted.

Tunnel sealed up

Ooooh, shiny! No idea how well this will do but it's an attempt to keep some heat away from the driver.

While we're on the centre tunnel.

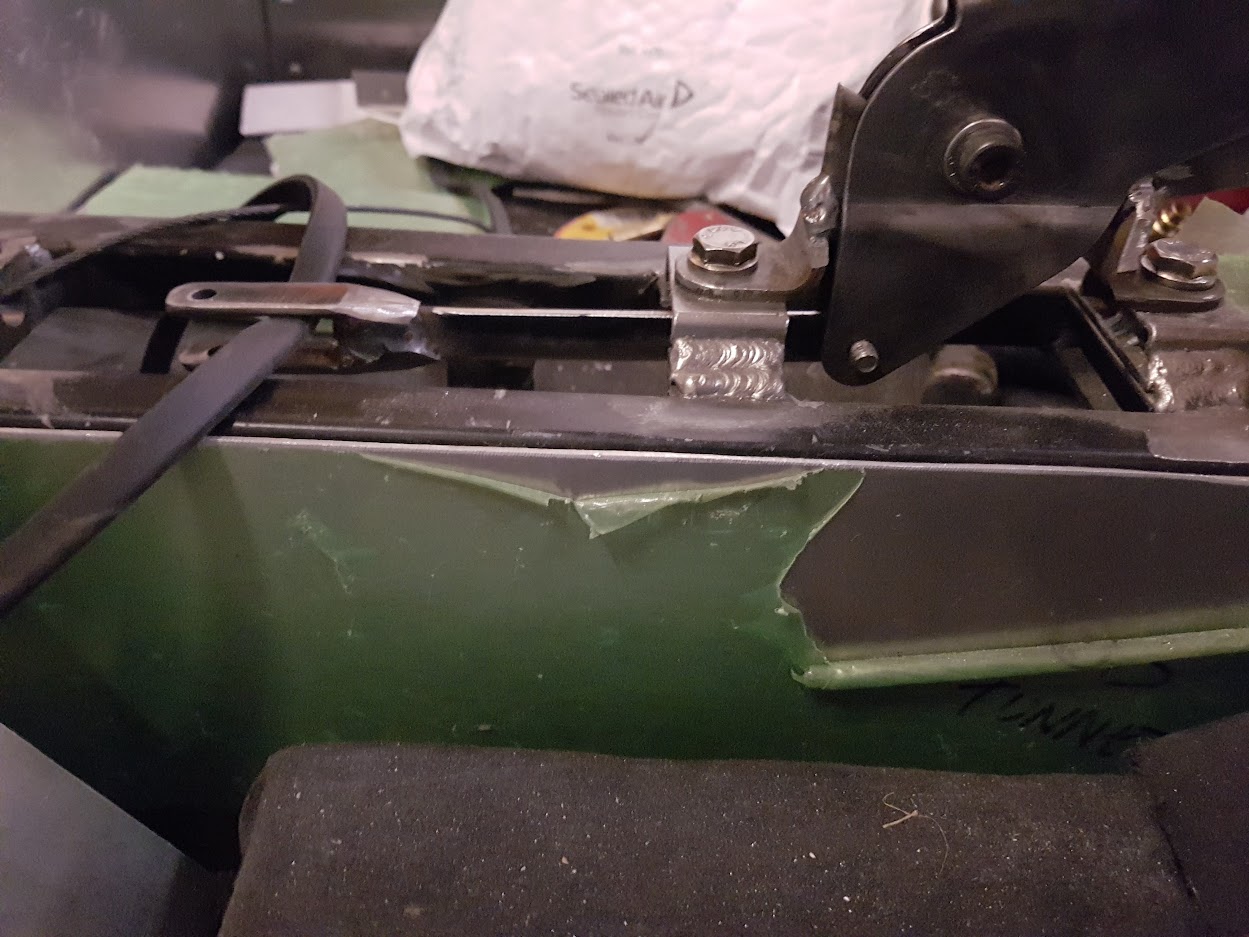

Handbrake.

Handbrake cable adjusters/balance bar.
