Gear cutting on a shaper

  1. pressbrake1

    pressbrake1 Forum Supporter

    Messages:
    2,881
    essex england
    Rough out , cut side with compound slide cut root circle and root with form tool

    Gritineye likes this.
  2. pressbrake1

    pressbrake1 Forum Supporter

    Messages:
    2,881
    essex england

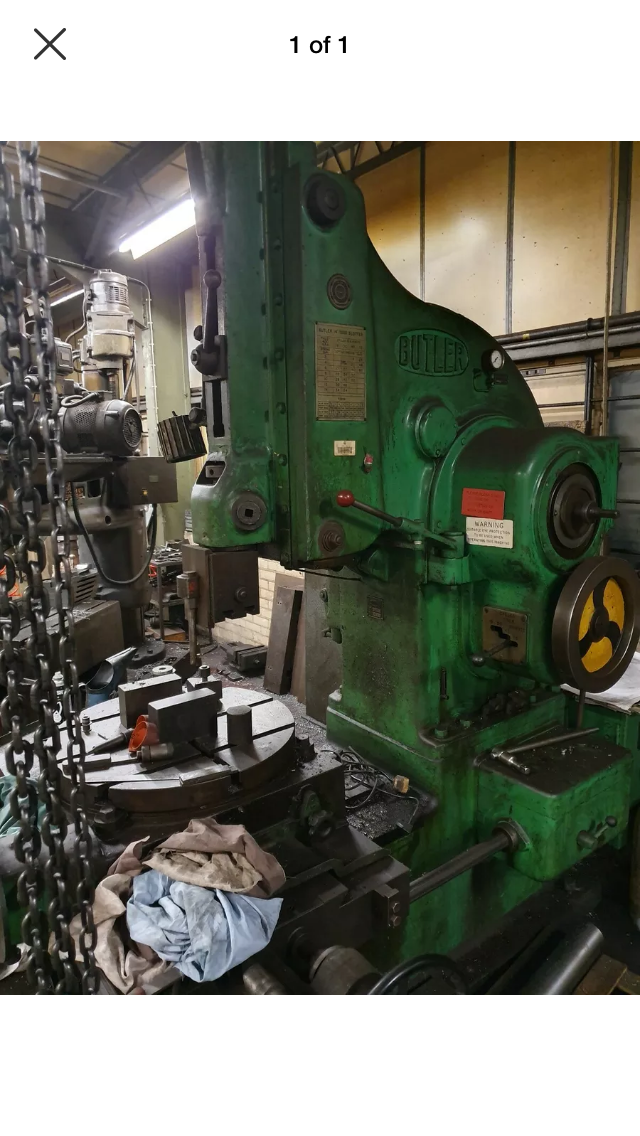

    This is mine, just need to move it, trouble is its 12’ tall. The 7t weight aint a problem 14” stroke
    Ive got a 8” ormerod at home

  3. Gritineye Member

    Messages:
    1,255
    Sussex UK
    I would think the teeth were cut in three operations.

    1. Vertical slide was set over to the required angle for one side, the clapper box tipped away from the cut face, then cut using the down feed. and cross feed in sequence.

    2. Repeat for other side.

    3. centre the vertical slide and clapper box to clean up the bottom.

    Maybe cut a centre slot first?

  4. ronan

    ronan Forum Supporter

    Messages:
    10,259
    dublin
    One tiny mistake and the whole thing is scrap.

    Gritineye and fizzy like this.
  5. ronan

    ronan Forum Supporter

    Messages:
    10,259
    dublin
    Love all the heavy old iron, made to do a bit of work. The place i served the last year of my apprenticeship was formerly a marine engineers, no work at that any longer, so they were getting rid of the big stuff for cnc small stuff.

    pressbrake1 and fizzy like this.
  6. ronan

    ronan Forum Supporter

    Messages:
    10,259
    dublin
  7. gaz1

    gaz1 Member

    Messages:
    11,323
    Location:
    westyorkshire





  8. phm87 Member

    Messages:
    135
    Location:
    Whitby U.K.
    I would love to know how long the horizontal shaper gear took to cut?

  9. pressbrake1

    pressbrake1 Forum Supporter

    Messages:
    2,881
    essex england
    Quicker than you'd think but still long enough to be misery!

    phm87 likes this.
  10. Rudi McAnichal Member

    Messages:
    362
    UK
    Photos on the budikarya-teknik.com website suggest this Indonesian company has a lot of big old-ish machine tools, but presumably these don't include Sunderland planer, which would surely have made the job a lot easier and quicker.
