Gear cutting on a shaper

  1. pressbrake1

    pressbrake1 Forum Supporter

    Messages:
    2,898
    essex england

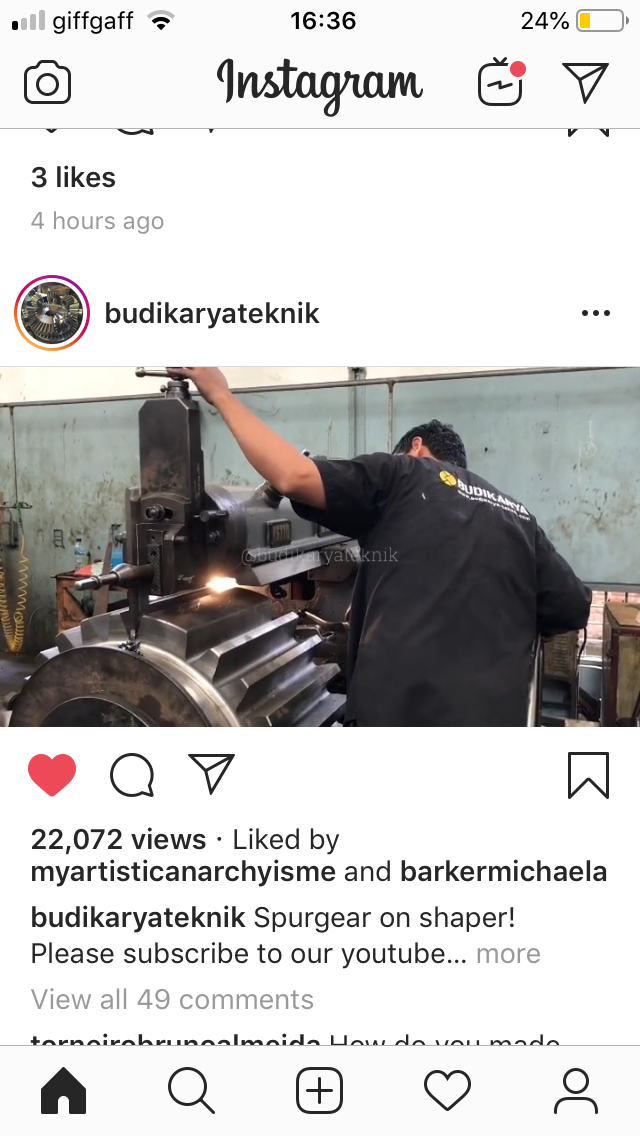

    Saw this on Instagram
    I was impressed!

    jordhandson, skotl, fizzy and 16 others like this.
  2. Spark plug

    Spark plug Member

    Messages:
    3,780
    Location:
    Durham, England
    Yet more proof shapers can still be put to good use :thumbup:

    fizzy, ronan, gaz1 and 2 others like this.
  3. Woody.v8

    Woody.v8 Blue gluer

    Messages:
    3,511
    Location:
    staffs
    "Shapers, firing red hot chips down your collar for over 100 years":laughing:

    Morrisman, fizzy, ronan and 1 other person like this.
  4. Spark plug

    Spark plug Member

    Messages:
    3,780
    Location:
    Durham, England


    More entertaining than half the drivel on the telly.

    fizzy, ronan, slim_boy_fat and 4 others like this.
  5. gaz1

    gaz1 Member

    Messages:
    11,360
    Location:
    westyorkshire
    theres a big 26" one on a site being sold for 2000+

    spencer 427 likes this.
  6. pressbrake1

    pressbrake1 Forum Supporter

    Messages:
    2,898
    essex england
    Butler?

    spencer 427 likes this.
  7. gaz1

    gaz1 Member

    Messages:
    11,360
    Location:
    westyorkshire
    yeah its a butler

  8. spencer 427 Member

    Messages:
    7,008
    Location:
    uk colchester
    If it wasn't a fixed cube I be on it

  9. pressbrake1

    pressbrake1 Forum Supporter

    Messages:
    2,898
    essex england
    I was offered a good deal on it but salesman started to get on my wick

    jordhandson and spencer 427 like this.
  10. pressbrake1

    pressbrake1 Forum Supporter

    Messages:
    2,898
    essex england
    In 25 yrs Ive never had to tilt my butler and my machinery is in use.
    Is it the aesthetics you don’t like?

    jordhandson, gaz1, fizzy and 3 others like this.
  11. eLuSiVeMiTe

    eLuSiVeMiTe Member

    Messages:
    12,988
    Location:
    Bedfordshire England
    Any idea how that would be set up to cut
    Can't make out the tool profile in the pic

  12. pressbrake1

    pressbrake1 Forum Supporter

    Messages:
    2,898
    essex england
    They dont look involute so no addendum and dedendum to contend with

  13. eLuSiVeMiTe

    eLuSiVeMiTe Member

    Messages:
    12,988
    Location:
    Bedfordshire England
    Would they have cut one side of the v then indexed to the other side and cut then finished off the middle to square the root?
    No my trade but like to understand.

    Edit. Il shut up. That wouldn't work.

  14. ronan

    ronan Forum Supporter

    Messages:
    10,276
    dublin
    fizzy, eLuSiVeMiTe and spencer 427 like this.
  15. ronan

    ronan Forum Supporter

    Messages:
    10,276
    dublin
    In that first pic it looks like he is only roughing out the bottom of the cut. Must use a form tool to then get the shape ?

    pressbrake1 likes this.
  16. spencer 427 Member

    Messages:
    7,008
    Location:
    uk colchester
  17. eLuSiVeMiTe

    eLuSiVeMiTe Member

    Messages:
    12,988
    Location:
    Bedfordshire England
    That's what I was puzzling over

  18. ronan

    ronan Forum Supporter

    Messages:
    10,276
    dublin
    eLuSiVeMiTe and spencer 427 like this.
  19. spencer 427 Member

    Messages:
    7,008
    Location:
    uk colchester
    ronan likes this.
  20. Spark plug

    Spark plug Member

    Messages:
    3,780
    Location:
    Durham, England
    there are many ways it could have been done, if it was me I would rough out as much metal as possible, levering enough for a finishing cut all around the profile. It’s also going to depend on the indexing setup as well, which will also dictate the process.

    eLuSiVeMiTe likes this.
