A few random stainless jobs

  1. Paul.

    Paul. Moderator Staff Member

    Messages:
    6,004
    Location:
    Northampton. UK
    I often make small parts up that may be of interest to members, but are not really worth making a new thread for, so I'll stick a few in here from time to time

    A couple of small recent jobs,

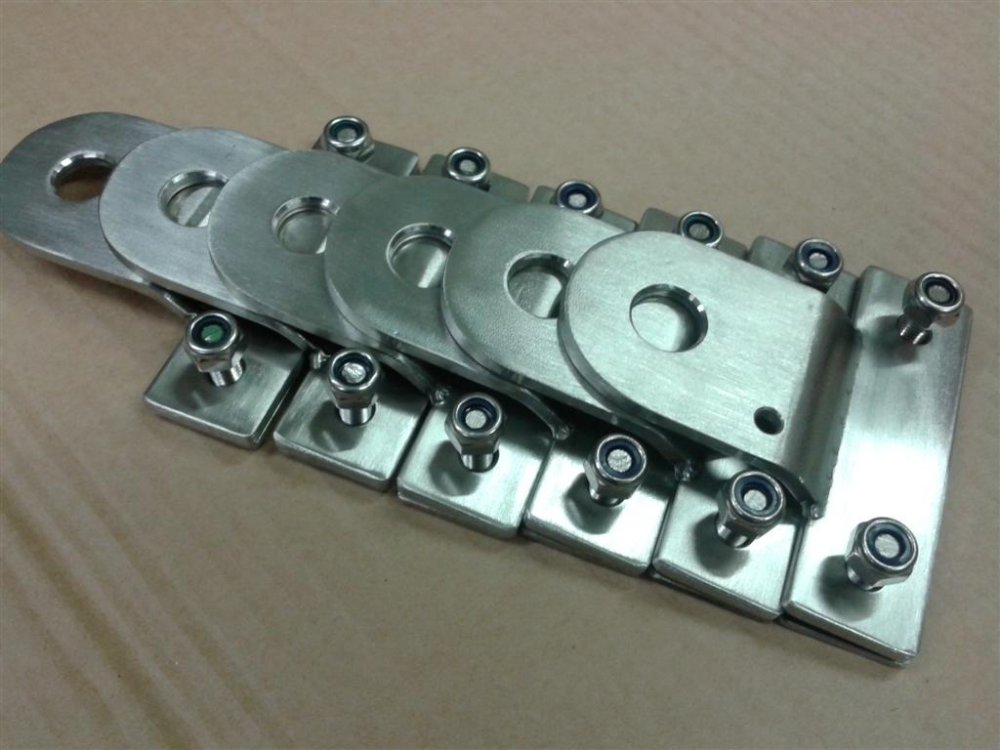

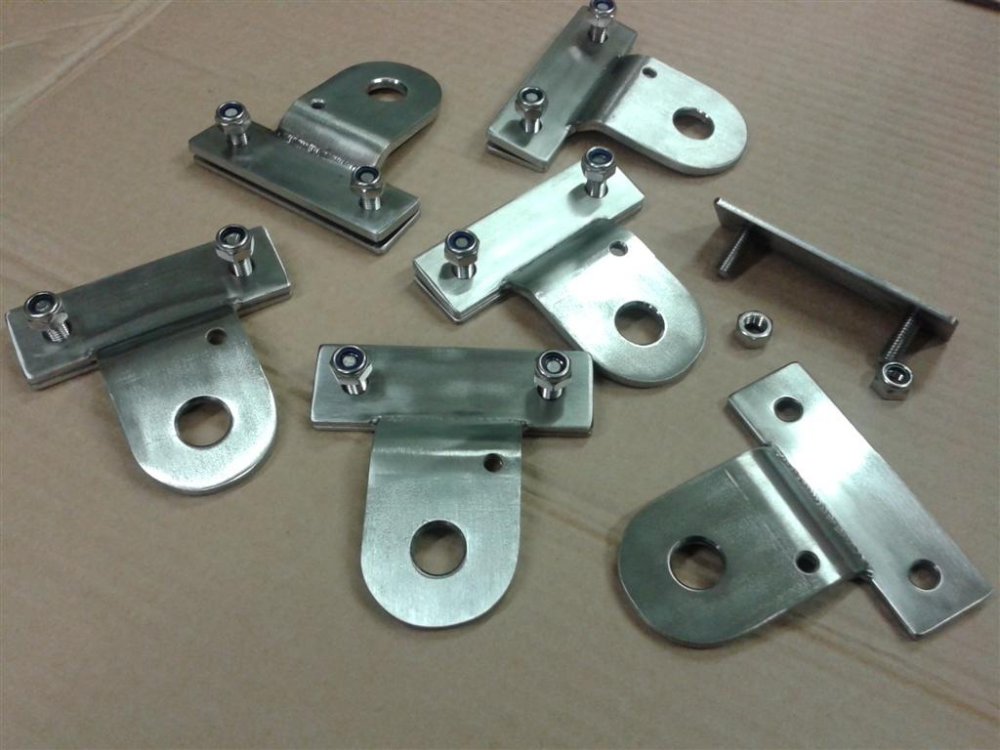

    Antenna brackets to fit on the roof bars of the new landrover, drop in a slot in the roofbar and slide along then just nip them up.

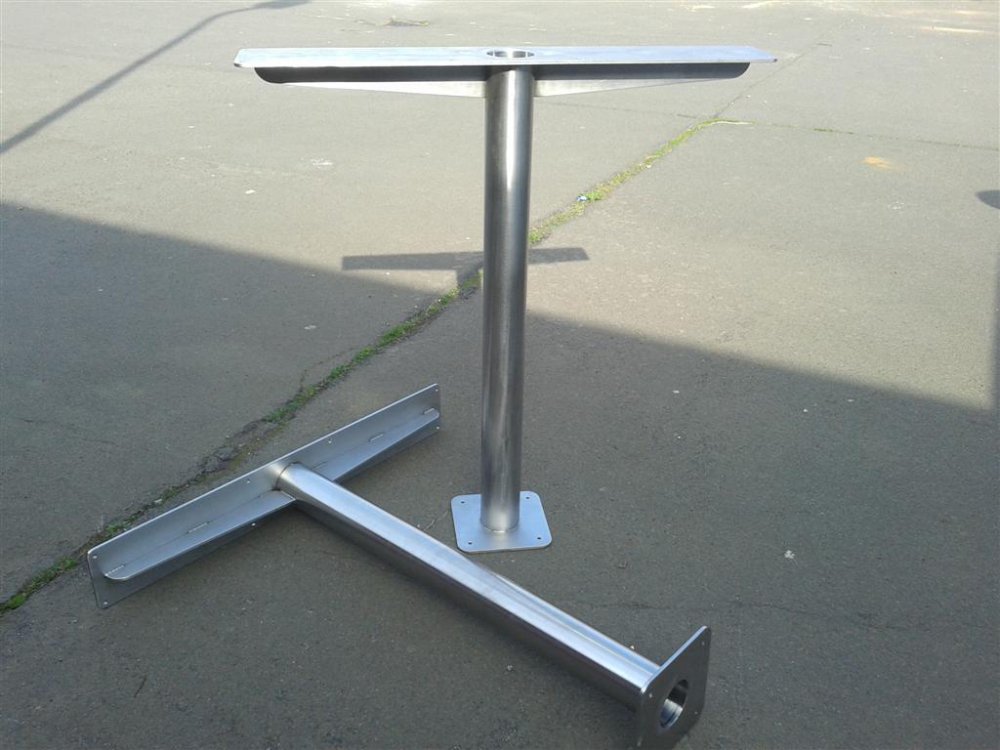

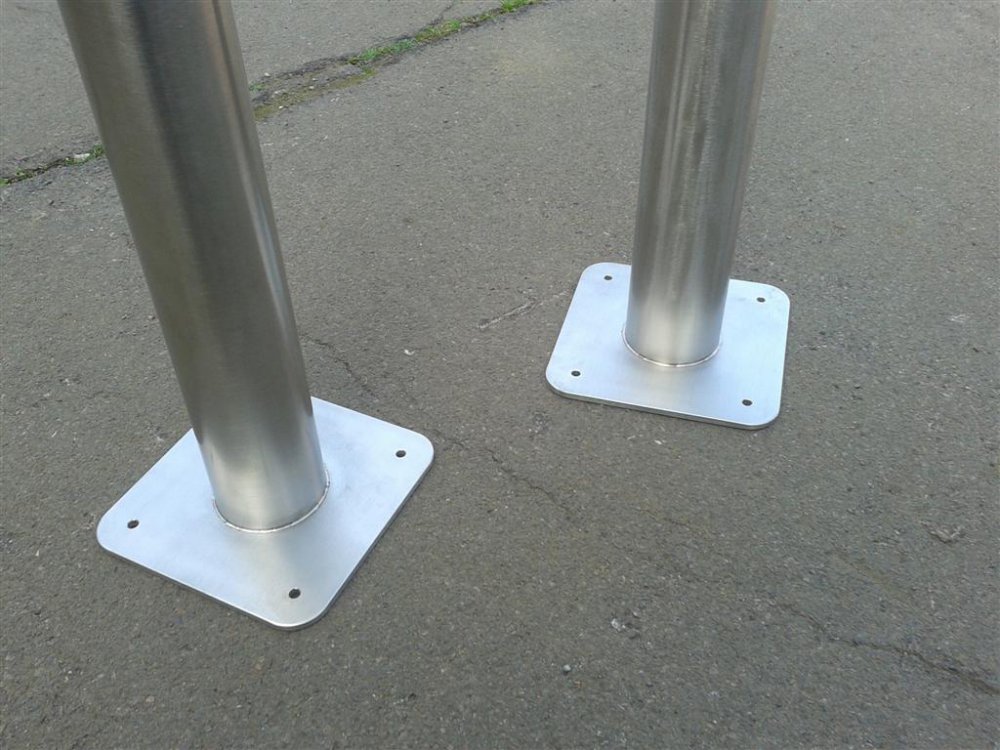

    Next, a couple of table legs for seating booths in a works canteen, one end of the table is fixed to the wall, and supported at the other end by one of these,

    Last edited: Apr 10, 2015
  2. Psymon

    Psymon Member

    Messages:
    256
    Essex - UK
    Are these laser/plasma/water cut? Also what tools do you use to get the flat plate and post perfectly vertical. I have some SS which I want to make into a post but I know getting the cuts perfect and then putting them together will make them lean...

  3. Paul.

    Paul. Moderator Staff Member

    Messages:
    6,004
    Location:
    Northampton. UK
    The antenna brackets are cut and shaped entirely by hand, and drilled with a hole saw,
    The 5mm plates for the leg brackets I had laser cut, the fabrication is just old fashioned use of a square and a bit of care, notice how the tube comes through the plates, that makes it easier to fab up too,
    The top plate did bow a bit when welded but a couple of clamps and a packer on the bench soon sorts that.

  4. Psymon

    Psymon Member

    Messages:
    256
    Essex - UK
    Ok very helpful, thanks Paul.

  5. Paul.

    Paul. Moderator Staff Member

    Messages:
    6,004
    Location:
    Northampton. UK
    A couple more

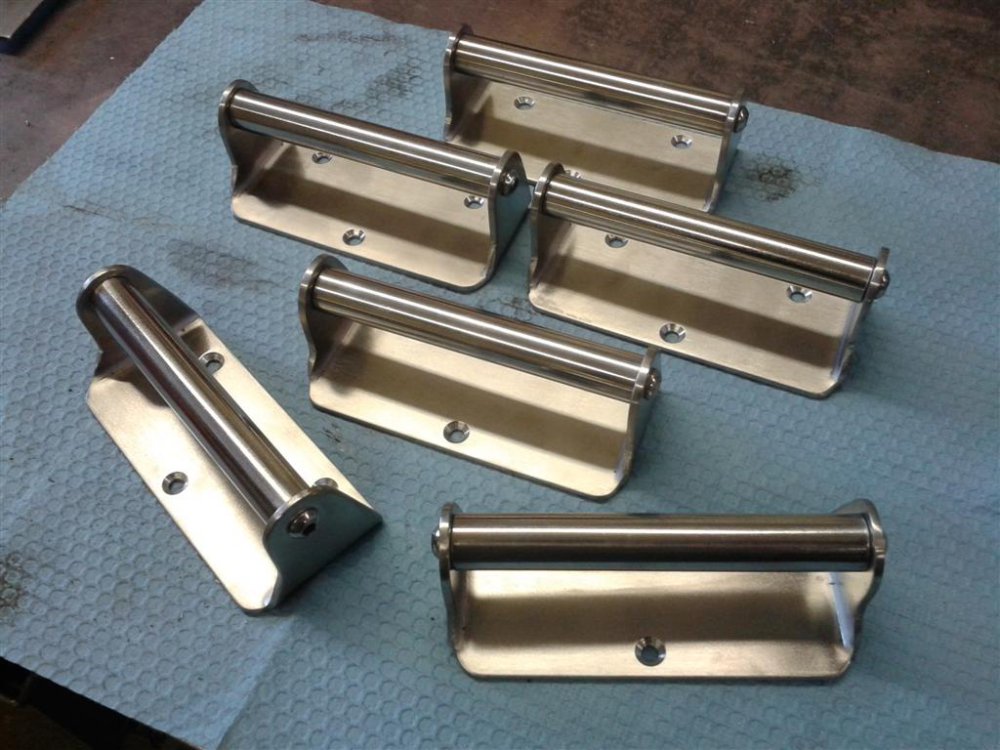

    Brackets to hang a polycarbonate panel over the top of a large notice board, again shaped by hand.
    20150126_115343 (Large).jpg

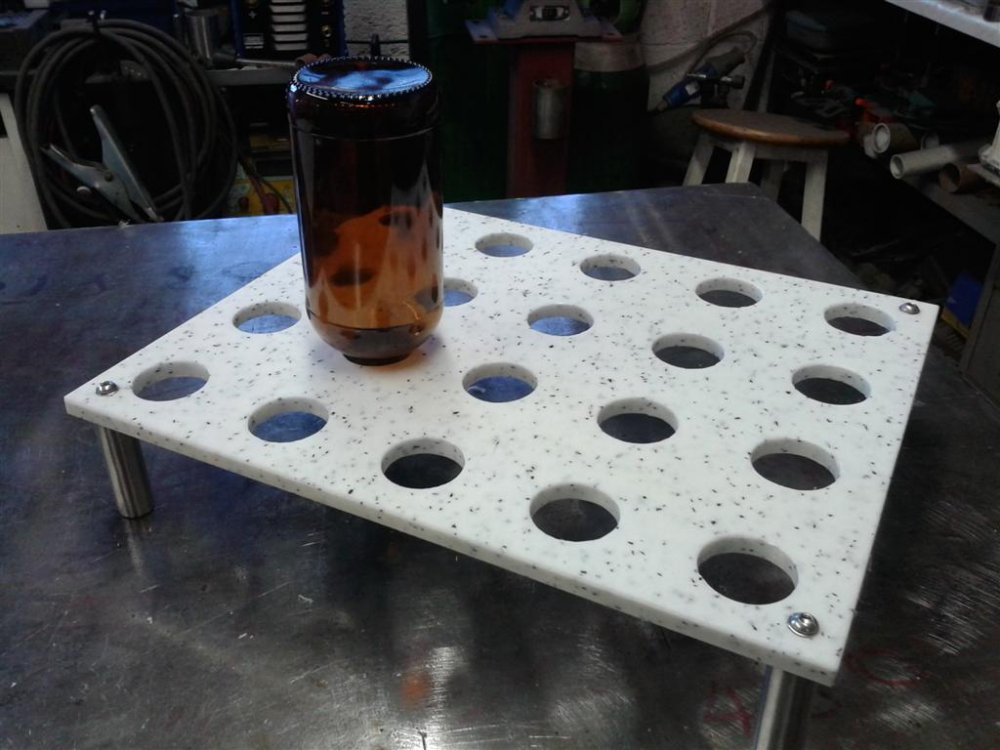

    A bottle drainer for a small brewery, not much stainless on this one, just the legs
    Top is polyethylene.
    20141114_152050 (Large).jpg

    Some stainless mesh guards to protect some rather expensive bulkhead lights, eleven of these a nice little bench job
    20150302_141053 (Large).jpg
    20150302_141205 (Large).jpg

    Barlidge, Bsmith, Psymon and 3 others like this.
  6. the snooper

    the snooper getting older by the day

    Messages:
    20,014
    Location:
    Hull UK
    if you have trouble with straight cuts aslong as they are not hugely out you can always put a good tack on it then using a square get it straight and weld up

    Psymon and Maker like this.
  7. blenkie1

    blenkie1 Member

    Think if I was doing them brackets everyone would look different. Great work. Is most of your work stainless?

  8. Istayinalot

    Istayinalot Member

    Messages:
    83
    Location:
    Durham, England
    Very nice work, must be tricky to get everything so consistent.

  9. Kent

    Kent Member

    Messages:
    10,002
    Location:
    Bowland, Lanacshire,UK
    Tidy looking stuff.

  10. Gavin_d

    Gavin_d Member

    Messages:
    496
    Location:
    UK Lincolnshire
    Awesome stuff Paul.

  11. Paul.

    Paul. Moderator Staff Member

    Messages:
    6,004
    Location:
    Northampton. UK

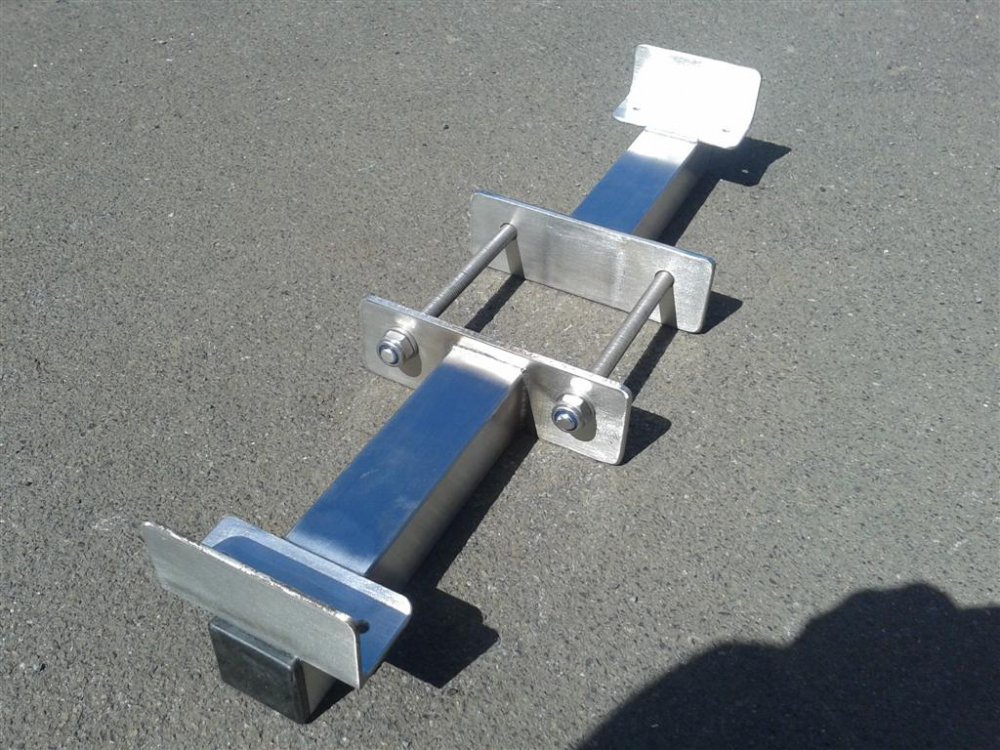

    A couple of sets of stainless brackets, part of the ladder gantry on a fire engine. I make quite a few of these in different styles to replace the rubbish aluminium ones fitted by the vehicle builders. 20150427_114158 (Large).jpg

  12. Psymon

    Psymon Member

    Messages:
    256
    Essex - UK
    Paul you are an inspiration to all. Beautiful work - I hope you emptied the beer bottle :)

  13. Richard.

    Richard. Member

    Messages:
    17,949
    Location:
    Cambridgeshire
    As with everything you post up Paul. Looks really great work.

  14. JDJones Member

    Messages:
    26
    Location:
    Bedfordshire
    Hello tig paul
    I have been looking at pictures of your work for some time now,always first class, Do you tig aluminium as well, I ca'nt recall any aluminium welding, I would be interested to know.
    All the Best desmo11225

  15. Paul.

    Paul. Moderator Staff Member

    Messages:
    6,004
    Location:
    Northampton. UK
    classic
    Yes I do a fair bit of ally, there are a few bits scattered around the forum,
    Some of what i do is for a particular customer and best kept off the forum as his customers will then know who really holds the torch

    Last edited: May 8, 2015
  16. Kent

    Kent Member

    Messages:
    10,002
    Location:
    Bowland, Lanacshire,UK
    :laughing: I think a lot of this goes on and always has;)

    Last edited by a moderator: May 8, 2015
  17. Psymon

    Psymon Member

    Messages:
    256
    Essex - UK
    I used to hold a torch for a girl local to me. :hug:

    julianthegypsy, bigegg and oddbob like this.
  18. Paul.

    Paul. Moderator Staff Member

    Messages:
    6,004
    Location:
    Northampton. UK

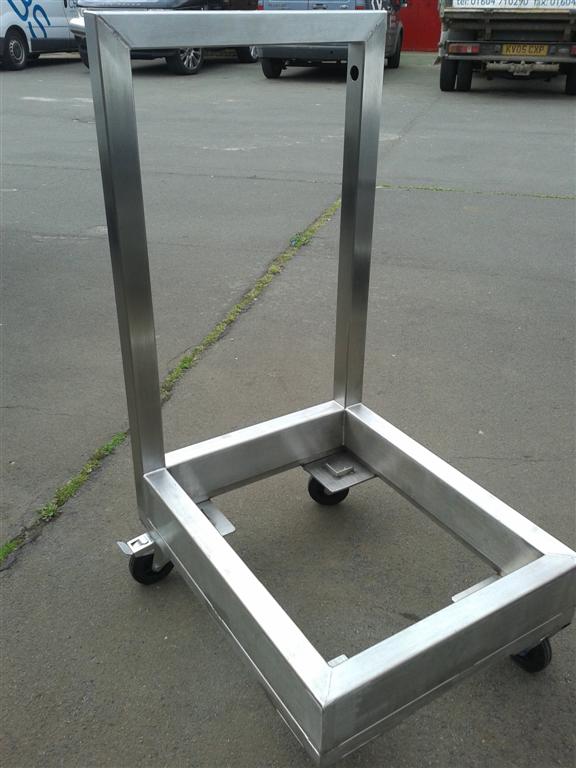

    Little job finished off today, its a trolley to make a platform scale mobile, material is 100 x 50 3 and 50 x 50 x 3 box section, the scale is 130 deep and needs to be level with the top of the frame so there is a 30mm box section fame underneath to get the depth,

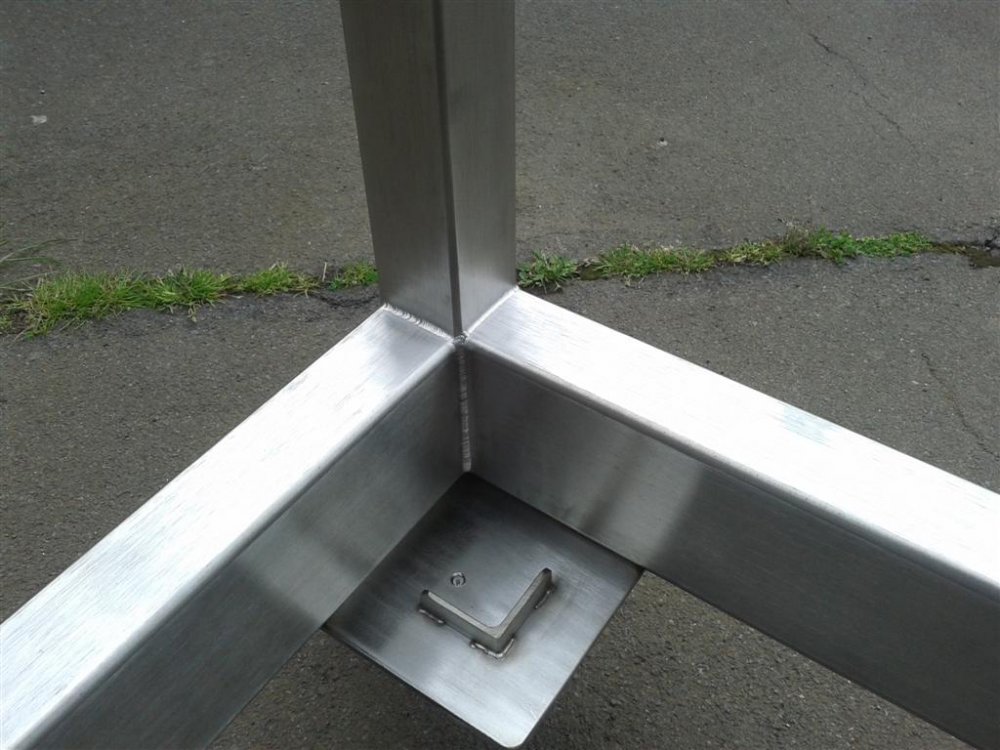

    The scale has rubber feet so some simple location brackets will keep it in place

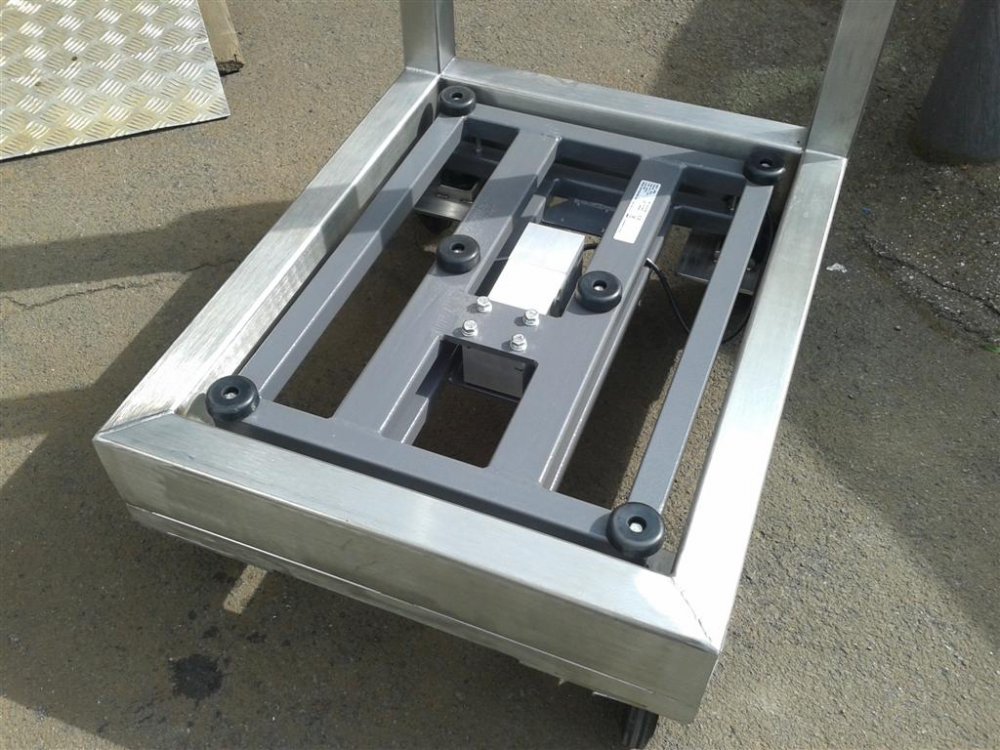

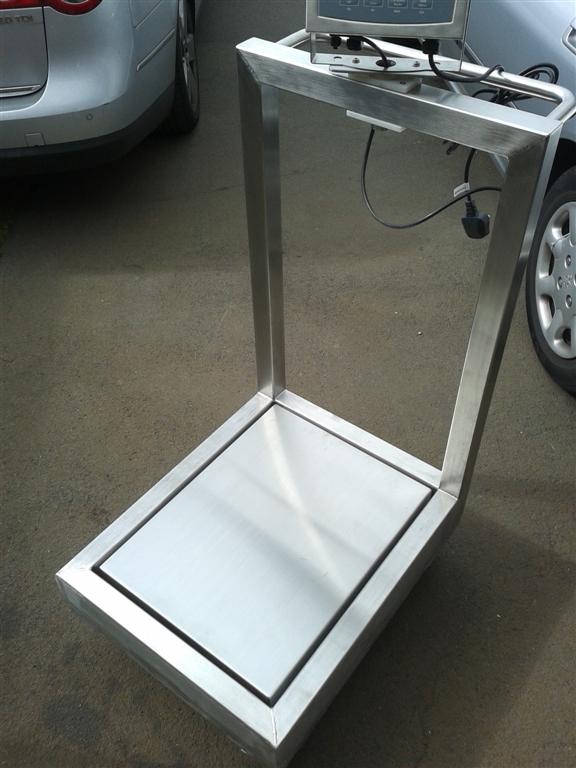

    The scale fitted, without and then with the stainless platform on.
    3.jpg 4.jpg

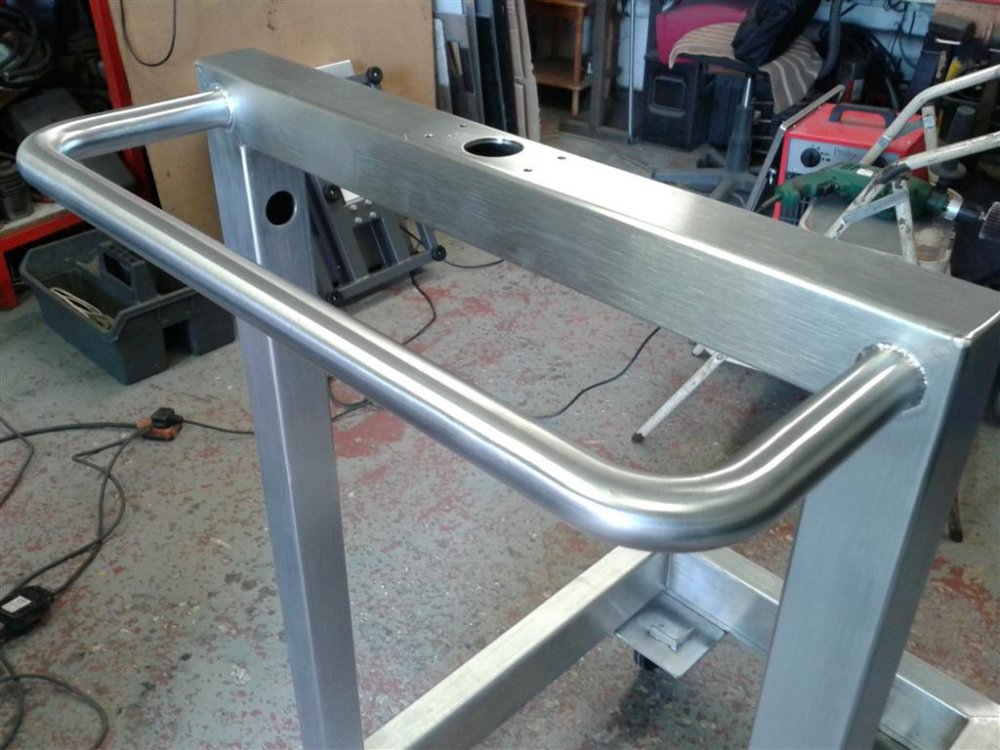

    The handle is fabricated from 1" stainless tube and pre formed bends then its all polished out, there are five separate pieces to it, can you spot the joins.

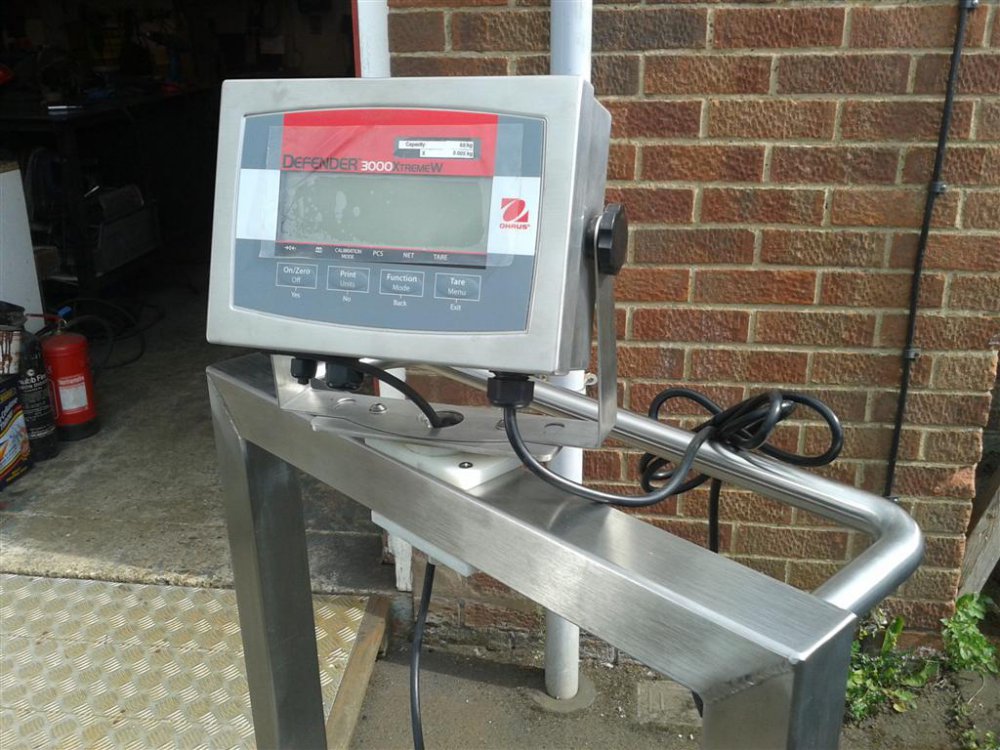

    A swivel bracket for the head completes the job, a couple of polyethylene plates drilled to be a tight fit on the tube keep it together and provide a bearing surface

    Miggy89, Bsmith, ronan and 1 other person like this.
  19. Hitch

    Hitch Moderator Staff Member

    Messages:
    11,879
    Somerset
    Neat...
    Does the table take those plastic euro trays?

    I made a new top for one not that long ago, had to extend over the sides, with a good clearance on the frame.
    The production staff sometimes didn't put the trays on it central, and so would get false readings from the frame taking an amount of the weight.

  20. gordon stephenson

    gordon stephenson Forum Supporter

    Messages:
    6,345
    Location:
    Skelton in Cleveland U.K.
    As usual Paul, A true master class in stainless tig welding, The rest of us just live and hope.
