workshop air system

[SmartWerks]

Finally got around to starting the air system for the shop. Using 22mm copper piping with 10mm water drops

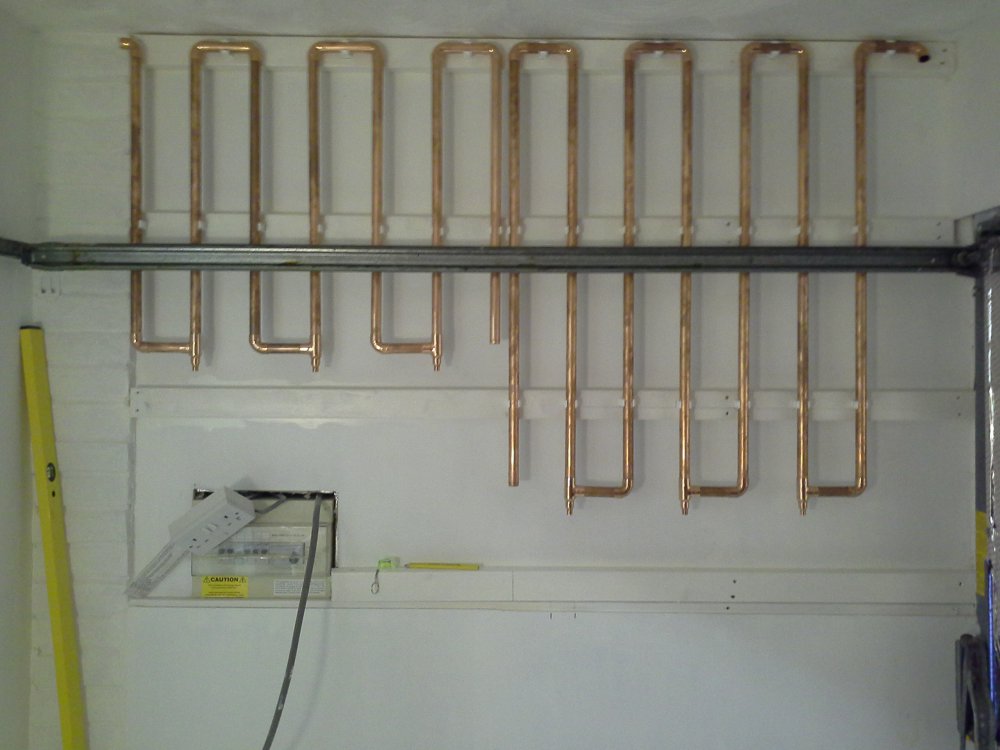

thats the condensers dry fitted, going to fit the water drops this afternoon.....



[SmartWerks]

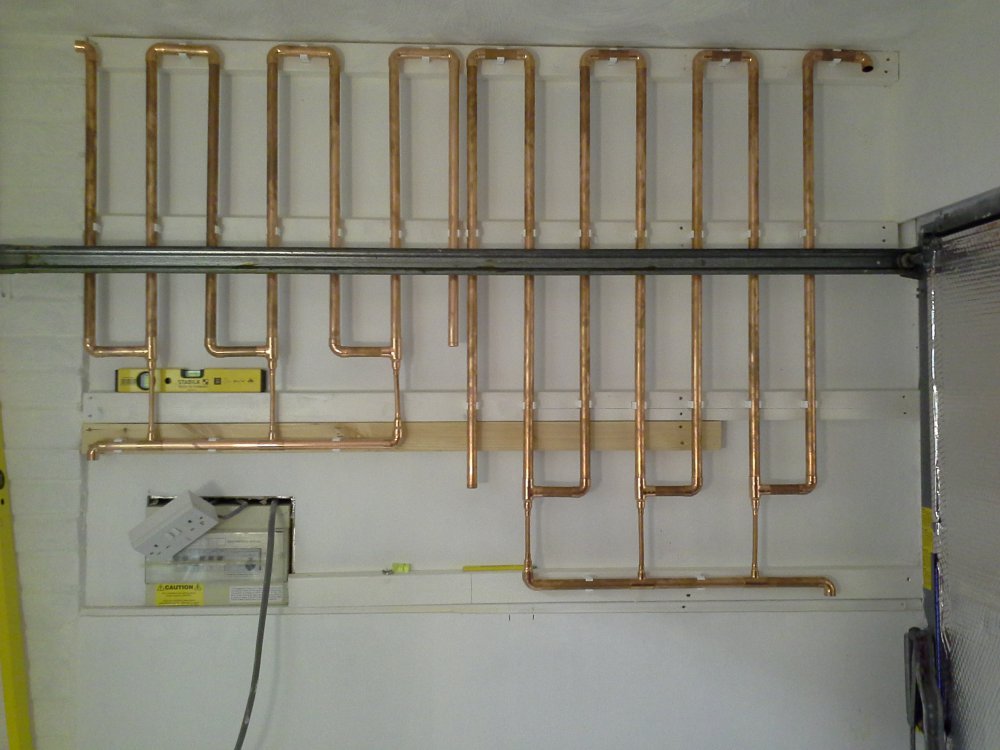

Dry fitted the drain points



[brightspark]

what happens if its a warm day , no cooling on the outside of pipes



[SmartWerks]

what happens if its a warm day , no cooling on the outside of pipes

Fully insulated workshop also painting piping white



[Gareth J]

Very nice setup!

painting piping white

Or black....?



[rtbcomp]

Paint it matt black to radiate (or absorb) heat.



[brightspark]

it wants cooling not absorb external heat a good fan blown over it all would help if it was covered . boxed in



[rtbcomp]

If the ambient temperature is lower than the compressed air temp it won't absorb heat. Even with a fan the air temp in the room has to be lower than the compressed air temp.



[Gareth J]

Look behind your fridge for confirmation



[awemawson]

I ran 15 mm copper co-axial with 22 mm copper outside as a jacket, and ran cold water though the 22 and the air through the 15. All sloped at 45 degrees with a condensate drain at the bottom. Worked splendidly. Only needed a trickle of cold to keep it condensing.



[SmartWerks]

Very nice setup!

Thank you kindly



[SmartWerks]

I ran 15 mm copper co-axial with 22 mm copper outside as a jacket, and ran cold water though the 22 and the air through the 15. All sloped at 45 degrees with a condensate drain at the bottom. Worked splendidly. Only needed a trickle of cold to keep it condensing.

That sounds a good set up, any pics?



[captain-destructo]

http://www.mig-welding.co.uk/forum/threads/diy-air-drying-system.50298/page-2#post-569533

another thread that might be of interest



[SmartWerks]

http://www.mig-welding.co.uk/forum/threads/diy-air-drying-system.50298/page-2#post-569533

another thread that might be of interest

Thanks, I have read that one before. Very nice set up. I'm restricted on space otherwise I would maybe have done something similar. I just don't have the space to give me what I hope is sufficient travel to condense the moisture hence the up and down arrangement. I do like the look of the dessicated filters, something I am considering as moisture for blasting and coating is a serious no no



[awemawson]

That sounds a good set up, any pics?

Sorry, left it on the wall when I moved 8 years ago - got a chiller / drier now



[SmartWerks]

Sorry, left it on the wall when I moved 8 years ago - got a chiller / drier now

No worries, I'll be doing a new set up soon, and yes bigger compressor and a decent drier. Space rules out the drier in my current location unfortunately. Much easier and way more efficient?
