Stuff you have made today

[Morrisman]

I made a ‘Nerf’ bar for the hot rod.

I toyed with the idea of welding an old adjustable spanner on top, so tailgaters would think it was forgotten about and going to fall off in their path.....

.....but I’d probably have no end of good kindly folk flashing and beeping to tel me about it.....

Be nice to get it chromed, or zinc plated.... but it’ll probably end up in black Hammerite.

Not too far off MOT time, if I can grow a pair enough to take that first intrepid drive.....



[Kram]

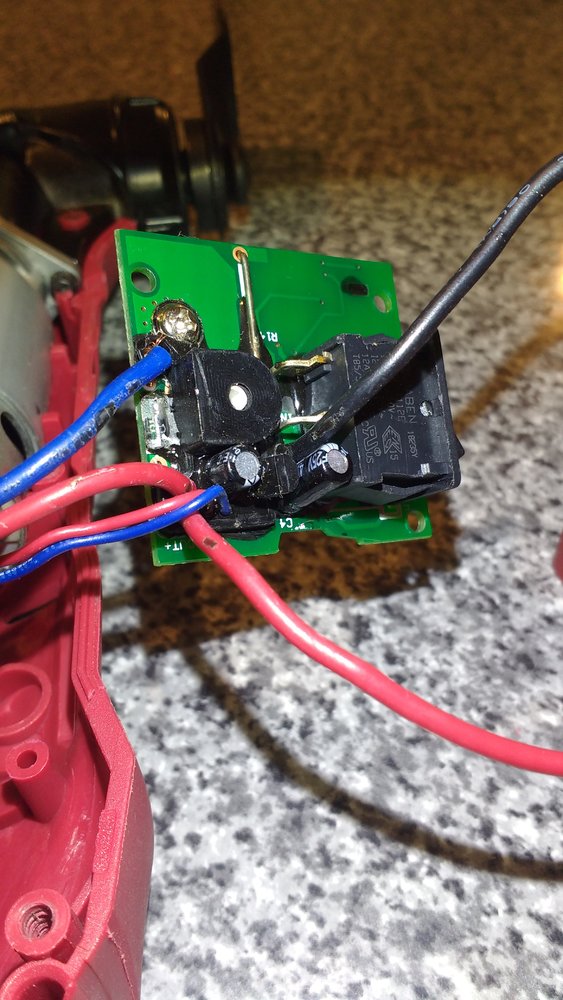

There's one TO92 device between the two capacitors:

View attachment 281240

It's sat in a bed of encapsulation resin or whatever.

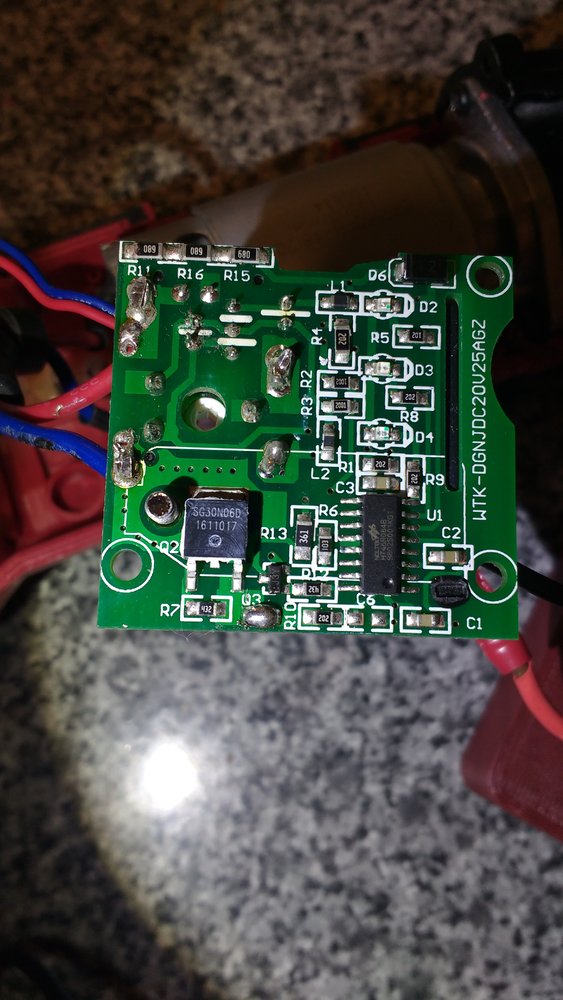

On the underside:

View attachment 281241

Struggling to find a data sheet for it.

Cant find a datasheet but its SG30N06D to replace, any 20A+ N channel mosfet will do, to-252 package, the tab will be drain as theres no middle leg.

Working gun. Used a silverflo 55 rod, much easier this time, using easyflo 2 flux. My problems last time may have been the wrong flux.



[Onoff]

Cant find a datasheet but its SG30N06D to replace, any 20A+ N channel mosfet will do, to-252 package, the tab will be drain as theres no middle leg.

Ta. So you reckon chuck a new MOSFET in and a bigger diode?



[Kram]

Yes should fix it.



[Onoff]

Yes should fix it.

Cheers. One of these maybe?



[Kram]

6A8 or 6A10 Id guess. Diode shouldnt stop the speed control working, its really there to protect the mosfet and battery more than anything.



[Hood]

Came down to the workshop this evening and got the ends of the handrails done. Don't have M4 countersunk screws here so just fitted some cap screws at the moment. The M6 capscrews will likely just stay, could make up wee handles but that is time and time is money so if they are happy with them that will do.

Vid of it in action, very exciting



[Onoff]

6A8 or 6A10 Id guess. Diode shouldnt stop the speed control working, its really there to protect the mosfet and battery more than anything.

Ta. Going to sound dense here but what makes the 6A8 / 10 potentially suitable?

Cheers



[slim_boy_fat]

Be nice to get it chromed, or zinc plated.... but it’ll probably end up in black Hammerite.

Please, nooooo. Then it'll disappear into the general colour scheme at any distance and be less of a 'feature'.....imho of course.



[nickk]

Some more restaurant steelwork back from the galvanisers.



[mtt.tr]

Pretty good day, first job was the landrover latches from the original series to antiburst what an improvement.

Then set the printer to print the rocokola stereo badges, not only do we have the princess (thread to come) we now have the wall speakers just needed the decals, found these on thingiverse result



Then a little bit of tin bashing, haven't been the workshop in far to long been to busy was nice






These are also jukebox parts



[Wedg1e]

If you made one more you could have quadraphonics



[mechman]

If it runs only at full speed that does mean the mosfet is blown, they usually fail shorted. In other devices where the current is not limited by a motor, they can make a very big bang.

Diode spec your looking for reverse voltage and recovery time.

Mosfet any 20A+ N type should do. If you are buying one of the switches for your drill, you could take the old mosfet from that.

Haven't a clue about electrickery ( and most other things) what does a diode exactly do?



[Kram]

Ta. Going to sound dense here but what makes the 6A8 / 10 potentially suitable?

Cheers

Ignore that, Im an idiot. For this, they are connected in reverse, so the reverse voltage rating is irrelevant, but no downside to the bigher rating.
Had a quick look, the ones I use for this are 1n5408's.

Haven't a clue about electrickery ( and most other things) what does a diode exactly do?

In this case its a one way valve, connected in reverse accross the motor. Spikes flow through the diode instead of damaging the mosfet and other bits.



[Onoff]

Ignore that, Im an idiot. For this, they are connected in reverse, so the reverse voltage rating is irrelevant, but no downside to the bigher rating.
Had a quick look, the ones I use for this are 1n5408's.

In this case its a one way valve, connected in reverse accross the motor. Spikes flow through the diode instead of damaging the mosfet and other bits.

So my "spike" took out both diode and MOSFET? Is there a chance the MOSFET is still OK?

I'm going to chuck another fiver at it.



[RWD3M]

Today I replaced this [its twin brother was already dead, having been glued back together several times] useless, cracked safety shield for the grinder

View attachment 279036

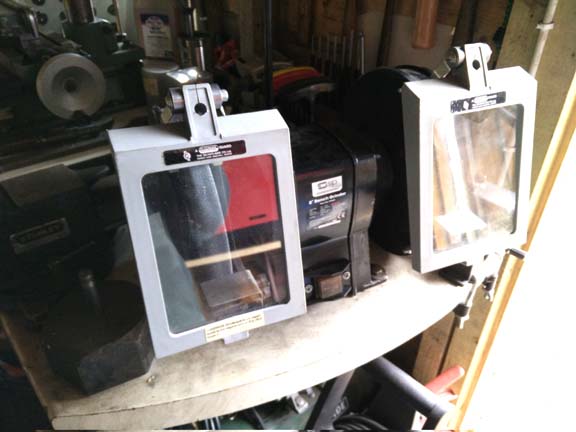

with these - £10 + post for the pair ex eBay, less than I would have paid for 'genuine' ones. These are 'proper' guards

View attachment 279038

Have they got cheater lenses in them John?!



[Onoff]

View attachment 281134

Can I use that as my avatar please?



[Fraserb]

Can I use that as my avatar please?

I'll send you a better picture of it, that one was a photo of my screen



[mechman]

Ignore that, Im an idiot. For this, they are connected in reverse, so the reverse voltage rating is irrelevant, but no downside to the bigher rating.
Had a quick look, the ones I use for this are 1n5408's.

In this case its a one way valve, connected in reverse accross the motor. Spikes flow through the diode instead of damaging the mosfet and other bits.

It's school time, mosfet



[Fraserb]

Can I use that as my avatar please?
