New motor for lathe

[Arc Tourist]

Cheers. If you have time, could you link to the seller?

.................................

I found that I purchased these in August of 2021 by the ebay vendor listed as " kidd 2127 "
They have changed their name, and are now listed as " MYUNG YOUN ELECTRONICS (390) ". The link is below.

Security measure

www.ebay.co.uk



[Guineafowl]

I found that I purchased these in August of 2021 by the ebay vendor listed as " kidd 2127 "
They have changed their name, and are now listed as " MYUNG YOUN ELECTRONICS (390) ". The link is below.

Security measure

www.ebay.co.uk

Thanks. They look to be static phase converters, but I’ll start a new thread.



[MattF]

I'm guessing I'll need to get some cable to hook up the inverter & motor, when it arrives, as I'm assuming it'll be 4 or 5 core cable required? I've never used 3 phase gear before, so I've no clue.



[Guineafowl]

I'm guessing I'll need to get some cable to hook up the inverter & motor, when it arrives, as I'm assuming it'll be 4 or 5 core cable required? I've never used 3 phase gear before, so I've no clue.

I would use 4 core SY screened cable. You can get proper glands for it, but I use normal 20mm ones and twiddle the screen wire into an earth sleeve and wago.



[MattF]

I would use 4 core SY screened cable. You can get proper glands for it, but I use normal 20mm ones and twiddle the screen wire into an earth sleeve and wago.

Would this cable be okay for a ¾hp motor?

https://www.screwfix.com/p/time-4-core-sy-transparent-2-5mm-screened-control-cable-1m-coil/526py

What glands will I need, if I'm using the proper glands for it? I want to keep things as simple as possible, with me being a 3phase virgin.



[brightspark]

I would use 4 core SY screened cable. You can get proper glands for it, but I use normal 20mm ones and twiddle the screen wire into an earth sleeve and wago.

there is no need to terminate the earth screen either end



[tigdlo]

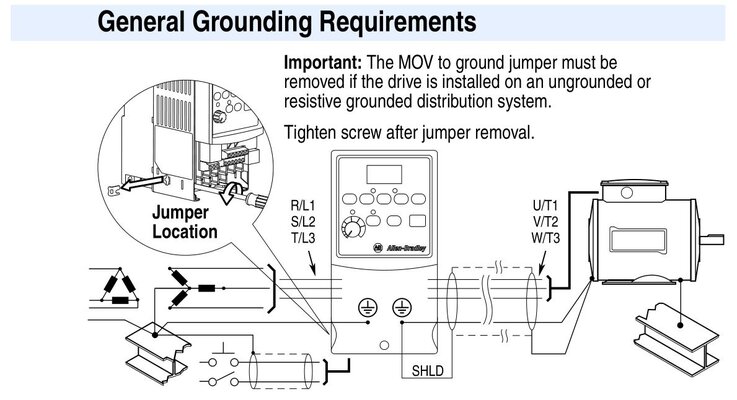

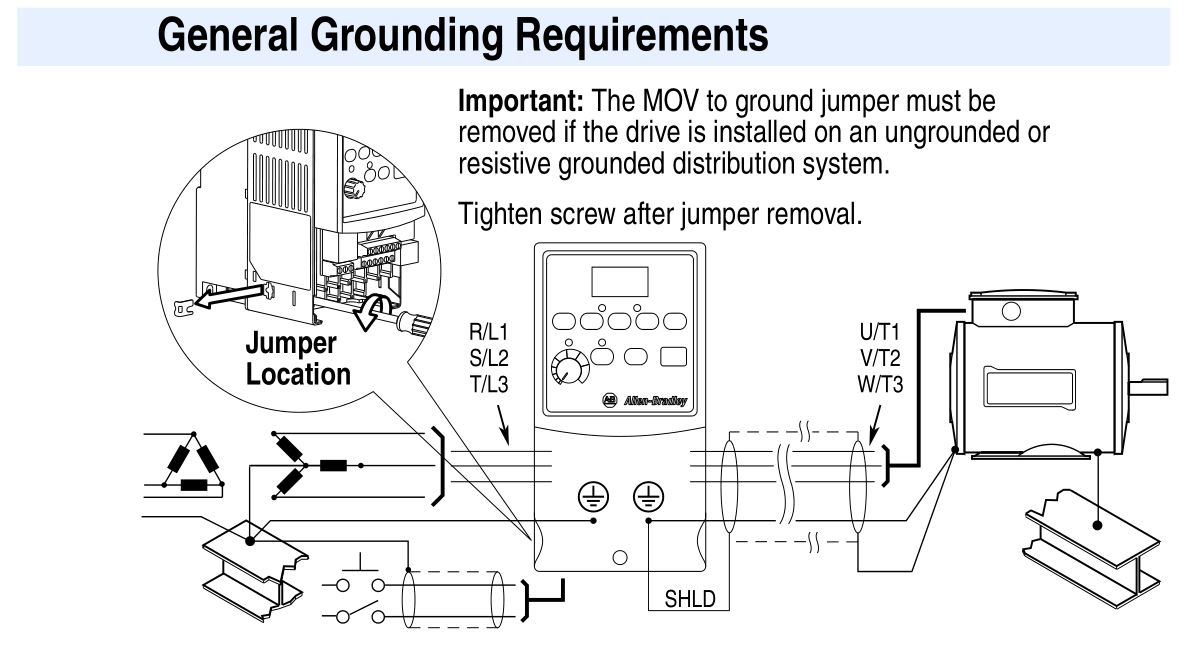

This is from the Allen Bradley manual for the VFDs I use. It shows 3 phases and ground shielded with both the ground wire and shield connected both ends, I used 4 core SY with CXT glands on my lathe with an electronic leadscrew and followed the diagram because of the electronics and encoders. I use the unshielded 4 core rubber flex that came attached to my bench grinder without any issues.



[Guineafowl]

there is no need to terminate the earth screen either end

What’s the reasoning behind leaving it floating?



[brightspark]

there is no reason for it to be conected unless its being used as a screen ,if it passes through an insulated gland and the brading at the ends is insulated no earthing is required
