Mystery change gears

[6ply]

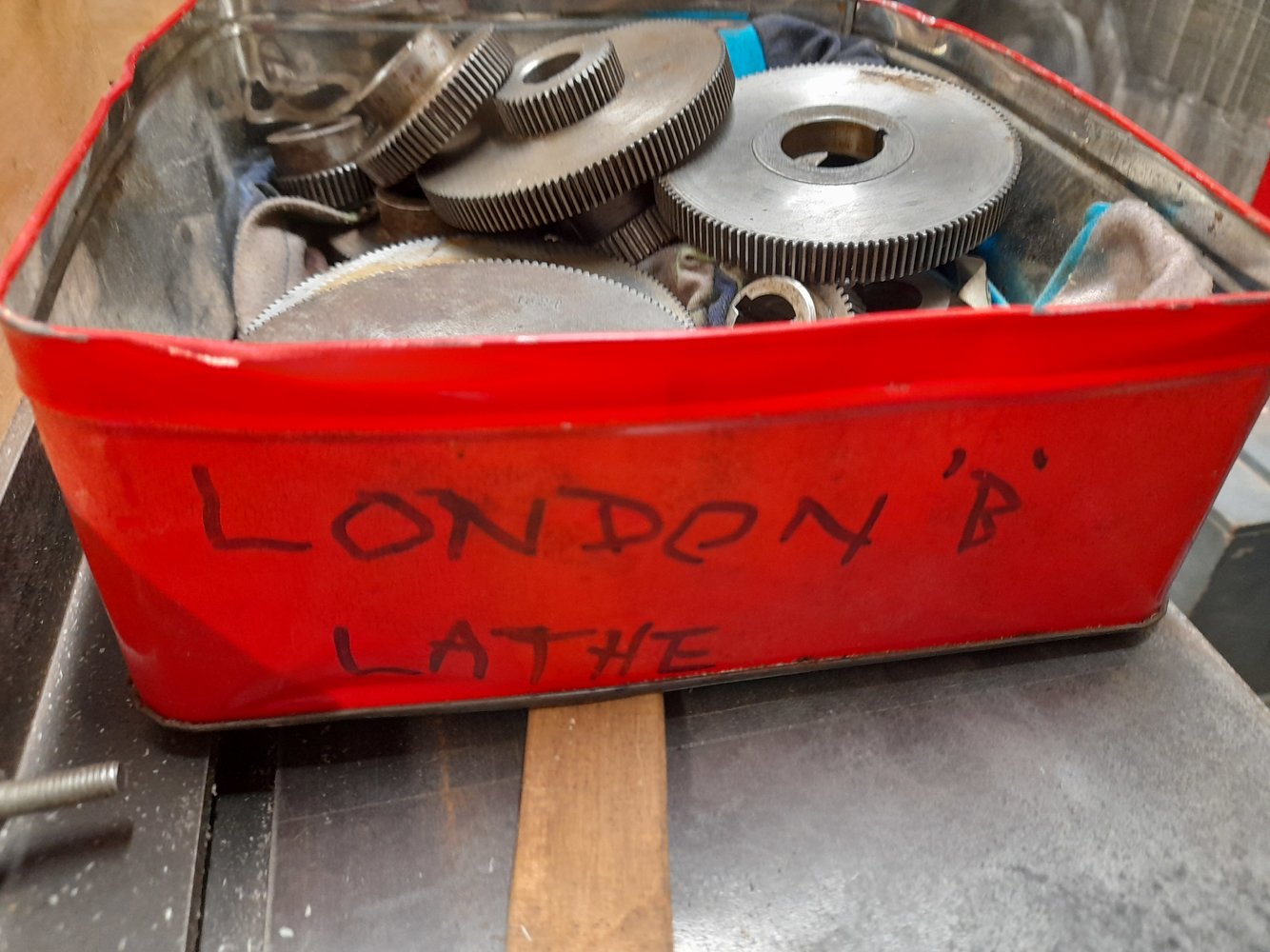

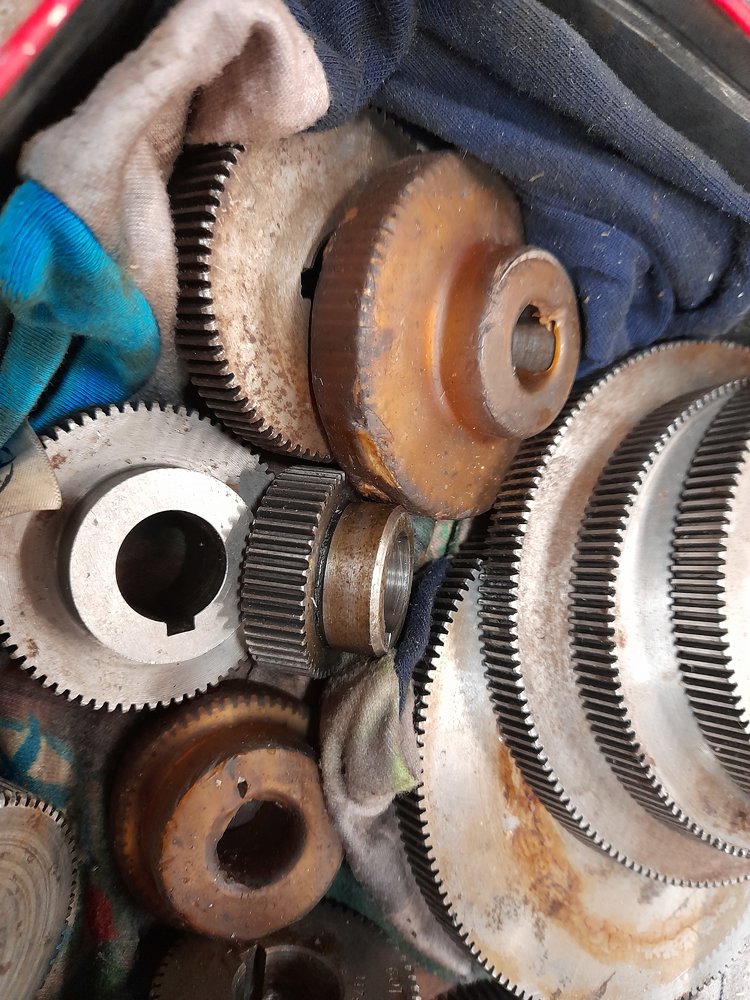

I've had this box of change gears sitting in my workshop unused for a long while. I've decided to have a clear out and these are on my list of things that could go.

They are probably 32 DP (or close) as that's what I wrote on them when I last measured them.

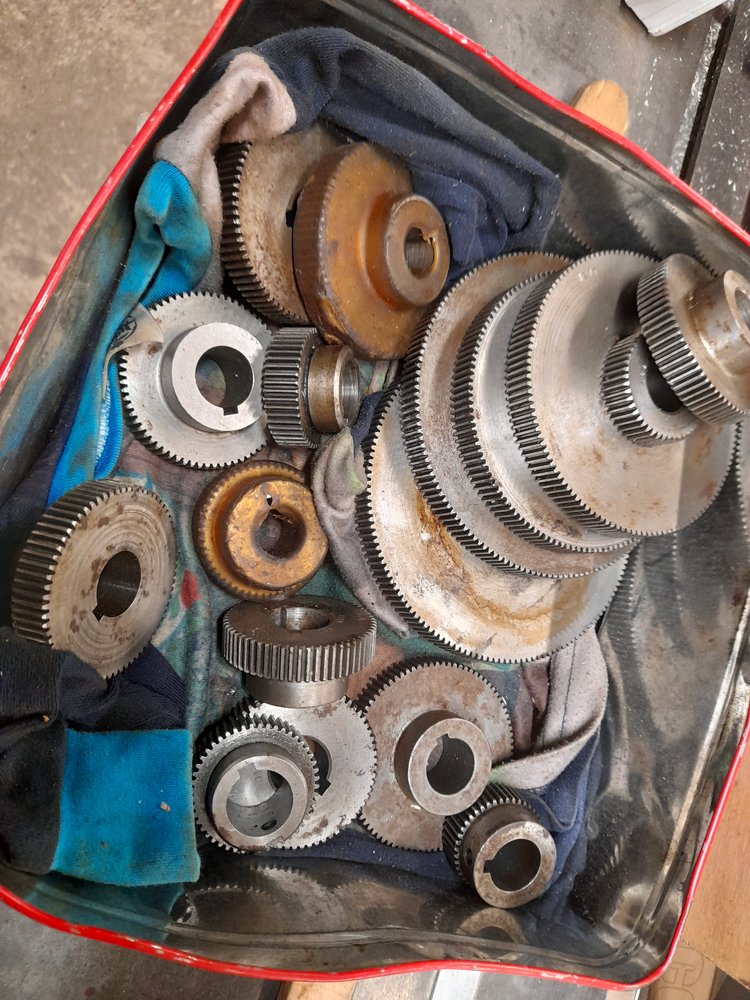

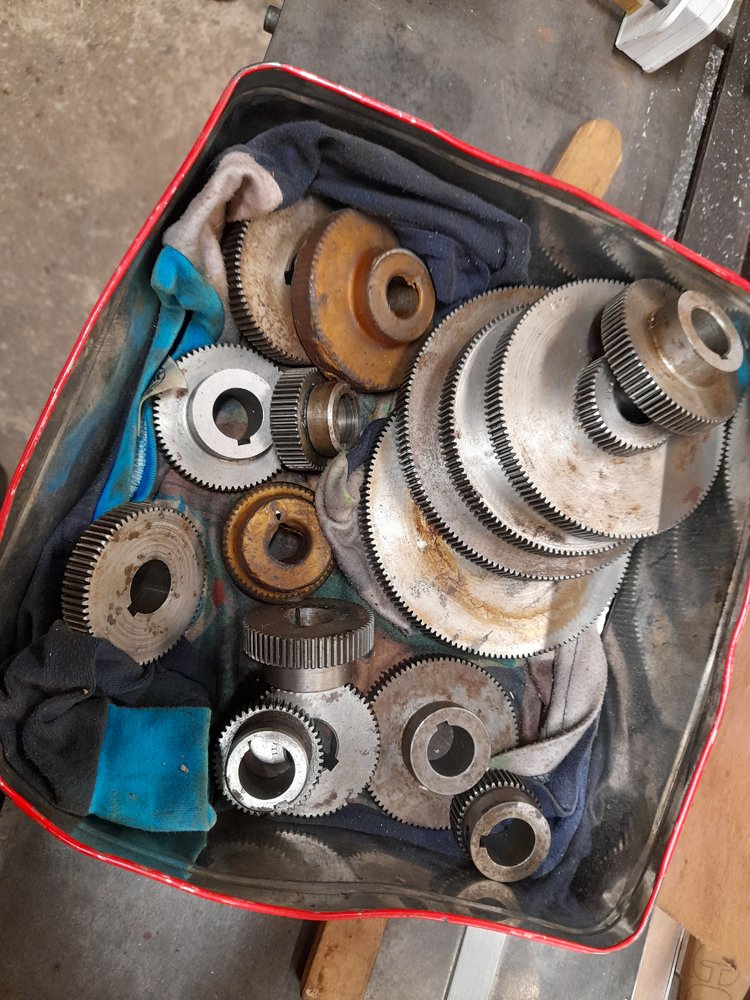

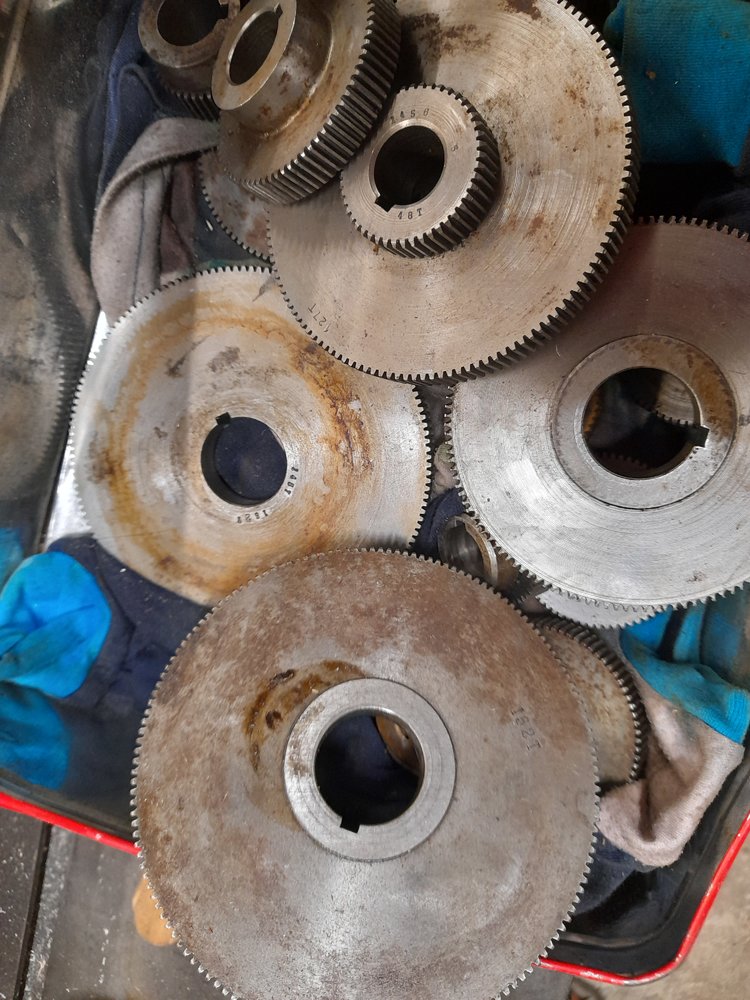

Some are big, some are small. Some are covered in protective wax and probably new old stock. There are some compound gears too.

I have no idea what machine they belong to. They are in a tin that says "London B lathe" but I may very well have transferred them to this box myself.

Does anyone know what machine (lathe, mill, other) they may belong to? In the past I thought they might be useful to make an indexing fixture, and if there's no real interest I could always slide them back under the bench for that purpose one day.

Thanks.



[Pete.]

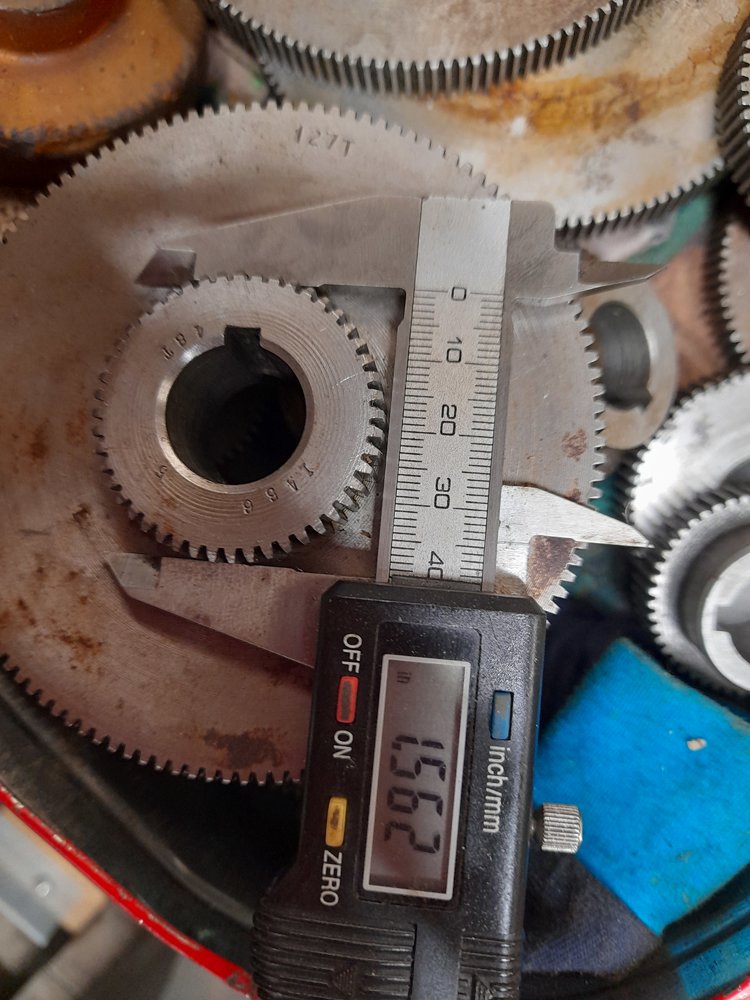

The 127/48 is a classic metric transposing gear for a lathe. Measure the 48T my guess is it's 1.563" diameter.



[Martin-Sy]

Some of those look like CVA or Monarch 10EE metric threading gears. I have a full set (thanks to @Pete. ) I'll measure up and post the details later. If that's what they are they are quite sought after and would be very saleable.



[6ply]



[6ply]

Some of those look like CVA or Monarch 10EE metric threading gears. I have a full set (thanks to @Pete. ) I'll measure up and post the details later. If that's what they are they are quite sought after and would be very saleable.

Funny you say that as late last night those are the two lathes I found online that seemed likely candidates. I'll look forward to more details.



[6ply]

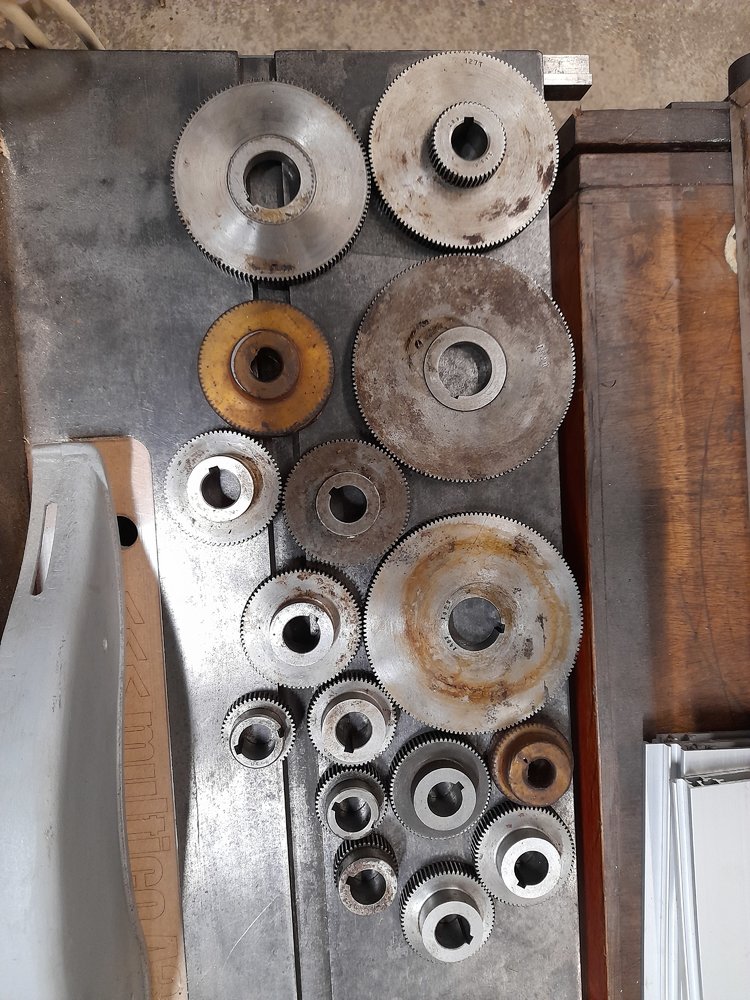

This is what I've got. I've also got a load of Boxford gears, but I'll save those for another time.



[Agroshield]

There is a list of the tooth numbers here:

Monarch 10EE Round Dial Metric Change Gear Kit | American Machine & Gear Works

www.thegearmaker.com

and here:

CVA Lathe Metric Gear Change set by JBFromOZ

A printable set of metric change gears to allow metric screw cutting on a CVA toolroom or Monarch 10EE lathe.

www.thingiverse.com

and here:

My new CVA

Not got it home yet. Looks better than expected including 10 metric change wheels, both steadies and the collet chuck. Sadly only 1650 top speed but can live with that. Made a suitably hefty pallet. So much easier with forklifts. Not home yet. Stopped in services!

www.mig-welding.co.uk

If you cross-compare, you will be very confident. The reason I post three links is they differ slightly in what they say about the gear with > 150 teeth.



[Pete.]

They are gonna be CVA metric transposing gears I bet.

Expensive if you wanted to buy them.



[Martin-Sy]

Yes, I'm confident that's a CVA metric set ... possibly more than the basic set too.
The give-away is the gear with the external and internal keyway.

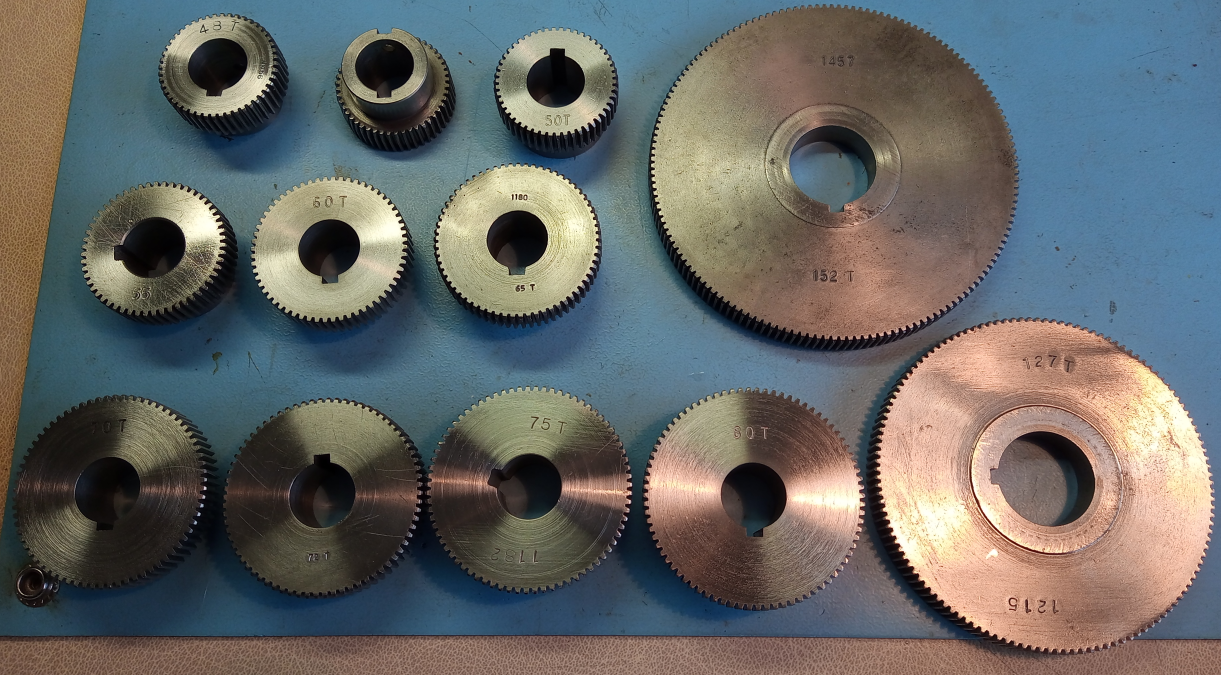

Here's mine:

Top L to bot R: 48, 48, 50, 152, 55, 60, 65, 70, 72, 75, 80, 127.
With the exception of 127 and 152 all are 3/4" bore with a 3/16" keyway.
Top left are two 48T and also have an external keyway so they can be made into a compound pair with the 127.
The 72T (bot row 2nd from left also has this feature.

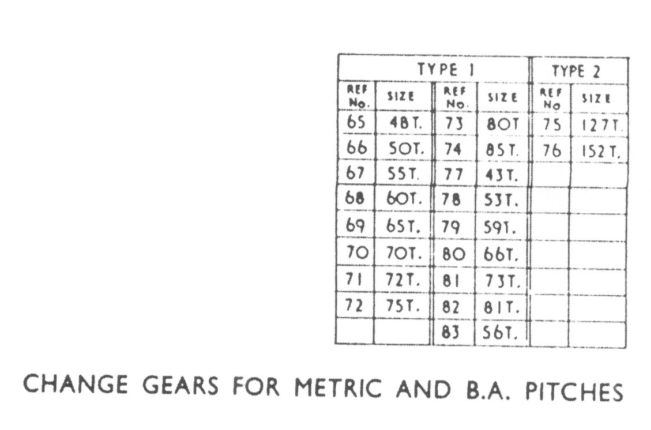

This is from the parts manual.

The thread plate on the machine:

As @Agroshield has spotted the 152T (used as an Idler) is different by 1 tooth from the Monarch 10EE set. No idea why other than someone at CVA couldn't count
As it's only used as an idler it doesn't make any difference.

It would be interesting to know what the tooth counts for all yours are.
You have an assembled 127+48 which is much less faffing than mine where you need a short length of key to lock the 48 and 127 together.

As @Pete. has said - these are quite expensive to source.
There are others on this forum with CVA's .... @fizzy for one

Martin.



[6ply]

If they are expensive... I want to sell them.



[Martin-Sy]

As you have more than are needed for the usual metric threads, perhaps you have the ones for BA threads too.
I think these are 43, 53, 56, 59, 66, 73, 81 85 (see table in my previous post).
Could you do a tooth count?



[6ply]

As you have more than are needed for the usual metric threads, perhaps you have the ones for BA threads too.
I think these are 43, 53, 56, 59, 66, 73, 81 85 (see table in my previous post).
Could you do a tooth count?

I'll have a look this evening.



[fizzy]

Don't sell them yet! I want to check mine - see if I have a full set or not



[Pete.]

If they are expensive... I want to sell them.

Yeah you got a little gold mine there. They are the same as the Monarch gears and before I got into gear cutting I had to buy a set of them from America. They cost me (a lot) more than the lathe did and I paid £500 for that.

Here's an example:

Monarch 10EE Round Dial Metric Change Gear Kit | American Machine & Gear Works

www.thegearmaker.com



[123hotchef]

This is what I've got. I've also got a load of Boxford gears, but I'll save those for another time.

View attachment 376048

first dibs on the Boxford gears if they fit my AUD and are what I need to start screw cutting



[Pete.]

first dibs on the Boxford gears if they fit my AUD and are what I need to start screw cutting

AUD is a gearbox model what are you looking for metric change gears?



[6ply]

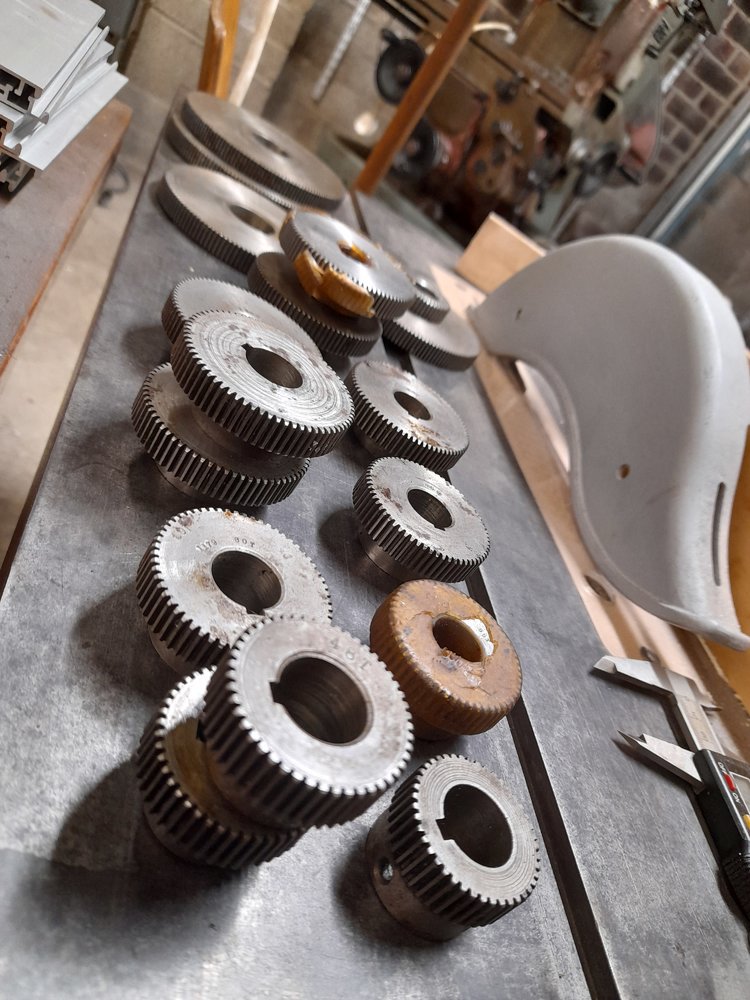

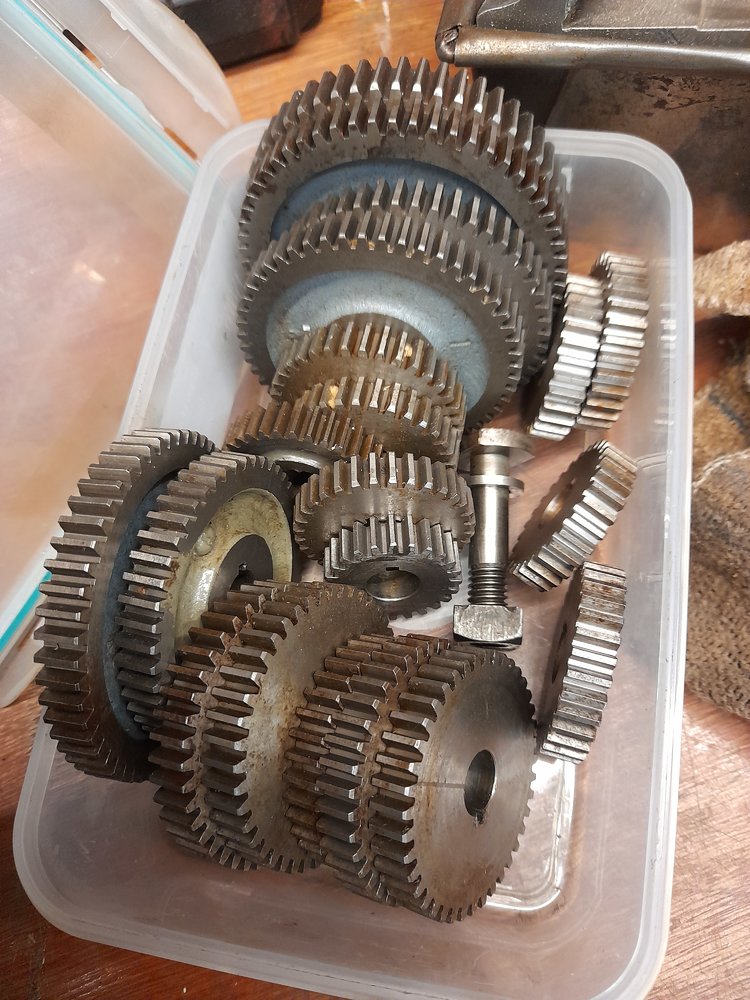

This is what I've got:

3/4" bore:
48-127t
85t
85t
80t
75t
70t
70t
65t
60t
55t
48t
48t
43t

1.12" bore:
152t
152t
127t



[6ply]



[6ply]

first dibs on the Boxford gears if they fit my AUD and are what I need to start screw cutting



[123hotchef]

AUD is a gearbox model what are you looking for metric change gears?

I think so yes I'll have to findthe thread I created a month or so back.
