more and more confused.......

  1. frank horton

    frank horton V twins are great but 4"s rule.........

    Messages:
    1,311
    Location:
    Soon 2 B Crete
    need to know the cut angle of the roof beam joint......
    been looking on U tube, hence the title......usually when shown once it all falls into place but I don't know of anyone close by.....
    can somebody help please.....

    steel rsj = 305x102 .....
    the outside of the wall stantions/supports (building width) is 10meter's...
    hight of the roof at center line is 750mm above the top of the wall stantions or gutter hight...

    if it were smaller I'd just lay it out on the floor but only got a rough grass slope big enough....
    dont wanna get it wrong...
    also can u show me how to calc this....

    ta,
    sorry I'm so dumb....feel a fool to ask......hope we're all mates here......hahaha....

  2. eLuSiVeMiTe

    eLuSiVeMiTe Forum Supporter

    Messages:
    7,436
    Location:
    Bedfordshire England
    Nick DV likes this.
  3. Nick DV

    Nick DV Member

    Messages:
    100
    Location:
    Southampton
    Use trigonometry. If height is 750mm and it's 5000mm to centre roof line, then use a Tangent calculation.

    Tangent = opposite/adjacent 750/5000 = 0.15

    Use a calculator and 1/Tan 0.15 = 8.53 degrees

    However, I did my maths exams over 40 years ago so I stand to be corrected …………………………….. :doh:

    Parm and scottmk1 like this.
  4. scottmk1

    scottmk1 Forum Supporter

    Messages:
    913
    Location:
    Scotland

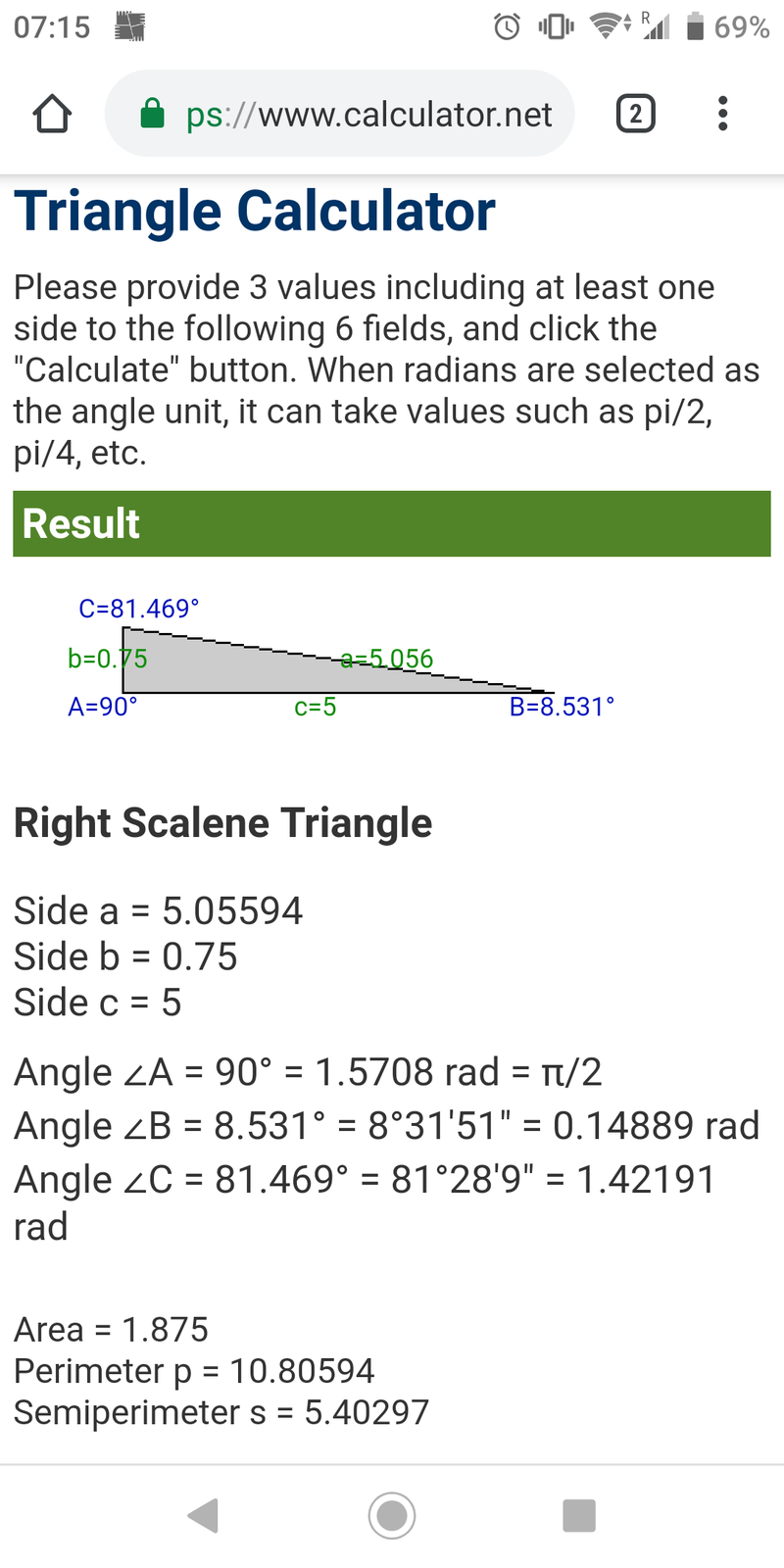

    Is this any good?

    Nick DV likes this.
  5. eLuSiVeMiTe

    eLuSiVeMiTe Forum Supporter

    Messages:
    7,436
    Location:
    Bedfordshire England
  6. Nick DV

    Nick DV Member

    Messages:
    100
    Location:
    Southampton
    Oh, and get yourself a speed square. Not expensive and plenty of stuff on Y/T to show you how to use one :thumbup:

    eLuSiVeMiTe likes this.
  7. frank horton

    frank horton V twins are great but 4"s rule.........

    Messages:
    1,311
    Location:
    Soon 2 B Crete
    thanks all, I just knew u guy's could do it.......
    it's just knowing where to ask/look........
    thought I was up early...thanks guy's........have a great day...u've made mine.......
