Hunting for a psu.

[eLuSiVeMiTe]

Won an old analog mixing desk for a pittance.

To big for me right now so cleaning up the internals and making sure everything works as it should is a winter project

The downside
No power supply.

Needs a 6 rail psu.
See schematics below.
Seck 1882


Anyone have any ideas that might do the job.

Company makes replacements but none available and haven't heard back from them yet .



[Kayos]

The only oddball in that is +/- 25v, +/- 15 and 48v is pretty standard in a lot of audio gear

With modern tech I doubt making a replacement would be hard, making it fit the space would be another thing

I once built an amp that had +/- 50v rails, close enough to the supply a 110 transformer kicks out, never had any issues with supply sag unsurprisingly



[eLuSiVeMiTe]

The only oddball in that is +/- 25v, +/- 15 and 48v is pretty standard in a lot of audio gear

With modern tech I doubt making a replacement would be hard, making it fit the space would be another thing

I once built an amp that had +/- 50v rails, close enough to the supply a 110 transformer kicks out, never had any issues with supply sag unsurprisingly

Space is a non issue as it's an external supply thankfully.



[eLuSiVeMiTe]

Psu 5 is the one I'm in need of. Been waiting to hear back from the re future availability but nothing as yet
http://www.gbaudio.co.uk/data/seck.htm



[Hopefuldave]

Nice desk!

It's a pretty simple linear PSU, shouldn't be hard to DIY - the 48v is only there for phantom power, so if you don't use condenser microphones it's not essential - handy too have if you do, though!

One suggestion - have a long lead on it, I rebuilt/modified a rather bigger Soundcraft modular desk for a fiend-of-a-friend, he was complaining that after it was done he could hear a hum through the headphones and got huffy about paying for the work, I had to go round and get him to demo the hum - "is it still there in the 'phones?"
"Yeah, a background hum coming through"
"Interesting, I've just unplugged 'em"
"Eh????"
it was the transformer in the PSU humming, had to make a long cable to move it out of the room - cost him a bit extra

Dave H. (the other one)



[WorkshopChris]

It's a pretty simple linear PSU, shouldn't be hard to DIY - the 48v is only there for phantom power, so if you don't use condenser microphones it's not essential - handy too have if you do, though!

Glad you said that I was wondering the same. The only thing I was wondering was if it was doing anything else maybe an internal relay seams a little unusual to have a switch on an external PSU.

Space is a non issue as it's an external supply thankfully.

Is there a master phantom power switch on the front panel anywhere?



[eLuSiVeMiTe]

Glad you said that I was wondering the same. The only thing I was wondering was if it was doing anything else maybe an internal relay seams a little unusual to have a switch on an external PSU.

Is there a master phantom power switch on the front panel anywhere?

Believe so yes. Picking it up later. Don't/won't need phantom. Have 18 phantom inputs already I don't use

I did wonder about diy but simple for one doesn't mean simple for me. Anyone fancy an idiots guide. Soldering is no issue.



[eLuSiVeMiTe]

Nice desk!

It's a pretty simple linear PSU, shouldn't be hard to DIY - the 48v is only there for phantom power, so if you don't use condenser microphones it's not essential - handy too have if you do, though!

One suggestion - have a long lead on it, I rebuilt/modified a rather bigger Soundcraft modular desk for a fiend-of-a-friend, he was complaining that after it was done he could hear a hum through the headphones and got huffy about paying for the work, I had to go round and get him to demo the hum - "is it still there in the 'phones?"
"Yeah, a background hum coming through"
"Interesting, I've just unplugged 'em"
"Eh????"
it was the transformer in the PSU humming, had to make a long cable to move it out of the room - cost him a bit extra

Dave H. (the other one)

Afaik soundcraft bought seck from the little reading I did

Suppose I better start doing some homework. Certainly not my area



[eLuSiVeMiTe]

Oh. Heard back from the company. There not new psu so only become available when they get a desk to break for parts

On the flip side they do have plenty of spares if needed



[MCKDAVID]

if you get stuck, I have a good electronics guy here, he'll make up / adapt / repair anything you like, might not be cheap, but will definitely make it work. He's bailed me out a few times with repairs of obsolete boards.



[WorkshopChris]

Oh. Heard back from the company. There not new psu so only become available when they get a desk to break for parts

On the flip side they do have plenty of spares if needed

Shouldn't be too complicated to organise something.
looks like its just the 15v rails that are regulated anyway. Lots of good kits to possibly use as building blocks are available.

https://quasarelectronics.co.uk/Item/3114-25v-2a-dual-polarity-unregulated-power-supply
https://quasarelectronics.co.uk/Category/kits-modules-positive-negative-power-supplies
https://quasarelectronics.co.uk/Category/kits-modules-power-suppy



[eLuSiVeMiTe]

Shouldn't be too complicated to organise something.
looks like its just the 15v rails that are regulated anyway. Lots of good kits to possibly use as building blocks are available.

https://quasarelectronics.co.uk/Item/3114-25v-2a-dual-polarity-unregulated-power-supply
https://quasarelectronics.co.uk/Category/kits-modules-positive-negative-power-supplies
https://quasarelectronics.co.uk/Category/kits-modules-power-suppy

Will have a look through those later cheers.
Got to run out to pick up the mixer soon.

Just wasted half hour testing the adat that just arrived

Bloody couriers had the box open.
Removed the leads and rack ears took the bubble wrap off the unit and shoved the unit back in the box.

Scrounged a lightpipe from the tv/stereo connection and thankfully the unit seems to be working as it should

Will test all the in/outs tomorrow.

Il poke through the PSU schematics when time permits and see if I can list the components.



[eLuSiVeMiTe]

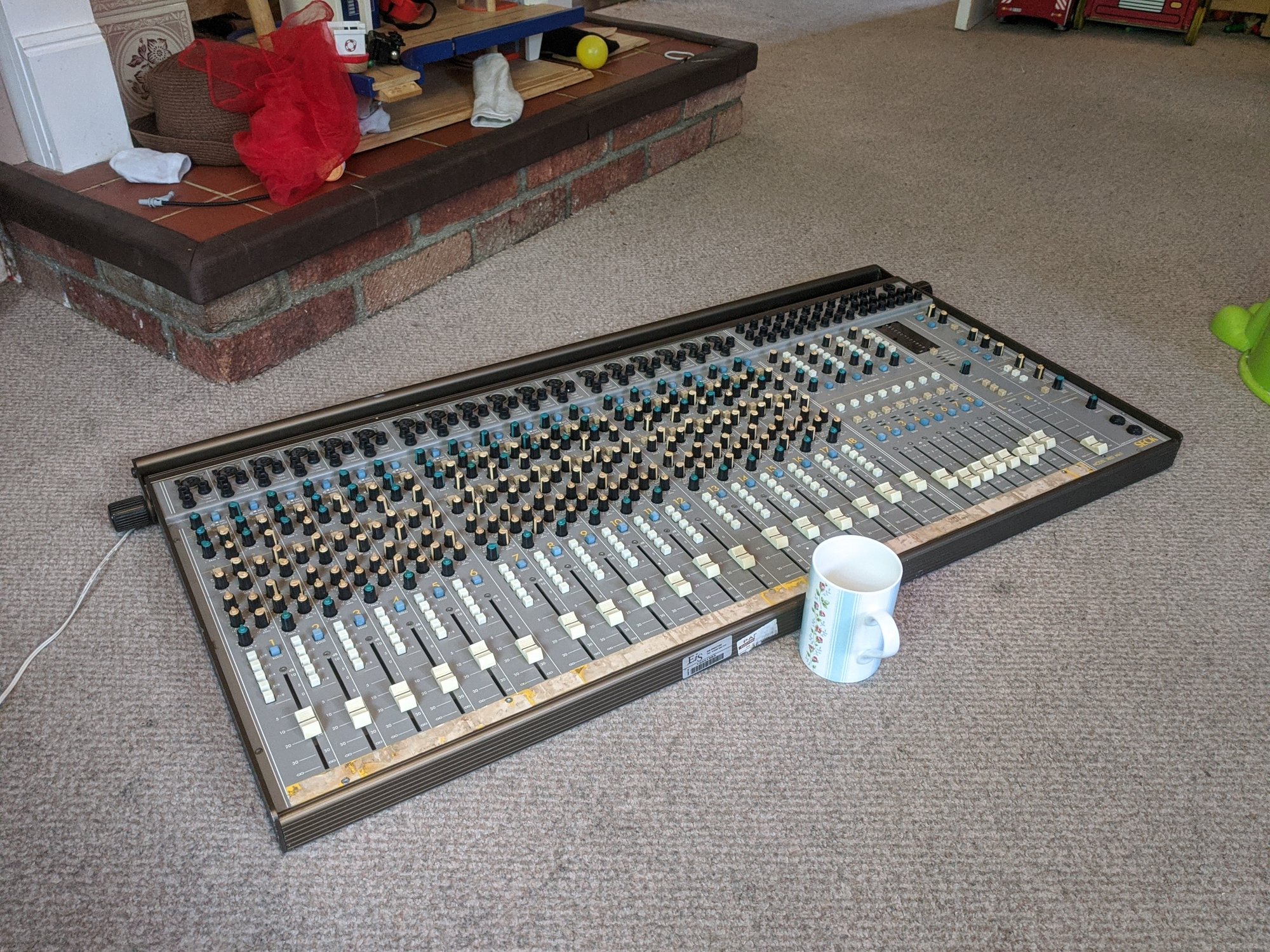

Mug for scale
A lot lower profile than I thought. Weighs a chunk though.

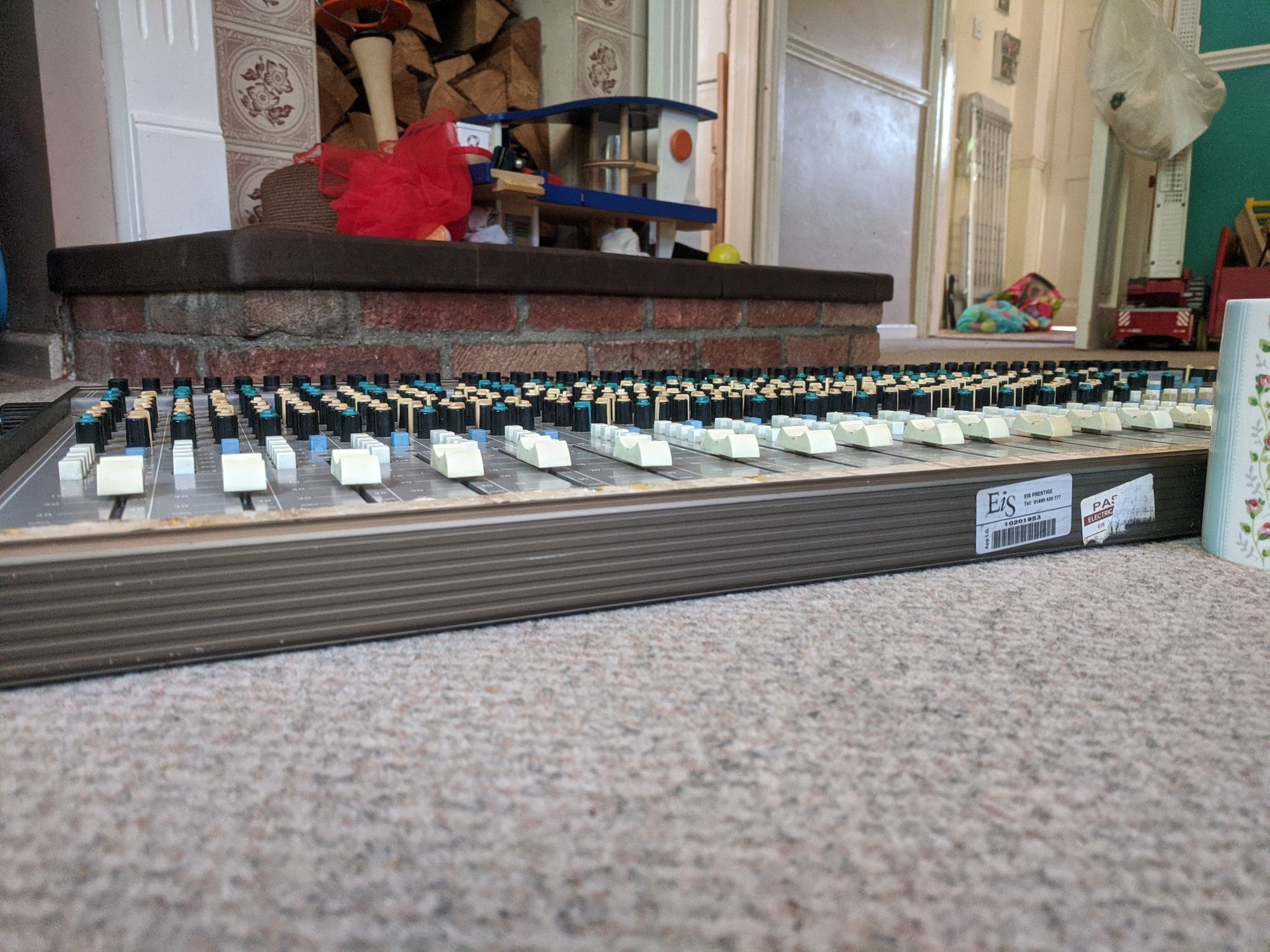

Looks pretty straight. 1 bent fader easily sorted

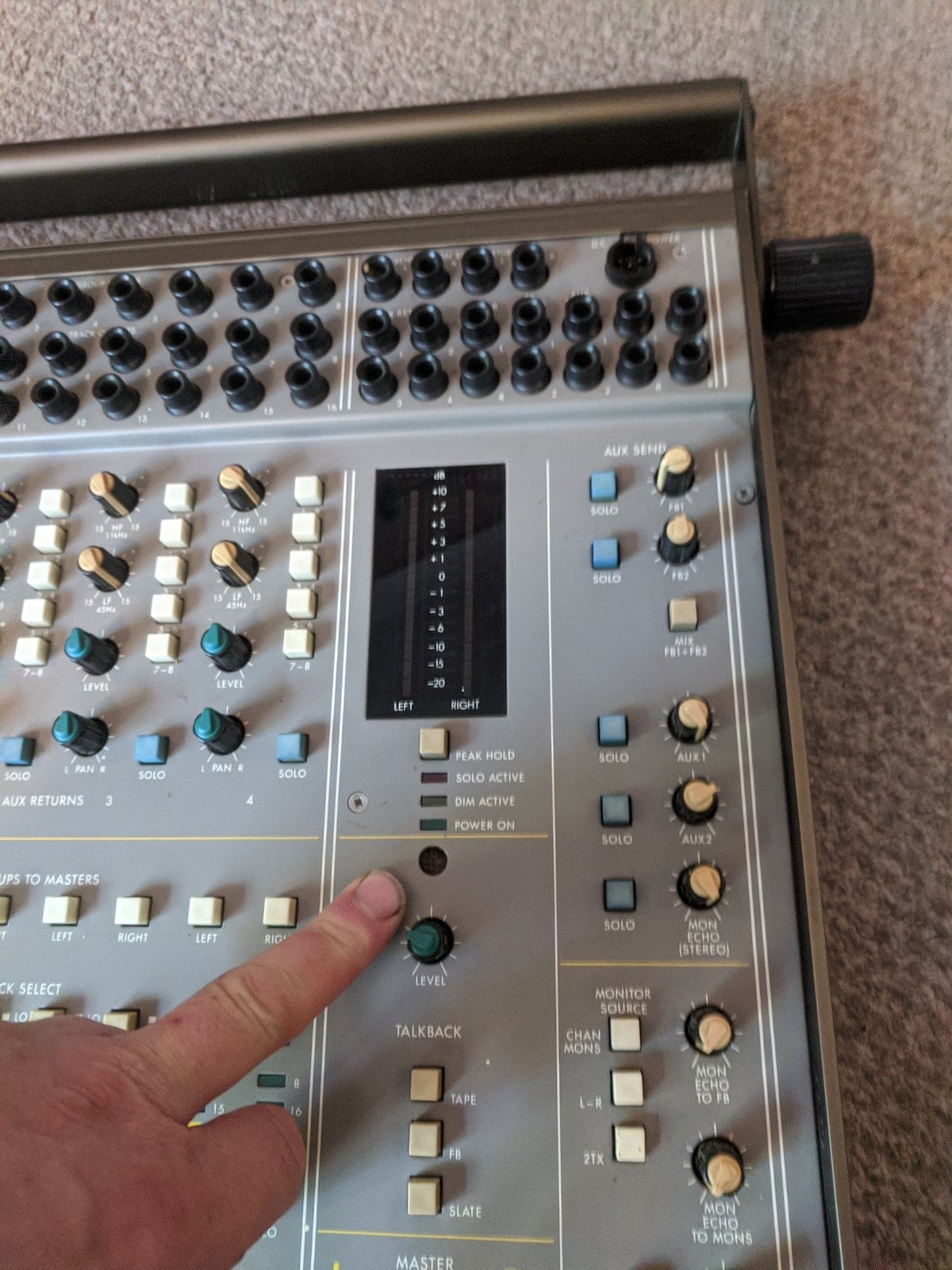

Need to browse the manual and see what the hole is.

All the trs inputs look to be missing locking rings too but should be easy to track down something suitable.

Best buy some more iso.
Stinks of tobacco. :/
If it costs me a ton to buy/make a psu it's still a bargain



[awemawson]

I'd be tempted to buy individual psu's that together make up your combination of voltages. Nothing there particularly exotic that eBay cannot provide, then house them in a suitable box.



[eLuSiVeMiTe]

I'd be tempted to buy individual psu's that together make up your combination of voltages. Nothing there particularly exotic that eBay cannot provide, then house them in a suitable box.

That thought occoured to me first

If I buy one of the supply's for the smaller models they have all but the 25v rails iirc



[eLuSiVeMiTe]

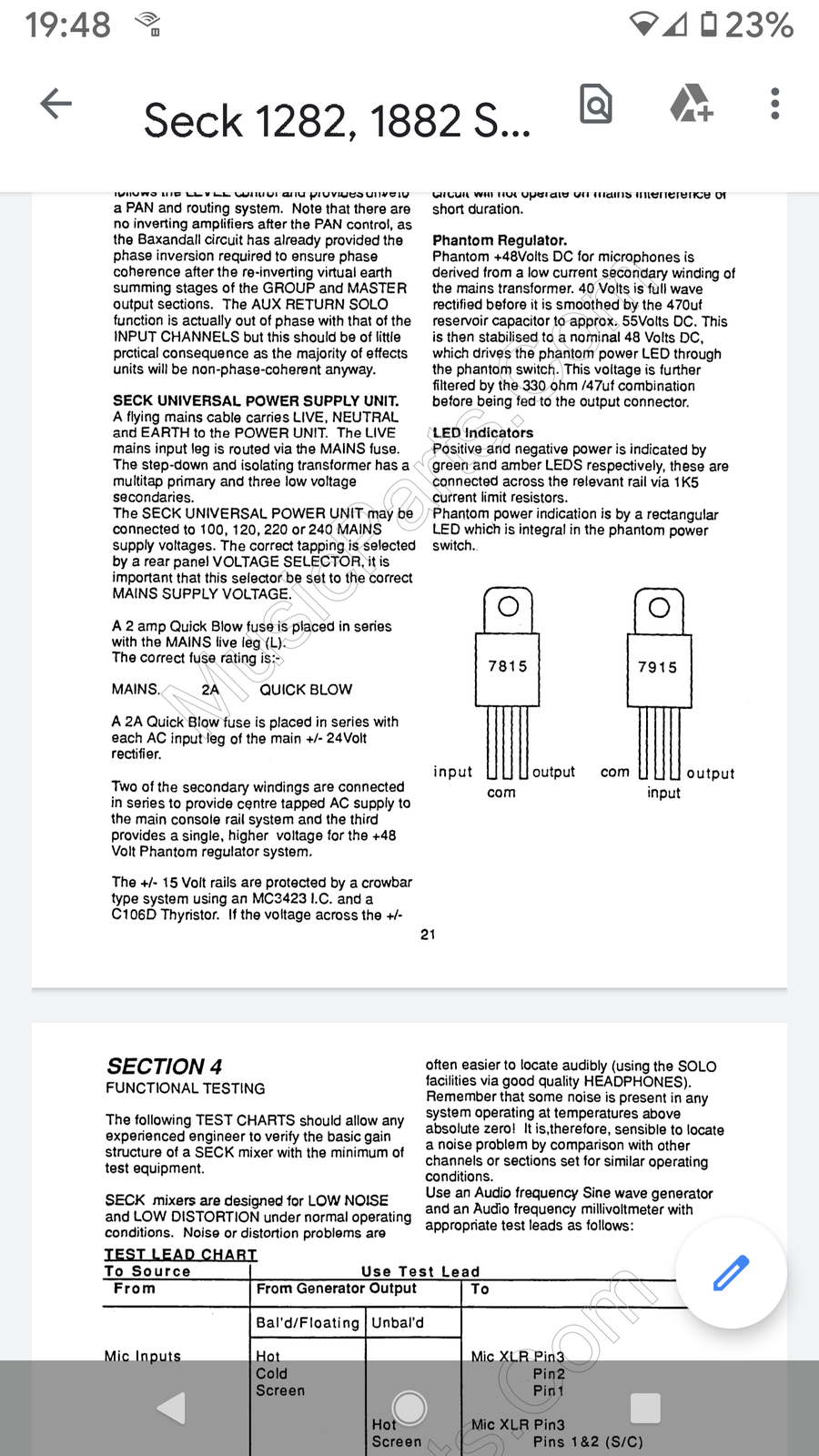

Bit more info on the supply.
Found a service manual which will come in very handy



[eLuSiVeMiTe]

Hopefully I'm lucky with this unit. Was sold as a working desk but the chap who drove to Wales to pick it up forgot the Psu.
Seller refused to post and out it on eBay.



[Seadog]

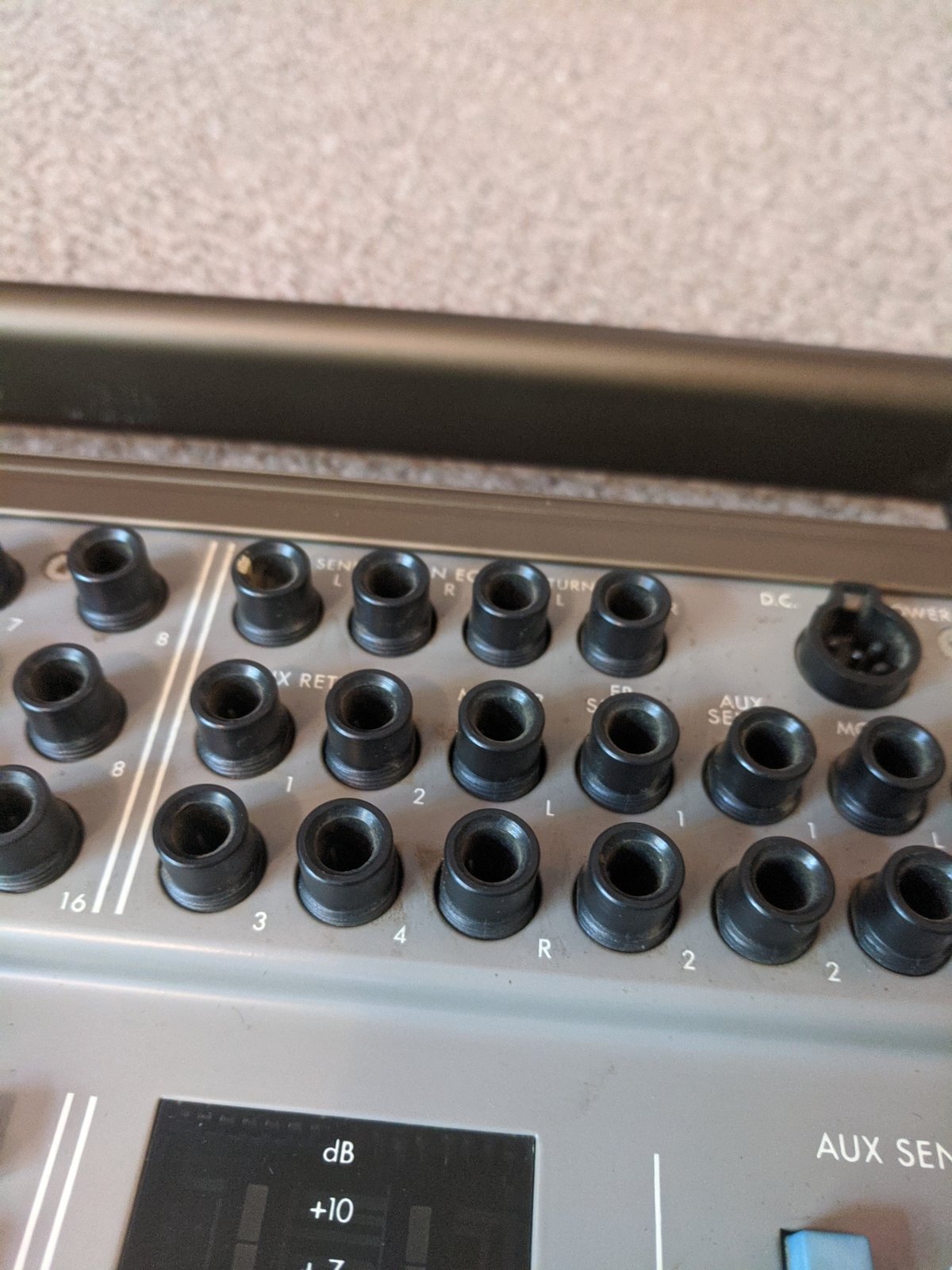

All the trs inputs look to be missing locking rings

It's quite possible that they were never fitted. Are there any witness marks on the panel? If you decide you need them I may have some nuts to suit. They're 3/8" x 32tpi ME thread which are for BNC connectors or pots.



[eLuSiVeMiTe]

It's quite possible that they were never fitted. Are there any witness marks on the panel? If you decide you need them I may have some nuts to suit. They're 3/8" x 32tpi ME thread which are for BNC connectors or pots.

Will have a check and if they will do it that would be appreciated Graham

Judging by the flex in the board when I press the buttons near the top they were relied on to secure the board
Possible they were plastic
Il get a close up



[eLuSiVeMiTe]

Really does need a good clean
