Help to identify drill shaft fitting.

  1. pandemonium123

    pandemonium123 Member

    Messages:
    46
    Location:
    Ayrshire scotland
    We have a twin head drill, one is Morse taper fittings, but I don't know what the second type is?? Can it be converted??
    It looks like a ball lock type thing.
    Or is a part just missing from it?

    Help appreciated

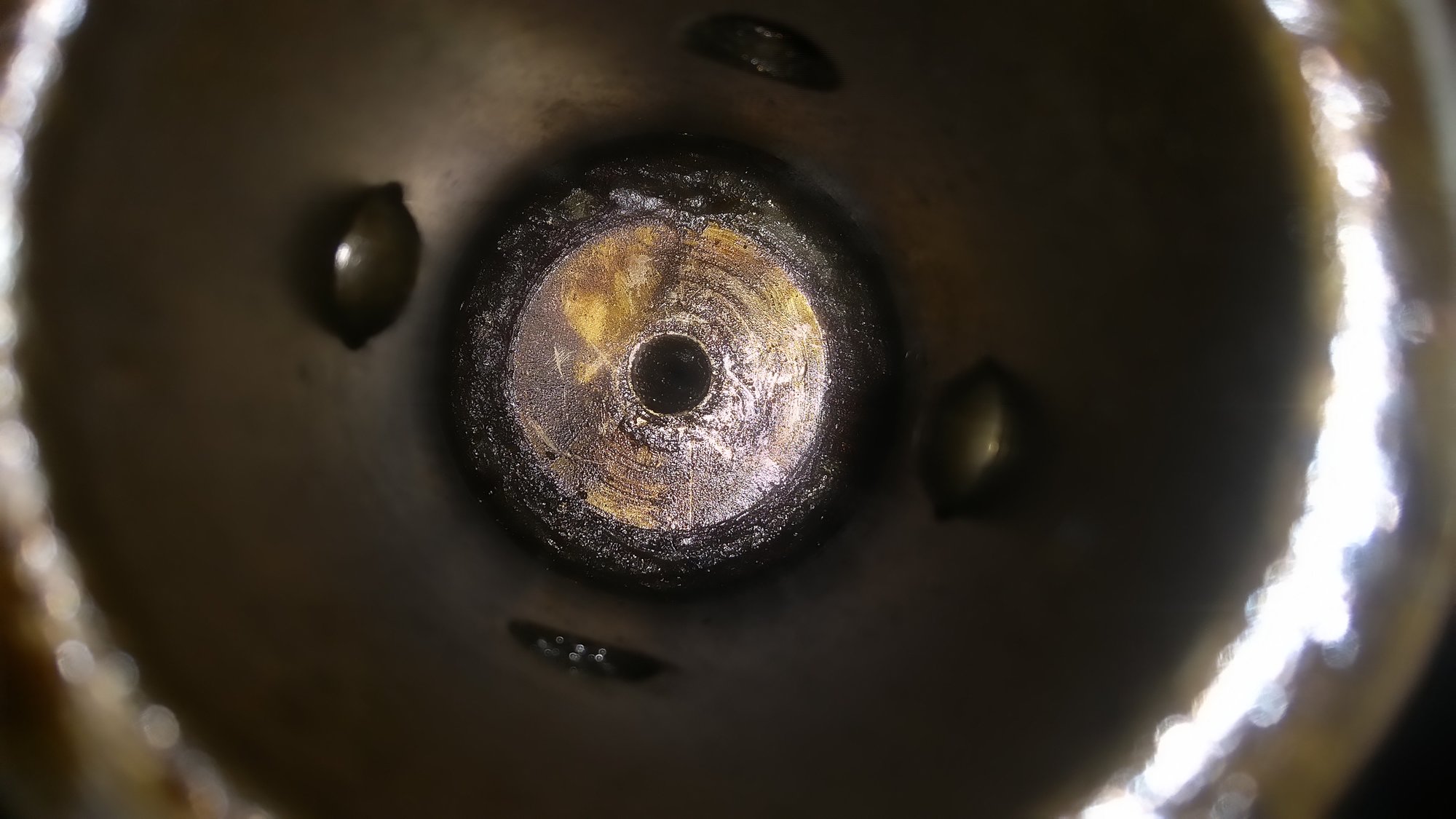

    • IMG_20190628_201725.jpg
    • IMG_20190628_201722.jpg
  2. pandemonium123

    pandemonium123 Member

    Messages:
    46
    Location:
    Ayrshire scotland
    The drill in question

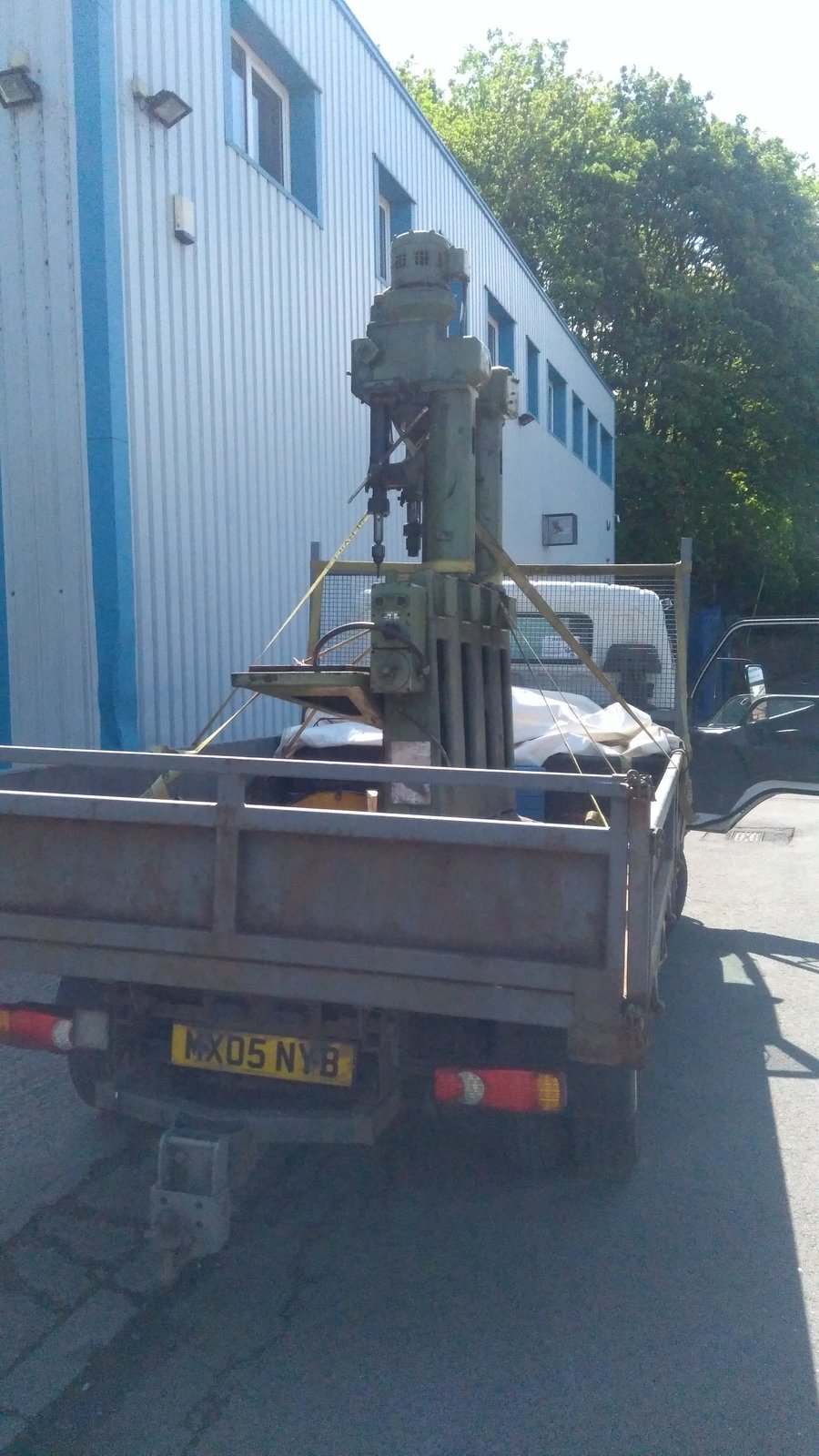

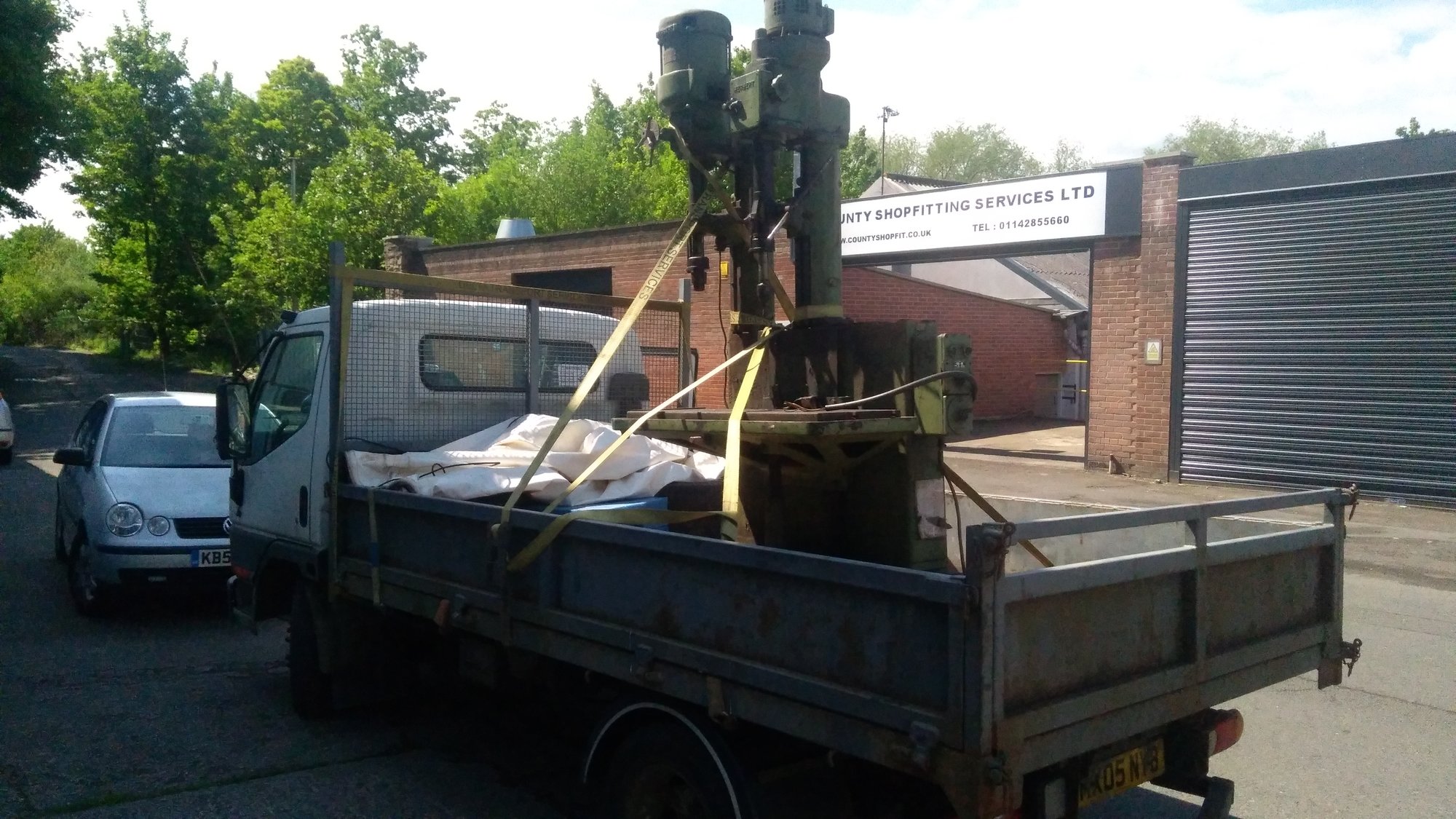

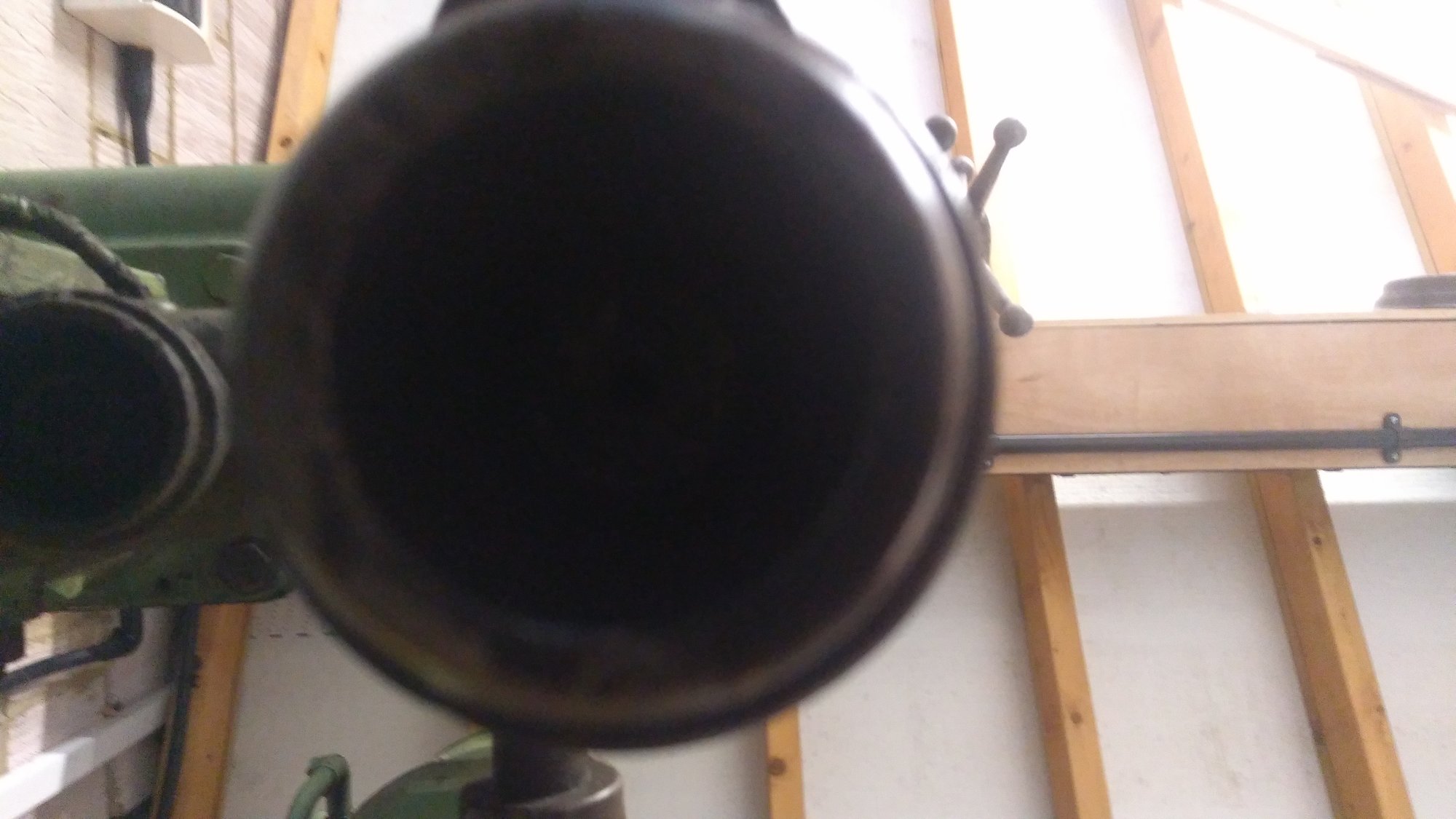

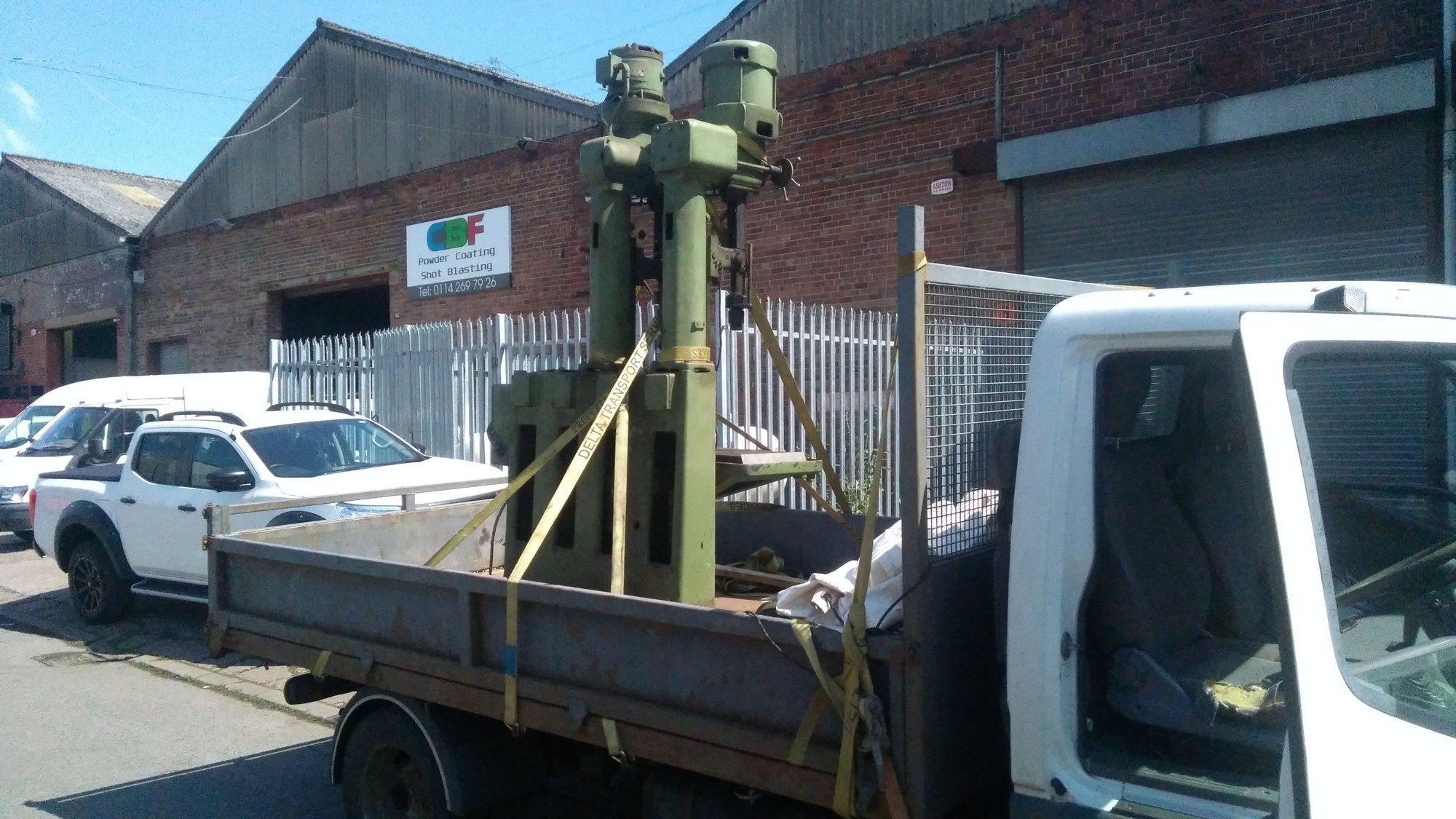

    • IMG_20190517_115525.jpg
    • IMG_20190517_115516.jpg
    • IMG_20190517_115508.jpg
  3. 500e

    500e Always buy fire insurance a flood is hard to start

    Messages:
    3,763
    Location:
    Somerset UK

    pandemonium123 likes this.
  4. pandemonium123

    pandemonium123 Member

    Messages:
    46
    Location:
    Ayrshire scotland
    Thanks 500e, So from what I can tell (& memory, the drill is 400 miles away at my parents) this may be the big end of the herbert Quick change system & I need some of the adapters to make use of it.

    I think

  5. Wonderweaver

    Wonderweaver Member

    Messages:
    265
    Location:
    Manchester
    Use the old Herbert's a few times only ever seen this on the 4 and 6 spindles. Someone said it was a way of changing from drill to tap without stopping the machine.

  6. 500e

    500e Always buy fire insurance a flood is hard to start

    Messages:
    3,763
    Location:
    Somerset UK

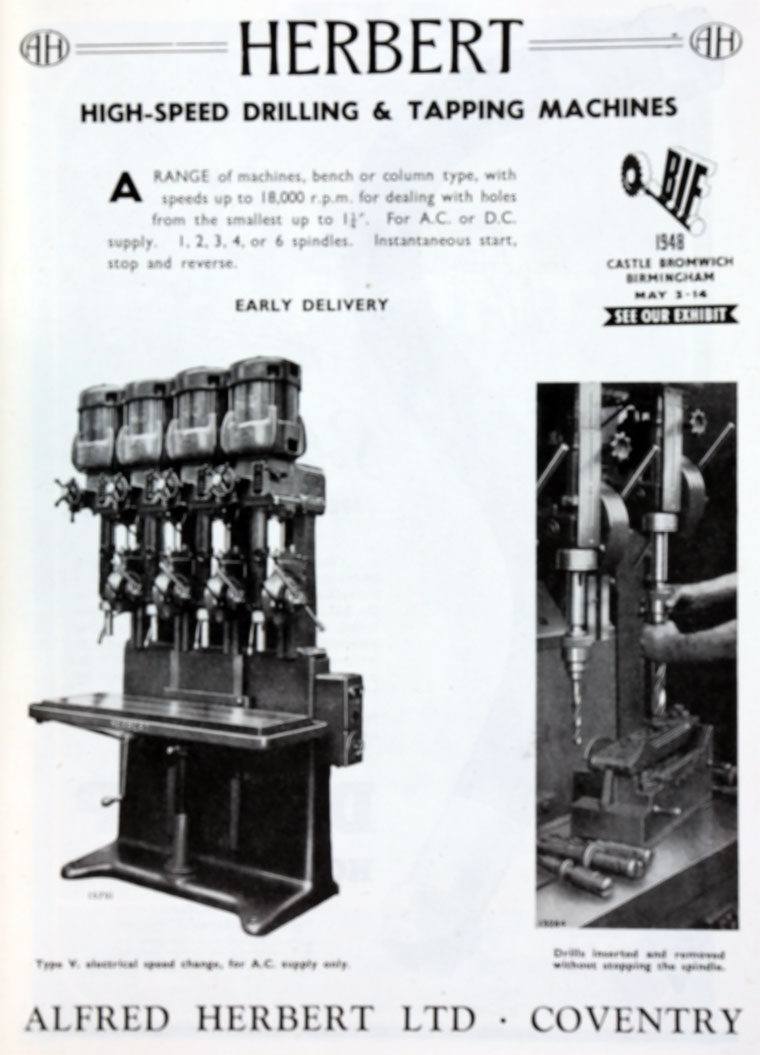

    Does not look like the QC chuck system, that has Morse into machine Looks more like some sort of tap die \ holder gismo
    This a QC system

  7. Hitch

    Hitch Moderator Staff Member

    Messages:
    11,879
    Somerset
    Not a great picture, but looks like some kind of quick release. Knock it out of the quill and use it as a MT 2 or 3 spindle i'd I imagine.

    eLuSiVeMiTe and 500e like this.
  8. Keith 66 Member

    Messages:
    1,546
    Essex UK
    I had a Herbert drill in my old workshop, it doubled as a tapping machine & had an auto reversing switch on it, it had a similar quick change quill on it, i was lucky it had a morse taper adapter & chuck.
    Cost me 15 quid! Only three quarter hp, but in bottom gear the spindle only did 56 rpm so at the chuck it was seriously powerful. Great bits of kit.

    Wonderweaver likes this.
  9. -Matt- Member

    Messages:
    209
    Location:
    York, England
    We have the Herbert 4 head one at work (like the picture but speed select is mounted on the side of the head not the front) but it has the same system as described in opening post (I recognised it before I'd scrolled down to see any mention of Herbert!).
    I'll take some pics in the basket of bits we have and see if that helps you track down the part you need if that helps?

  10. pandemonium123

    pandemonium123 Member

    Messages:
    46
    Location:
    Ayrshire scotland
    Thanks very much Matt
