FR 32 Pedal Spares

  1. Brad93

    Brad93 M J B Engineering

    Messages:
    8,518
    Location:
    Essex
    mainly aimed at @matt1978 but does anyone know if there is a parts list/diagram for the Fr32 plastic pedal. My potentiometer has gone stiff and is squeaking like mad. I've tried contact cleaner with now joy it's come back with a vengence. Think my only option is to replace. It looks like a normal 10k pot but has 10K414M Piher stamped on it.

    matt1978 likes this.
  2. matt1978

    matt1978 http://www.uk.masters-of-speed.de/

    I’ll send you the info on Monday mate, text me to remind me

    Brad93 likes this.
  3. Richard.

    Richard. Forum Supporter

    Messages:
    18,349
    Location:
    Cambridgeshire
    Can you not make the ssc you got work with it Brad.
    Is the pot the same resistance.

  4. gordon stephenson

    gordon stephenson Forum Supporter

    Messages:
    6,806
    Location:
    Skelton in Cleveland U.K.

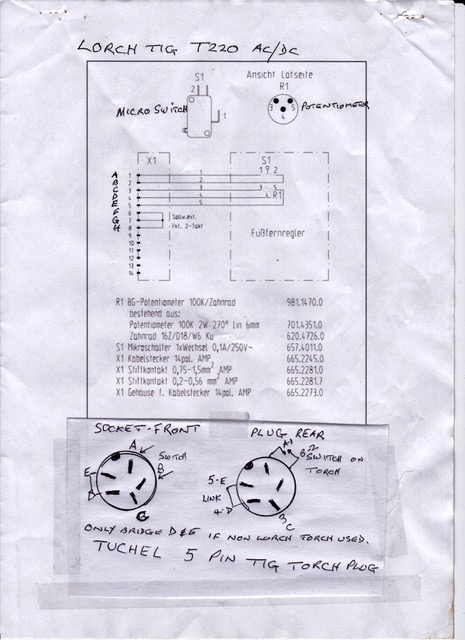

    fullsizeoutput_f28.jpeg Matt will have the correct info tomorrow, But from memory if the FR35 is the same, 100k 2W Linear 6mm potentiometer, long shaft, 270* rotation. Cant find the original email from matt.

    Found it!!! It contains my memory aid Touchel 5 pin plug info.

    Brad93 and matt1978 like this.
  5. Brad93

    Brad93 M J B Engineering

    Messages:
    8,518
    Location:
    Essex
    I'd like to keep it all OEM rich. I've got other pots but with different pin layout.

    I've got it working with a squirt of PTFE lubricant but that's probably not going to do it any favours in the long run.

    Worth spending the money to keep the pedal all original.

  6. Brad93

    Brad93 M J B Engineering

    Messages:
    8,518
    Location:
    Essex
    Best place to get those Tuchel plugs? I see Parweld sell them, but i think thats whats on my other torch and its pretty floppy compared to the lorch item.

  7. Richard.

    Richard. Forum Supporter

    Messages:
    18,349
    Location:
    Cambridgeshire
    Jim Davey.
    Those plugs are the same as used on ewm.

  8. gordon stephenson

    gordon stephenson Forum Supporter

    Messages:
    6,806
    Location:
    Skelton in Cleveland U.K.

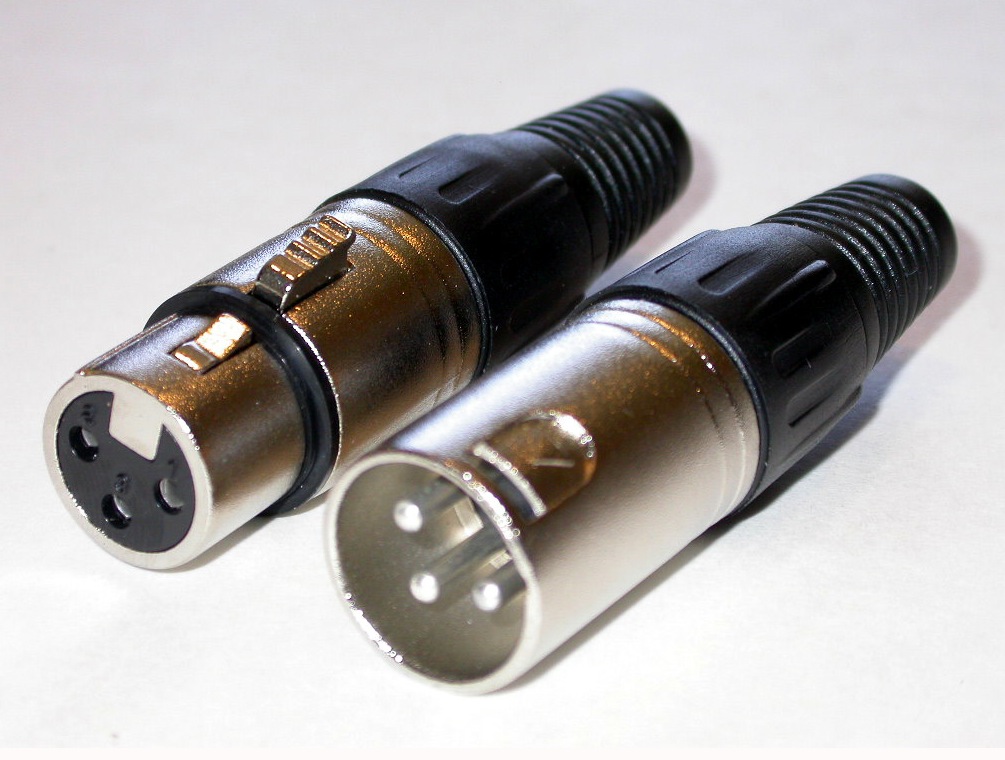

    Those 5 pin touchel plugs are expensive, I have two machines that use them, I made up a short fly lead and put a quality audio female socket on the end, Then the audio male plugs on any tig torches, I think the plugs I used were called XLR plugs, top quality and cheap as chips.


  9. Brad93

    Brad93 M J B Engineering

    Messages:
    8,518
    Location:
    Essex
    I think the parweld ones are £15. Not too bad. You want to try buying an 14 pin Mil-Spec amphenol.

    I'd like to get something with similar quality to the Lorch Ones. I'll look tomorrow to see if they are branded.

  10. gordon stephenson

    gordon stephenson Forum Supporter

    Messages:
    6,806
    Location:
    Skelton in Cleveland U.K.
    I have bought 14 pin plug,Eye watering prices.

    Just checked out XLR microphone plugs on ebay, 10 pairs for £10-00 new free post.

    Brad93 likes this.
  11. Richard.

    Richard. Forum Supporter

    Messages:
    18,349
    Location:
    Cambridgeshire
    9 pin fronius plug if you fancy a pricy one.

    Like I said brad. Ewm and lorch use the exact same plug. They are around the £30 mark iirc. Jim keeps em on the shelf. Give him a shout.

  12. Xup Member

    Messages:
    143
    Location:
    Wales
    100K pot on my SSC pedal for the HT Lorch Brad.
    Give me a shout if you need any internal pics.

    Brad93 likes this.
  13. eSCHEn

    eSCHEn Bit Wrangler Staff Member

    Messages:
    5,840
    Location:
    SW Scotland
    I've had a few of the EWM style ones and the best quality off the shelf was SWP's. Parweld one is a bit cheap feeling.
