Clarke 230 TEC PCB

  1. Andyafc New Member

    Messages:
    1
    Location:
    Tonbridge, Kent

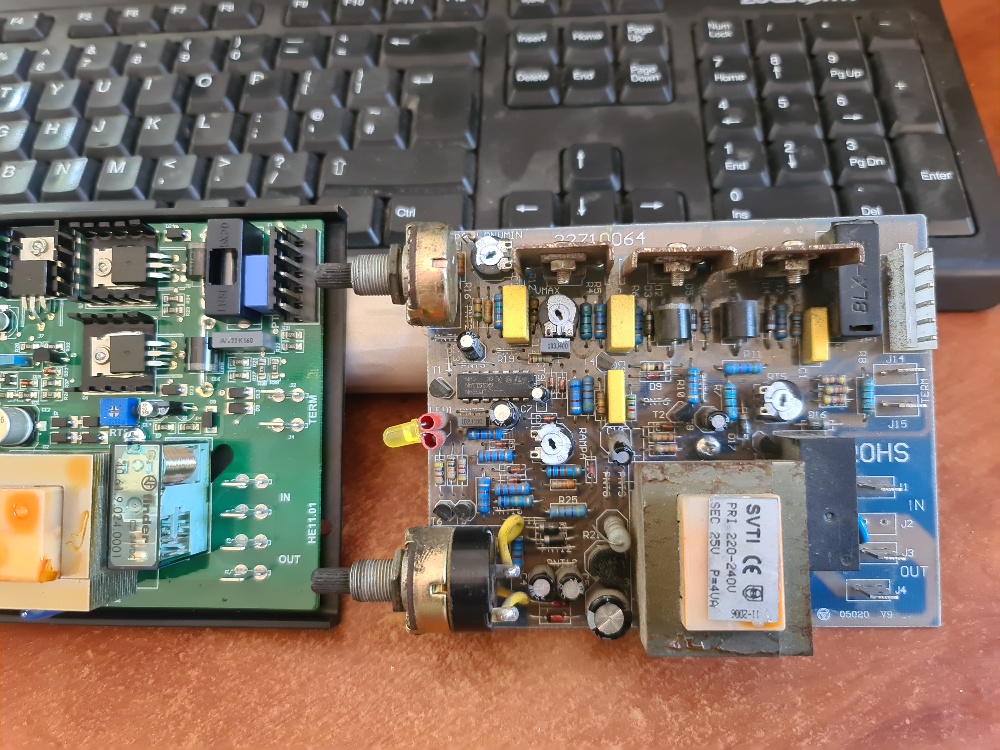

    Hi all, recently purchased new pcb for above machine. Can anyone help re cable connections to new pcb as, although boards virtually identical, terminals numbered differently ??

    • 20200801_102624_resized.jpg
  2. Hopefuldave Intergalactic pot-mender

    Messages:
    1,659
    Location:
    The Shed of Danger, surrey, England
    My assumption, if it's sold as a replacement, is that the connectors go in the same locations - it looks as though the major differences are down to a redesign (with a similar layout) for surface-mount parts instead of leaded. Is the left hand side of the new board laid out the same, pots top and bottom of the edge, LED in the middle)?

    Dave H. (the other one)
