Cataract bench lathe

  1. Pete.

    Pete. Member

    Messages:
    8,672
    Location:
    Kent, UK
    I just collected this today after getting a call from a nice fellow tipping me off to it's existence. It's a Hardinge Cataract bench lathe - a superbly made precision machine in it's day.

    I bought it because of it's pedigree and because I already have a larger Hardinge HLV lathe which is also at 'project status' so they will compliment each other nicely when they are done (even though in truth I'm going to struggle to find a spot for this one). This one has had a bit of a tough life doing what lathes do but fundamentally it's sound. You would-not-believe how heavy the bed is for such a small machine.

    Anyway, we all love pics so here they are:

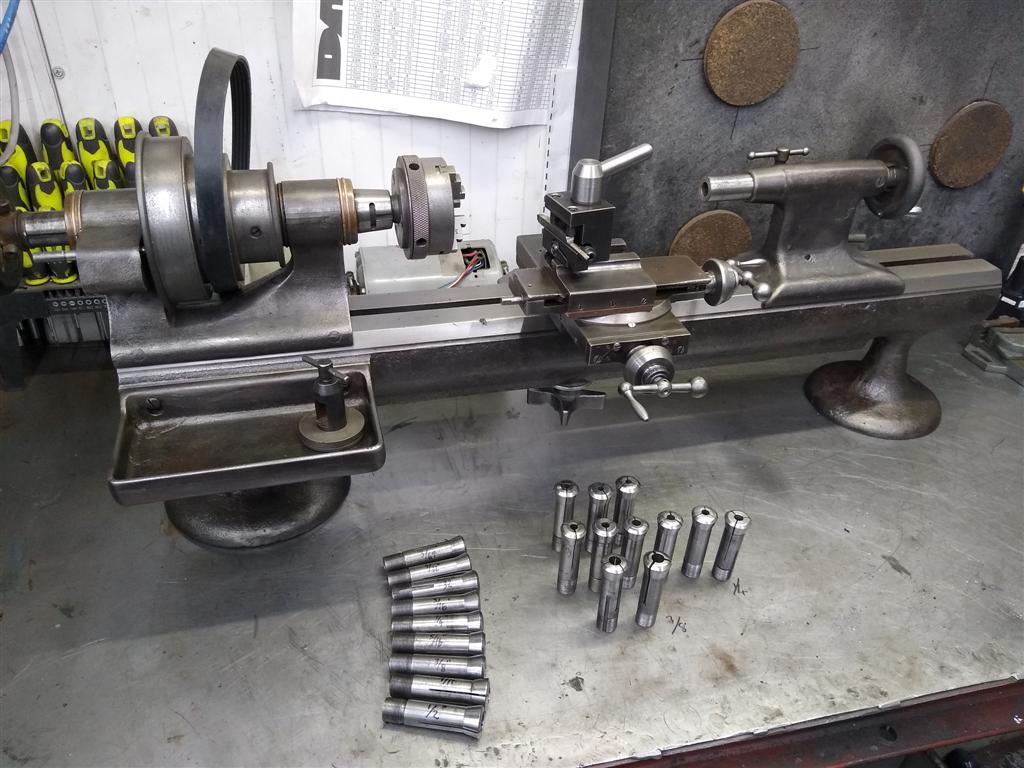

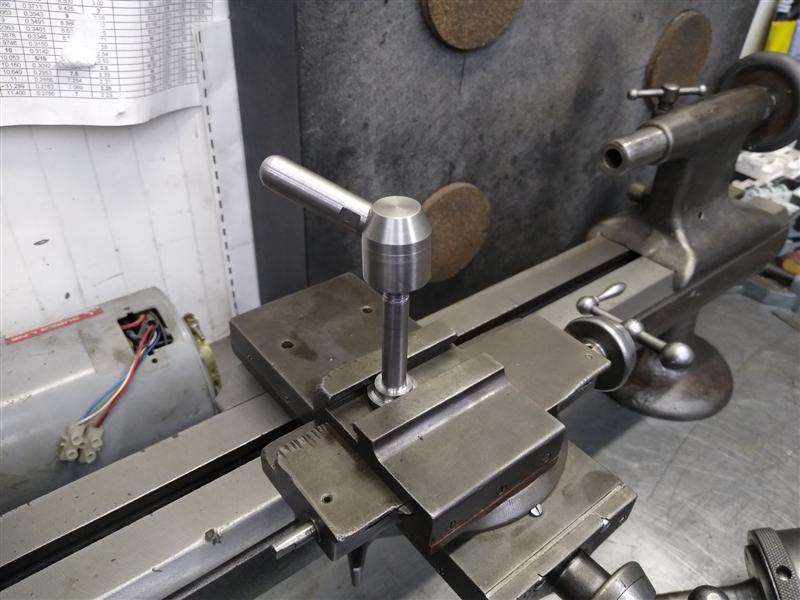

    Here's the lathe, with 24 3C collets 3-jaw and 4-jaw 3C chucks and a rotten old flat belt.

    Headstock pulley has 2 rings of holes, I think the 4 holes are probably spindle locks and the 60-hole circle is for indexing. No idea what fixes in the holes in the end of the bed but they did do a whole buch of attachments for this type of lathe.

    cataract hsend.JPG
    Rear view showing it to be a plain bed, some of them had a tee slot running along the back for thread chasing attachments

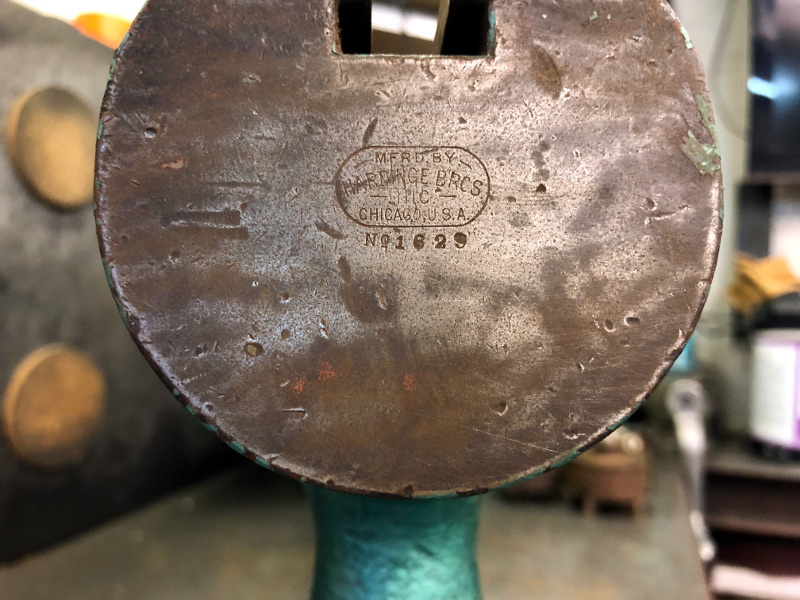

    Found the serial number under the hammerite on the end of the bed.


    Scraping away hammerite also revealed the headstock serial. These machines were very modular so each part had it's own number.


    Despite the surface rust the spindle has been protected by the oiled felt wick so hopefully it will all be in good nick in there. I won't attempt to pull the spindle out until all the rust is gone off the spindle end.


    pressbrake1, decca, Wallace and 16 others like this.
  2. awemawson Forum Supporter

    Potentially very nice Pete :)

    I presume a full strip down and rebuild is in order, what derusting strategy are you adopting?


    :sheep::sheep::sheep:

    PS I see that you still have that height gauge :laughing:

  3. spencer 427

    spencer 427 Member

    Messages:
    6,420
    uk colchester
    Location:
    uk colchester
    Very nice Pete. I sure you will find room.

  4. Pete.

    Pete. Member

    Messages:
    8,672
    Location:
    Kent, UK
    Still got it yep

    Most of the de-rusting will be done by scraper but first I'm going to have to dip the bed in something to de-rust in the gap. I might get some of that citric acid which has worked so well for you Andrew.
    There's one spot on the bed which is slightly pitted which is a shame but since it's not a sliding way all its going to be is ugly.

  5. dan.taylor.1

    dan.taylor.1 General Tinkererer

    Have a measure of the collets, I've a load I haven't a chuck for that look very similar.

  6. Pete.

    Pete. Member

    Messages:
    8,672
    Location:
    Kent, UK
    These are the 3c collet specs Dan:

    Thread Dia: .642"
    Thread Len: 3/4"
    TPI: 26
    Body Dia: .6495
    Collet Len: 2 11/16"
    Head Dia: .852
    Head Angle: 12 degrees

    Trivia: The C in 3c, 5c collets actually stands for "Cataract", because the collets were actually designed by Hardinge who owned Cataract machine tools so a 3C collet is actually a Cataract No3

    P 43.jpg

    Maker likes this.
  7. dan.taylor.1

    dan.taylor.1 General Tinkererer

    Hi Pete, think I've read about the history before, probably when trying to find out what these ones I have are. They're very similar to a 5c but not quite. Much coarser thread on the back for instance.

  8. Ton-up

    Ton-up Member

    Messages:
    1,418
    Location:
    Essex, England.
    Nice find, especially as you have a HLV as well. Why such a odd name?

  9. Pete.

    Pete. Member

    Messages:
    8,672
    Location:
    Kent, UK
    You mean Cataract?

    From "Hardinge History"

    In 1902 (or thereabouts) Hardinge acquired the rights to the Cataract range of Precision bench lathes formerly produced by the Cataract Tool and Bicycle Company (named after the waterfalls visible from the factory grounds)

    dobbslc likes this.
  10. Ton-up

    Ton-up Member

    Messages:
    1,418
    Location:
    Essex, England.
    I knew it meant waterfalls, i didnt know the reason why. Good read.:thumbup:

  11. Pete.

    Pete. Member

    Messages:
    8,672
    Location:
    Kent, UK
    10kg of citric acid on the way. I've no idea how much de-rusting I can do with that but it'll surely be enough to dunk the slides, chucks and collets in.

  12. Pete.

    Pete. Member

    Messages:
    8,672
    Location:
    Kent, UK

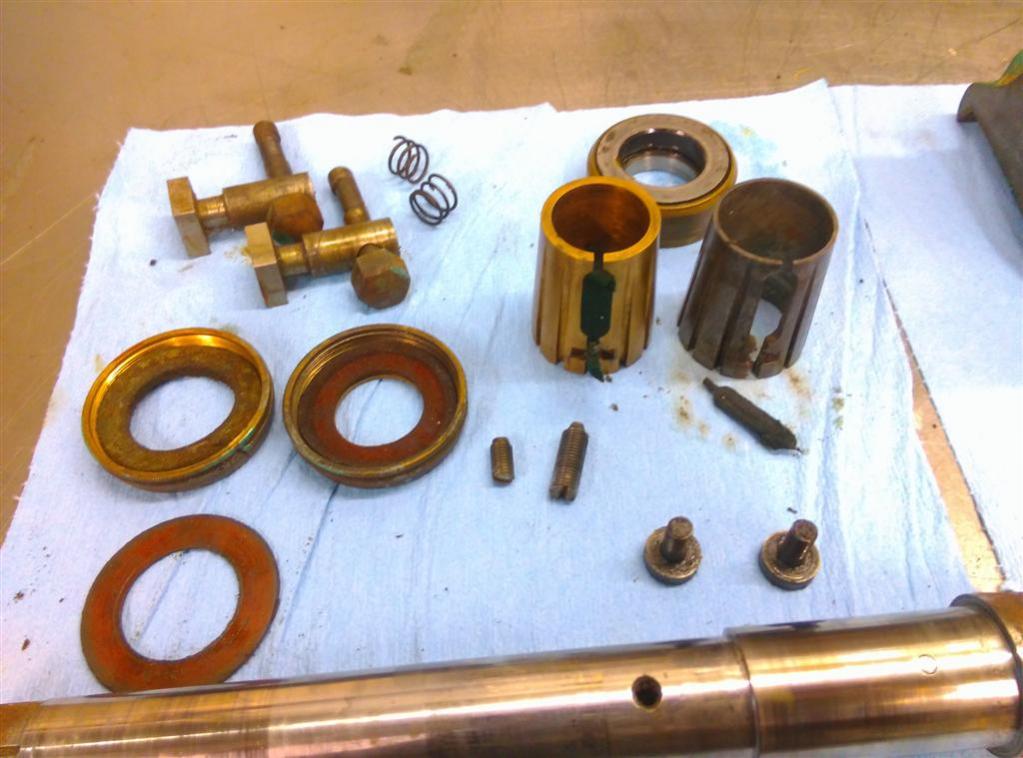

    Stripped the headstock. It has a very nice bronze replacement bearing with a new wick. The front bearing is original hardened cast iron. THe bearings are clever they pull into a taper via an adjusting screw so you can dial out any free-play. The spindle and bearing journals are in excellent condition apart from a single score around the front bearing where someone has fouled the pin with a collet (I've found the mangled collet too). I'll have to make an inside lap just to make sure there's no ridge left behind on the bearing.


    Note all of the oiling is done by felt wick. The new bronze bush has a new wick but the front bush has a really tatty old wick which will have to be replaced. The wicks have a little 'tail' on them which dangles into a tiny oil reservoir underneath. So long as the oil is kept replensihed and the wicks are in good nick it makes a very reliable oiling system.

    Well it's lasted over 100yrs so far (machine dates from 1910-1915) so it must be a pretty good system.

    optima21, Gwil, zx9 and 4 others like this.
  13. bigegg

    bigegg I drink and I know things. Its what I do.

    Messages:
    6,764
    Location:
    Leeds, West Yorkshire
    i use 1kg in a 30l hdpe blue barrel

    10kgs is enough to do a couple of 200l drums full - so enough to de-rust an entire myford-sized lathe.

  14. eLuSiVeMiTe

    eLuSiVeMiTe Forum Supporter

    Messages:
    9,996
    Location:
    Bedfordshire England

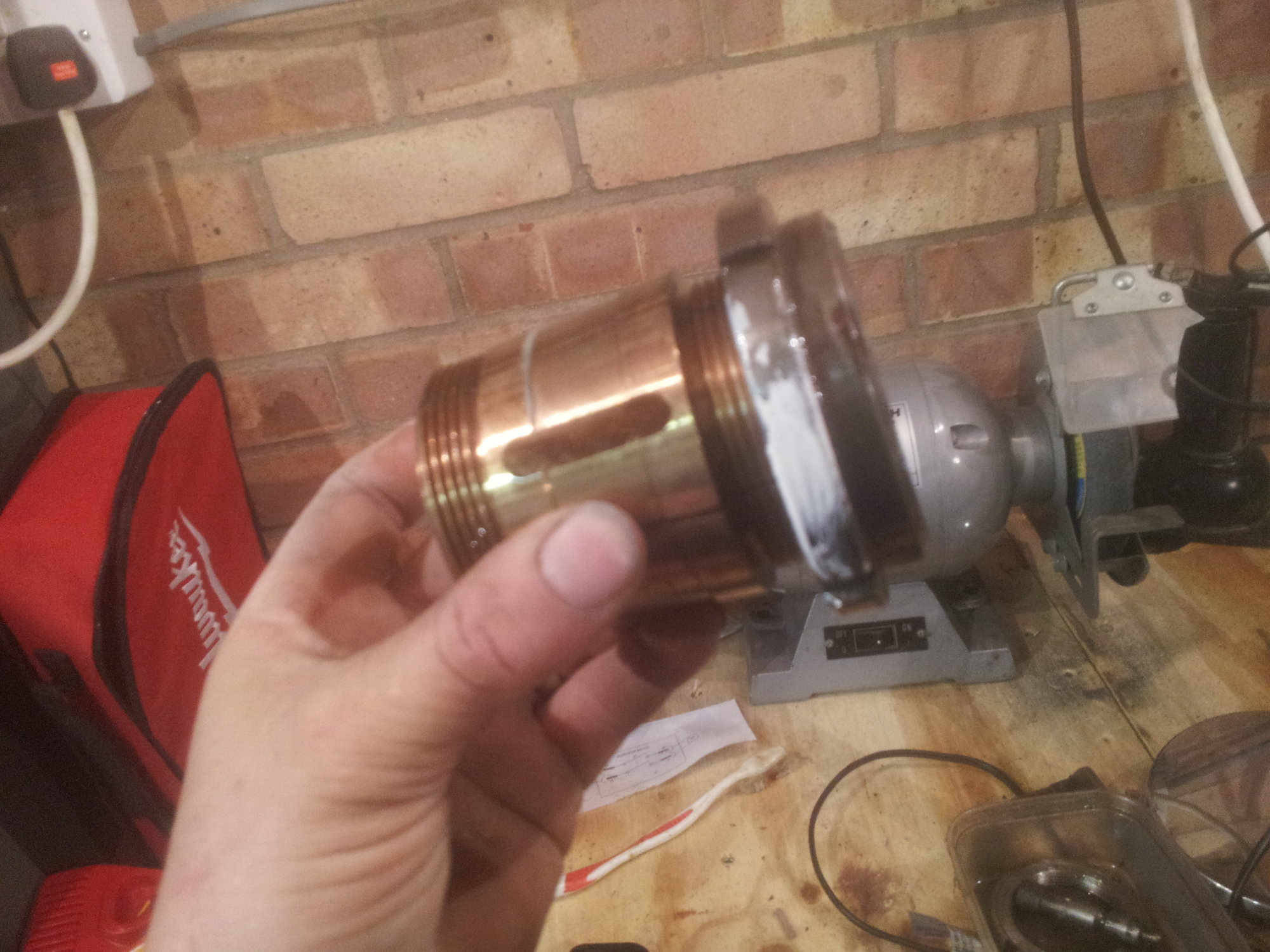

    Very similar to my spindle bearing arrangement and oiling method on both my smart amd browns.
    Works flawlessly and still keeps very good tolerances. 20180711_201044.jpg 20180711_201038.jpg

    Hopefuldave and Pete. like this.
  15. Pete.

    Pete. Member

    Messages:
    8,672
    Location:
    Kent, UK
    I had to make a new collet key because someone had previously made one that wouldn't stay put in the hole, in fact it has been pushed back out by a wrong-seated collet and gouged the hard cast iron bearing. Here's the pin that was stuck in the spindle, it's just a round pin with two flats.


    The drawing shows that the original is a tee-shaped pin which obviously would have to be fitted from the inside:


    I measured the slot in the collets at 1/8" wide and .050" deep so I made the pin .110" wide and to stand .040" proud on the ID of the spindle.


    First I turned it up from a 12.9 cap screw. The top is 1/4" diameter and 40 thou thick. The shank is turned for a tight fit in the spindle hole but it has a bit of a lead-in turned on it to get it located before pressing it in.


    Next I milled the sides and parted it off in the lathe, then put it in a drill chuck so I could grind a gentle radius in the top.
    All that was left to do was fit the pin. I got it located with a pair of long nose pliers then I needed to press it home. To do that I quickly hacked this tool out on the mill. It's just a piece of round bar with a groove milled in it at a sloping angle.


    Using that tool I could 'bar' the pin into the hole by levering slightly then sliding the bar in a bit more. All it took was a few taps with a small hammer to fully seat the pin.


  16. Dieselkid 63

    Dieselkid 63 Banned from forklifts

    Messages:
    4,304
    Location:
    Wellington, New Zealand
    Any progress on this?

  17. Pete.

    Pete. Member

    Messages:
    8,672
    Location:
    Kent, UK
    Not at the minute. A few other jobs have got in the way, one being a new roof on the rear porch before the weather sets in plus I've been concentrating on the South Bend.

    Dieselkid 63 likes this.
  18. Dieselkid 63

    Dieselkid 63 Banned from forklifts

    Messages:
    4,304
    Location:
    Wellington, New Zealand
    Will you use it or is it just something nice to have seeing as you have the big Hardinge?

    It’s given me inspiration for my newly acquired mini lathe.
