Its the Christmas hols so must be project time,
well lets face it we can't do much else
So couple of evenings in the workshop on the slow speed grinder - slow because of how long its taking me to build it I think

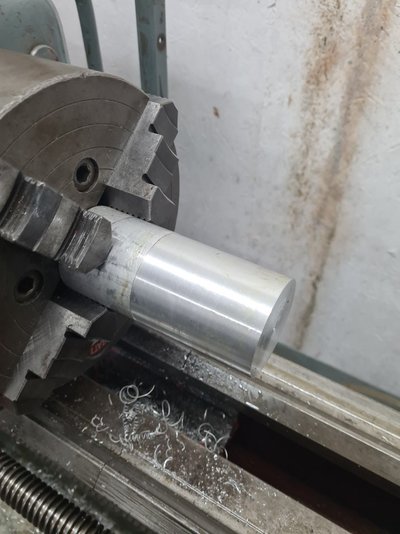

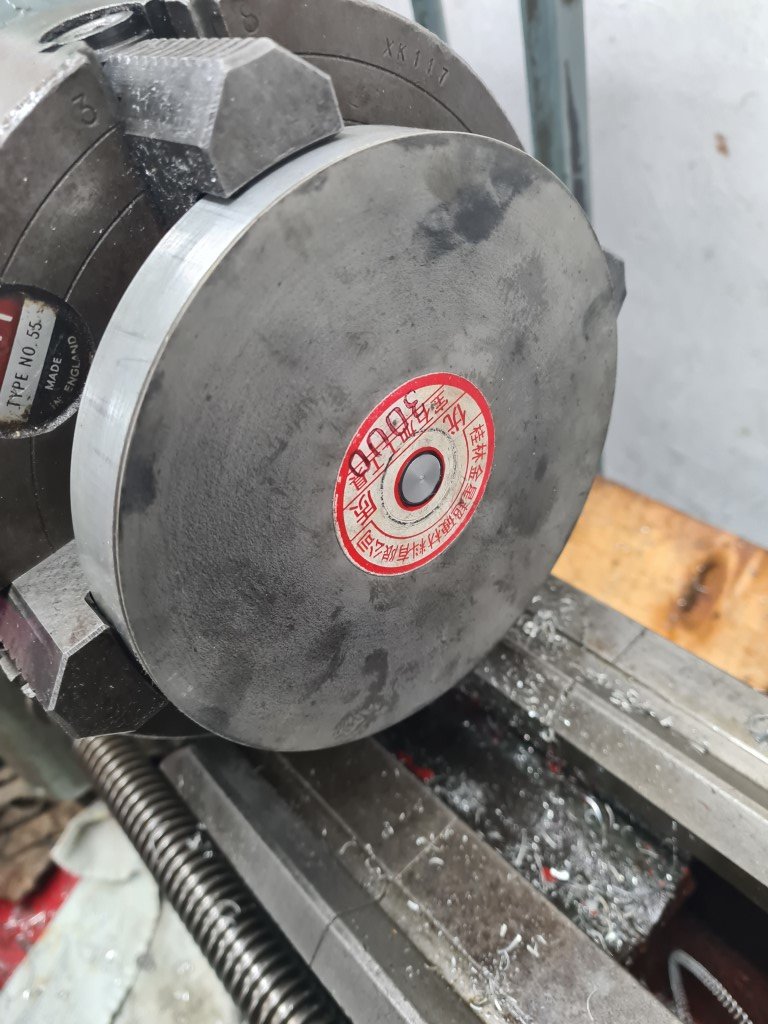

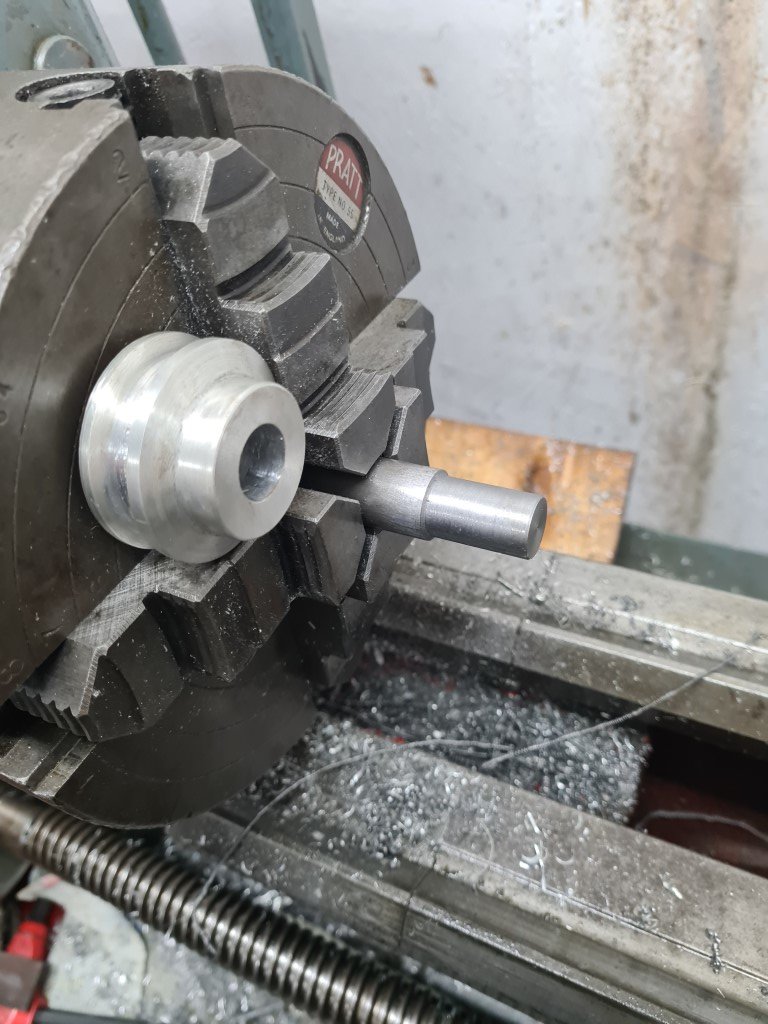

Got the 6" slug of ali up onto the lathe and cleaned it up. Then machined it down to leave a boss that the diamond disc will slot onto.
this is then ready to drill for the magnets and dowel pins to locate.
The disc will be drilled and the end of the shaft tapped to allow me to mechanically secure the backing disc to the shaft itself, but the abrasive disc will just be held on with the magnets.
Now needed to make a second pulley for the other end of the "layshaft". Originally I was going to just do a matching pulley for the one on the motor but to give 300RPM at the disc this would mean running the motor at 20Hz. Its "normal" RPM is 720 I think so I did a bit of calculating and decided to make a slightly bigger pulley for the layshaft. 35mm vs 20mm for the motor will allow me to run the motor at about 80-90% Hz so should run much smoother and cooler.
Dug out a slug from the box of offcuts I bought of Pressbrake and mounted in lathe.
Cleaned up then cut down to size on the bandsaw.
After a bit of playing around ended up with this.

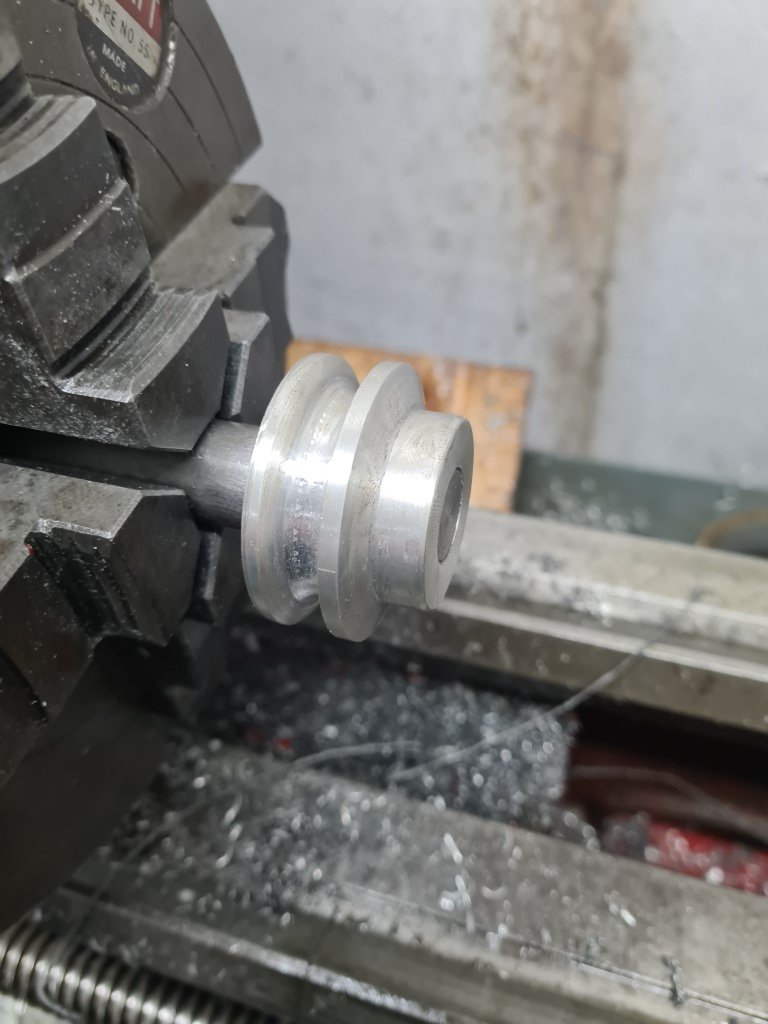

And then machined down the end of the shaft so that the pulley fits up against a flange on the shaft. The shaft will then be drilled and tapped and the pulley held in place by bolting up against the flange.
So - a little bit further on
Cheers,
MM
well lets face it we can't do much elseSo couple of evenings in the workshop on the slow speed grinder - slow because of how long its taking me to build it I think

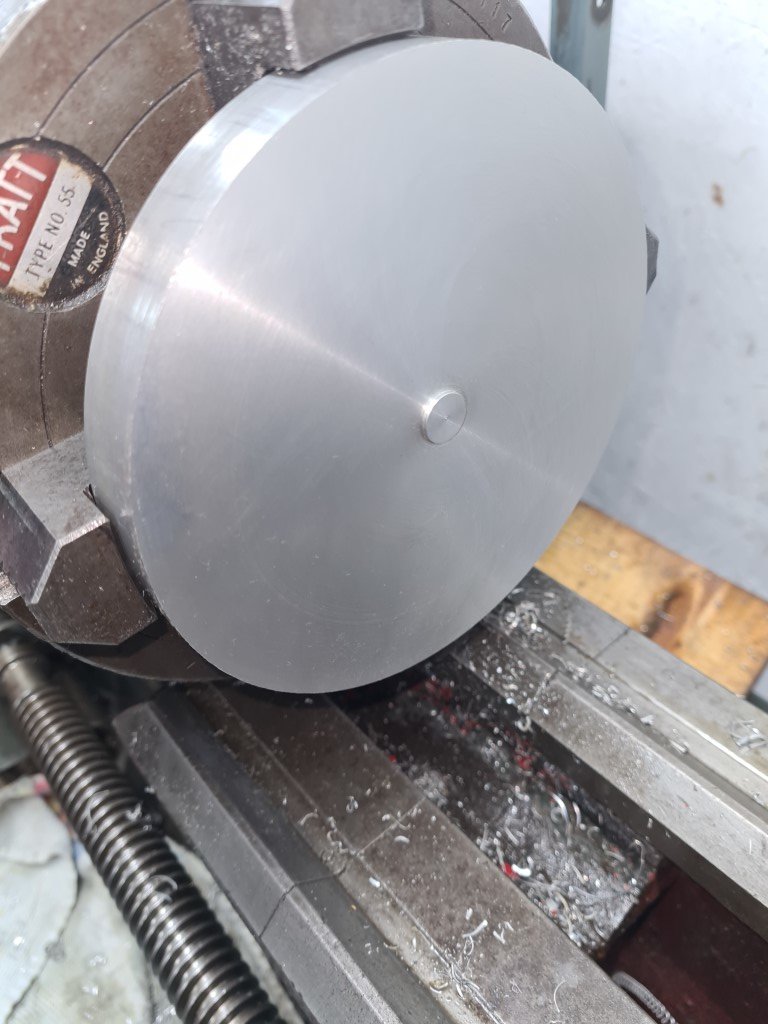

Got the 6" slug of ali up onto the lathe and cleaned it up. Then machined it down to leave a boss that the diamond disc will slot onto.
this is then ready to drill for the magnets and dowel pins to locate.
The disc will be drilled and the end of the shaft tapped to allow me to mechanically secure the backing disc to the shaft itself, but the abrasive disc will just be held on with the magnets.
Now needed to make a second pulley for the other end of the "layshaft". Originally I was going to just do a matching pulley for the one on the motor but to give 300RPM at the disc this would mean running the motor at 20Hz. Its "normal" RPM is 720 I think so I did a bit of calculating and decided to make a slightly bigger pulley for the layshaft. 35mm vs 20mm for the motor will allow me to run the motor at about 80-90% Hz so should run much smoother and cooler.
Dug out a slug from the box of offcuts I bought of Pressbrake and mounted in lathe.
Cleaned up then cut down to size on the bandsaw.
After a bit of playing around ended up with this.
And then machined down the end of the shaft so that the pulley fits up against a flange on the shaft. The shaft will then be drilled and tapped and the pulley held in place by bolting up against the flange.
So - a little bit further on
Cheers,
MM
I have slightly bevelled the edge but will probably cut it a couple of screwdriver blade sized slots. Need to strip down and old hard drive to see if it has any decent small magnets in it next Cheers,
MM
Good question @RichardM There is no obvious way to mount the motor as it has no feet. There are some tapped holes on the end flanges where the reduction box and speed sensor mounted so i could make some brackets to attach to those. The other idea was to "strap" it down to the deck.
Neither of which lend themselves to adjustability........
I am going to try a 6mm polyurethane belt which can cut to length which may take away the tensioning issue.
The alternative thought is as suggested by @gaz1 to use a tensioner pulley arrangement to the side.
That's the fun of projects - always a puzzle to be solved
Cheers,
MM
Neither of which lend themselves to adjustability........
I am going to try a 6mm polyurethane belt which can cut to length which may take away the tensioning issue.
The alternative thought is as suggested by @gaz1 to use a tensioner pulley arrangement to the side.
That's the fun of projects - always a puzzle to be solved
Cheers,
MM
Will see how I get on with the polyurethane belt first but thanks for the suggestion.

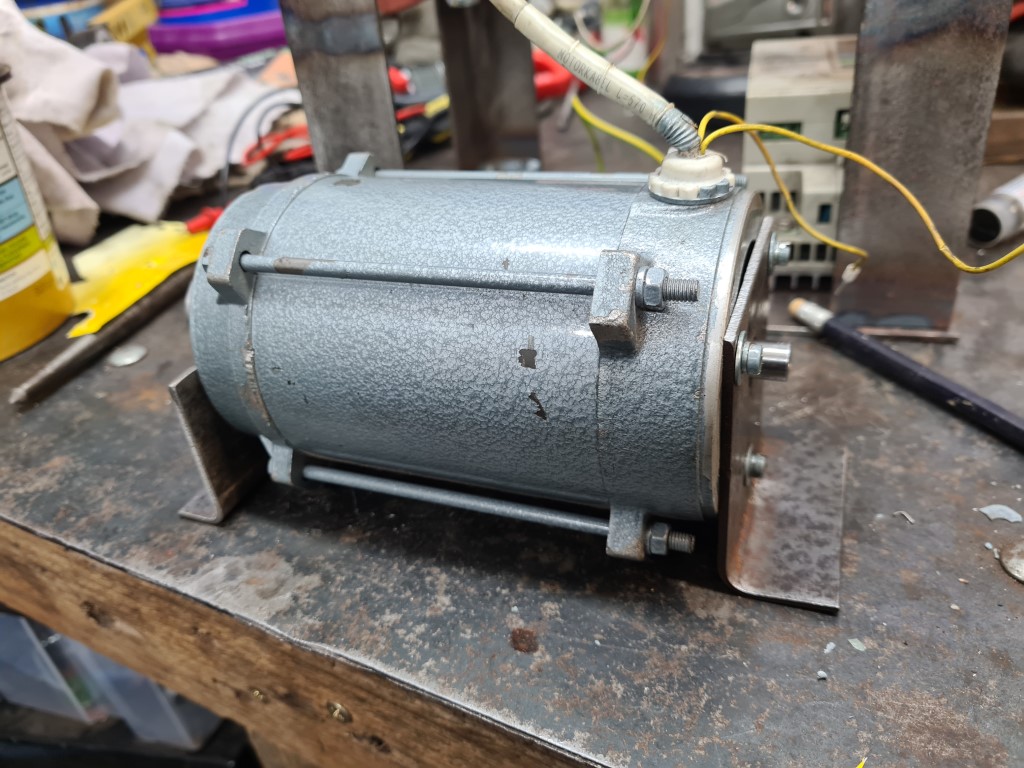

Cracked on with the motor mounting this afternoon after a bit of a tidy up. Decided to make up some plates that will mount to the pre drilled holes on the motor body where the reduction box and sensor were.
Use a cardboard template to transfer the rough shape to some 2mm sheet and then filed it till it was a good fit to the flange on the front. Only 3 mounting points on the back so drilled out a hole for the shaft end so I could use all 3 points.
Then had to try and drill all the holes in the right place
Got there in the end. Then used the folder to put a 90 degree bend having measured up to make sure it was in the right place to allow the motor to sit flat.

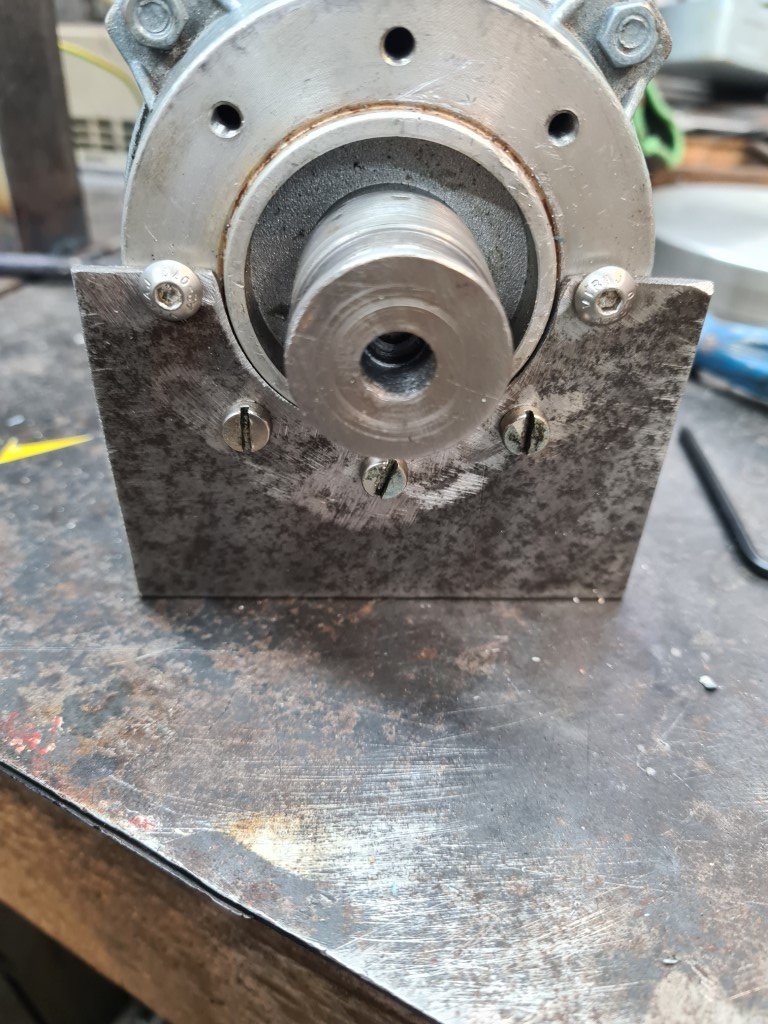

Works quite nicely and all measured so it fits onto the bottom plate snugly and allows room for the VFD behind.

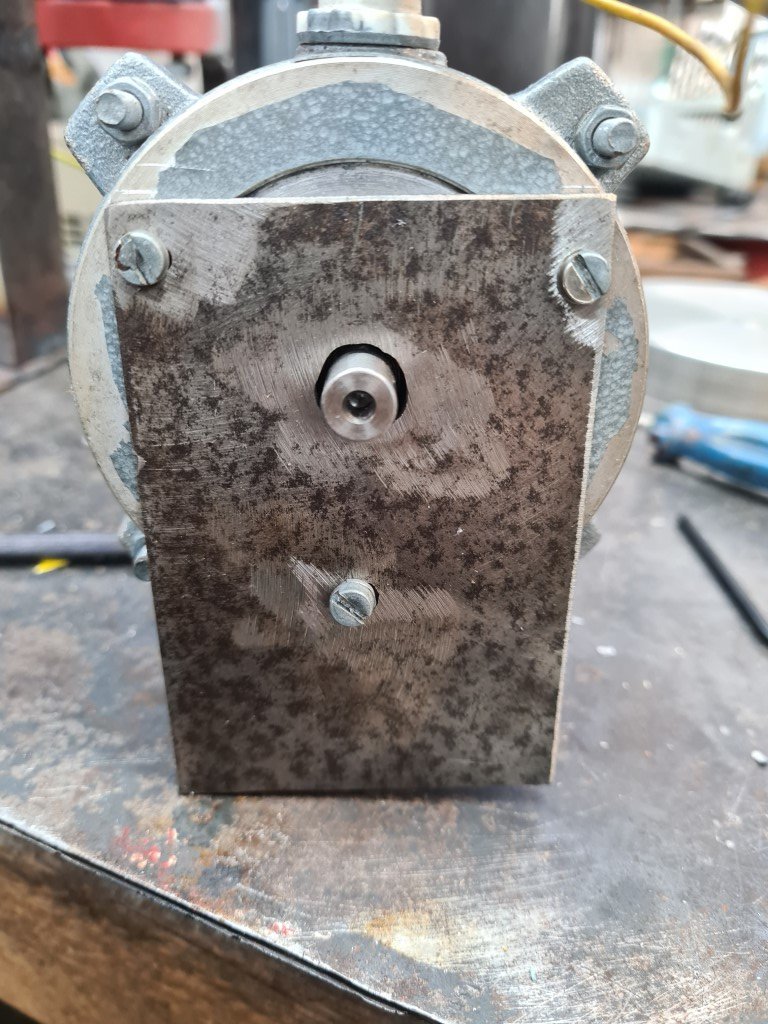

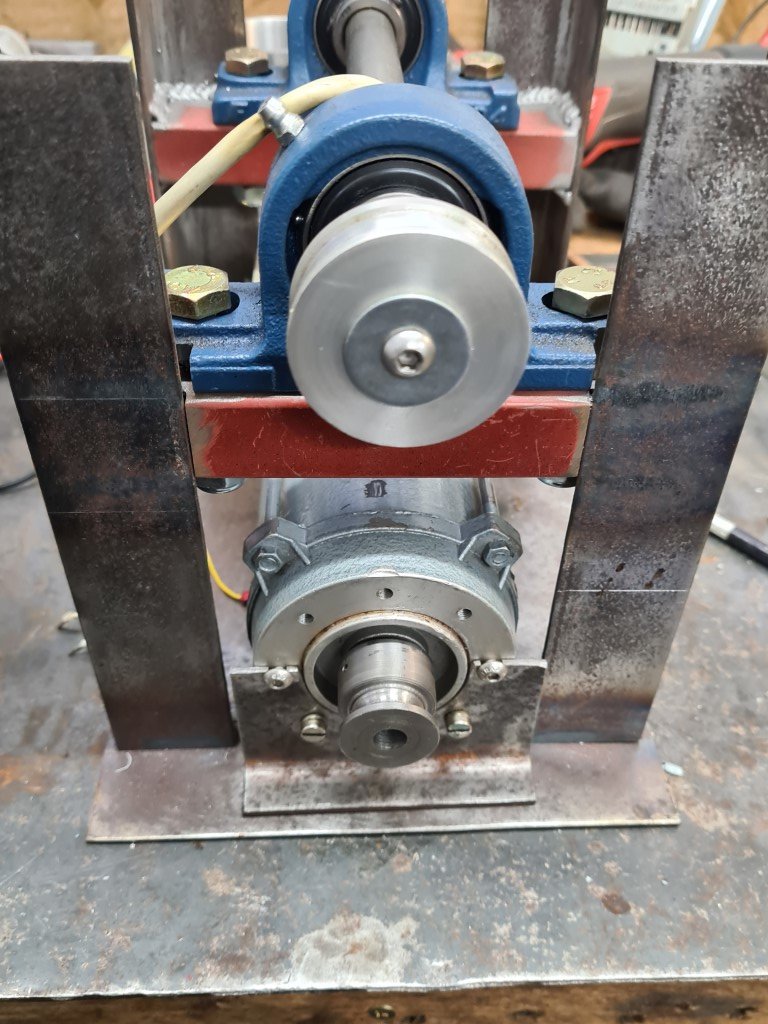

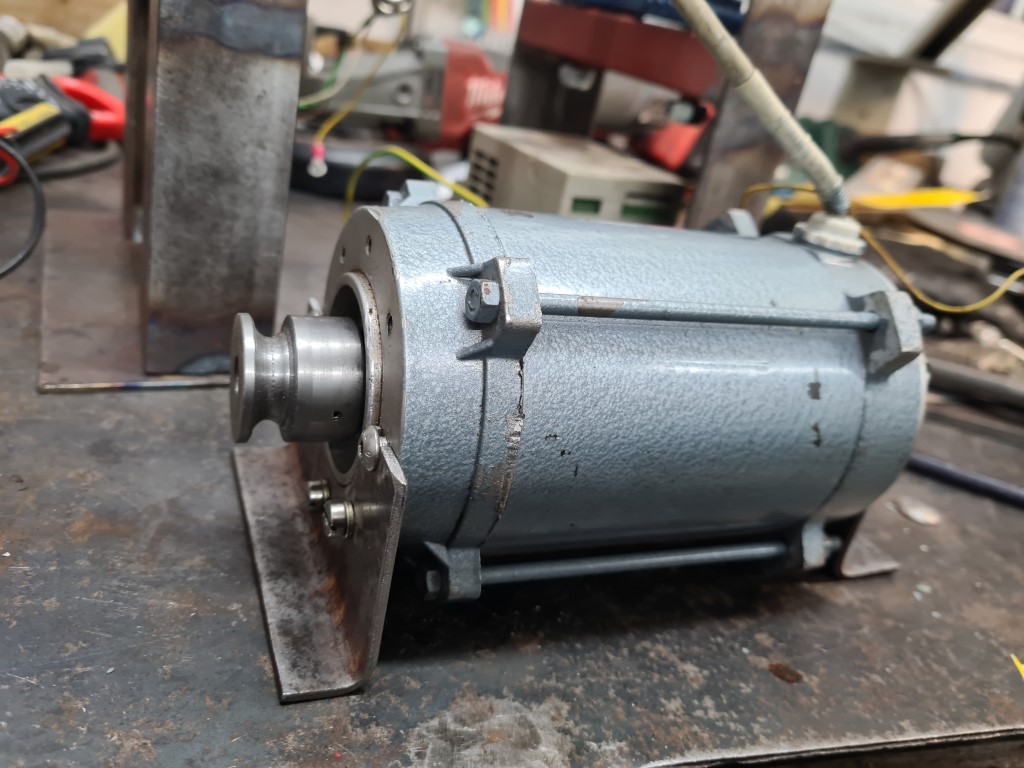

Drilled and tapped the shaft and secured the pulley I made yesterday then mocked up the fitment

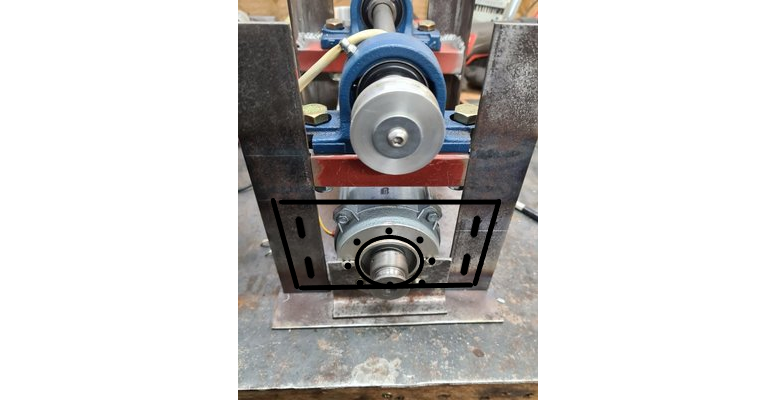

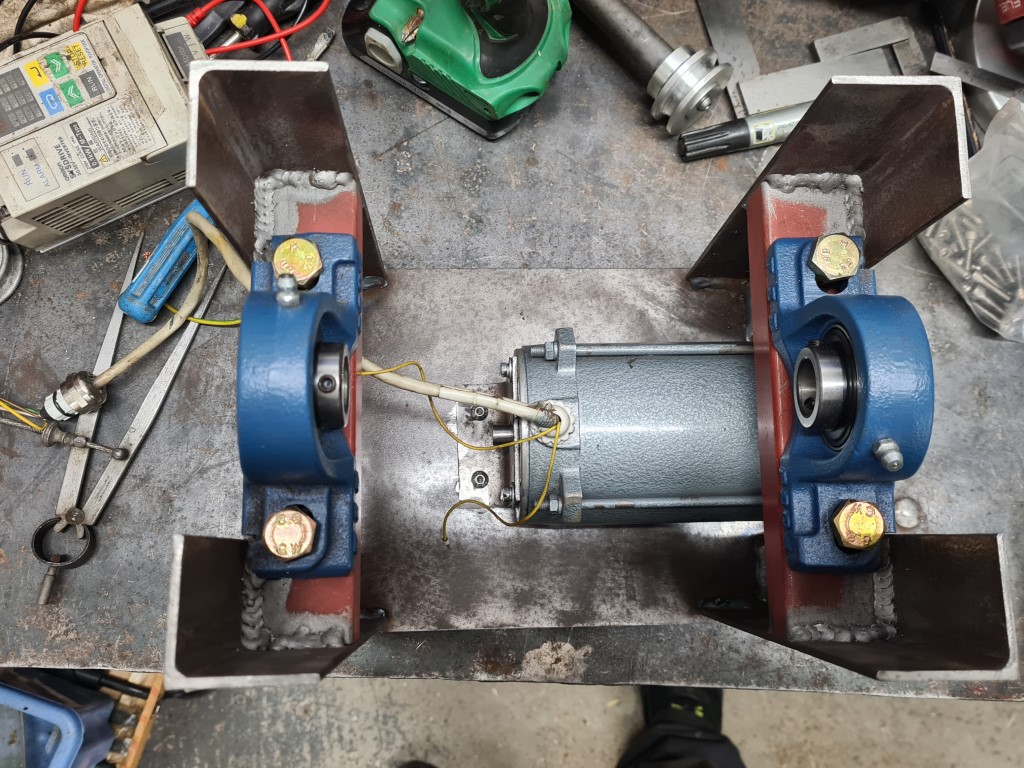

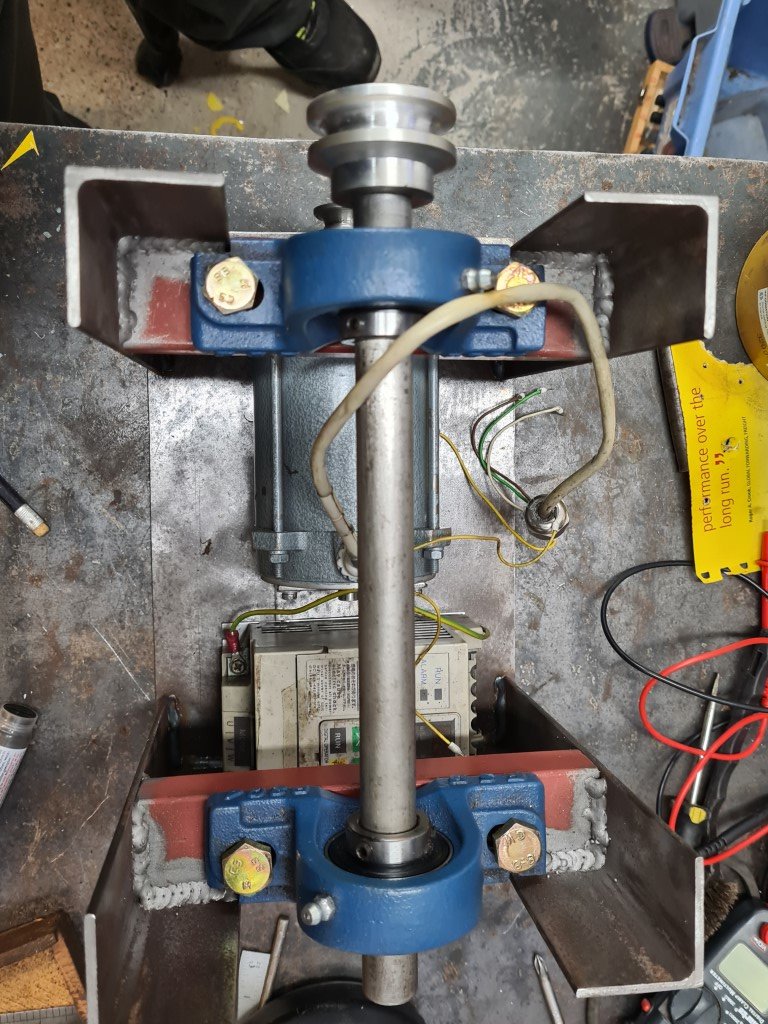

With the layshaft in place I could line everything up and drill the holes in the base plate and fix down the motor.
The pillow bearings are on slotted mountings so when I do the final fit I can shim/adjust as necessary to get everything lined up properly.
And with the VFD in place.
Next job is to work out the electrical connections. Rather than use a stop/start setup I have a 2 pole on/off switch which I am hoping to use but I need to figure out of I can use that with the switching circuit of the VFD
Time for some reading
Cheers,
MM
Cracked on with the motor mounting this afternoon after a bit of a tidy up. Decided to make up some plates that will mount to the pre drilled holes on the motor body where the reduction box and sensor were.
Use a cardboard template to transfer the rough shape to some 2mm sheet and then filed it till it was a good fit to the flange on the front. Only 3 mounting points on the back so drilled out a hole for the shaft end so I could use all 3 points.
Then had to try and drill all the holes in the right place
Got there in the end. Then used the folder to put a 90 degree bend having measured up to make sure it was in the right place to allow the motor to sit flat.
Works quite nicely and all measured so it fits onto the bottom plate snugly and allows room for the VFD behind.
Drilled and tapped the shaft and secured the pulley I made yesterday then mocked up the fitment
With the layshaft in place I could line everything up and drill the holes in the base plate and fix down the motor.
The pillow bearings are on slotted mountings so when I do the final fit I can shim/adjust as necessary to get everything lined up properly.
And with the VFD in place.
Next job is to work out the electrical connections. Rather than use a stop/start setup I have a 2 pole on/off switch which I am hoping to use but I need to figure out of I can use that with the switching circuit of the VFD
Time for some reading
Cheers,
MM
Spark plug
Member
- Messages
- 4,062
- Location
- Durham, England
You’ll be fine with the polly belt, it works on my grinder, it transmits plenty drive for lapping carbide.
Still need to finish the tool rest, but it works so who knows when that will happen:
Still need to finish the tool rest, but it works so who knows when that will happen:

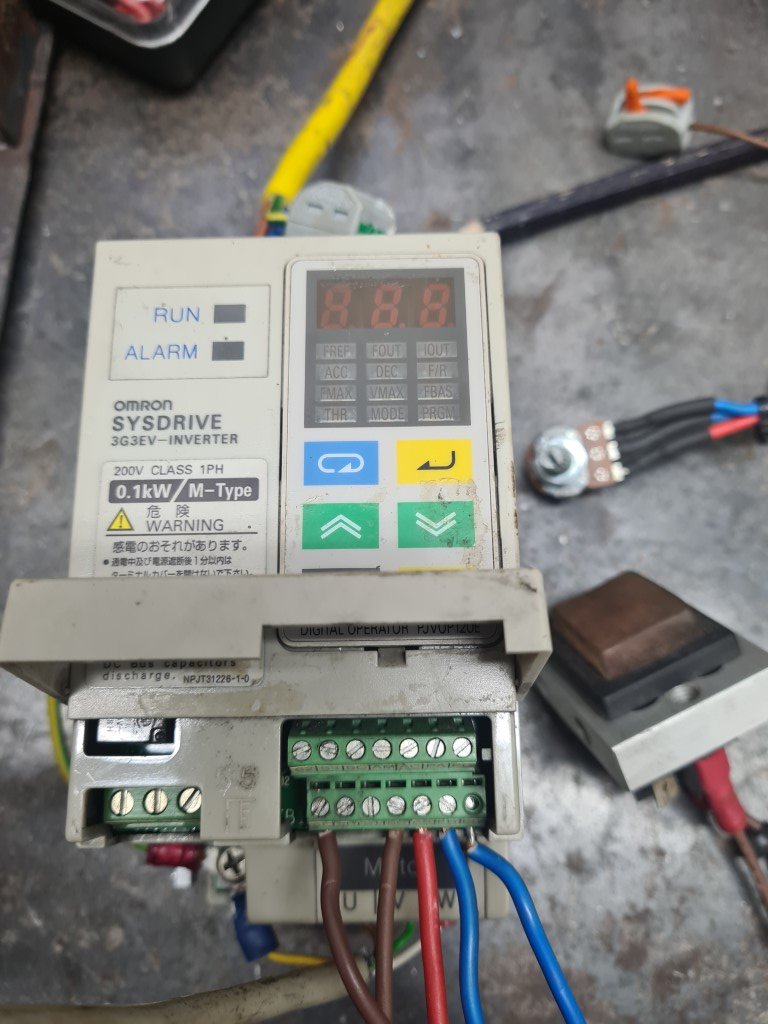

SO did the final bit before the Christmas break and got the electrics sorted.

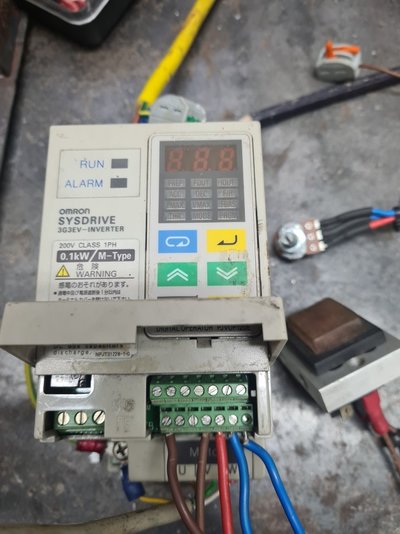

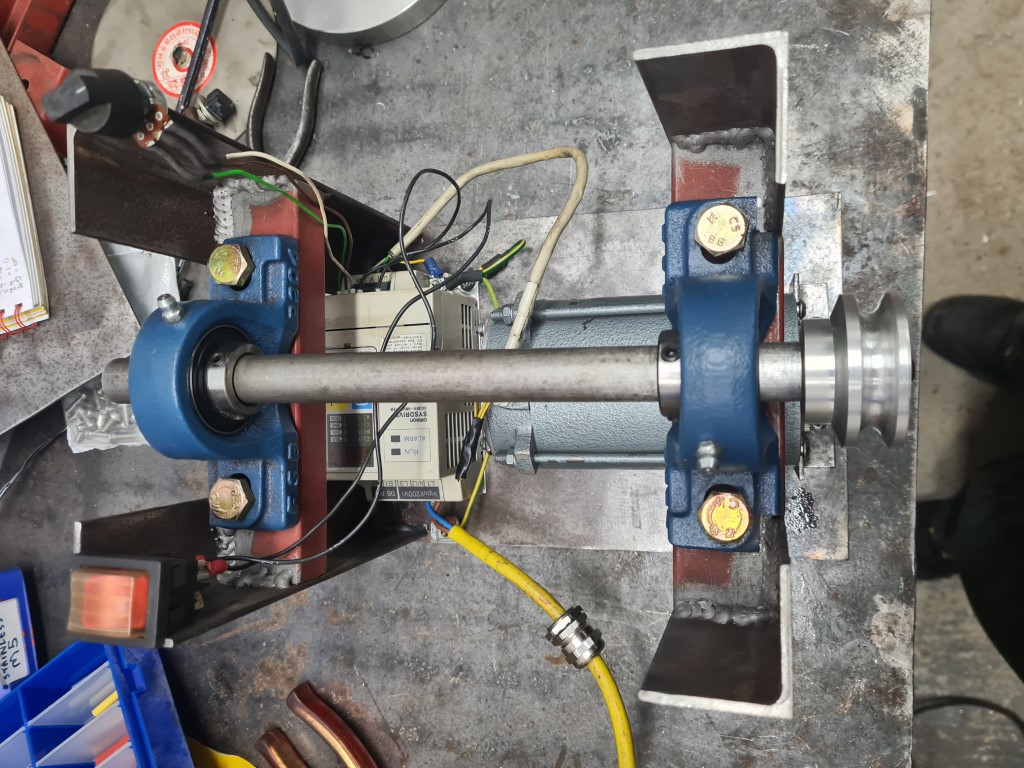

Eventually figured how to wire up the VFD to operate of a simple switch for stop start and rigged up a pot so I can control speed if I need to.
The VFD was about figuring out the config options to enable remote control rather than the onboard keypad, got there in the end.
Now all connected and ready to start putting the body on. First pic was in test mode, then tidied up the cabling a bit before locking down.
Cheers,
MM
Eventually figured how to wire up the VFD to operate of a simple switch for stop start and rigged up a pot so I can control speed if I need to.
The VFD was about figuring out the config options to enable remote control rather than the onboard keypad, got there in the end.
Now all connected and ready to start putting the body on. First pic was in test mode, then tidied up the cabling a bit before locking down.
Cheers,
MM

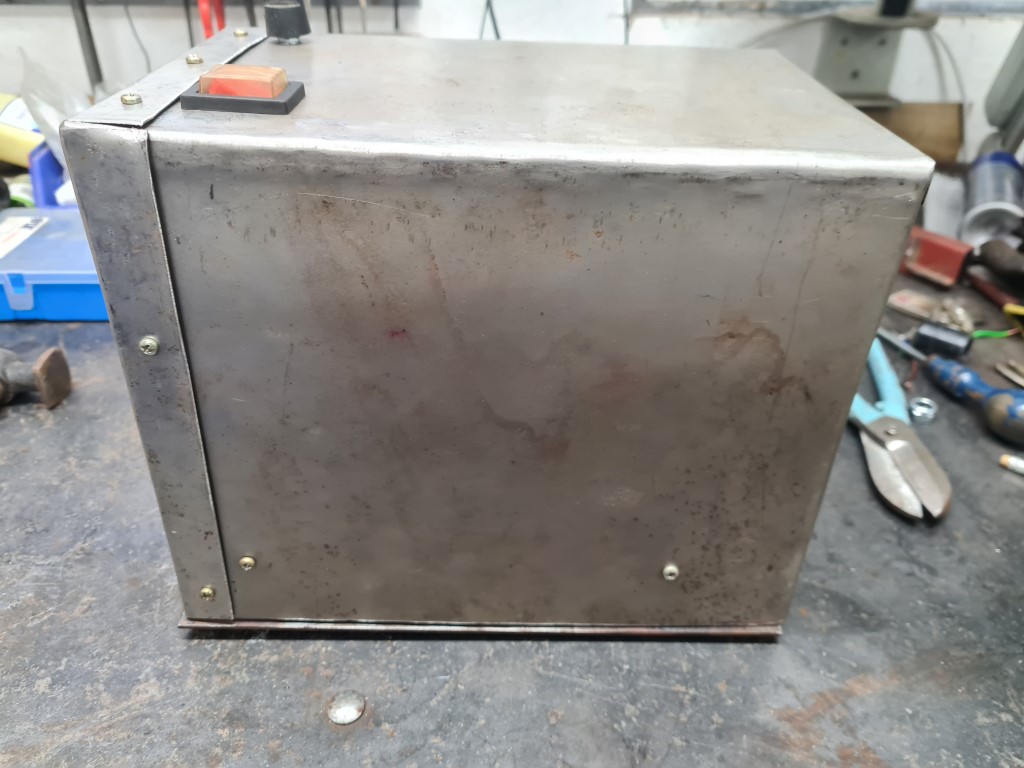

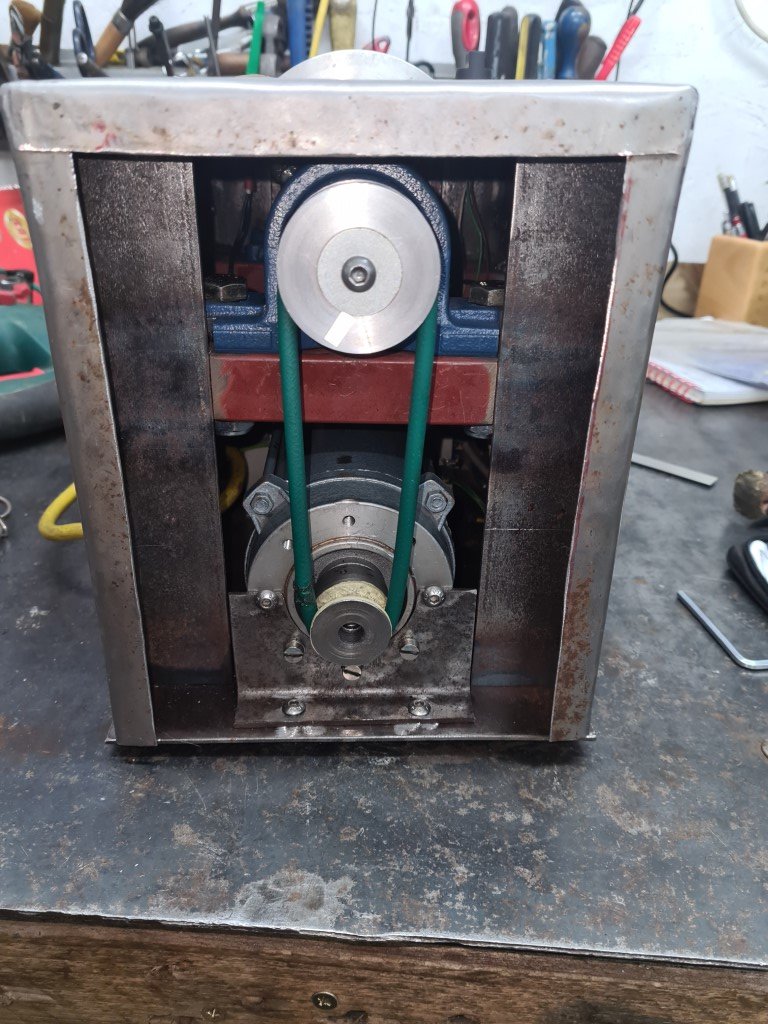

With the electrics sorted I could now start on the casing. Off to the box pan folder and raiding my collection of sheet steel and knocked up a 1 piece wrap for the sides/top and an end piece for the front.
I've put a solid piece on the front to minimise dust getting into the motor enclosure. Also fitted the potentiometer and start stop switch.
The belt end will probably just have some mesh on it so I can see what's going on with the belt and gain easy access.... not decided yet.
It will all get pulled apart again when I am finished for some final fettling and paint before final assembly but thats a bit of a way off yet. Now waiting for the poly belt to arrive so I can get everything trued up and locked down.
Cheers,
MM
I've put a solid piece on the front to minimise dust getting into the motor enclosure. Also fitted the potentiometer and start stop switch.
The belt end will probably just have some mesh on it so I can see what's going on with the belt and gain easy access.... not decided yet.
It will all get pulled apart again when I am finished for some final fettling and paint before final assembly but thats a bit of a way off yet. Now waiting for the poly belt to arrive so I can get everything trued up and locked down.
Cheers,
MM
Next up was building the tool rest for the scraper blades.
Am using a couple of slugs of ally as the mounts for an adjustable plate and as the mill is out of action decided to run them up on the shaper.

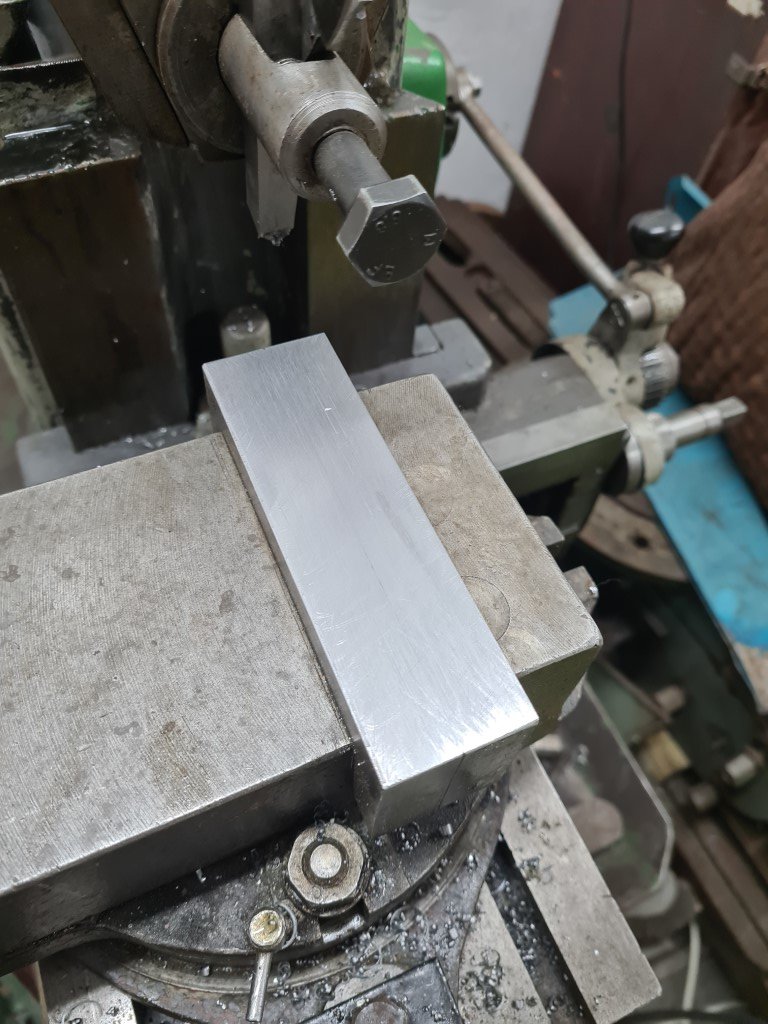

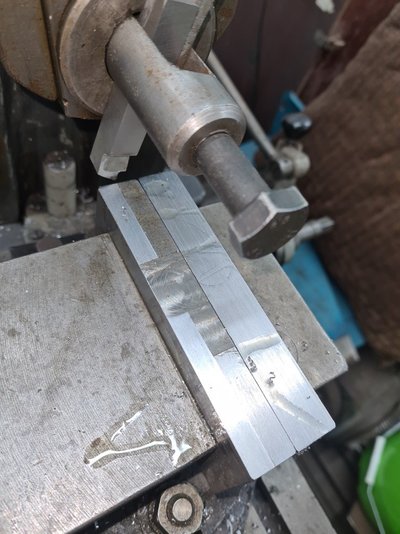

First though I had bought an old Astra vice for the shaper as all my other vices weren't man enough to hold work pieces properly. So set up the vice and trammed it to get the box true. Then decided to clean up the vice from the previous witness marks.
It started at lot worse than this
and ended up looking a lot better
Knowing the top of the jaws are within a few thou of true makes it easier to mount work IMHO.

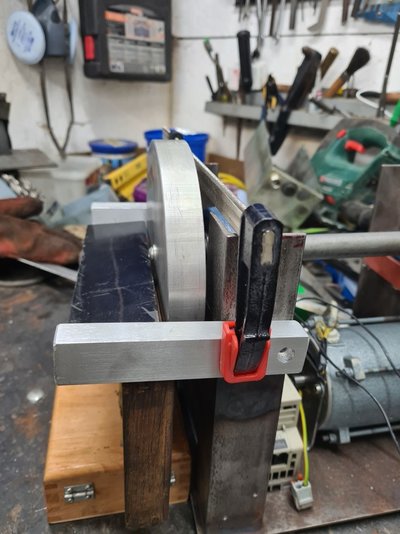

Then mounted the back plate to the shaft and that is running with only about 5 thou runout at the edge so well pleased with that as well.
And cut a piece of plate that will be mounted between the two ally legs as mocked up here.
Doing this whilst waiting for the poly belt to arrive
Cheers,
MM
Am using a couple of slugs of ally as the mounts for an adjustable plate and as the mill is out of action decided to run them up on the shaper.
First though I had bought an old Astra vice for the shaper as all my other vices weren't man enough to hold work pieces properly. So set up the vice and trammed it to get the box true. Then decided to clean up the vice from the previous witness marks.
It started at lot worse than this
and ended up looking a lot better
Knowing the top of the jaws are within a few thou of true makes it easier to mount work IMHO.
Then mounted the back plate to the shaft and that is running with only about 5 thou runout at the edge so well pleased with that as well.
And cut a piece of plate that will be mounted between the two ally legs as mocked up here.
Doing this whilst waiting for the poly belt to arrive
Cheers,
MM

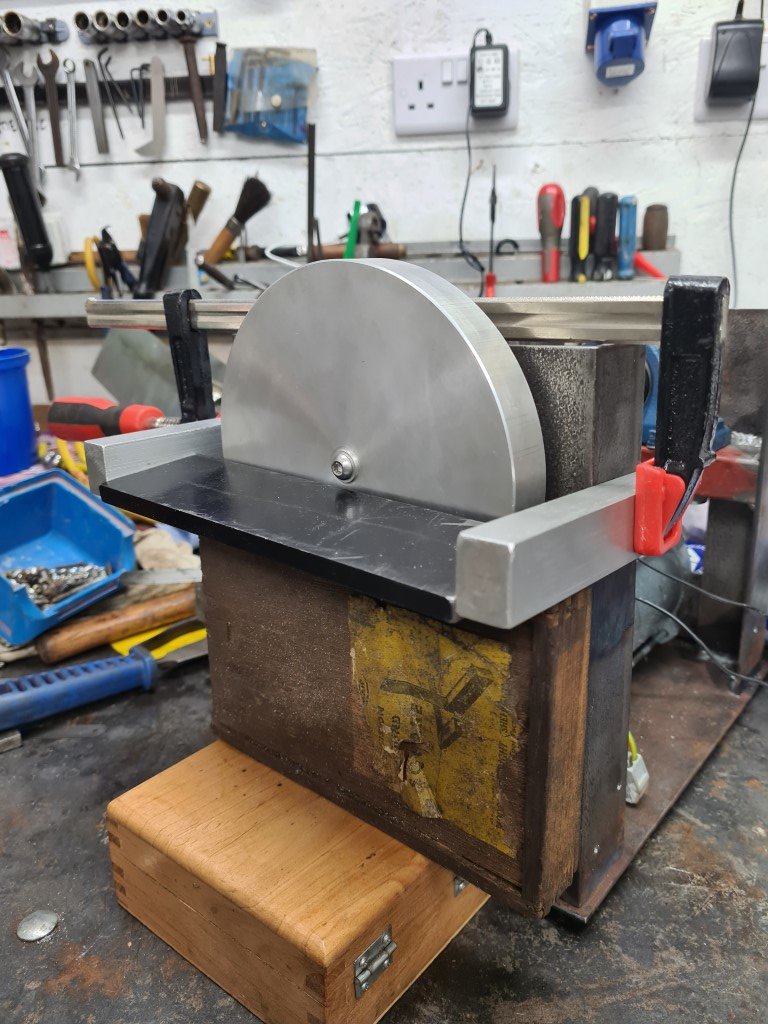

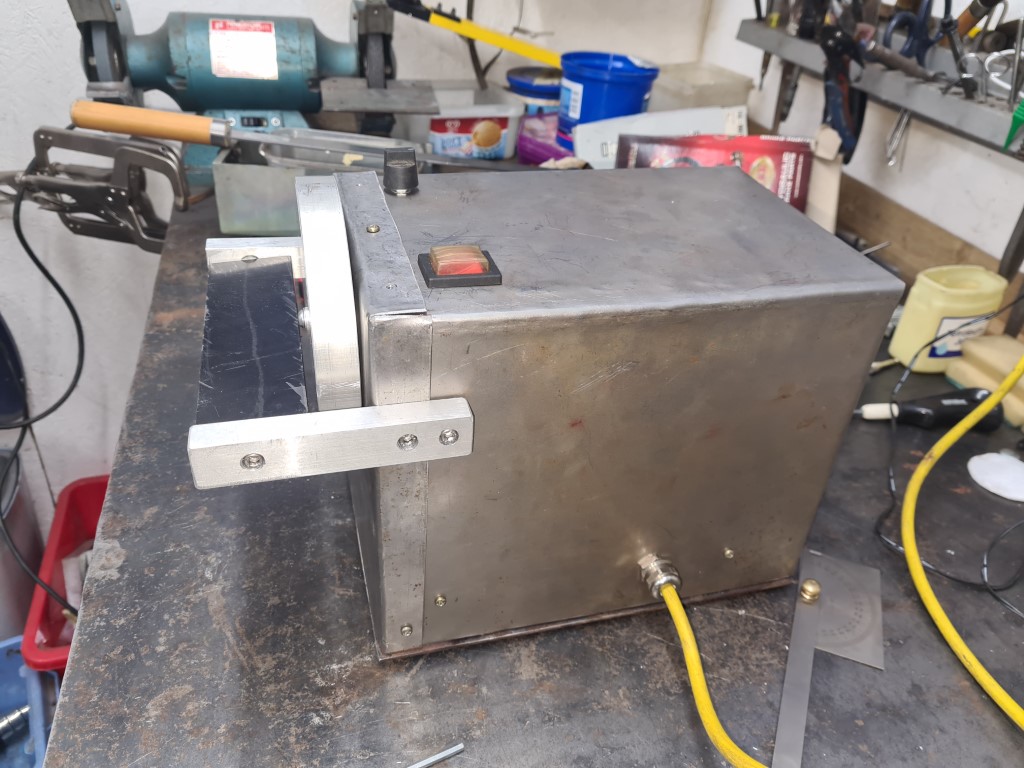

So, pretty much got this finished this afternoon. Nice peaceful day chuntering about in the shed
Finished of machining the two supports for the tool support and then drilled holes in the mounting plate for the magnets. Super glued them in, which is only looking partly successful at the moment as the superglue wont go off

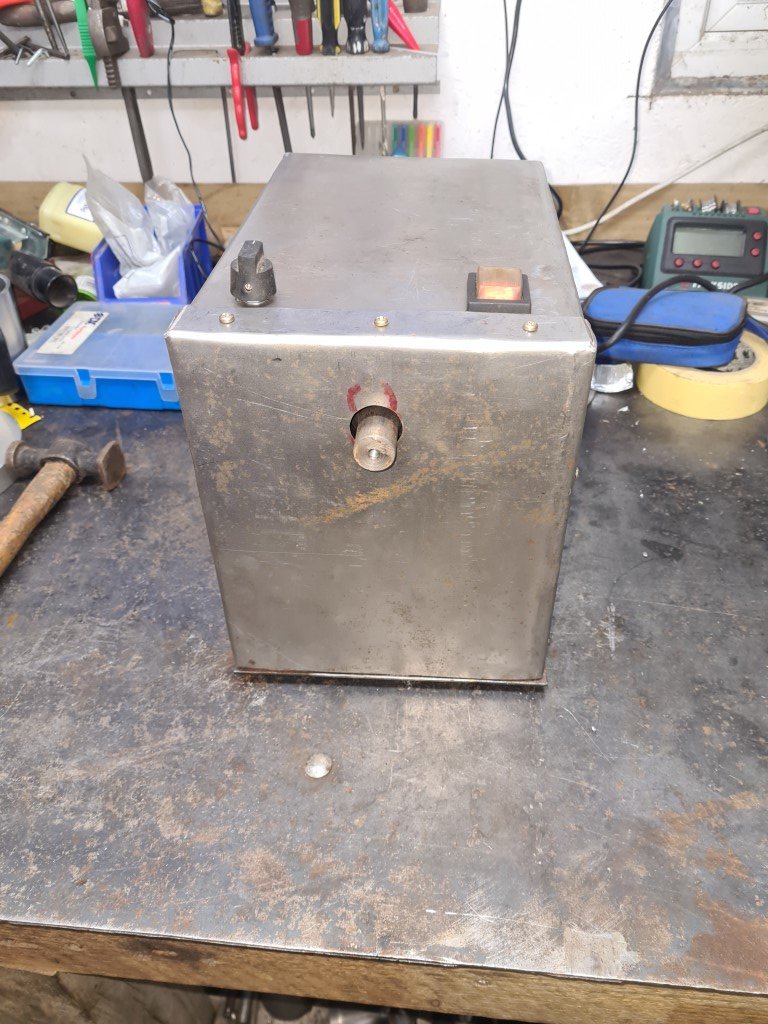

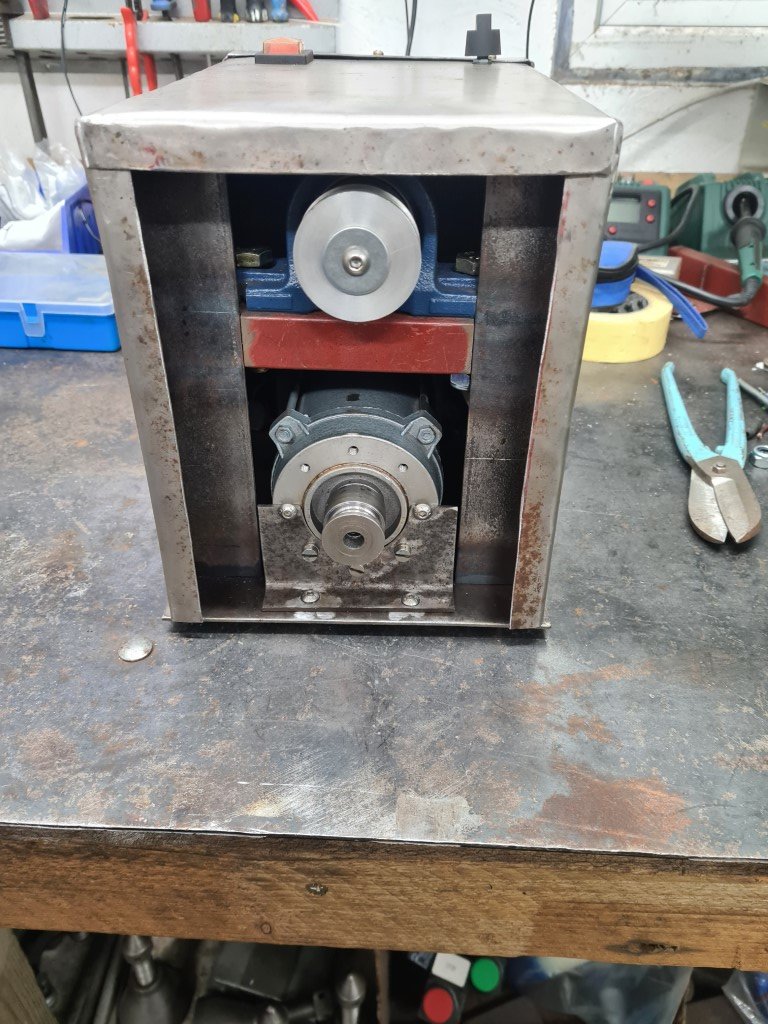

Then shimmed the layshaft mountings, assembled all the case, fixed a gland for the power cable and yes, the poly belt arrived in the post, so was able to put it all together
Had to wrap the bottom pulley in masking tape to give the belt a bit more grip as it was spinning but seems to be working now.

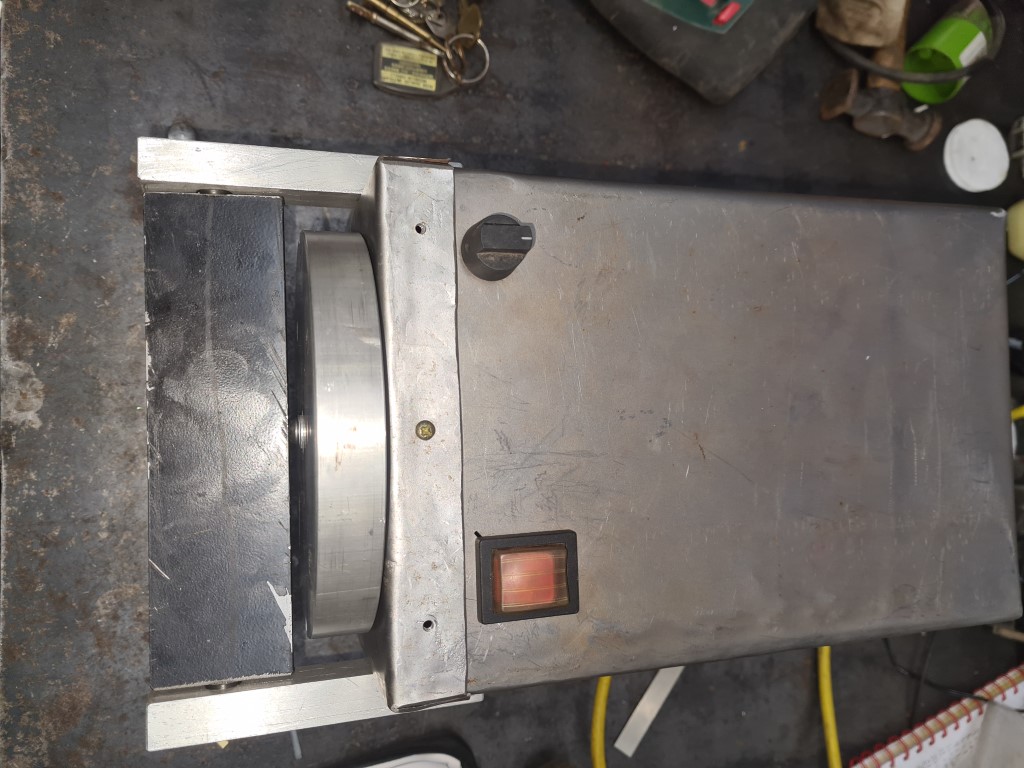

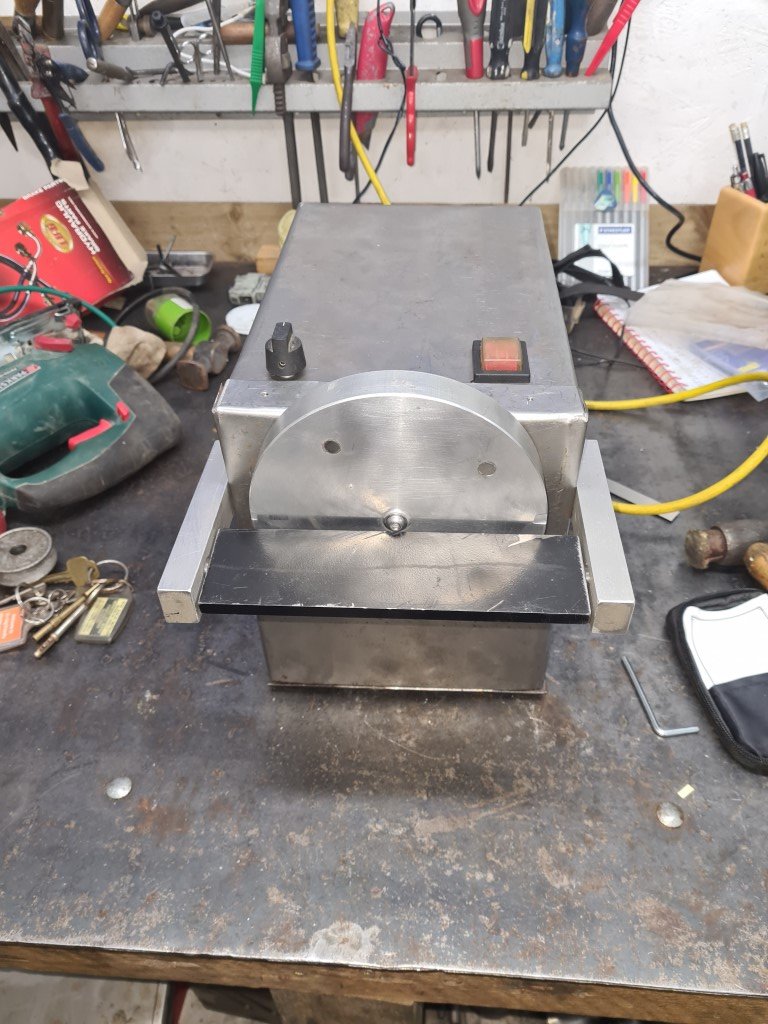

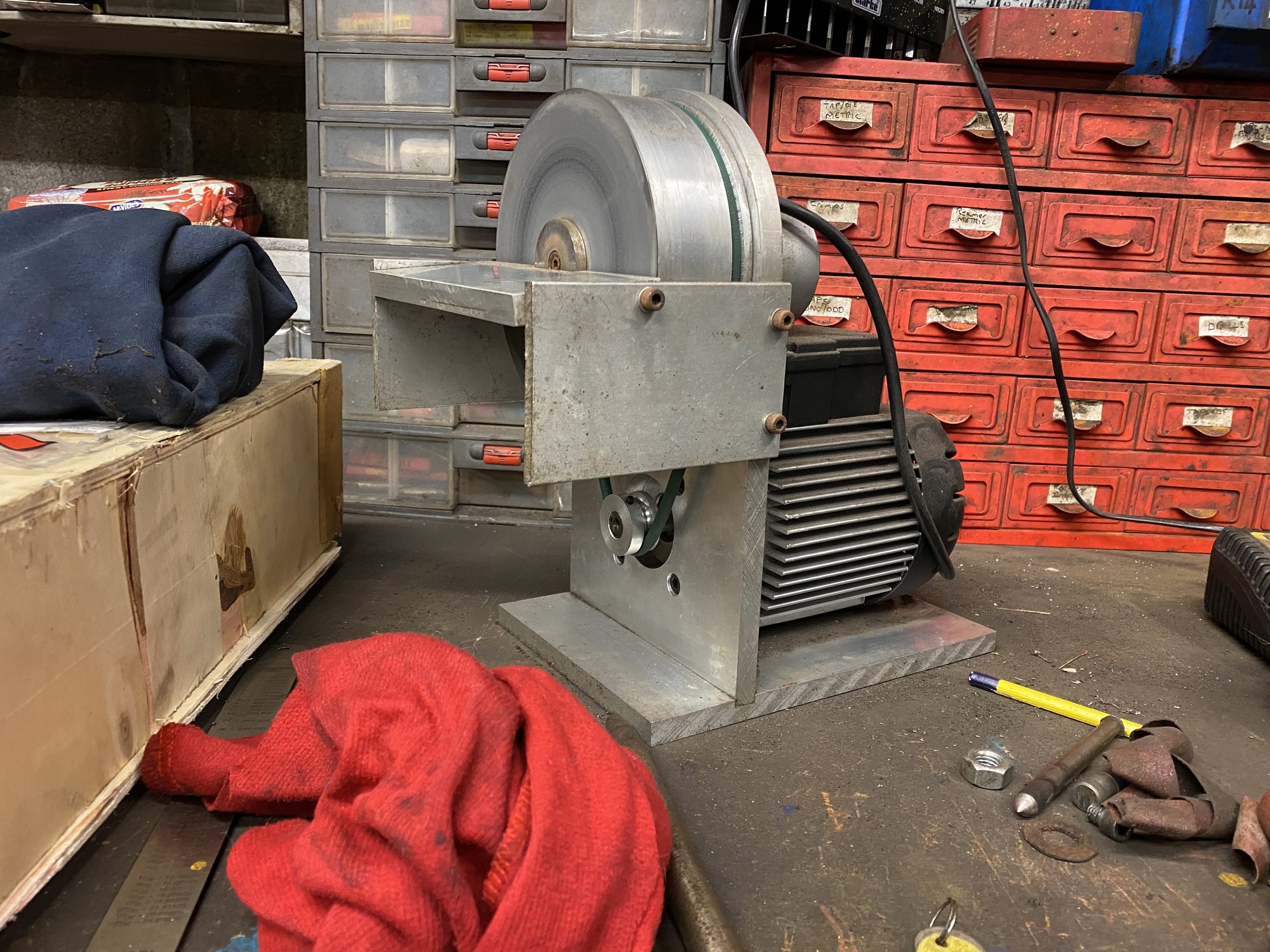

And here it is - ta da.
Set at 300rpm but will run up to 500rpm if needed. Still a bit of fettling to do and will probably pull apart to paint at some point, but had a quick go with one of my hand scrapers and put a lovely edge on it, so well pleased.
MIGHT be able to get on with finishing a Biax or two now I can sharpen some blades to test them
Cheers,
MM
Finished of machining the two supports for the tool support and then drilled holes in the mounting plate for the magnets. Super glued them in, which is only looking partly successful at the moment as the superglue wont go off
Then shimmed the layshaft mountings, assembled all the case, fixed a gland for the power cable and yes, the poly belt arrived in the post, so was able to put it all together
Had to wrap the bottom pulley in masking tape to give the belt a bit more grip as it was spinning but seems to be working now.
And here it is - ta da.
Set at 300rpm but will run up to 500rpm if needed. Still a bit of fettling to do and will probably pull apart to paint at some point, but had a quick go with one of my hand scrapers and put a lovely edge on it, so well pleased.
MIGHT be able to get on with finishing a Biax or two now I can sharpen some blades to test them
Cheers,
MM
Shox Dr
Chief Engineer to Carlos Fandango
- Messages
- 18,010
- Location
- East Yorkshire
Nice project.

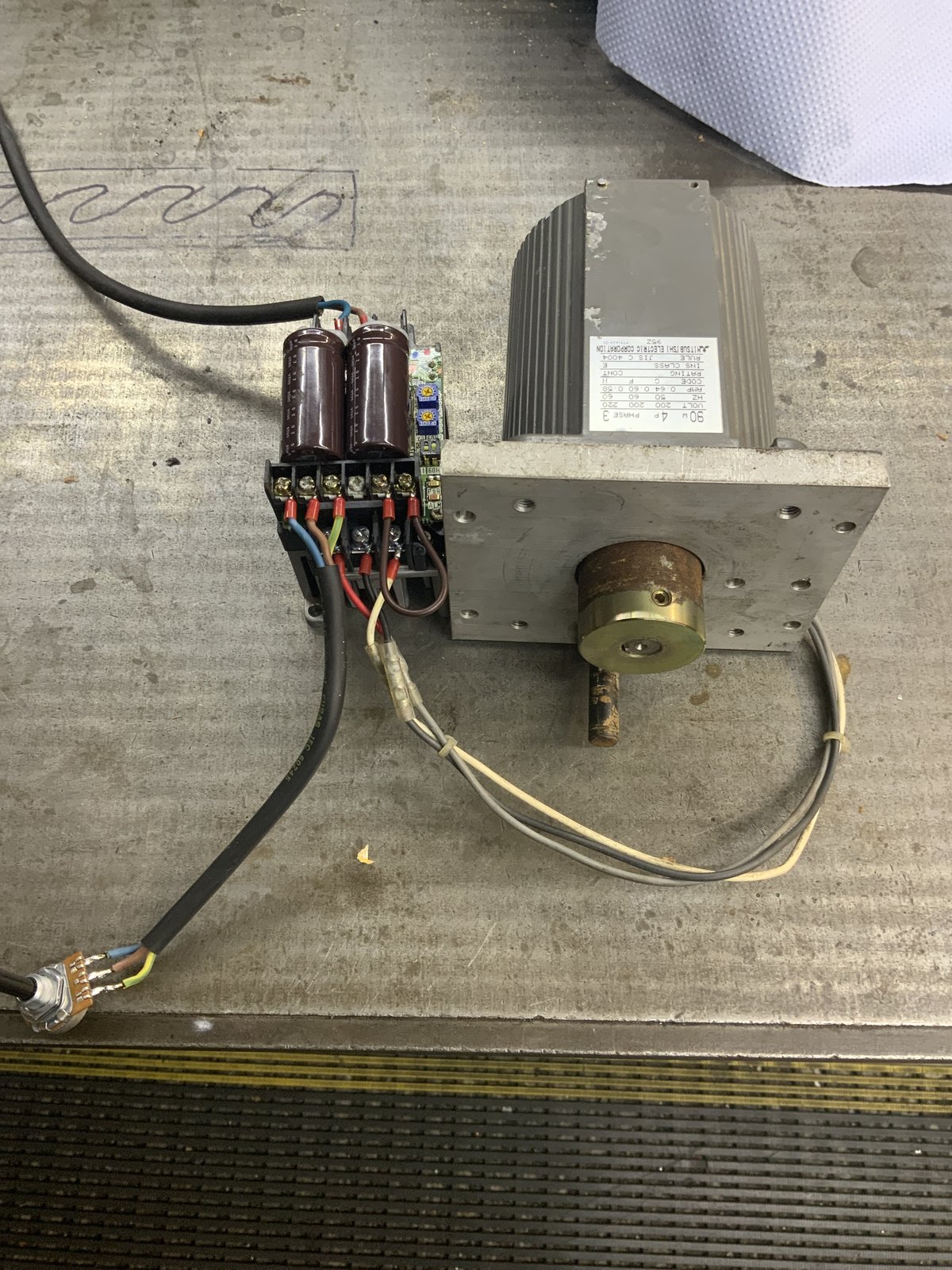

Ive got this 4pole 3ph Mitsubishi motor for just this purpose. Only 90w. I dug it out last night and Jerry rigged it up to a VFD with a pot. Data plate doesn’t give an RPM, a quick check shows 1500rpm
