Briggs & Stratton carb bolt

[Blobber]

Does anyone know what thread the carb fixing bolt is for the Briggs & Stratton Quattro 40? I seem to have lost mine in the grass somewhere
Pretty sure its imperial but not sure which imperial



[stumcf]

Something UNC (sorry 13mm head, but 8mm diameter at threads)

Edit: they're should also be a short sleeve that may have vibrated off



[Barking Mat]

I've a dead one in the shed, if it's the same I'll post it to you.



[RWD3M]

3/8th UNF

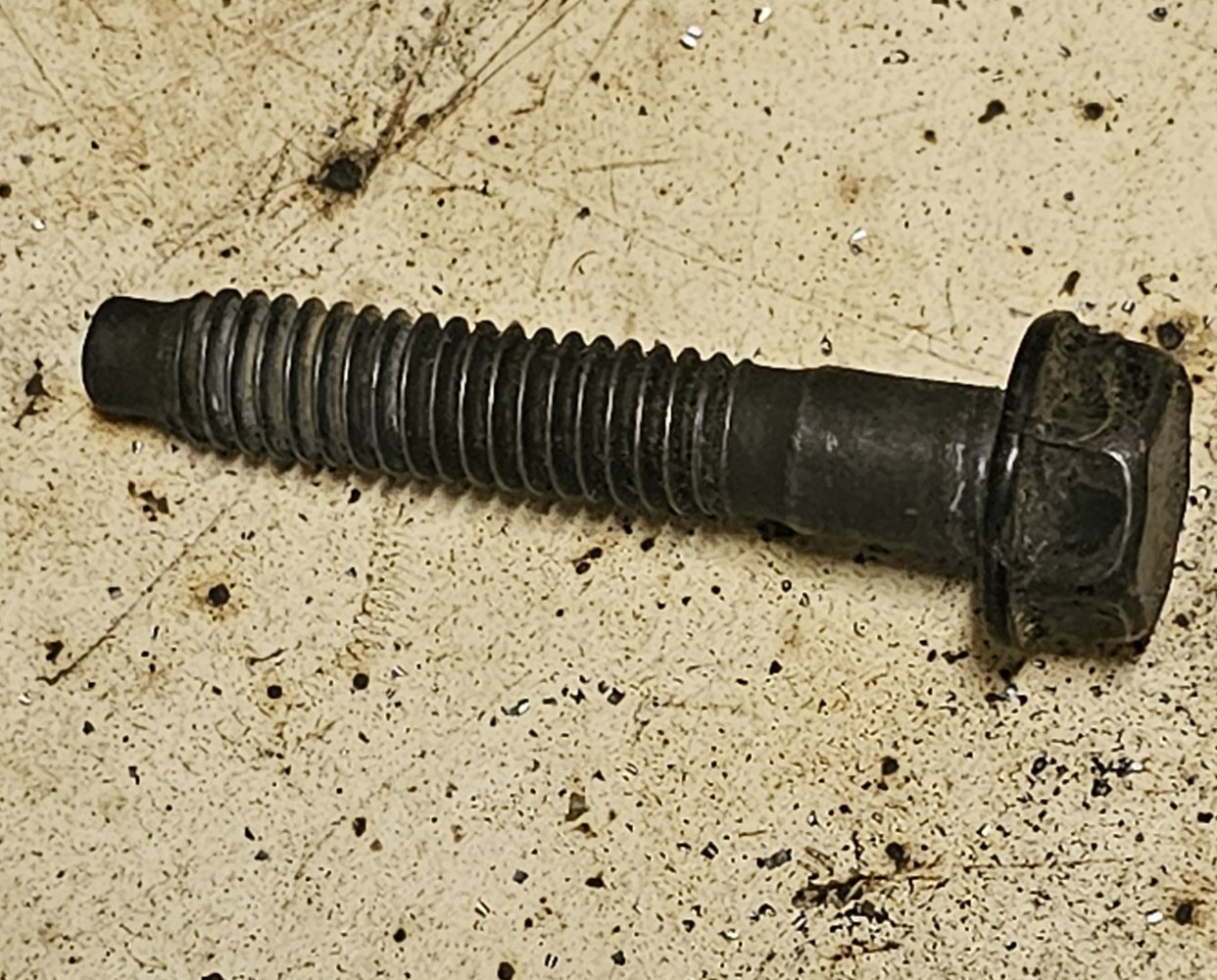

View attachment 409612
Edit: they're should also be a short sleeve that may have vibrated off

I doubt that's UNF, UNC perhaps?



[stumcf]

It's entirely possible, I tried a nut from the UNF box on it and it fit, but given the state of the garage it may have gotten mixed up, will double check in a sec,
Checked and you're quite right, sorry, edited post



[Barking Mat]

Show me which screw is missing from where, please.



[Migmac]

There’s more than likely one lurking in my shed, if no one has one remind me and I’ll have a dig



[RWD3M]

If Briggs and Stratton is American and it's going into an ally casting then it'll almost certainly be UNC. That said, I believe their automotive industry is going metric now! @Erie Fred ?



[m_c]

UNC. I'd guess that one will be around 1/4", and IIRC it's fairly long.



[Red'n'Black]

From memory they're ¼ UNC. I might still have a bag of them from last time I replaced all the vibrated-out-and-lost ones, will have a look when I get home.



[Erie Fred]

With a 13mm/ 1/2" head it would be 5/16" which is what it looks like from here.
Yes to coarse thread 5/16-18
1/4" = 7/16 head
5/16" = 1/2" head
3/8" = 9/16" head
IIRC Briggs only used 1/4-20 on the shroud bolts.



[m_c]

If you can find the engine model/type numbers, you should be able to get the parts diagrams on the website - https://www.briggsandstratton.com/eu/en_gb/support/manuals.html
A search for the part number might yield the actual size.



[Blobber]

Show me which screw is missing from where, please.

It's the big bolt between the filler cap and primer bulb, I couldn't possibly ask you to post one from France but it's a very kind offer

From memory they're ¼ UNC. I might still have a bag of them from last time I replaced all the vibrated-out-and-lost ones, will have a look when I get home.

If you have that would be great, I've nothing UNC about! Happy to pay



[Barking Mat]

It's the big bolt between the filler cap and primer bulb, I couldn't possibly ask you to post one from France but it's a very kind offer

If you have that would be great, I've nothing UNC about! Happy to pay

It would only cost a couple of quid, I've had folks on here do me favours, what goes around, comes around, couple of quid won't ruin me.



[striker]

I've got one on an old mower in the shed. Pm me your address and I'll stick it in the post tomorrow. Save Barking Mat sending from France!



[Barking Mat]

I've got one on an old mower in the shed. Pm me your address and I'll stick it in the post tomorrow. Save Barking Mat sending from France!

Thanks mate.



[Blobber]

Strikers sorting the bolt so thanks for everyones input and kind offers, much appreciated



[bricol]

If Briggs and Stratton is American and it's going into an ally casting then it'll almost certainly be UNC. That said, I believe their automotive industry is going metric now! @Erie Fred ?

Gone. Years ago.



[andymfell]

thread is likely to be 5/16 -18 UNC x 40mm long



[bricol]

Gone. Years ago.

That did drag up a memory of having to drive from Fort Worth to the other side of Dallas to get plated metric screws of decent quality and quantity over 20 yrs ago. Couldn't find anything nearer - on recommendation of the maintenance guys in a LMCO facility.

You'd wander into Sears Hardware to buy spanners or such and find them in different coloured and labelled plastic wallets - if I remember correctly, grey for "domestic" and black for "foreign" ie metric.

Now I think you can wander into a Lowes or Home Depot and purchase metric screws with no problems. Spanners simply listed as inch or metric.
