bought another lathe ml7 with homemade gearbox

[gaz1]

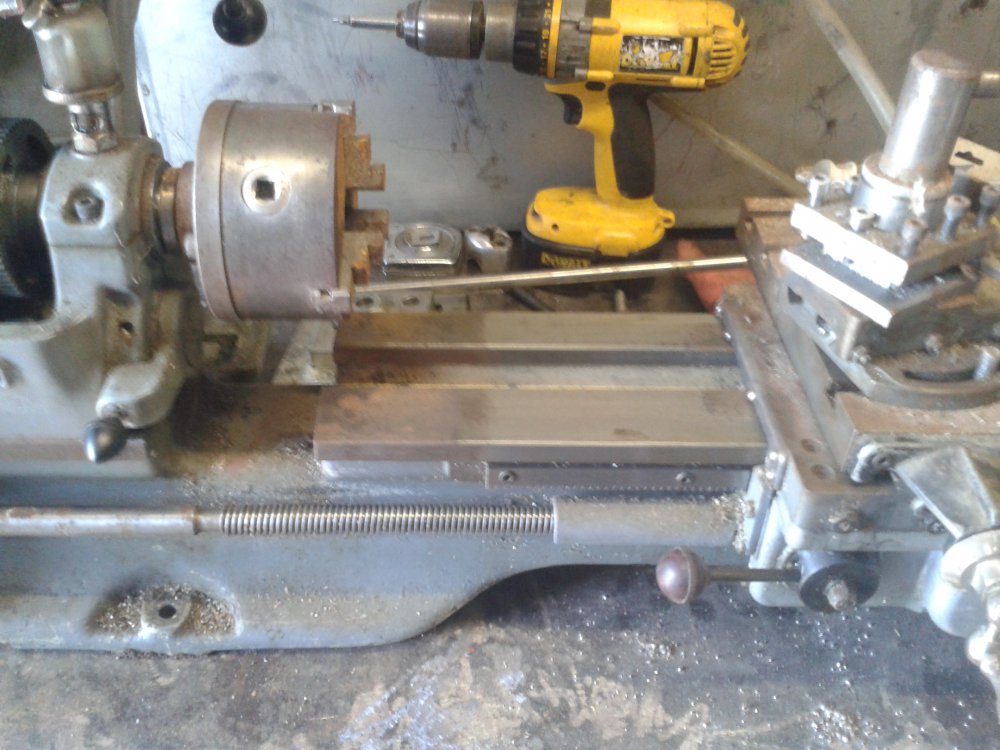

ive now got the lathe home today so will take pics as soon as can be the cogs look fine but the lathe bed needs some work and im not to sure of the workings at the moment though i do expect some work on it

anyway there was some more stuff there i cant buy them but said id post pics up of them
first off a cnc pillar drill i think the motor is 240v 1425rpm i am aware that this item is being sold around 450.00 at moment please note i havent tested these items or powered them up shed is dry but left to rust a little in my eyes

the area the items are in is newcastle hexham area

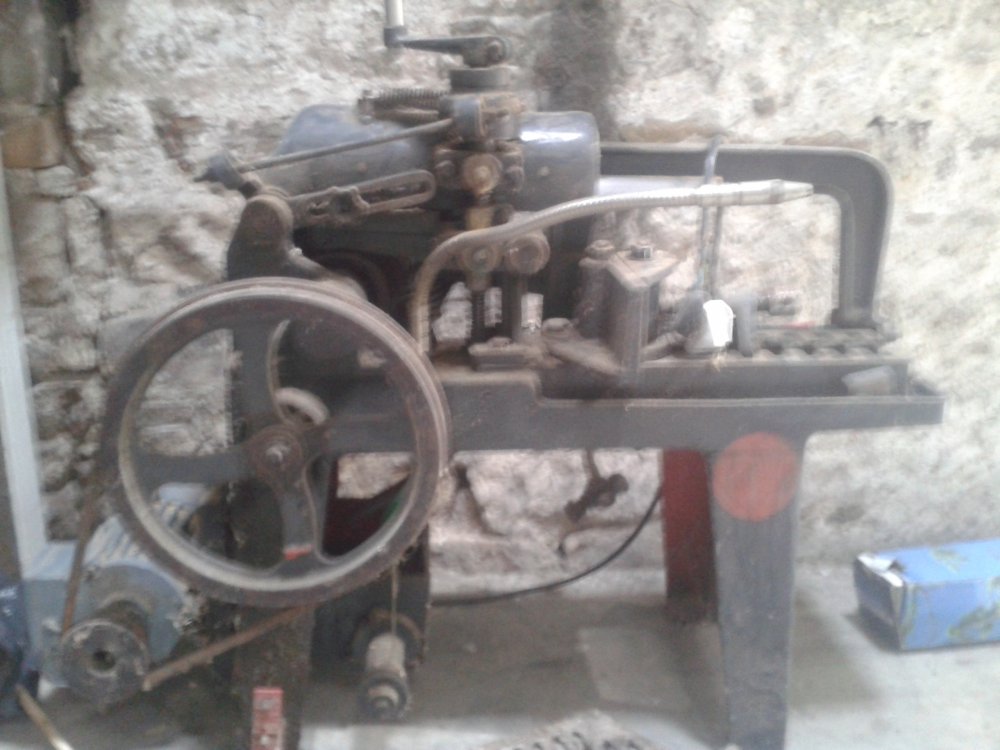

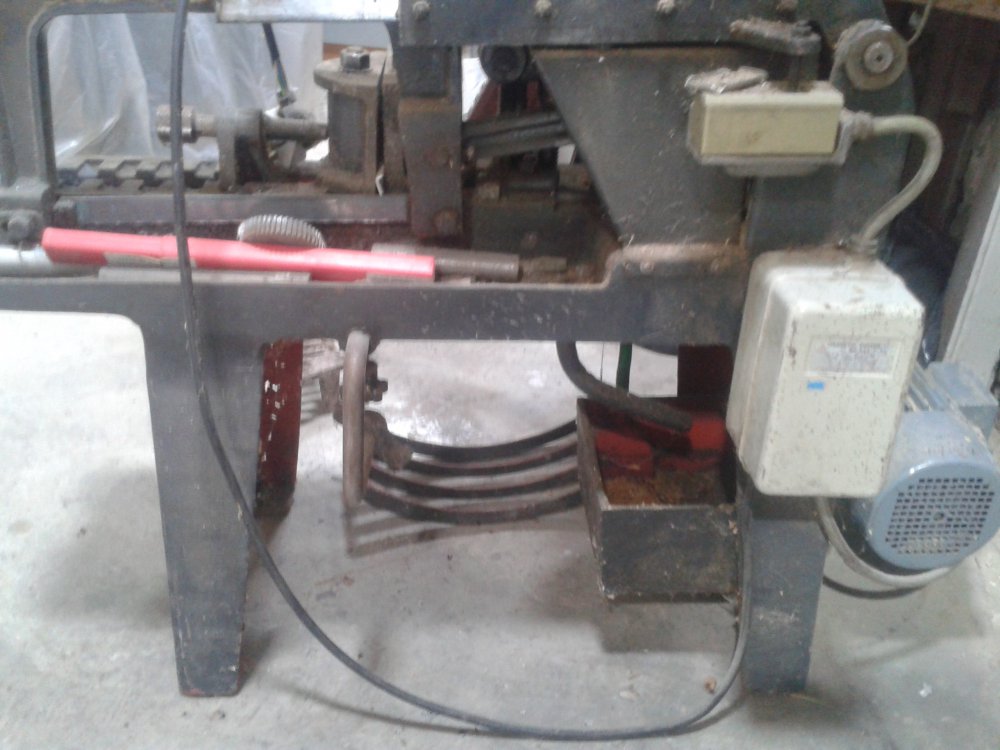

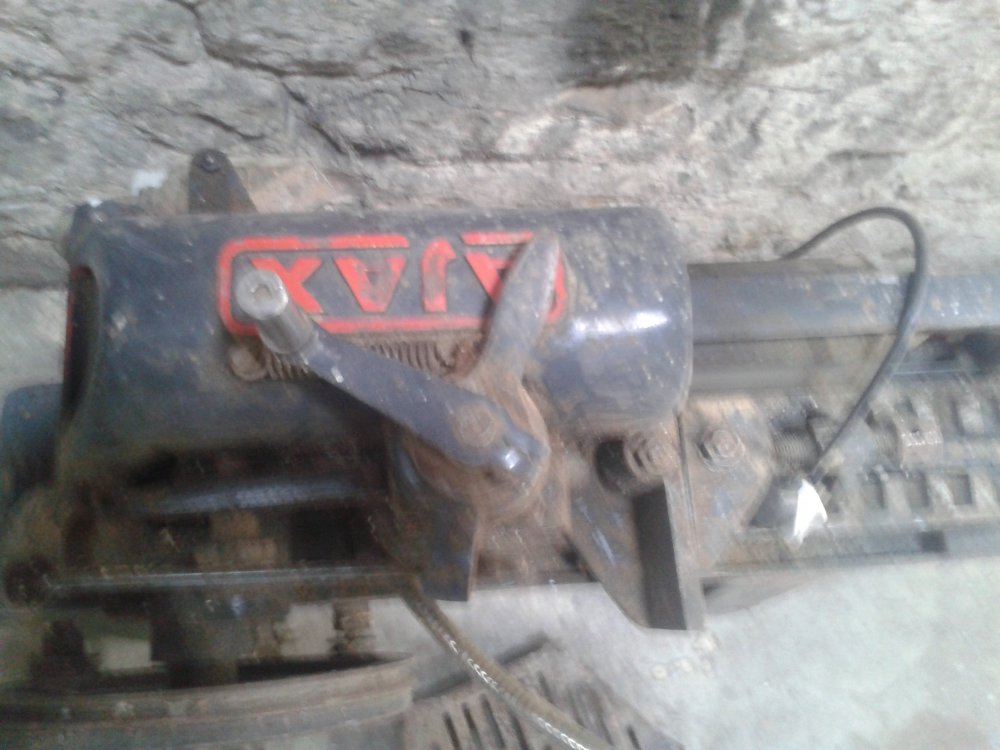

also an ajax metal saw 240v 1240rpm


heres the link if anyones interested

http://www.ebay.co.uk/itm/Societe-G...851?pt=LH_DefaultDomain_3&hash=item25a9585abb



[gaz1]

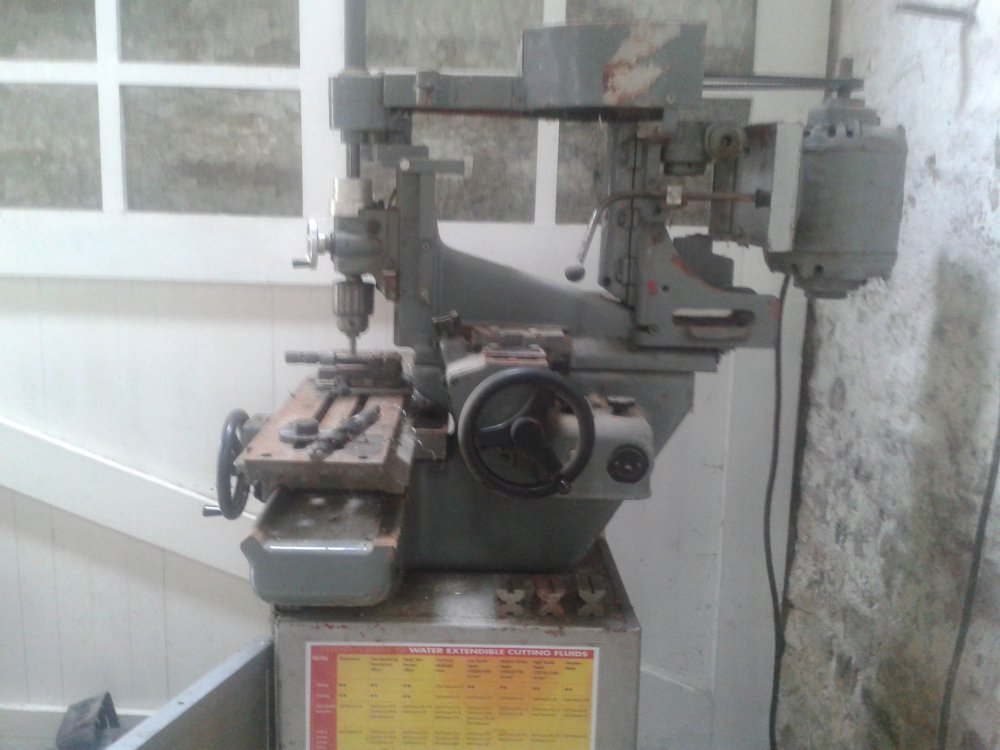

ive had a look at this its a 1952 lathe with k stamp still on it at the rear of the machine brought some more stuff back as well and still going through it all as of yet
there is some parts missing however there is other stuff that is included with the purchase of the item

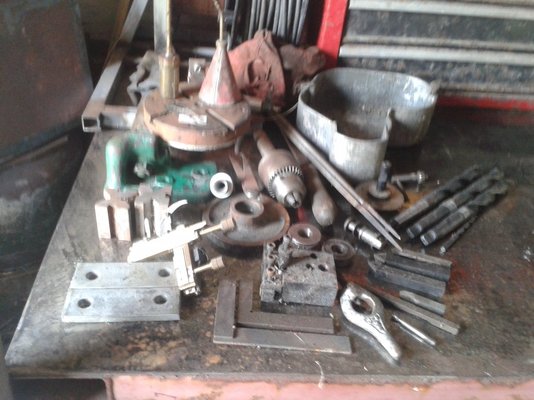

ive got no idea what this is

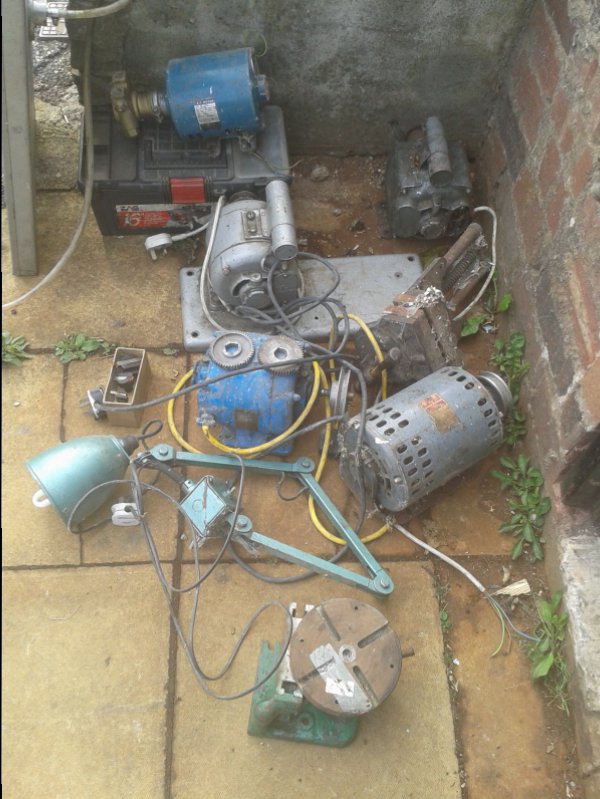

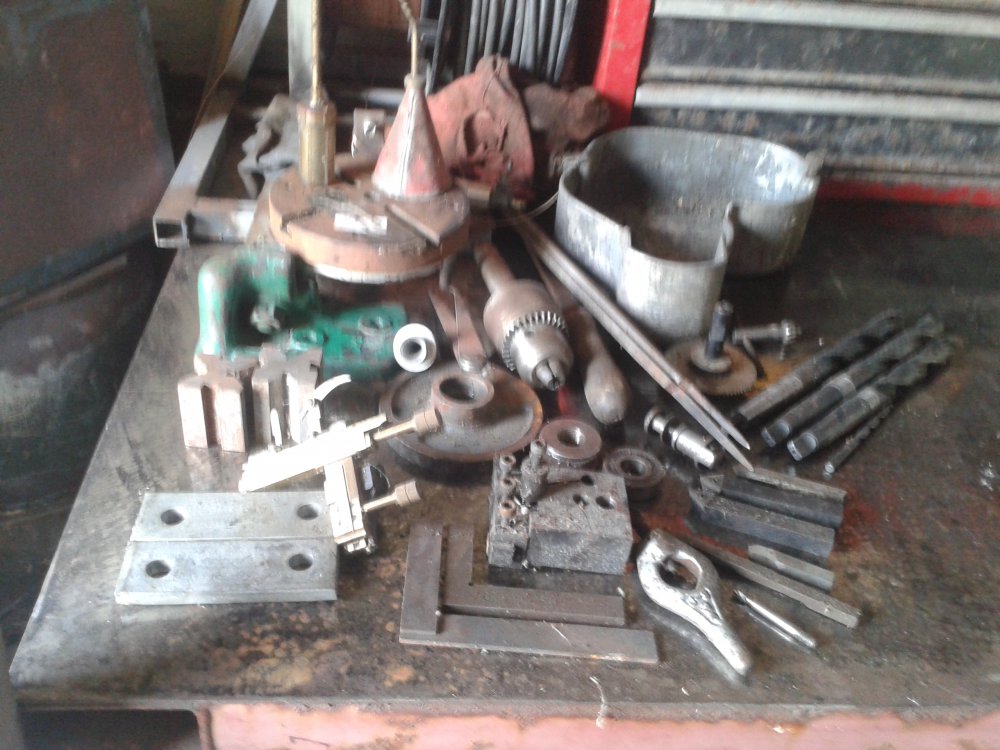

extra stuff i got light as well and some more motors 240v 1400 or around that rpm area


this also comes with 2 oil pumps

id also like to ask if anyone would like a seperate post of the gearbox and if its ok with admins to do this

the gearbox is a 13 cog system from 20 - 95 this was found in a framed illustration with alot more info included in the frame



[Pete.]

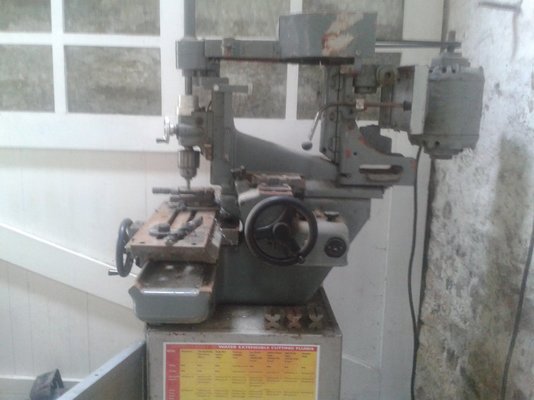

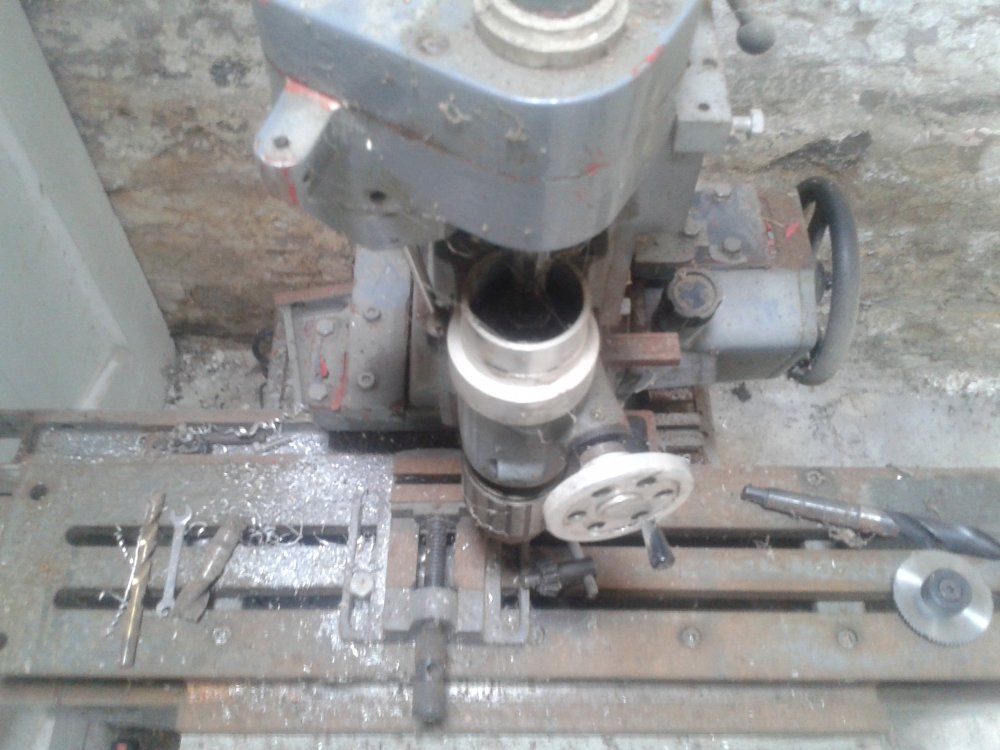

I think that's a jig bore more than a milling machine.

ive had a look at this its a 1952 lathe with k stamp still on it at the rear of the machine brought some more stuff back as well and still going through it all as of yet

ive got no idea what this is

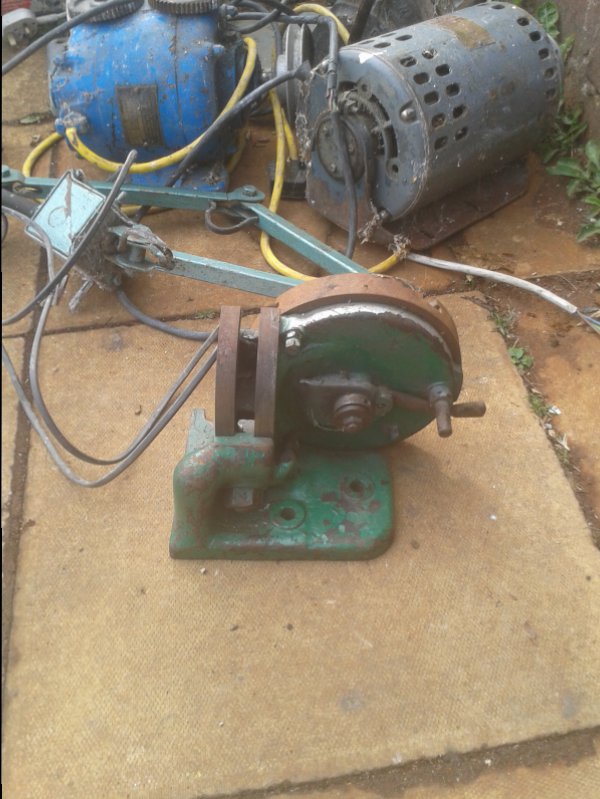

Looks like a super spacer type indexer. You pull the lever and turn the table until it locks to index at different positions.



[Maker]

That blue motor at the back of the picture, would you sell it? I spy, with my big beady eye, a Procon pump.

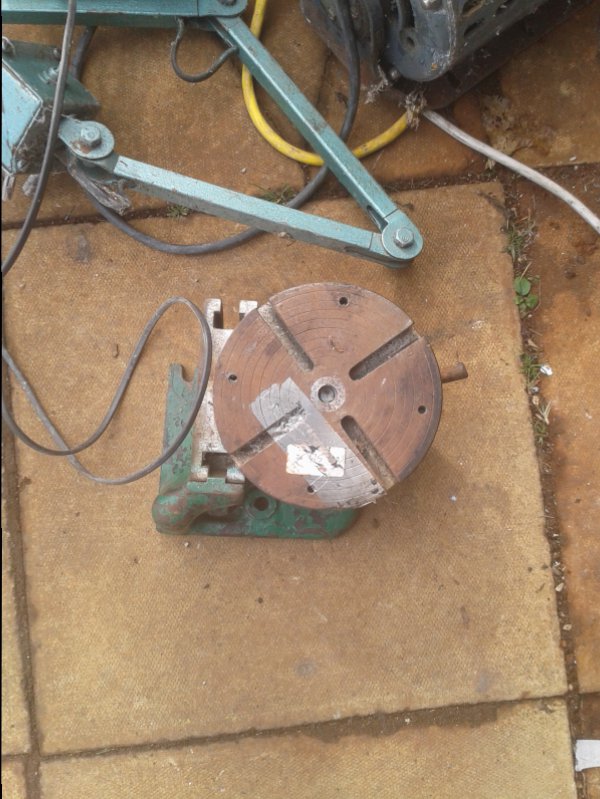

The other thing is some kind of 2 axis tilting table for milling or drilling. Would be excellent if you need to mill things not square.



[gaz1]

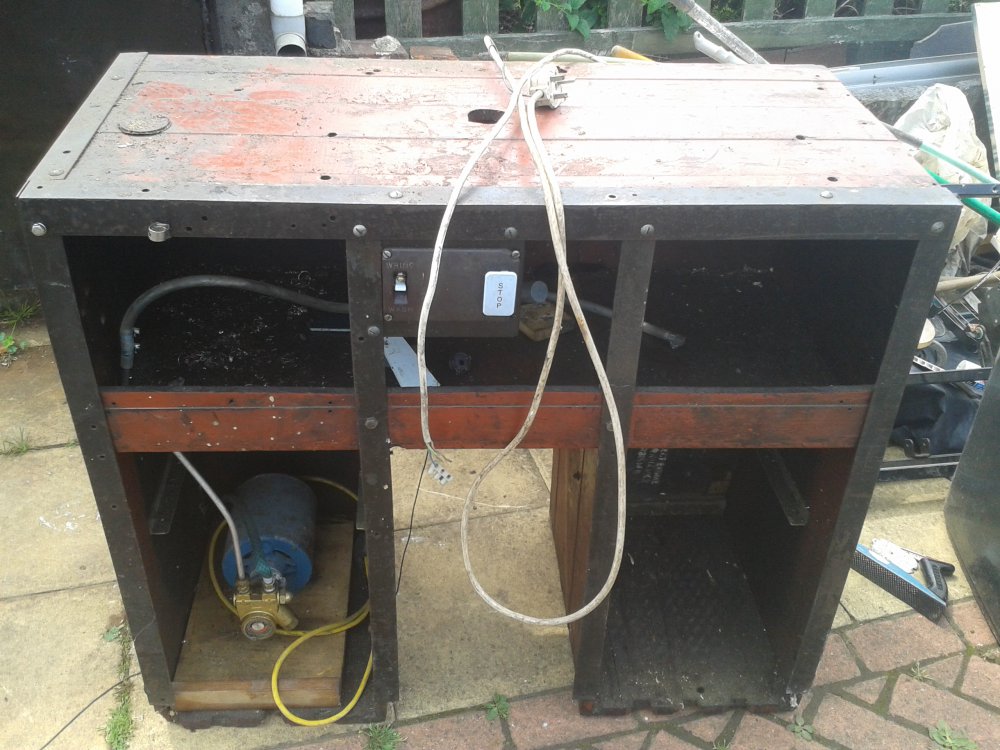

this wood table came with it and its heavy i can though smell the oil upon it is it worth using or not

whats a procon pump



the lathe is well kept



[Maker]

whats a procon pump

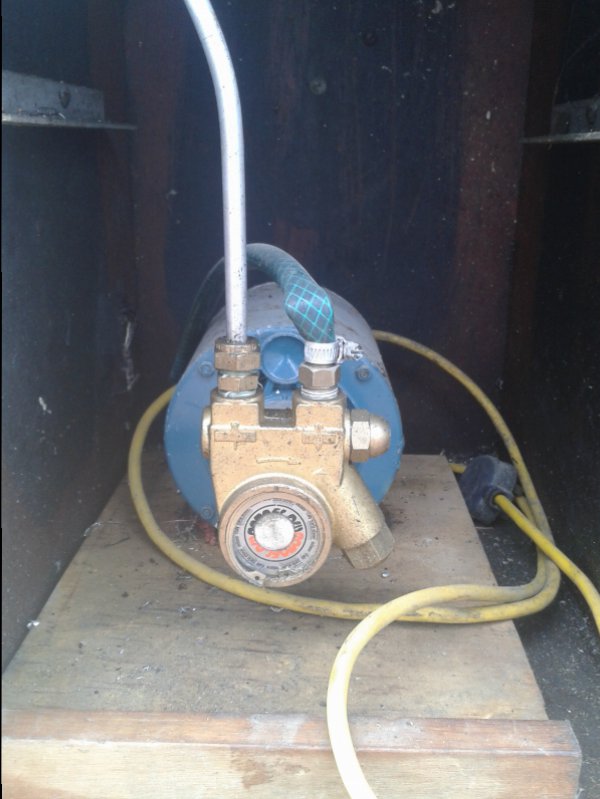

That brass thing in the motor. It's a positive diaplacement rotary vane pump, basically the holy grail for welding water coolers.



[taycat]

if table solid i would and make drawers for it.



[gaz1]

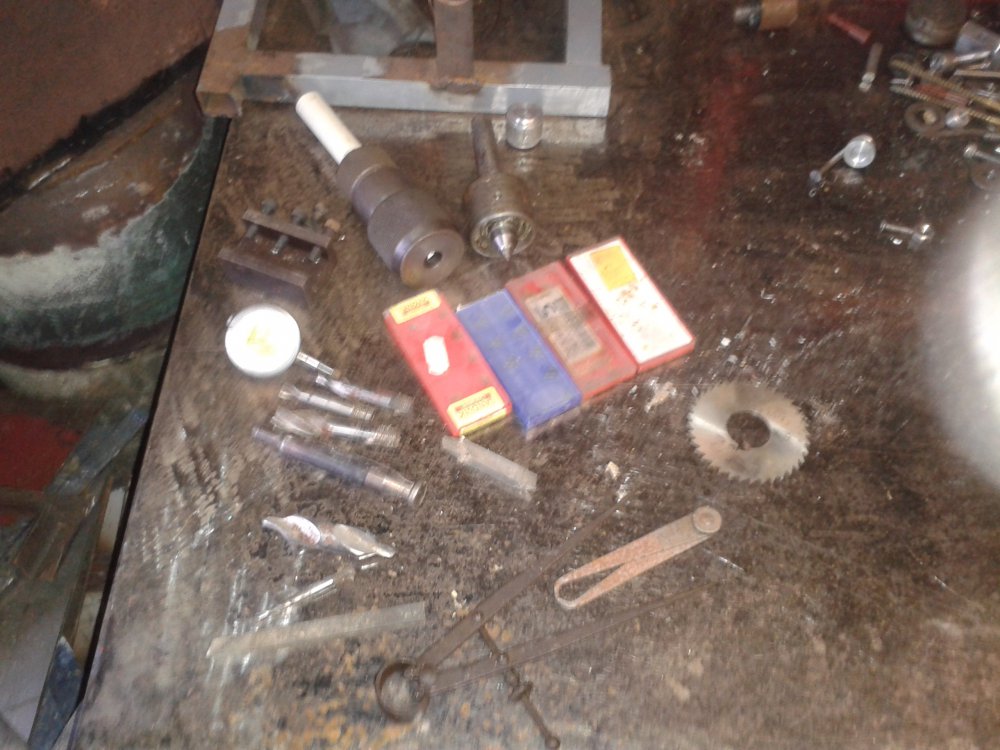

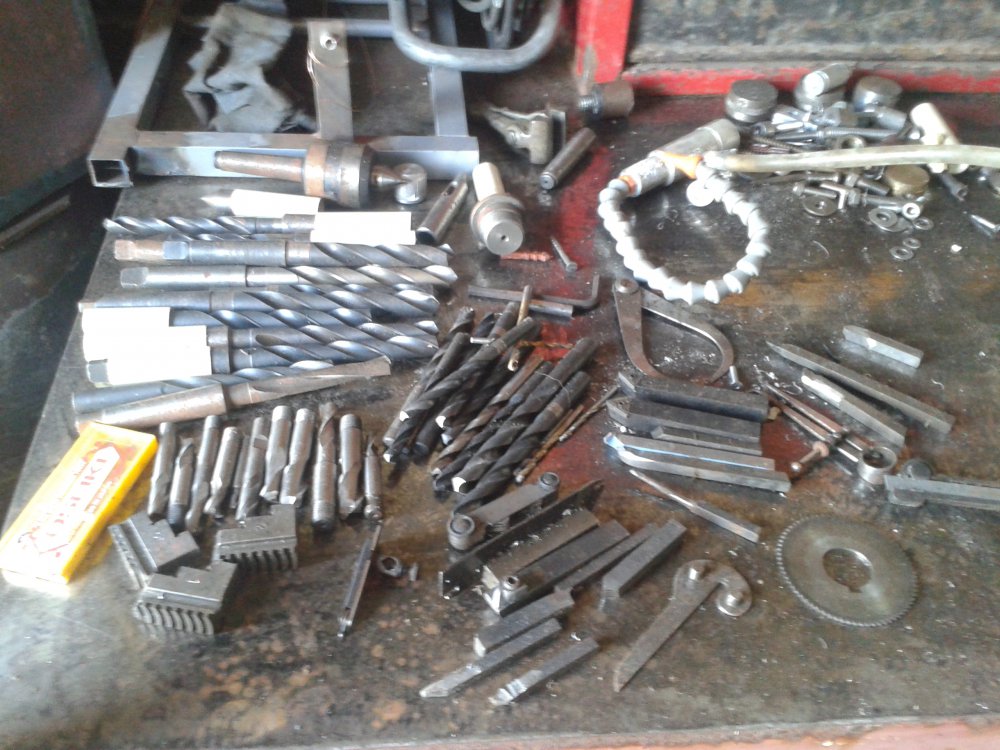

some more pics




whats these?





theres about another pic for all that was with the ml7 lathe



[gaz1]

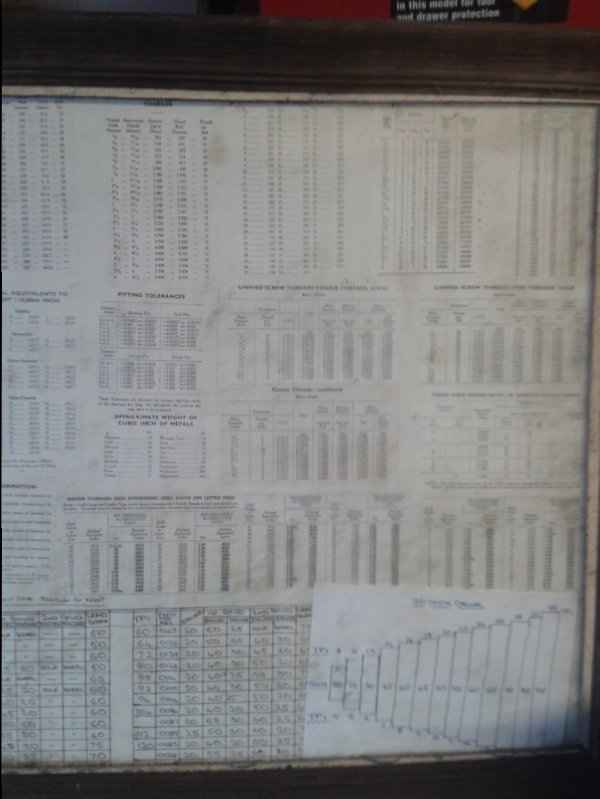

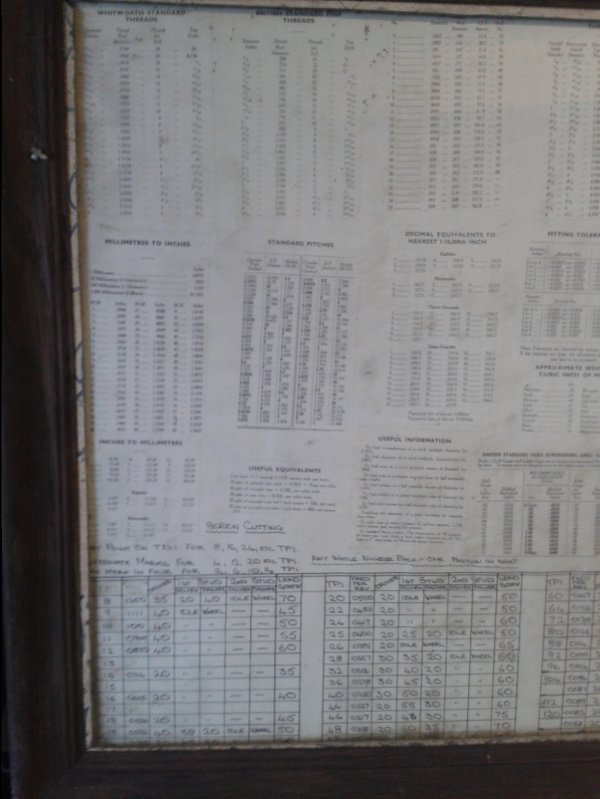

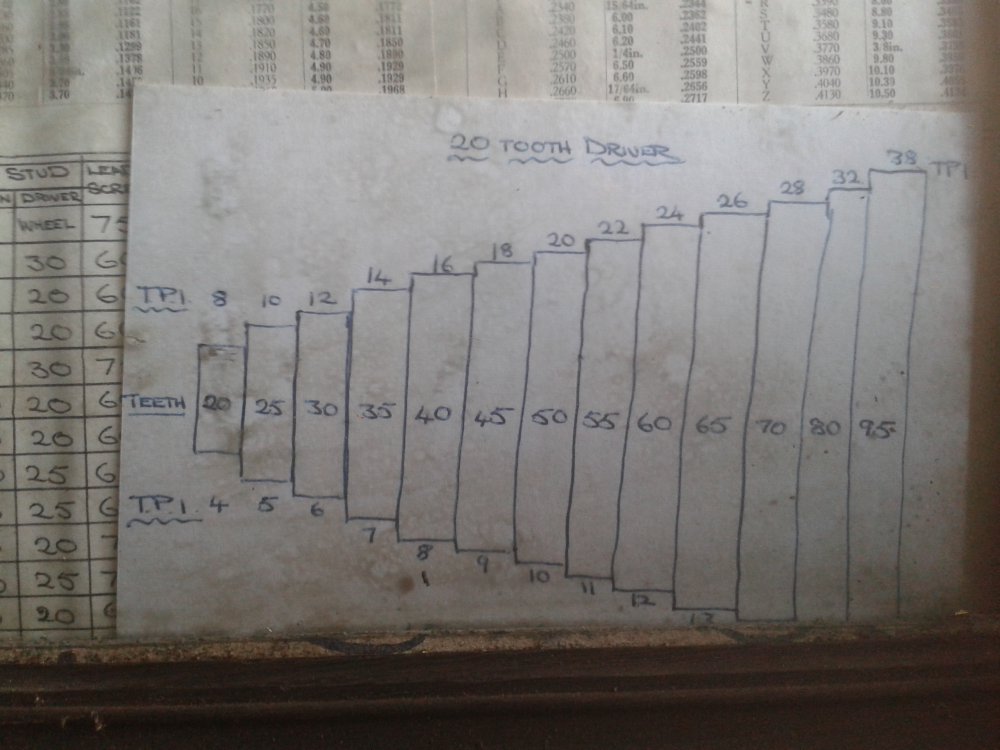

these are the last pics and even a picture frame of thread cutting info

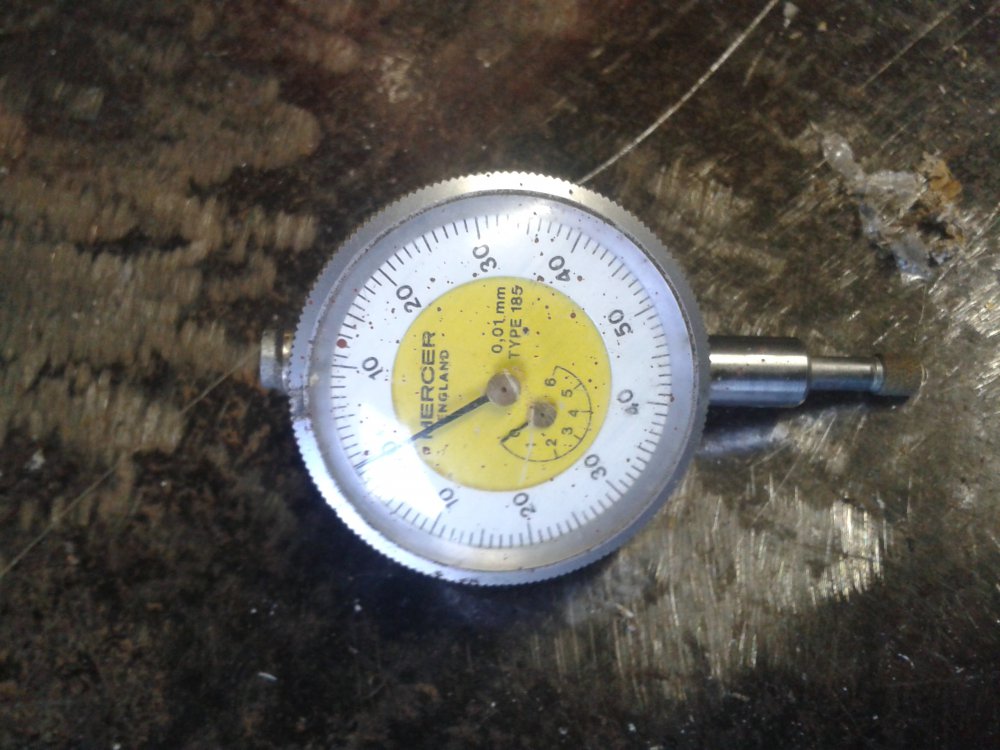

the dti has a hole on the back of it how does it connect to something mind if i ask ?


the picture frame of thread cutting information and more as i have had to split it into 2 to get the info clearly visable



[brightspark]

u bolt a magnetic base and arm to the back of the dti http://www.ebay.co.uk/itm/like/1912...1=ICEP3.0.0-L&ff12=67&ff13=80&ff14=108&ff19=0



[stormin]

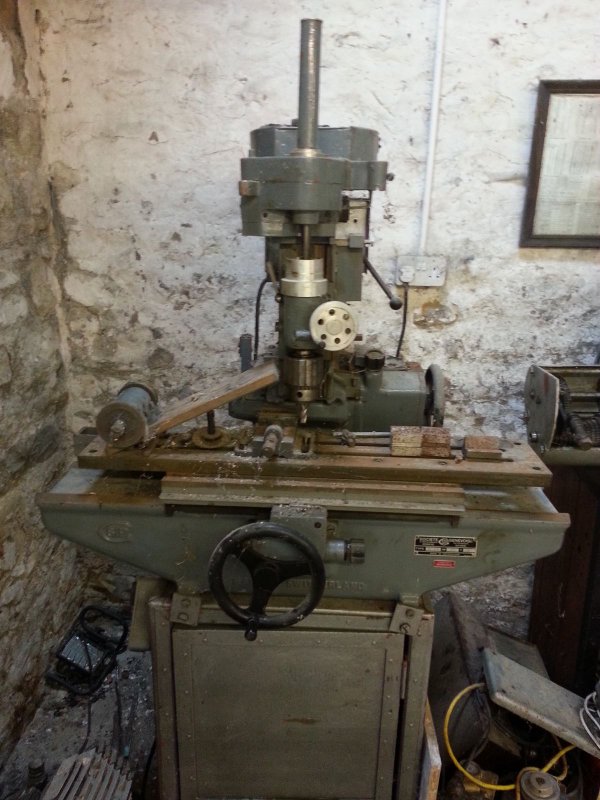

The milling machine is as Pete says a jig borer. A friend of mine has a larger version also made by Societe Genevoise and the engineering and build quality would shame a rolls royce.

I'd like to see a pist with more details on the Myford gearbox also.



[graffian]

Societe Genevoise

Also know as SIP.



[stormin]

Also know as SIP.

But not to be confused with the maker of cheap welders and other rebranded chinese tools.



[graffian]

But not to be confused with the maker of cheap welders and other rebranded chinese tools.

You have got me there. I thought they were all made by the same people;-)



[Turbo]

Did you get all the stuff in the pics with the lathe? If so you've got some nice stuff there. Not sure if I missed it but how much did you pay for it all?



[lchris21]

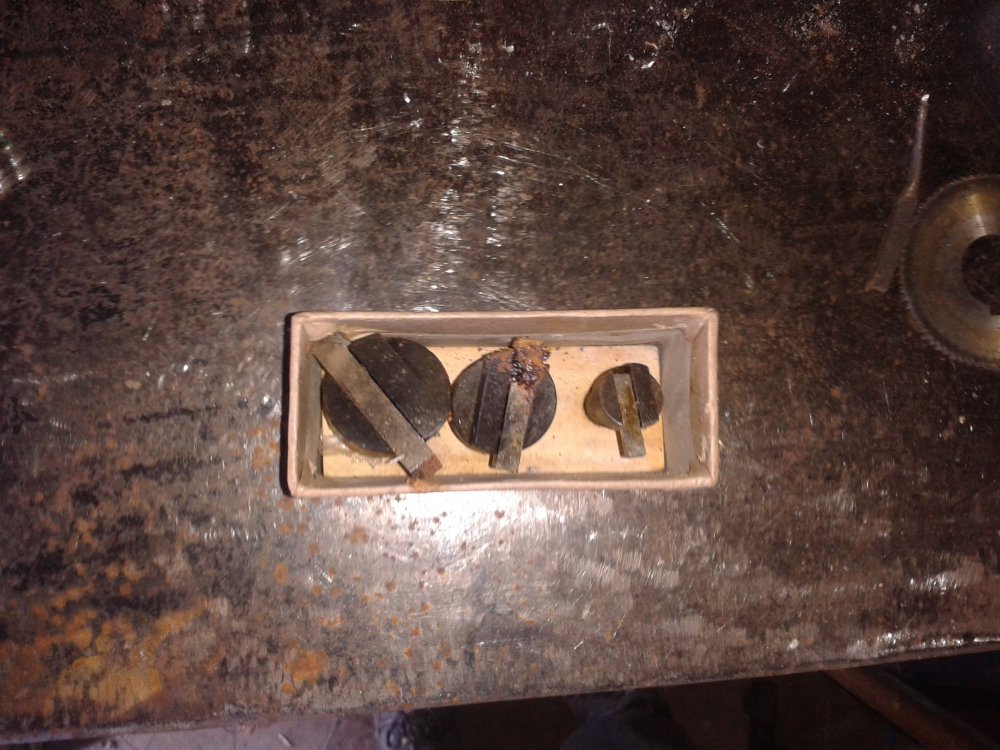

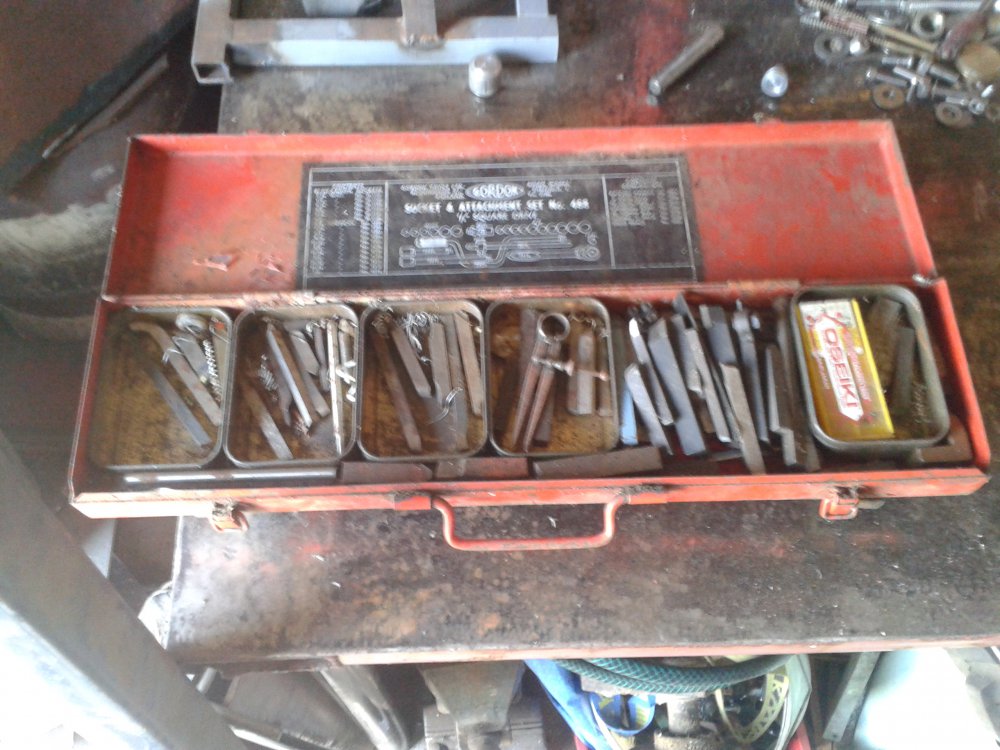

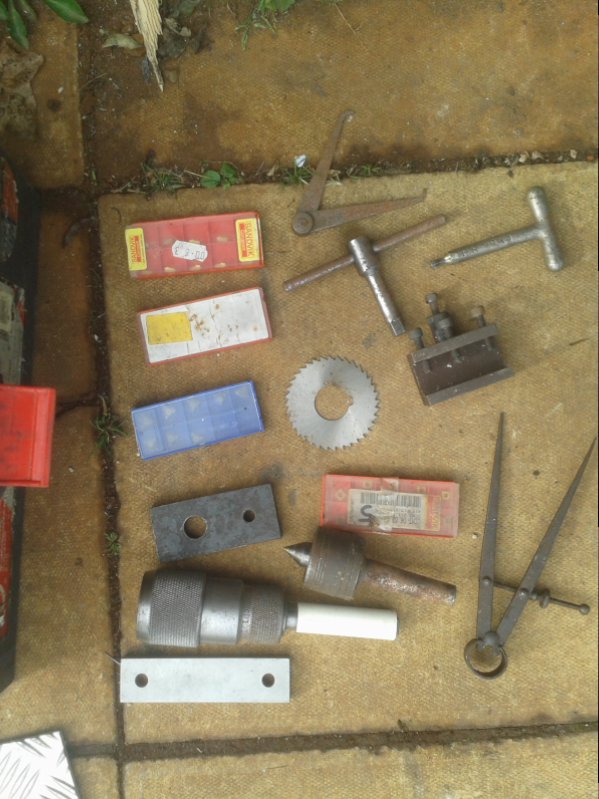

3 items in a box look like fly cutters
1 x dairylee shape item is a non dial vertdict indicator, graduated in thou's by the looks?

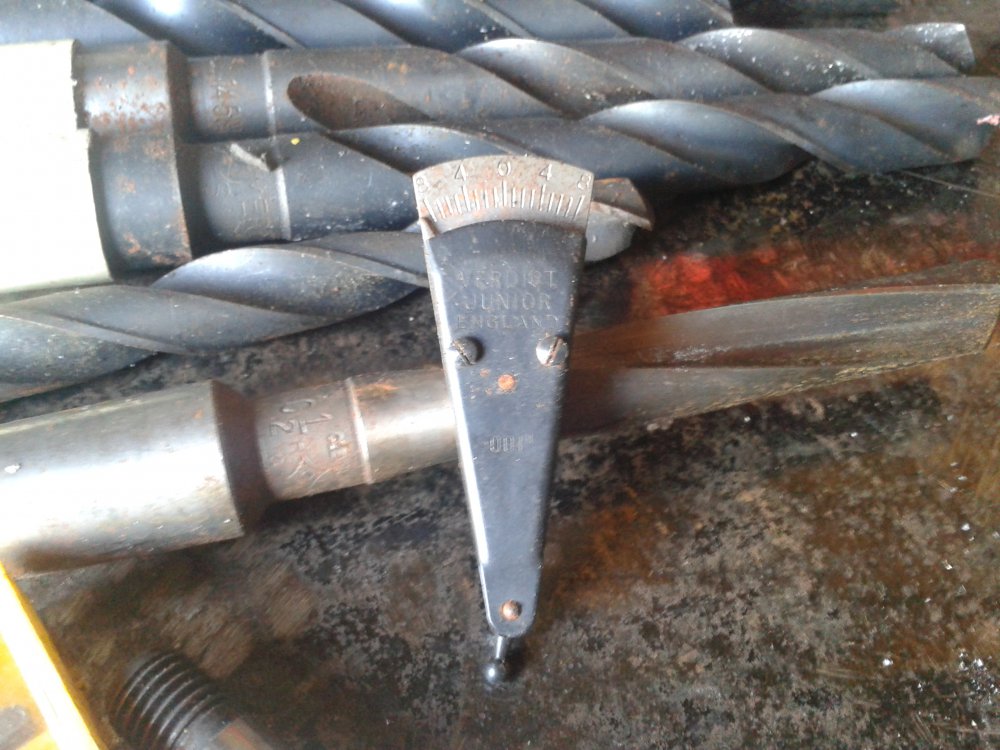

the other item looks like custom vernier gauge of some sort, similar to a gear vernier, so might have been used in a factory making gearsets???



[gaz1]

thankyou all for your comments so far

turbo you have a pm



[gaz1]

as i have the gearbox here http://www.mig-welding.co.uk/forum/threads/myford-ml7-homemade-gearbox.56156/ for the lathe im somewhat a little reluctant to take it apart on my own probably because i have the attitude if it works leave it alone

now i know im going to need thee cog sizes for everyone else to use the last 3 cogs hows best to get this info for others

if need be im willing to take it apart just to get the final info needed however im not so sure how to do this so a massive learning curve here though i need to get to the lathe in the first place as i kinda wrecked the shed to get it where i want it



[MattF]

now i know im going to need thee cog sizes for everyone else to use the last 3 cogs hows best to get this info for others

If there are any changewheels that you're unsure as to what size they are, mark one of the teeth with a marker and count the teeth from there until you reach the marker again. Easier than dismantling to see what number is cast onto the changewheel.



[gaz1]

sorry to bring this back up guys

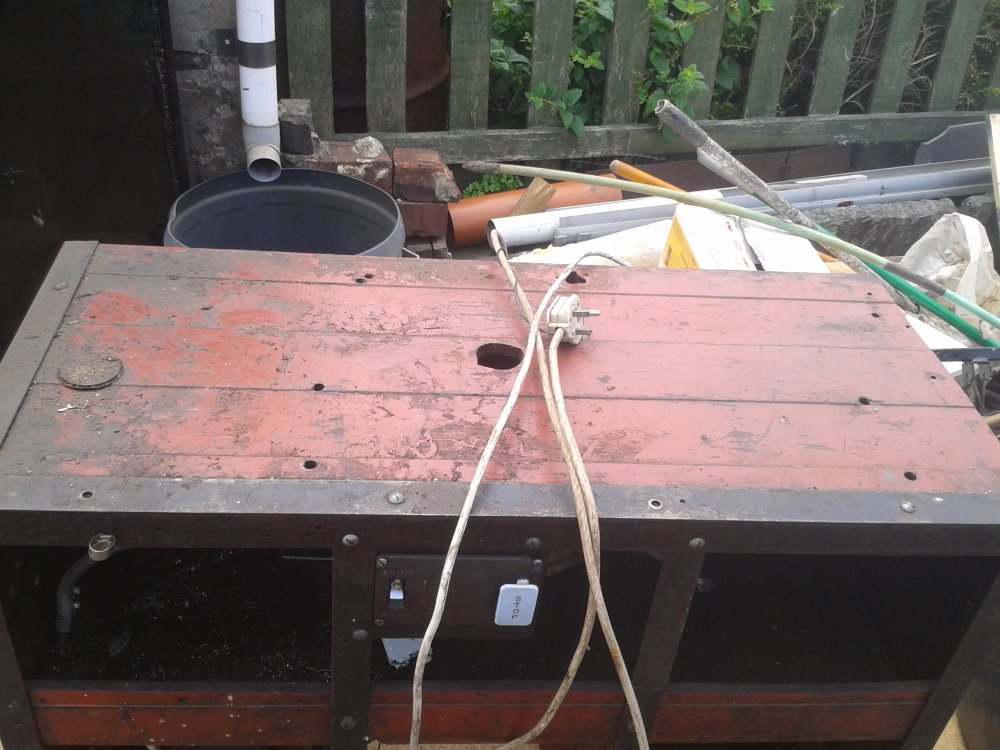

been going through stuff since im rebuilding this lath back up now lathe is in situe stood on oak blocks with suds collector underneath

but what bolts are best used for the bed to fasten it down to the top as the system wasnt fastened down when we got there to pick it up and im not sure if the nuts are missing on the crossbed holder for turning piece
