What is this or rather...

  1. Hood

    Hood Forum Supporter

    Messages:
    5,464
    Location:
    Carnoustie, Scotland

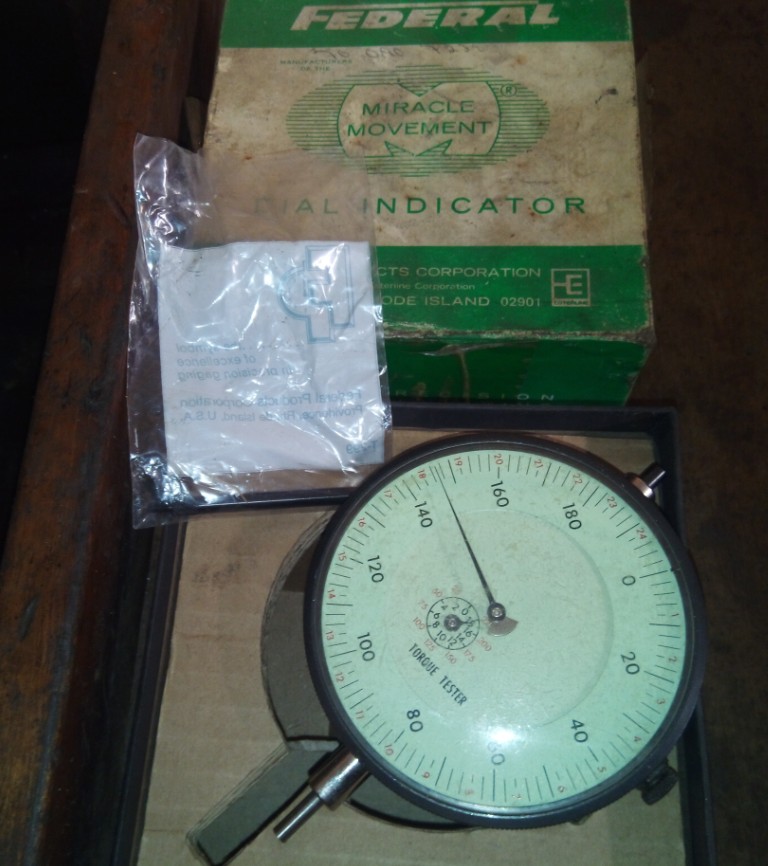

    What is this or rather what/how is it used.

    It is obvious a dial indicator and says it is a Torque Tester.
    I have a feeling it may have come from the Edzell air base many moons ago.
    Size wise it is approx 95mm diameter.
    ScreenHunter_504 Feb. 13 10.57.jpg

  2. pdg

    pdg Member

    Messages:
    10,697
    Location:
    Wiltshire
    I reckon it's very incomplete, being a part of a torque wrench testing unit (or similar).

  3. Ian James Forum Supporter

    Messages:
    445
    Location:
    South west scotland
    It could possibly be a gauge for torque plus degree's as I see it goes to 180

  4. Hood

    Hood Forum Supporter

    Messages:
    5,464
    Location:
    Carnoustie, Scotland

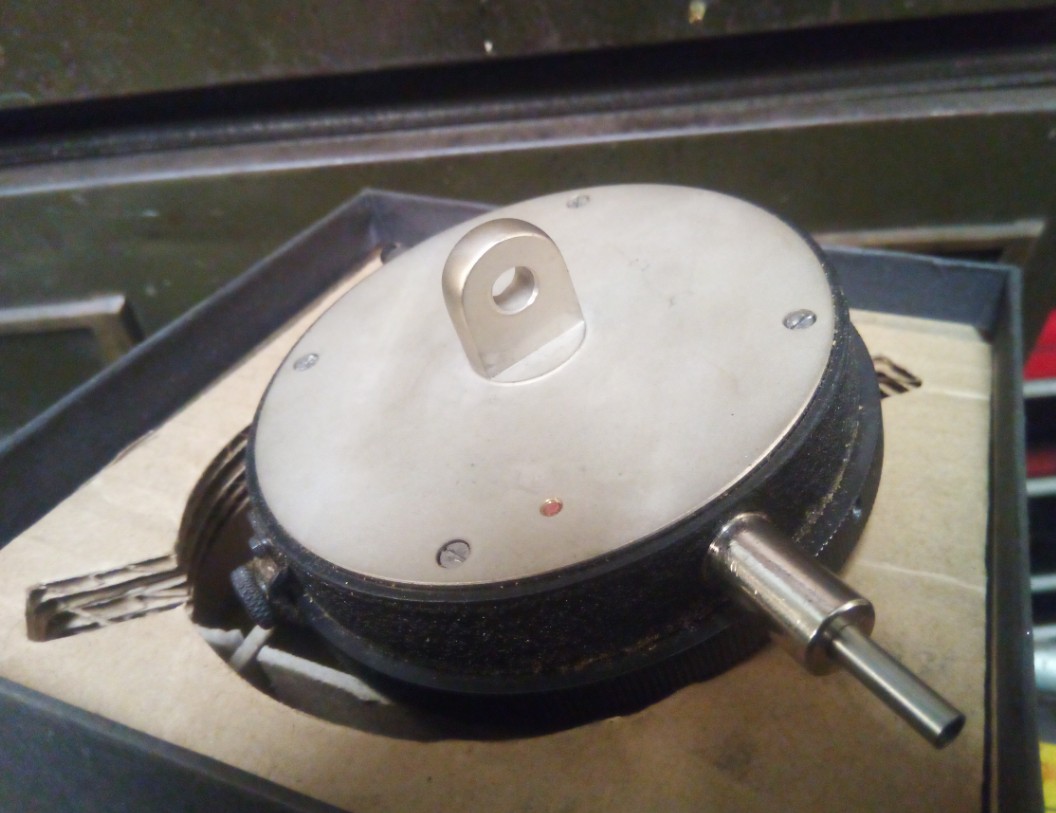

    It has a lug on the back like other dial gauges, see pic. So kind of looks like it would be used in a similar manner to a DTI.

    ScreenHunter_506 Feb. 13 14.44.jpg



    That is a possibility.

    Ian James likes this.
  5. pdg

    pdg Member

    Messages:
    10,697
    Location:
    Wiltshire

    Move a lever against a known resistance, measure the deflection...

    Hood likes this.
  6. Hood

    Hood Forum Supporter

    Messages:
    5,464
    Location:
    Carnoustie, Scotland
    Looks like it may be something like that right enough.

  7. jordan1 Member

    Messages:
    1,524
    Location:
    Yorkshire England
    Could it be used in some way for calibration?.

  8. Hood

    Hood Forum Supporter

    Messages:
    5,464
    Location:
    Carnoustie, Scotland
    I would assume that the image @pdg posted is for that, so looks likely that is what it may be for.

  9. Maker

    Maker Krombopulos Michael

    Messages:
    5,605
    Location:
    Earth dimension C-137
    What are the units on it? I bet a big, easily read dial would be good for our resident YouTuber.:D

    doubleboost likes this.
  10. Hood

    Hood Forum Supporter

    Messages:
    5,464
    Location:
    Carnoustie, Scotland
    Just numbers, nothing else to state what they are.

  11. doubleboost

    doubleboost Forum Supporter

    Messages:
    2,059
    Location:
    North Easr England
    Looks like a DTI that has been modified for a specific job

  12. Hood

    Hood Forum Supporter

    Messages:
    5,464
    Location:
    Carnoustie, Scotland
    It is like a DTI but there is no return on the plunger, it stays where it is pushed.
    Doesn't look like it has been messed with at all even the anvil is still in the bag.

  13. pdg

    pdg Member

    Messages:
    10,697
    Location:
    Wiltshire
    Staying where it's pushed makes even more sense for a calibration rig.

    Some have a secondary telltale type needle/pointer, that one you turn the wrench until it clicks (or read the wrench dial) and then you can release the tension and comfortably read the rig display.

    Hood likes this.
  14. scottmk1 Forum Supporter

    Messages:
    517
    Scotland
    It's a 0-200 scale not 0-180 so still looks like it's measuring thousands of an inch

  15. Hood

    Hood Forum Supporter

    Messages:
    5,464
    Location:
    Carnoustie, Scotland
    Yes, noticed that after I looked again, seems weird there are no units on it. Will have to measure today and see if the movement corresponds.

  16. scottmk1 Forum Supporter

    Messages:
    517
    Scotland
    Yeh. The red numbers are also a mystery

  17. Hood

    Hood Forum Supporter

    Messages:
    5,464
    Location:
    Carnoustie, Scotland
    Yes, certainly not mm if the black ones are inch.

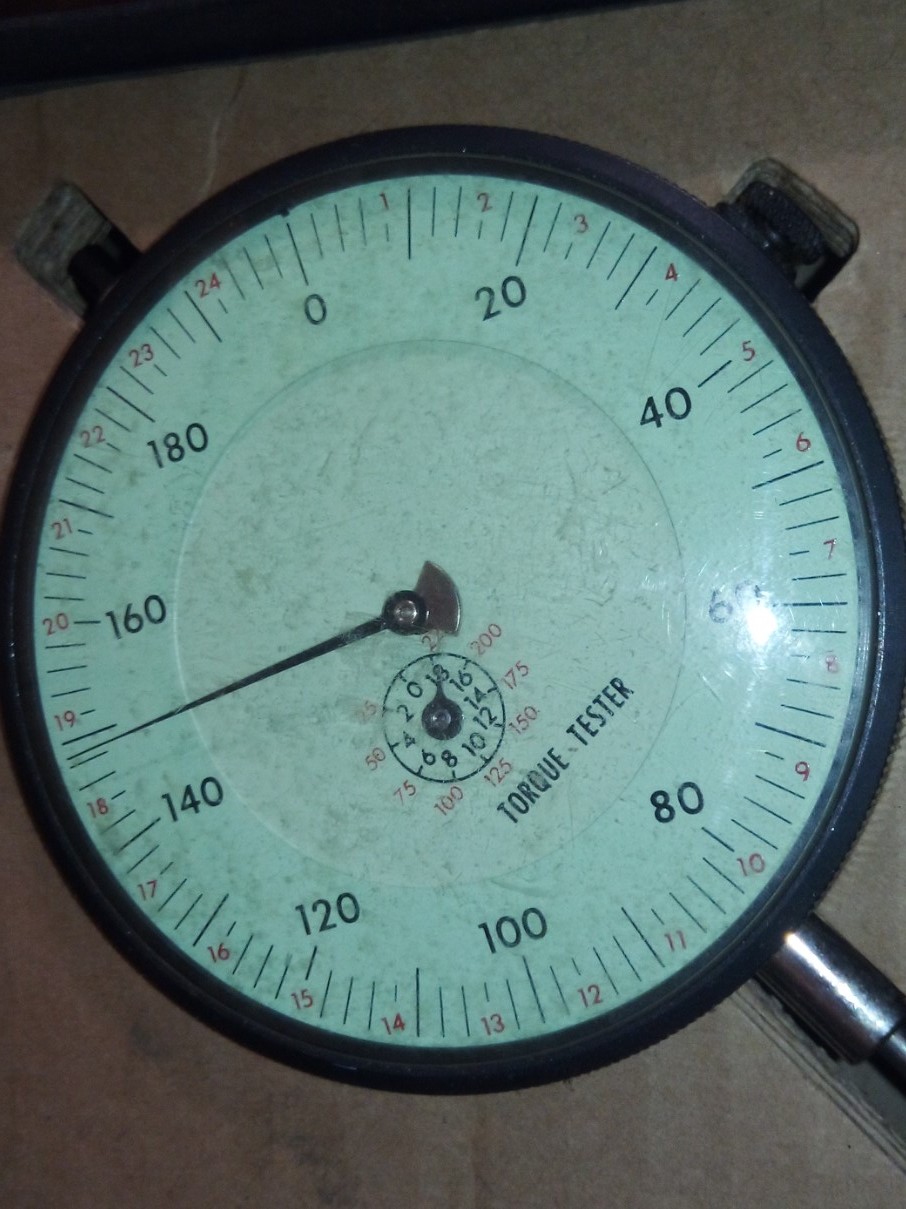

    Clearer pic of the dial below.
    ScreenHunter_1336 Feb. 15 08.45.jpg

  18. Hood

    Hood Forum Supporter

    Messages:
    5,464
    Location:
    Carnoustie, Scotland
    Just measured, the 200 is equal to 40 thou, so not in inches.

  19. bigegg

    bigegg I drink and I know things. Its what I do.

    Messages:
    3,613
    Location:
    Leeds, uk
    There's almost 8 in lbs to nm?

    So *could be dual units with red being nm, black in lb f ?

    <Edit>
    No.
    120nm is only 13.56 in lbs f
    The dial shows it as 15...

  20. Hood

    Hood Forum Supporter

    Messages:
    5,464
    Location:
    Carnoustie, Scotland

    40 and 5, 80 and 10, 160 and 20 etc are all showing the same lines on the gauge so it seems exactly 8x the red value for the black. So far I have not found torque values that equate to that, then again haven't tried too hard :D
