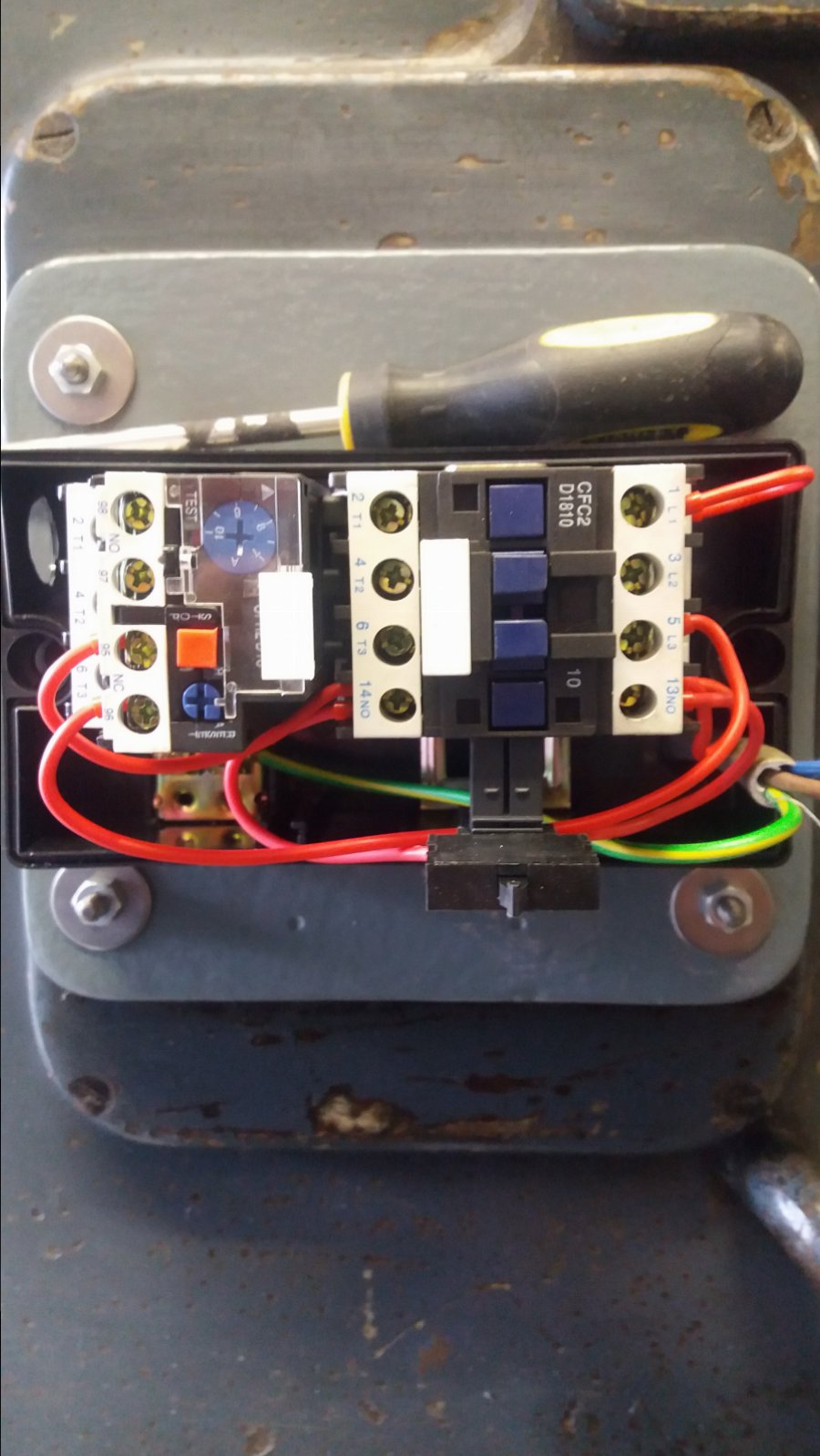

Can anyone help. How do I wire the overload below?



[WorkshopChris]

Am not seeing any pic or link.



[vwmark]

Try now!



[WorkshopChris]

2 quick questions, does this have a push button on the front that operates down onto the blue part of the contactor?
And a stop button that operates on the black switch.
Should be feed in on L1 & L3. But do you have a pic from the top just trying to make sure the links are correct.



[daleyd]

Neutral through l3 and out on t3 and live in on l1 , looped through back in to l2 and out on t2 - or some variation on that theme.

http://www.schneider-electric.co.uk/en/faqs/FA139511/



[vwmark]

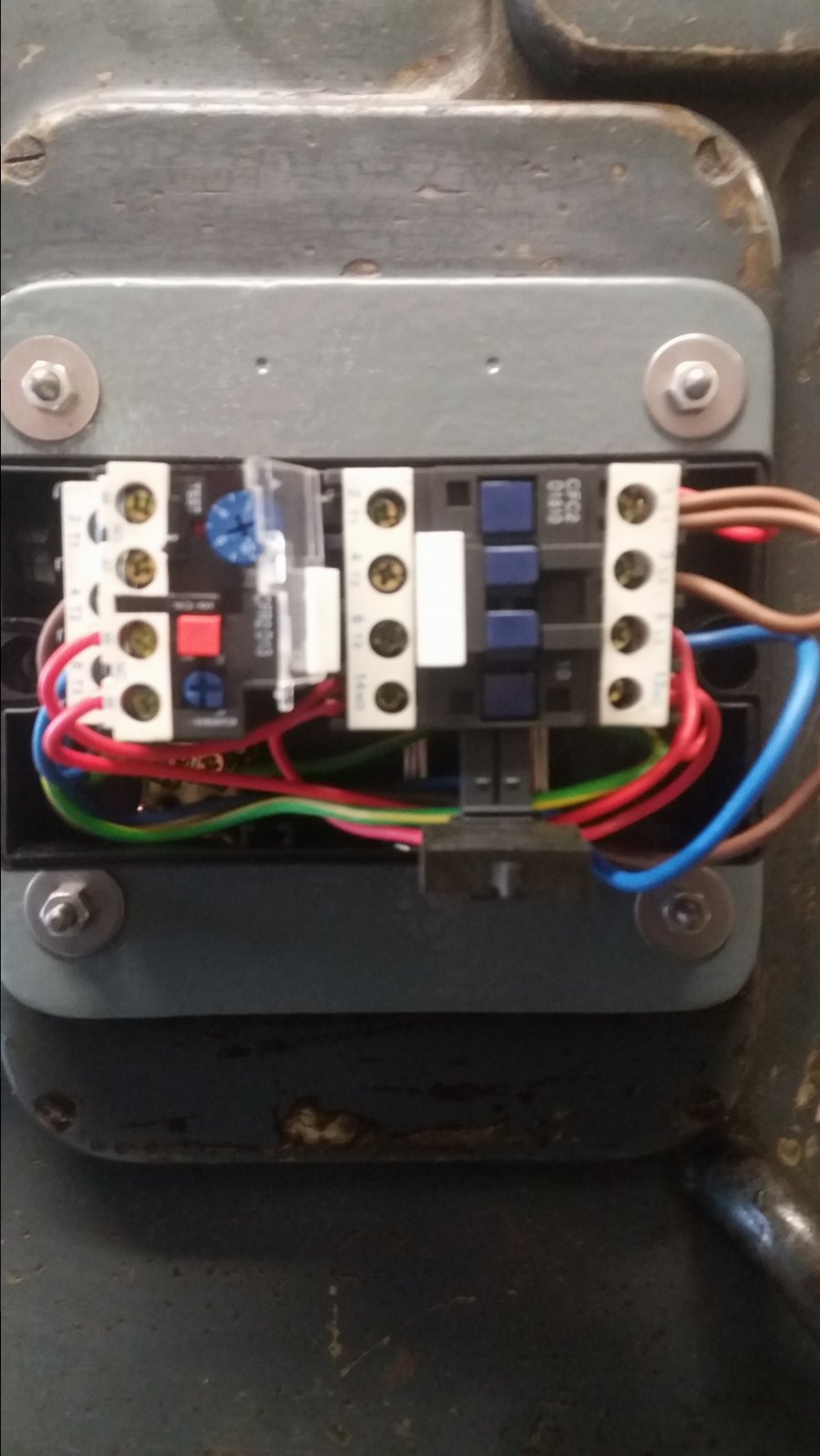

Thanks. Connected up and running.



[vwmark]



[carbon]

The link that @daleyd added shows the link wire in a different place, remove the link between L1 & L2 and replace it with one between T1 and L2 so it spreads the load across the contacts



[daleyd]

The link that @daleyd added shows the link wire in a different place, remove the link between L1 & L2 and replace it with one between T1 and L2 so it spreads the load across the contacts

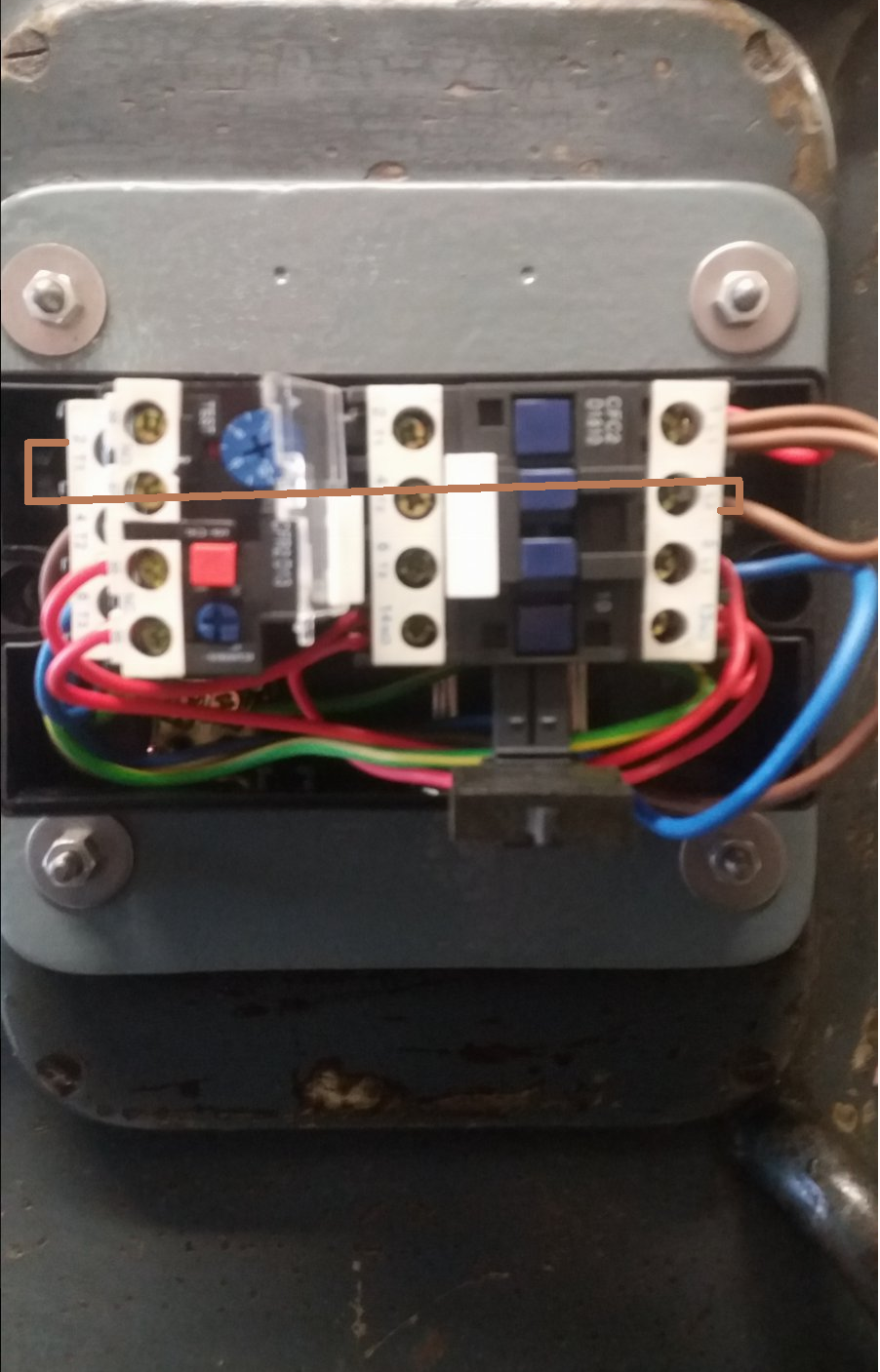

View attachment 107623

Yeah well spotted I didn't look that closely!

The idea behind the link is so you have the full current going through all 3 overload contacts. I should have been clearer in my original post to go all the through from l1 to to t1 and then back in to l2!
