Whats this thread?

[julianf]

Causing me some confusion -

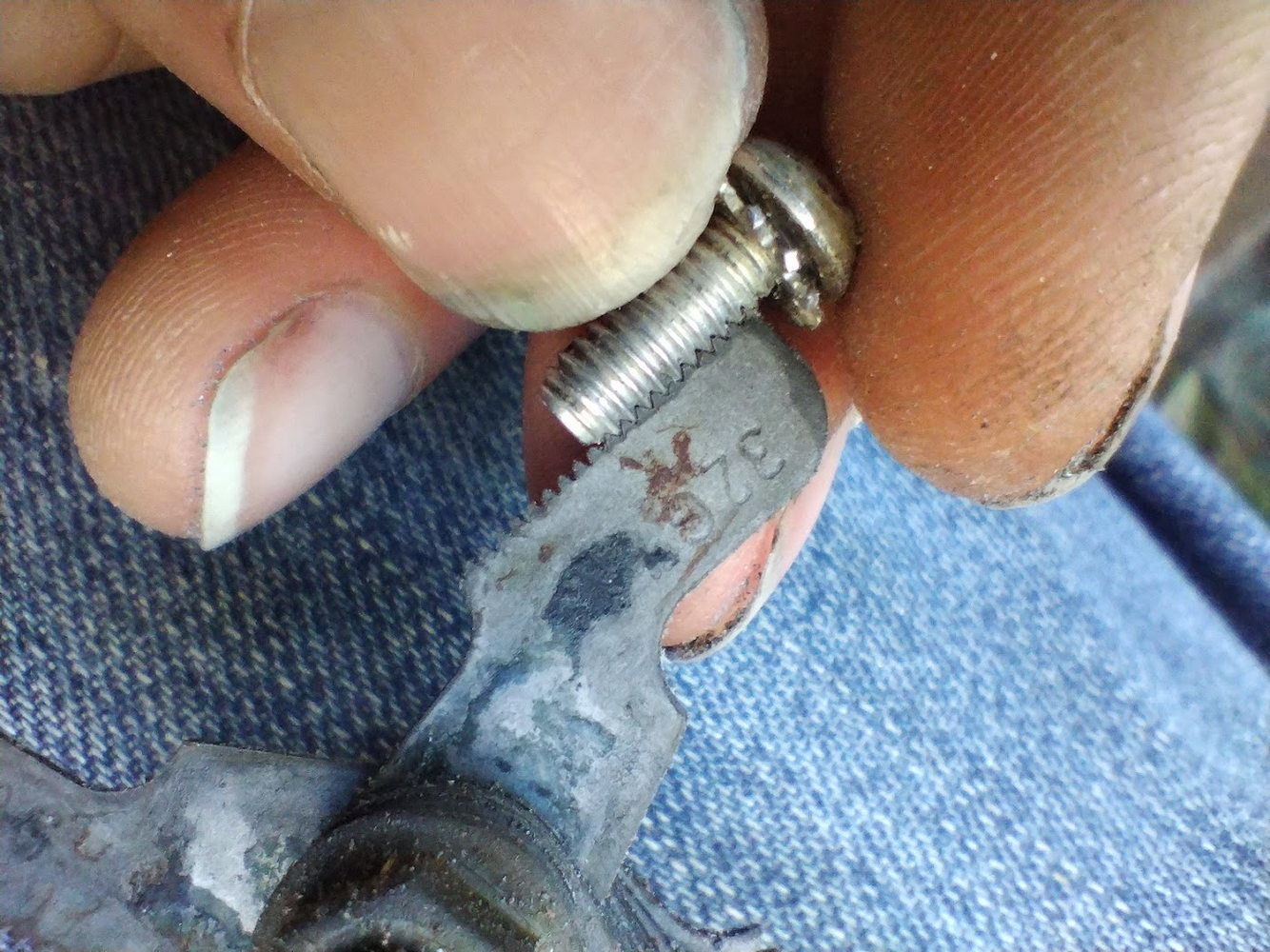

(thats a whitworth gauge)

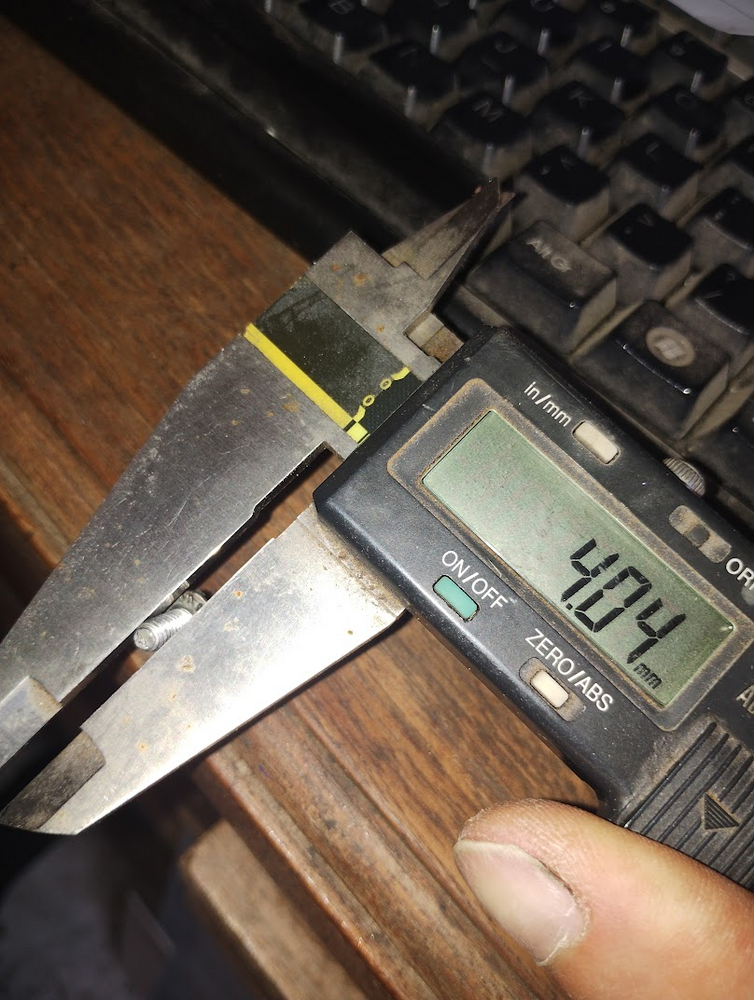

4.04mm major diamter.



Im hoping someone will simply say "one of these" but im not having any luck. Off an old (1970s ish) american item.


Thank you.



[Seadog]

From the style of fastener (I've forgotten the name), I'd say that it's an American thread.
Maybe a 10-24.



[julianf]

From the style of fastener (I've forgotten the name), I'd say that it's an American thread.

Its not a special fastener - its just got a shake washer on it. Normal pan head screw.



[Memmeddu]

Check if a metric thread pitch gauge tooth fits in the thread
if so it's surely a SAE thread because they are both (SAE and Metric are 60°)
If not probably BSW (55°)
That's very important to determine the exact thread pitch and type.



[Agroshield]

Maybe a 10-24.

The '24' in 10-24 is the tpi. Given that it is a 32tpi thread gauge in the picture, some other option from the UN-series (perhaps 8-32) might be better.



[julianf]

To avoid confusion -

It's 32 tpi

But I can't match that to a thread that has a major diameter of just over 4mm



[Martin-Sy]

Yes, it's #8 x 32. Very typical in American made stuff.
I have a few in a tin. Do you need one or just trying to identify what you have?



[julianf]

The '24' in 10-24 is the tpi. Given that it is a 32tpi thread gauge in the picture, some other option from the UN-series (perhaps 8-32) might be better.

8/32 unf would seem about right.

Major diameter of 4.1656 mm, so it's close.

I don't know why I didn't come across that - thank you.

I'll try and order some off eBay and confirm.



[julianf]

Yes, it's #8 x 32. Very typical in American made stuff.
I have a few in a tin. Do you need one or just trying to identify what you have?

I was trying to work out what it was in order to buy some. I don't need loads but I need them in 1/2inch of thread.

Thank you for the offer but (and I don't know how they do it) the eBay sellers total price will probably be about the same as you or I could send them in the post for, so I may as well just go on eBay (assuming they are there!)

Thank you.



[Agroshield]

8/32 unf would seem about right.

8-32 is UNC.

#8 UNF is 36 tpi.

There is a company called modelfixings.co.uk who have a good range. EKP Supplies is another option.



[Erie Fred]

Looks like #8-32 to me.
Very common.



[Seadog]

The '24' in 10-24 is the tpi. Given that it is a 32tpi thread gauge in the picture, some other option from the UN-series (perhaps 8-32) might be better.

If the gauge hadn't been covered in so much crap I might have noticed
