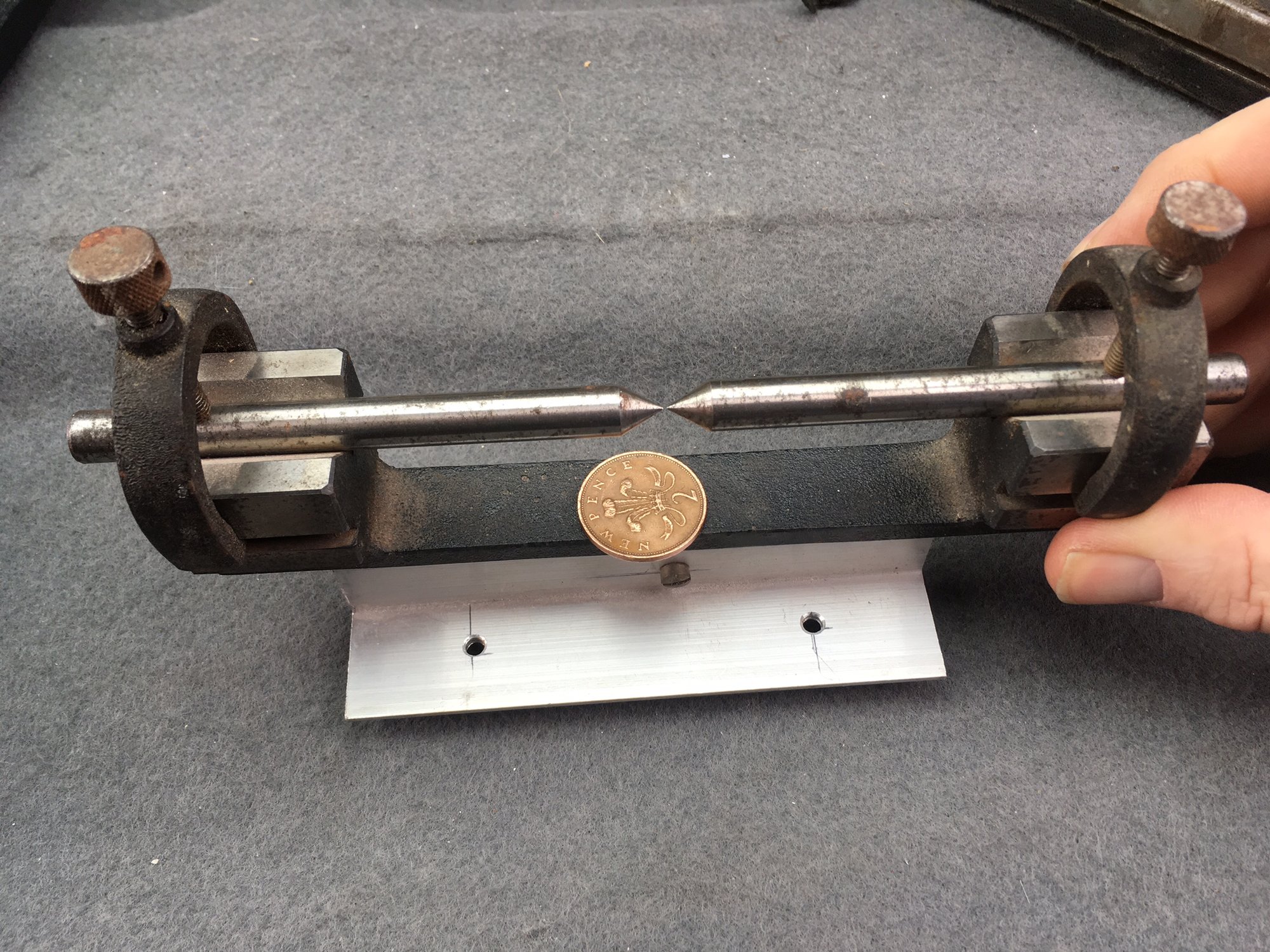

Whats this for?

[winchman]

Any ideas I thought I had seen one on here?
Its had a tab cast on the bottom of the frame the ally angle is just screwed on



[8ob]

Looks like a truing jig.

Bob



[steve_s]

some form of balancer ?



[winchman]

Looks like a truing jig.

Bob

For what though?



[Hood]

Just looks like a mini bench centre, @Pete. would probably know.



[winchman]

Just looks like a mini bench centre, @Pete. would probably know.

Pete where are you?



[eLuSiVeMiTe]

For what though?

Something small that fits between the centers.



[Pete.]

Yeah it's a mini bench centre. Might be part of a balancing jig but my guess it's clock-making sized centres. They're a seldom-used but handy tool, I've got a chunky Jones & Shipman one. Last time I used it was when straightening some shafts from a quick-change gearbox.



[Pete.]

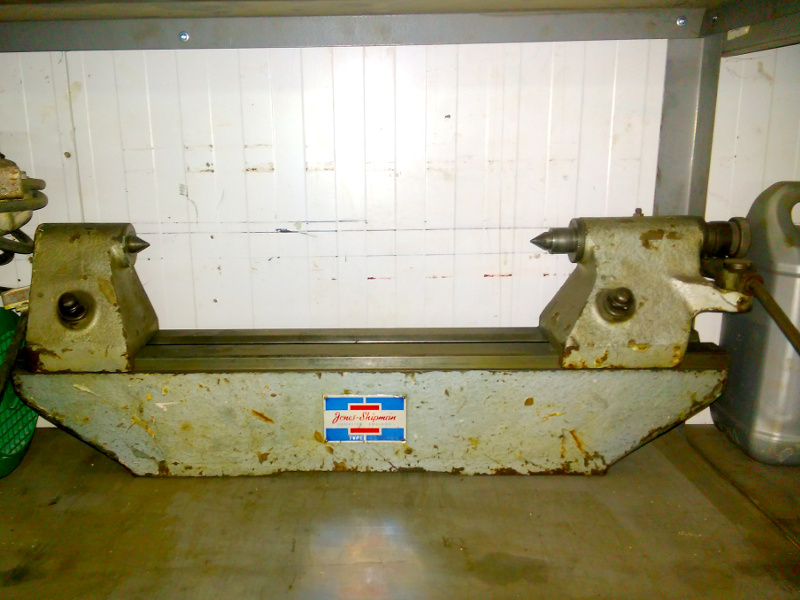

Here's my more grown-up version. Sometimes I think about selling it under my 2-year rule but then sense tells me that I'll be sorry I did one day and I give it another pass. The guy I got it off said he'd never used it, but I have on occasion.



[winchman]

Thanks Pete so should I keep it??? give me a few jobs I could use it for? Winch boy thinks its great for holding stuff whilst he Tigs it!
Remember I struggled for years with very little so I do tend to keep stuff now I can afford it!



[Pete.]

If you're in the habit of repairing small items it might come in handy. Put a shaft between the centres and turn it by hand and you can use a dial gauge to check the run-out. I wouldn't use it as a welding positioner unless you have some copper braid to hang on the shaft or you're likely to weld the centres into the centre-holes.

Like I said, it's one of those things you never use until you need it, then it's invaluable.



[waddycall]

Sure it’s a bench centre? Where’s the flat surface to gauge from?



[eLuSiVeMiTe]

Sure it’s a bench centre? Where’s the flat surface to gauge from?

Looks home made.
2 v blocks and clamps.
Must have served a purpose to the builder



[eLuSiVeMiTe]



[Appyasme1]

So that`s how you make dodgy 2p coins.



[Hood]

I don't think it is home made, the finish on the clamps and the base look like the standard finish on many measuring devices.



[winchman]

I dont think its home made, its a one piece casting, what you cant see under the ally angle is its a bit that looks like it can be clamped in the vice or fits another bit on.



[gerrymoore]

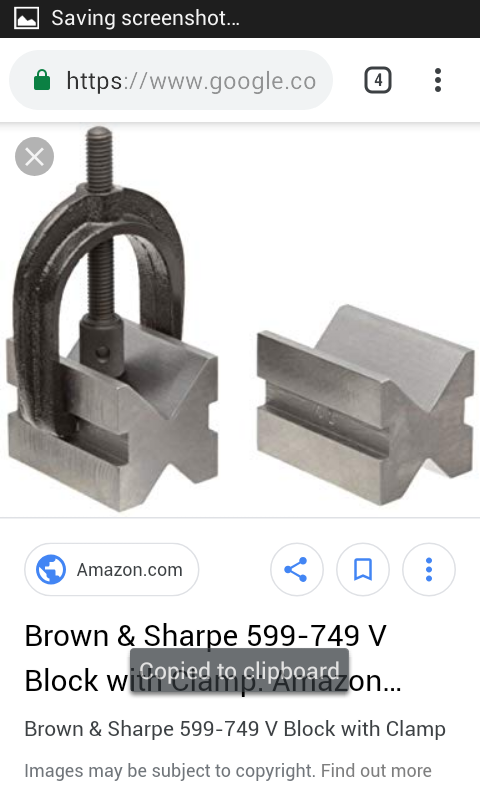

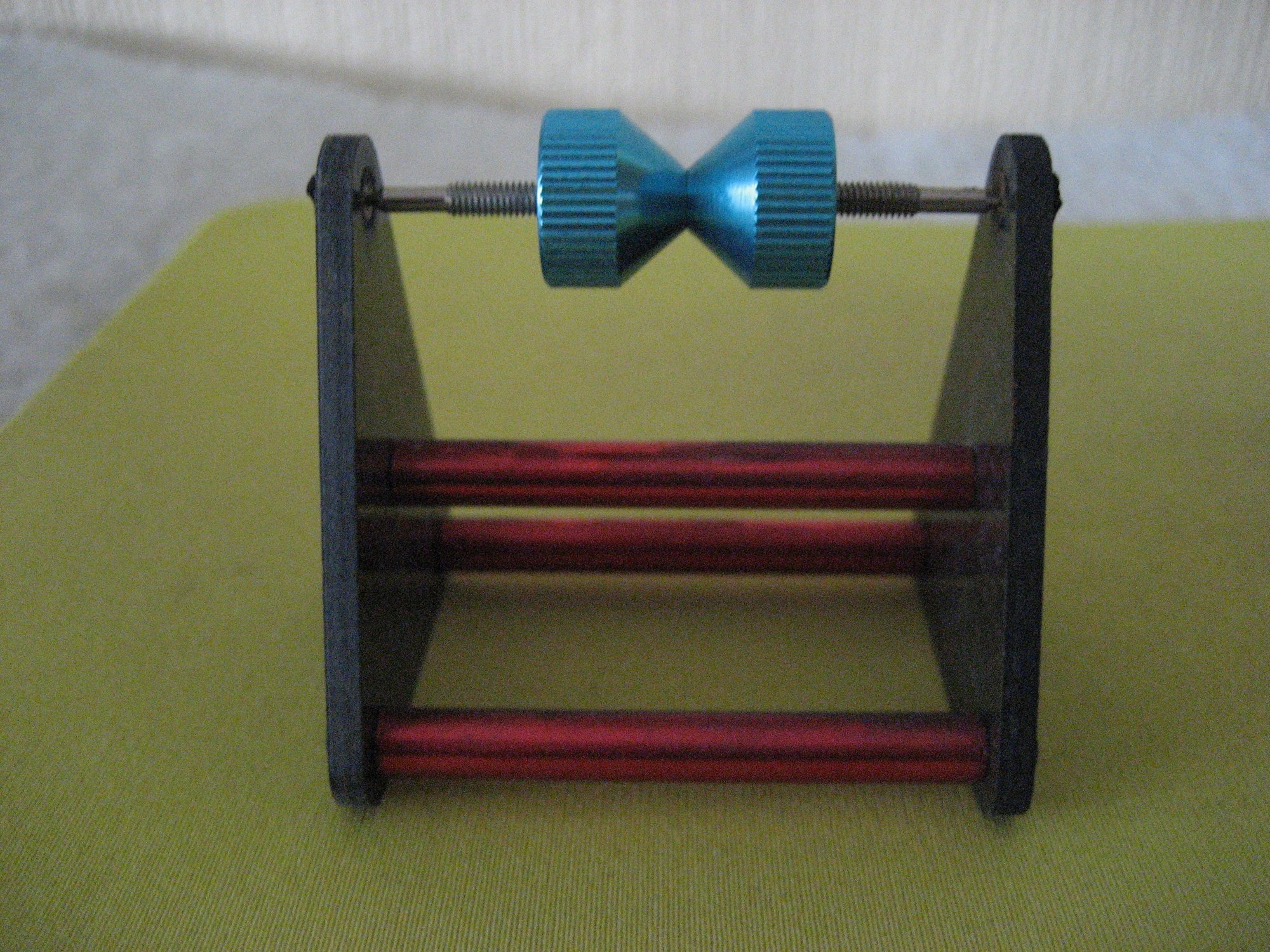

Could be a bigger version of this.........



[kingcreaky]

if you sharpen a drill bit, could it be used to check the tip center is still central?



[MattF]

if you sharpen a drill bit, could it be used to check the tip center is still central?

You can use a ruler for that.
