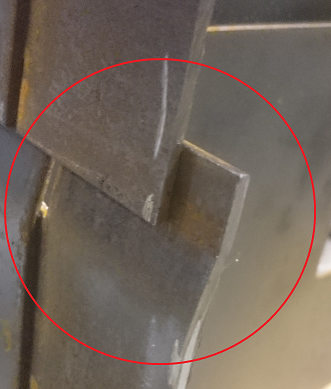

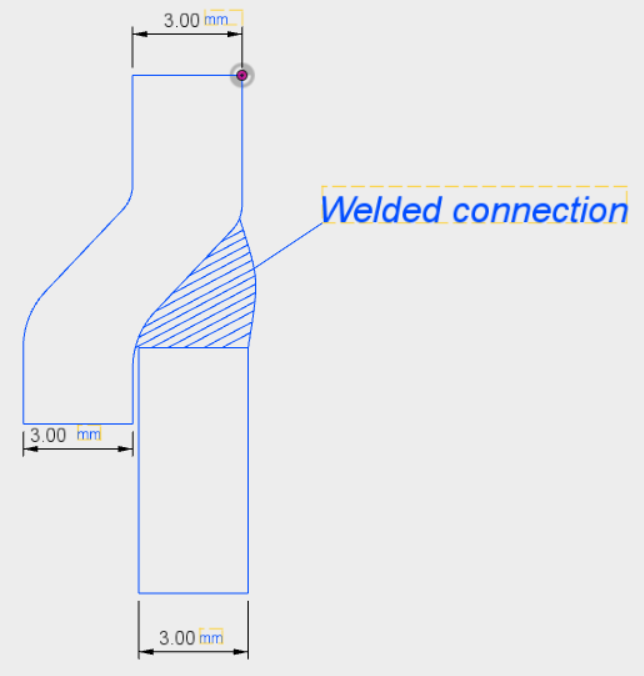

A Alex1337 New Member Messages 9 Location Norway Mar 18, 2017 #1 Hi. I am welding a certain geometry and I wonder if anyone can help me with the name of the geometry/type so i can search for techniques etc.. I have uploaded picture of the geometry. Is it a bevel seam type of weld? Kind regards, Alex weld_type.PNG 45.1 KB · Views: 49 uthevning1.PNG 240.1 KB · Views: 47
Hi. I am welding a certain geometry and I wonder if anyone can help me with the name of the geometry/type so i can search for techniques etc.. I have uploaded picture of the geometry. Is it a bevel seam type of weld? Kind regards, Alex
Jim Davey R H Davey Welding Supplies Ltd Messages 5,736 Location Southampton Mar 18, 2017 #2 Looks like a lap joint, also look up joggle.
Tigman Forum Supporter Messages 3,919 Location Watford UK Mar 18, 2017 #3 joggle lap joint! just found a piture of one
