Wave - winder....

[oldbikedavey]

Got a Douglas - AVO wave winder here, in really mint condition.
Bit of an impulsive purchase, with the original intention being to open up some ideas for simple coil -winding such as might be required on older motorcycles.
A linear winder would have been the thing, really, but why do wave - winders exist, and what are the uses of the things ?
There's some head - scratching going on, I can tell you.....



[Seadog]

A good question. I remember wave-wound being used in r.f. circuitry.



[Seadog]

The coils are self supporting and have a lower capacitance, which can be important in rf circuitry. A downside is that the dc resistance is higher.
I'm pretty certain that all the wave-wound coils that I'm familiar with used Litz wire, which is multi-stranded.



[Pete.]

Dc motors can be lap wound or wave wound. I stripped a lap wound armature last week with a view to rewinding it, even bought the wire but then I found a couple of spare motors so didn't need to.



[Seadog]

Dc motors can be lap wound or wave wound. I stripped a lap wound armature last week with a view to rewinding it, even bought the wire but then I found a couple of spare motors so didn't need to.

Usually high voltage motors, I understand.



[oldbikedavey]

It's a seriously ornamental piece , it must be said.



[Seadog]

I used to have a linear AVO winder. It went many years ago without me ever using it. I did use another in the 80s to rewind coils for Lucas alternators.



[oldbikedavey]

I used to have a linear AVO winder. It went many years ago without me ever using it. I did use another in the 80s to rewind coils for Lucas alternators.

That'd make sense. The part -circle 2 - coil stators would be handy to be able to replicate....



[Seadog]

All courtesy of Plessey. Winder, copper wire and potting resin
@bradclear some stuff from the premises that used to be their wound components section on the Southend Road.



[Martin-Sy]

I used to have a linear AVO winder. It went many years ago without me ever using it. I did use another in the 80s to rewind coils for Lucas alternators.

One of these by any chance:

Same story. A throw-out from work that sat on a shelf unused and unloved for years until I needed the space

I'd like to see pics of the wave-winder tho.



[Martin-Sy]

They have a variable speed mechanism to change the feed ratio for different thicknesses of wire



[Seadog]

One of these by any chance:

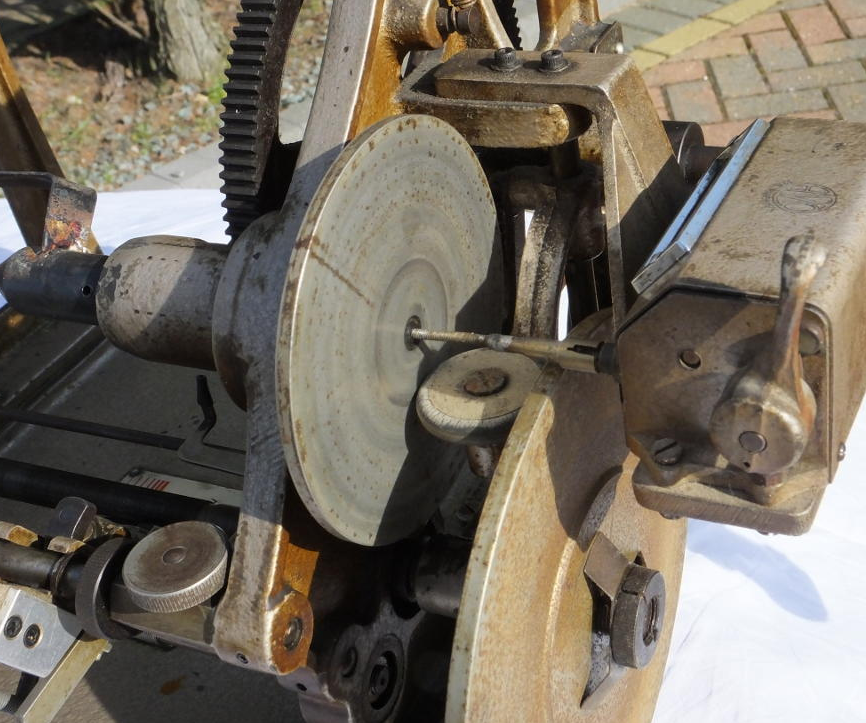

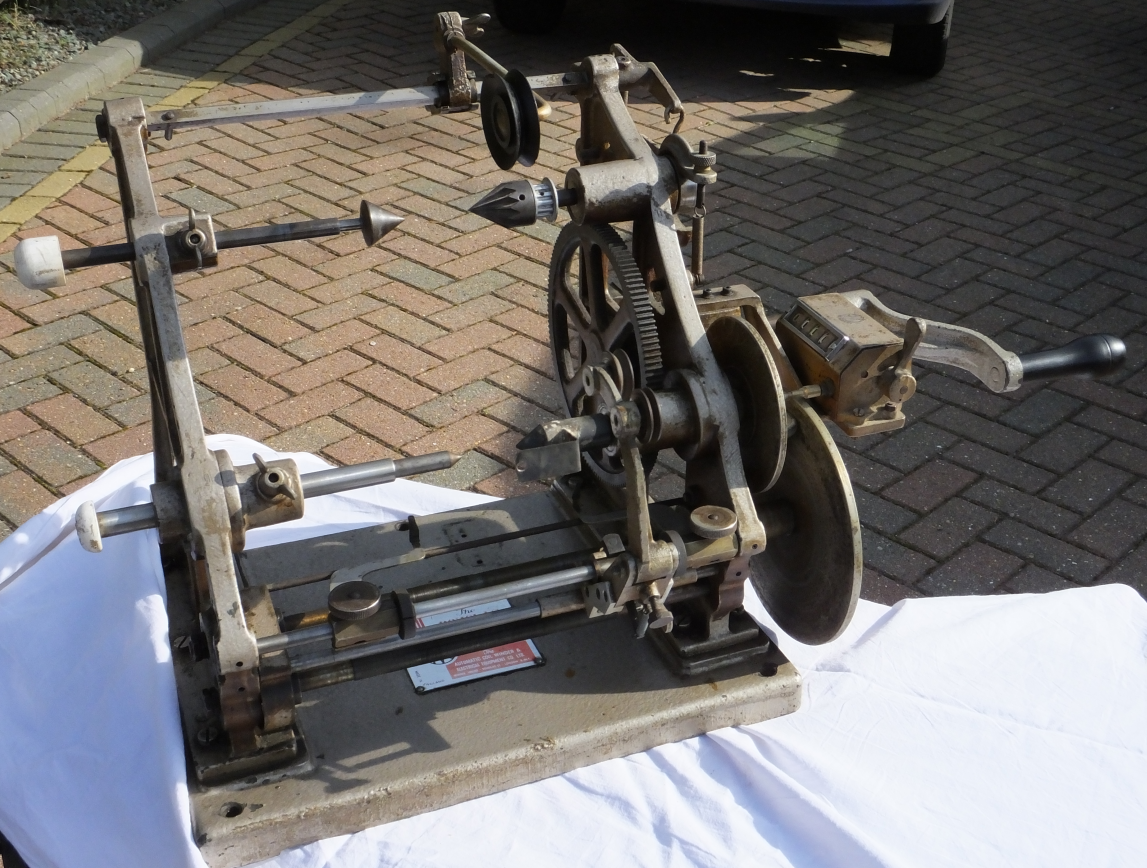

View attachment 485511

Same story. A throw-out from work that sat on a shelf unused and unloved for years until I needed the space

I'd like to see pics of the wave-winder tho.

That's the beast. The previous owner used it to rewind transformers in professional flash guns.

I've just checked and see that I sold it to a chap in Darligton, in 2005

Time flies.



[oldbikedavey]

A good question. I remember wave-wound being used in r.f. circuitry.

That'd make sense, given its provenance....



[Seadog]

That'd make sense. The part -circle 2 - coil stators would be handy to be able to replicate....

That's what I thought. The older unpotted stators all failed over time. Soaked in oil, heated and shaken silly on some machines, it's a wonder that they lasted as long as they did.



[oldbikedavey]

That's what I thought. The older unpotted stators all failed over time. Soaked in oil, heated and shaken silly on some machines, it's a wonder that they lasted as long as they did.

Sort-of wondering how a wave-wound one would function under such conditions, but in the potted form.
There might be some advantages to be had, somehow or other.



[Seadog]

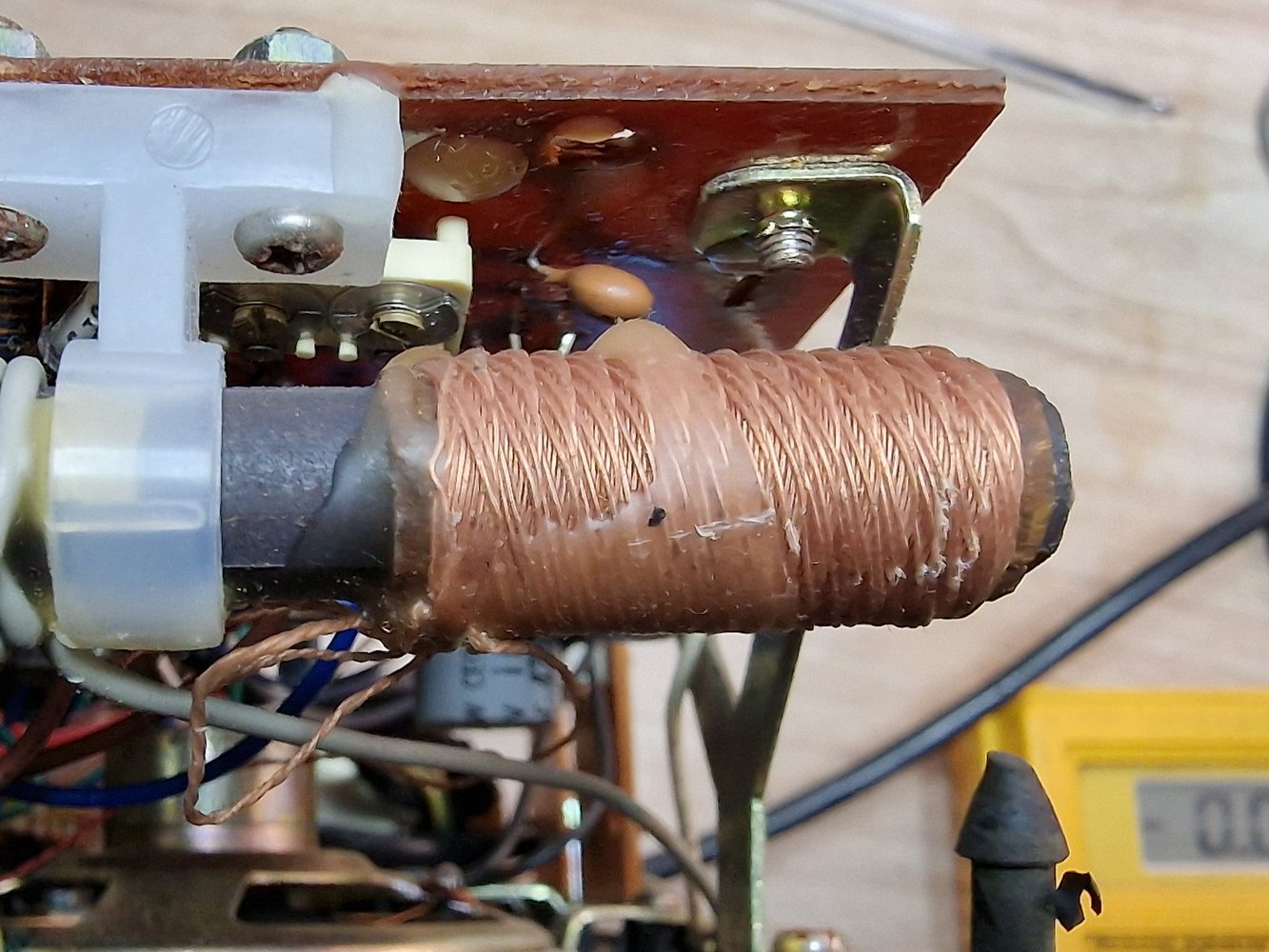

Just in passing, I was servicing an old digital clock radio and saw this.
