Super Newbie needs help

[24seven]

Hi

I'm hoping someone here can help me. I just upgraded from my supplied sealey regulator to one with gauges so I can get the correct l/min but I cannot get the gas to flow, I bought a c02/argon regulator.

The black dial when turned completely counter clockwise allows gas to flow into regulator but not come out of the black pipe down to my welder, if I turn it clockwise it releases gas out of the right hand side connection (none of the fittings for the gas pipe to my welder will fit this)

Am I missing something, can this only be used with a flow meter?

Sorry if I'm being dumb, I'm trying

Thanks in advance



[Wallace]

The gas outlet is the fitting on the right hand side. Looks like you have removed a pressure relief valve or burst disc cap and screwed a fitting in place of it! What did you remove from the left hand side and add? You don't need PTFE tape on the bottle threads, the tapered end does the sealing in the bottle valve when tightened.



[24seven]

Well I couldn't,t get it to fit on left hand side so took it to the place where I got my gas from and the bloke took it out, he said it was an adaptor or something, not sure he knew what he was talking about now tbh

This is what came out



[voipio]

Well, that looks like a pressure relief valve so needs to be re-fitted correctly a.s.a.p!! It looks like it's from the low pressure side and probably connected to the same chamber as the outlet connector on the right of the regulator which, as Wallace mentioned is the outlet you should be using. You will need to get the correct adaptors to attach your hose, which looks like 6mm compressed gas line which normally goes into a push-fit fitting.

You'll need this kind of thing, with the push-in adapter to suit your hose:

http://www.ebay.co.uk/itm/MIG-WELDE...895?pt=LH_DefaultDomain_3&hash=item41796d1bb7



[Wallace]

You are right he didn't know what he was talking about, that looks like a pressure relief safety valve. Keep the regulator off the cylinder until it has been repaired and tested for your own safety. Is the brass piece threaded?



[24seven]

Right I managed to refit it. This is exactly how the regulator came to me



[24seven]

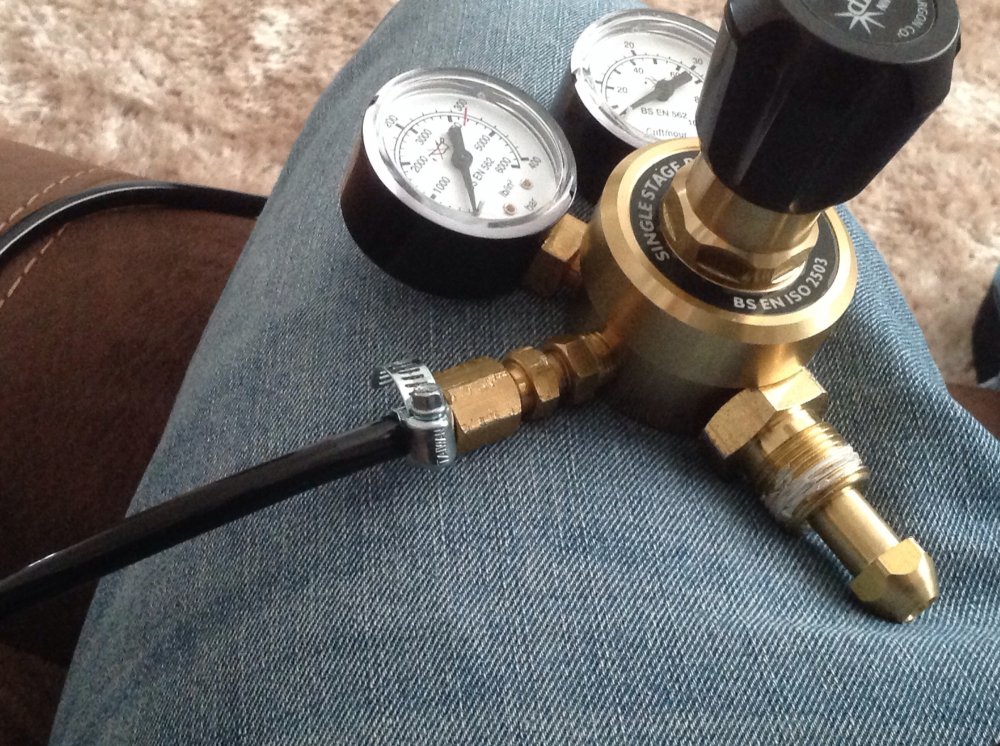

This is my current hose off my supermig 150 with connection, which obviously dosnt fit?



[visor_down]

If you remove the threaded adapter does it not then fit?



[24seven]

No it's too small see, I'm sure I must need an adaptor? It's been annoying me for days, all I want to do is practice welding lol



[24seven]

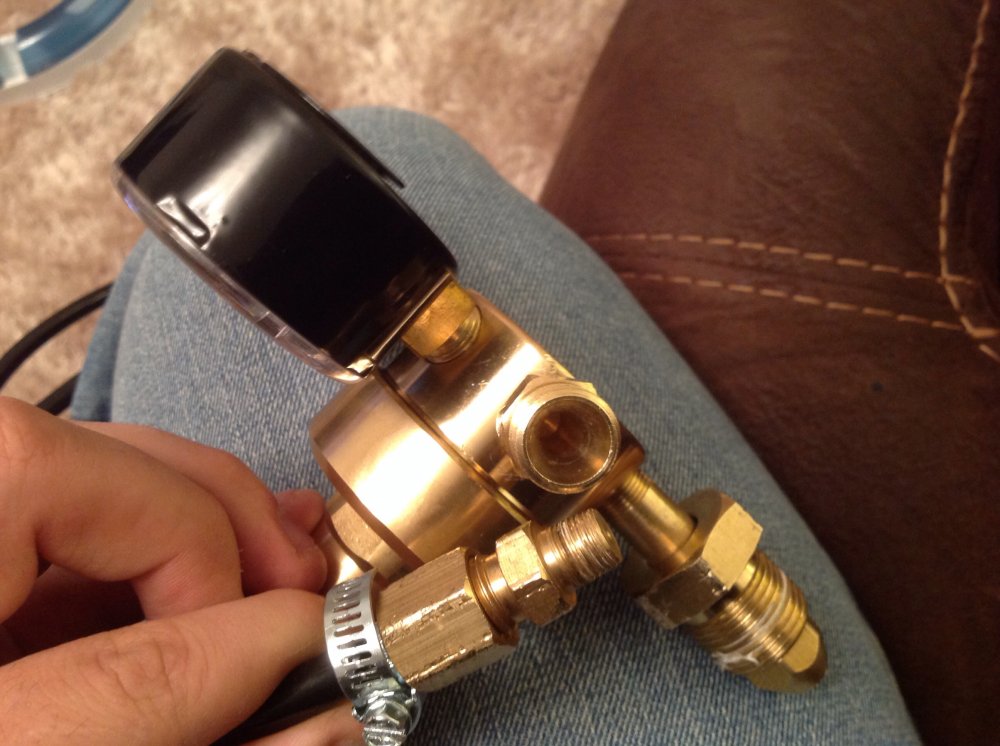

Tried a few other variations and none fit. The bottom pic is what I have if I take them all apart, nothing fits?



[visor_down]

Ah.....see now what you mean. Sure someone will be along shortly to advise



[24seven]

The part that is in the black pipe is a push fit nozzle, it's not threaded



[24seven]

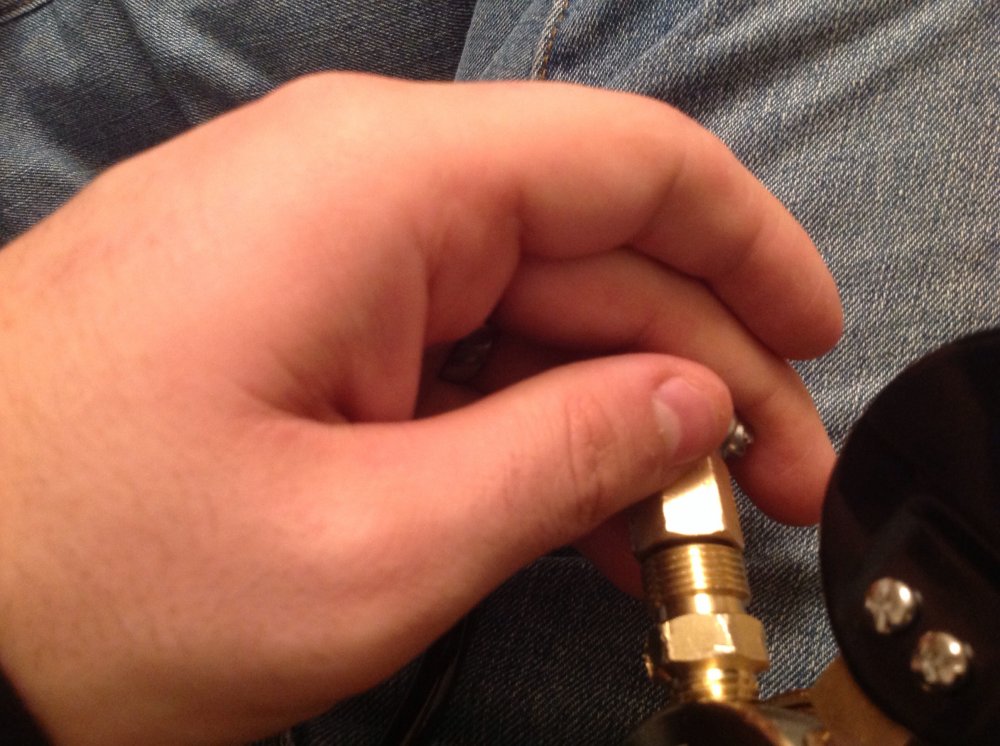

Just measured pipe and fitting is



[Paul.]

Its a standard 3/8" BSP regulator outlet, you need a 3/8" nut and hose tail to suit the size of your hose, like this http://www.ebay.co.uk/itm/GAS-REGUL...H-CHOICE-OF-TAIL-SIZE-RH-THREAD-/310763864263
Your local welding supplies firm would be the best place to go,



[24seven]

Awesome. I will buy one of these and sort it out. Thanks for the help all



[Wallace]

What part of the country are you in?



[mike 109444]

Bloke in the gas place wants his a55 kicking !
If the thread in the reg is the same as the one that connects to the fitting you have on the black pipe then you just need a double ended fitting with that thread on. See pic of what I mean.
Gave up trying to figure how to add pic on this new software!
So Pic would have shown arrow pointing to the thread IN reg and the LARGER thread on the fitting held between your finger tips in last pic.
Can't help with size as I don't know what the thread is on a reg (probable 1/4" BSP) Somethink like in this link http://www.ebay.co.uk/itm/Hydraulic...t=LH_DefaultDomain_3&var=&hash=item3cbef95924



[24seven]

What part of the country are you in?

I live in Weston Super Mare near Bristol



[24seven]

Bloke in the gas place wants his a55 kicking !
If the thread in the reg is the same as the one that connects to the fitting you have on the black pipe then you just need a double ended fitting with that thread on. See pic of what I mean.
Gave up trying to figure how to add pic on this new software!
So Pic would have shown arrow pointing to the thread IN reg and the LARGER thread on the fitting held between your finger tips in last pic.
Can't help with size as I don't know what the thread is on a reg (probable 1/4" BSP) Somethink like in this link http://www.ebay.co.uk/itm/Hydraulic...t=LH_DefaultDomain_3&var=&hash=item3cbef95924

Nope the size of the connector is



[Wallace]

I have some 3/8" fittings, if you were closer we could have put something together to fit. If the nylon tube is 6mm bore the outside is likely to be 8mm bore so the brass fitting TIG Paul posted a link to in 8mm will do the job with a short length of rubber hose between the fitting and nylon hose. Welcome to the forum by the way!
