Shroud and Tip relationship?

[Johnsvan]

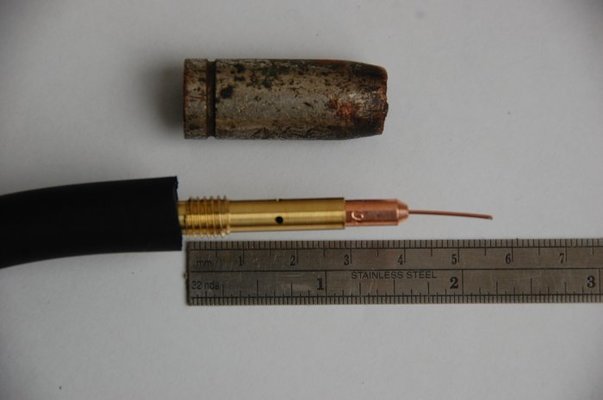

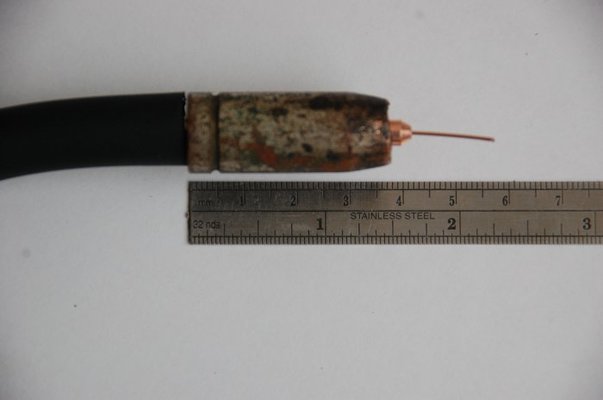

I have just fitted a new swan neck and tip on my new rusty old 100E Mk2 and this is the result:

1) Have Clarke changed the dimensions of these things?
2) Will a new shroud fix the problem or is the swan neck or tip of the wrong size?
3) What should the correct relationship be? flush? sub-flush?

Any help is much appreciated.



[Engineer]

It should be flush or just under............might be worth getting a new shroud as it might well be longer.



[Johnsvan]

Thanks - flush or just under

I was hoping someone could give me the length of a new shroud (or the one they have) before I buy one as I keep buying bits and have not actually managed a single weld yet :-(

The swan neck I bought (in a Clarke blister pack) is longer from the shroud thread to the end than the old one that came with the welder. The reason I bought the neck is because the new tips I got did not want to screw easily into the old neck... At this rate I will work my way back down to the welder and finally the 3 pin plug!! ;-))

Thing is, I don't know if the old one is original or not as it is second (third, fourth?) hand...



[Robotstar5]

Just measured the shroud on 151TE, it's 45mm overall



[Johnsvan]

Many thanks Rob,
My one is only 37mm! I'll buy a new one then.

One of the previous owners must have changed the swan neck or maybe Clarke have changed the design.

Cheers :-)



[gavuk]

I think Clarke and sealey and sip shrouds are interchangeable (thread size ) but are different lengths.....wouldn't be the first time i'm wrong though



[shenion]

I picked up a Tweco shoud for my MiniMIG gun. Clarke copied the Tweco design. It screws right on but is short. Same for the Lincoln shroud.

Probably not a Clarke shroud; pick one up they are not expensive.



[Johnsvan]

Thanks guys, got one on order. I hope this is the last thing.

So far:
Wire liner, swan neck liner, swan neck, tips, shroud.
Mini gas regulator + 2 disposable bottles - RETURNED!
Proper Argon twin gauge reg + 1 large bottle of Argon mix + gas pipe adaptor. Oh and Mask and gloves.

Fingers crossed...

Found a great gas supplier BTW: http://barnet-welding.co.uk/

Did me a right favor so recomended :-)
