Well I finally finished a long running project this week. I was asked by a friend if I could assist him in making a bicycle powered pyrography machine. The idea being that it's taken to shows and people pedal it while someone else writes their name in some wood. Don’t ask I just make the things

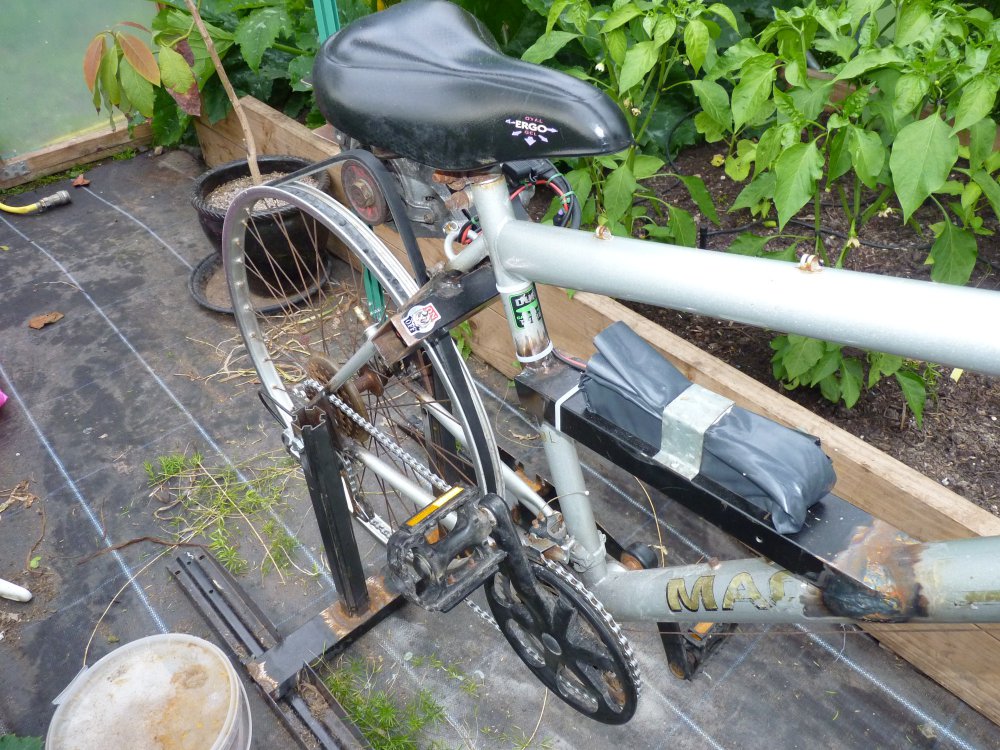

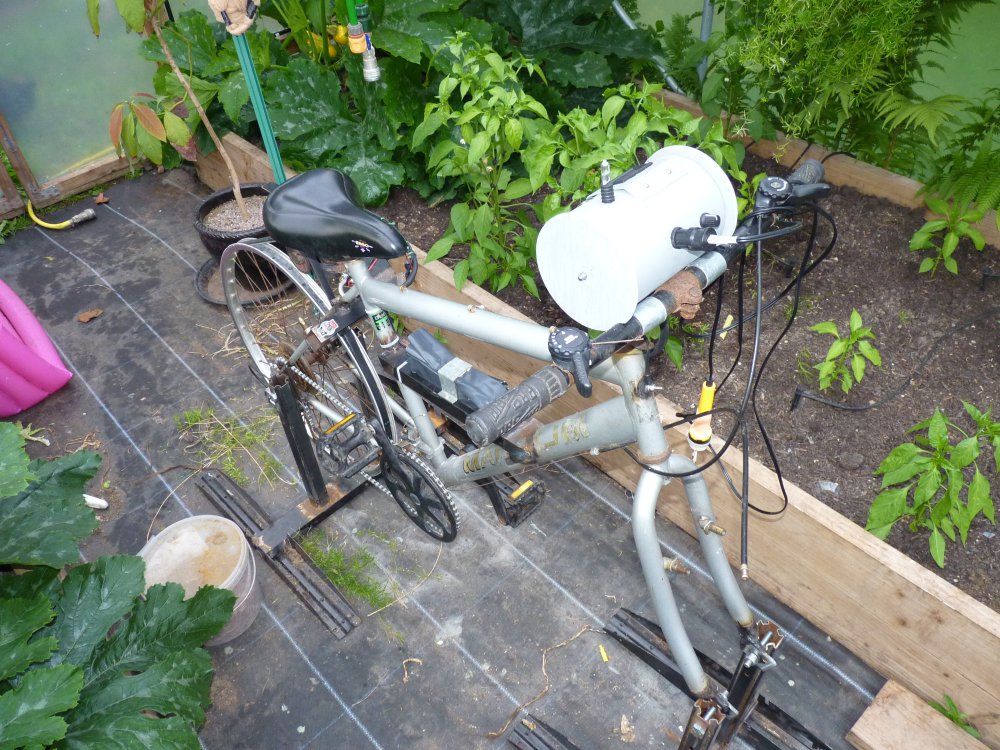

I didn’t really take many photos during construction but here’s some of the finished item.

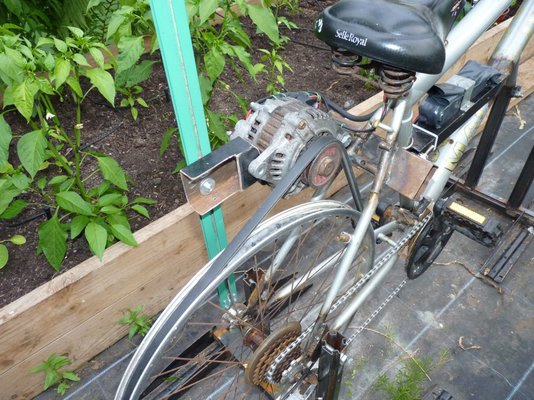

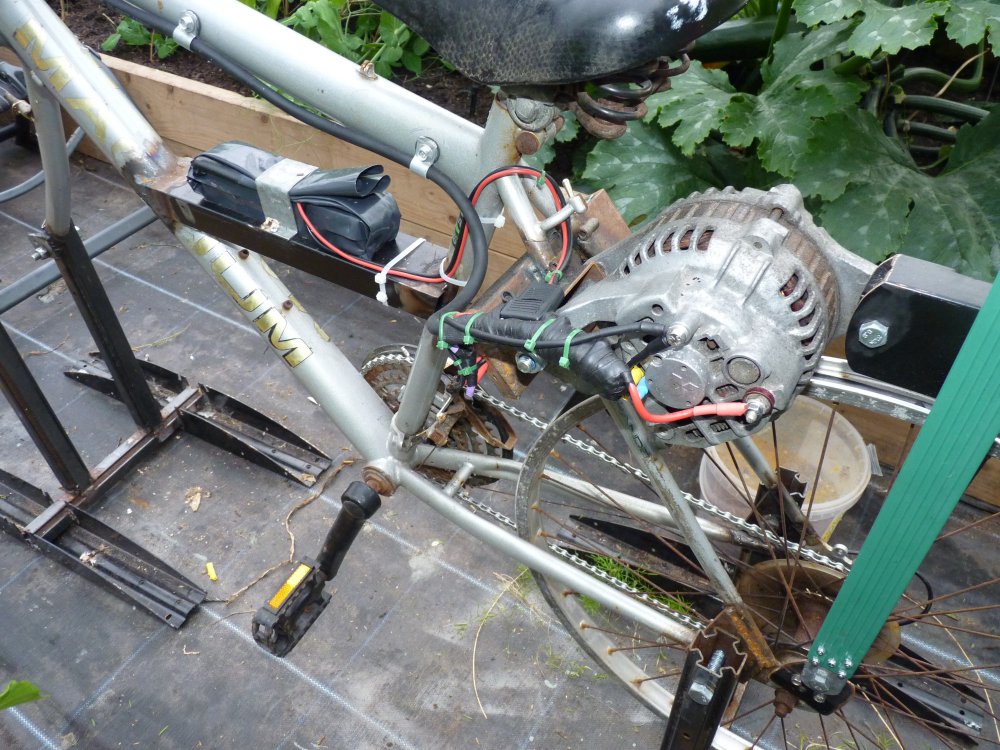

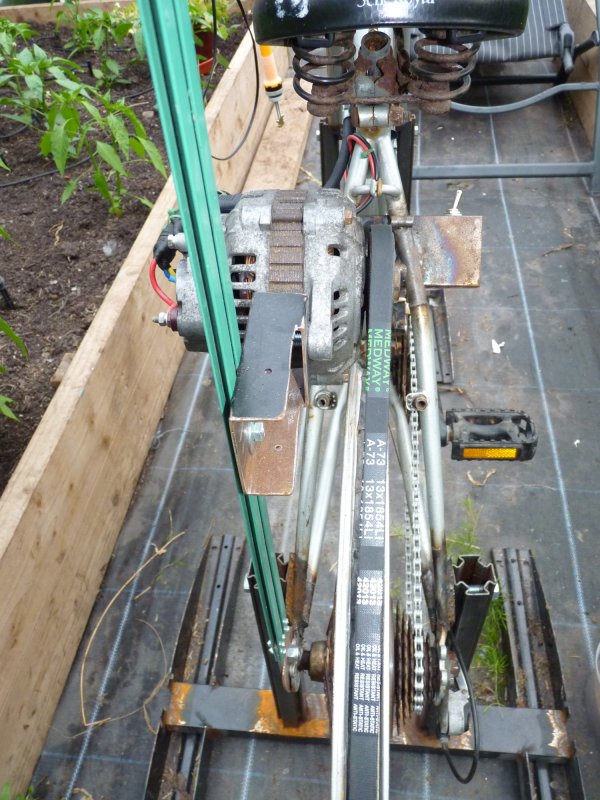

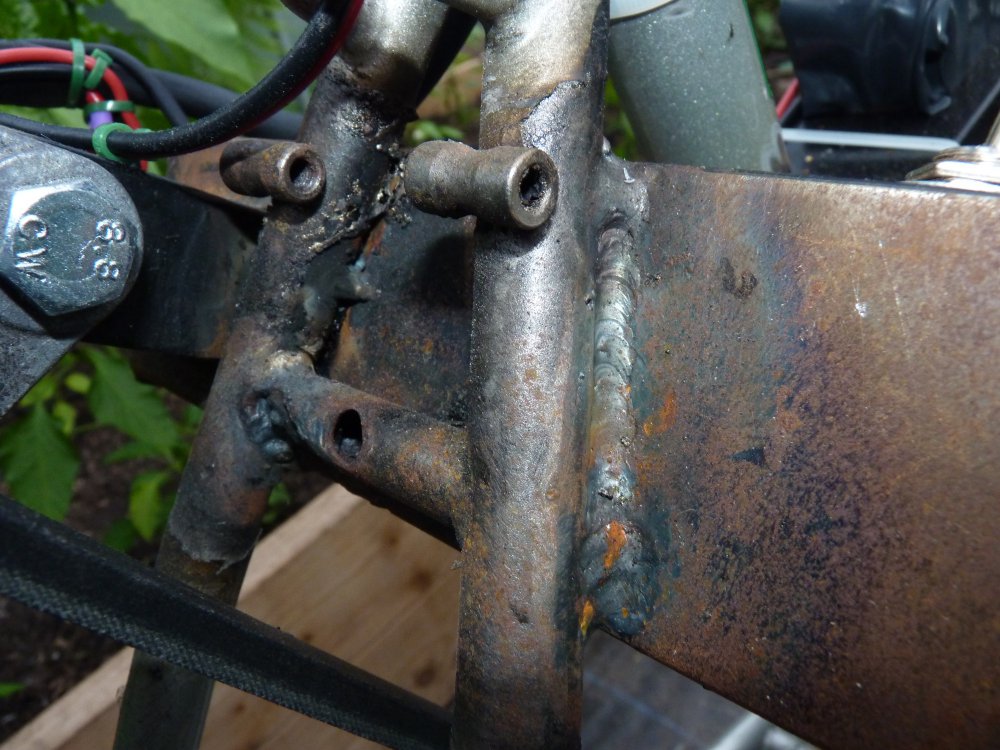

A closeup of the charging system and tensioner.

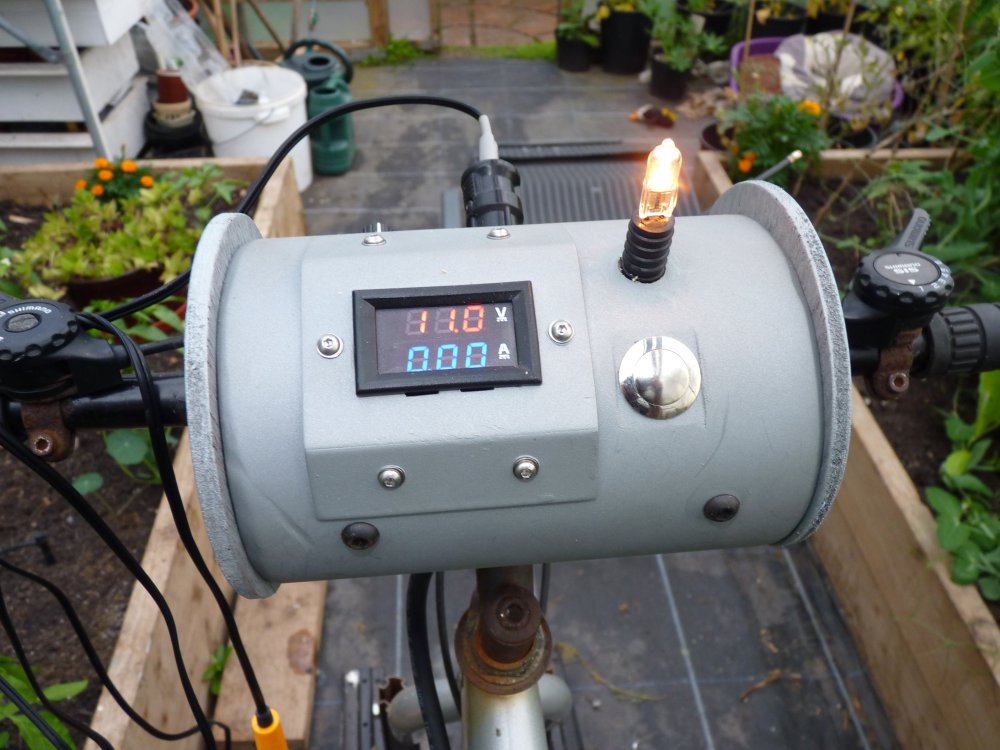

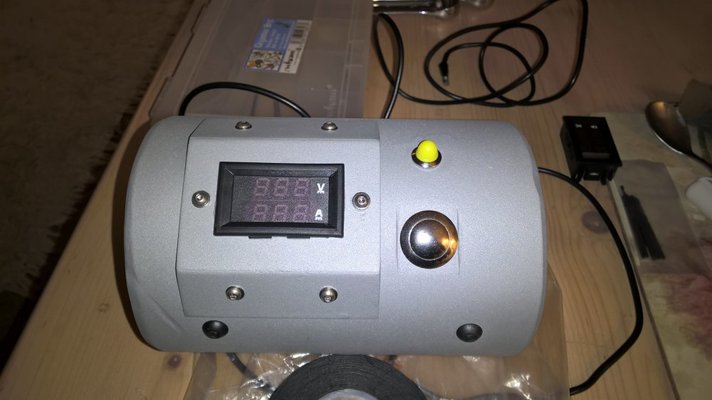

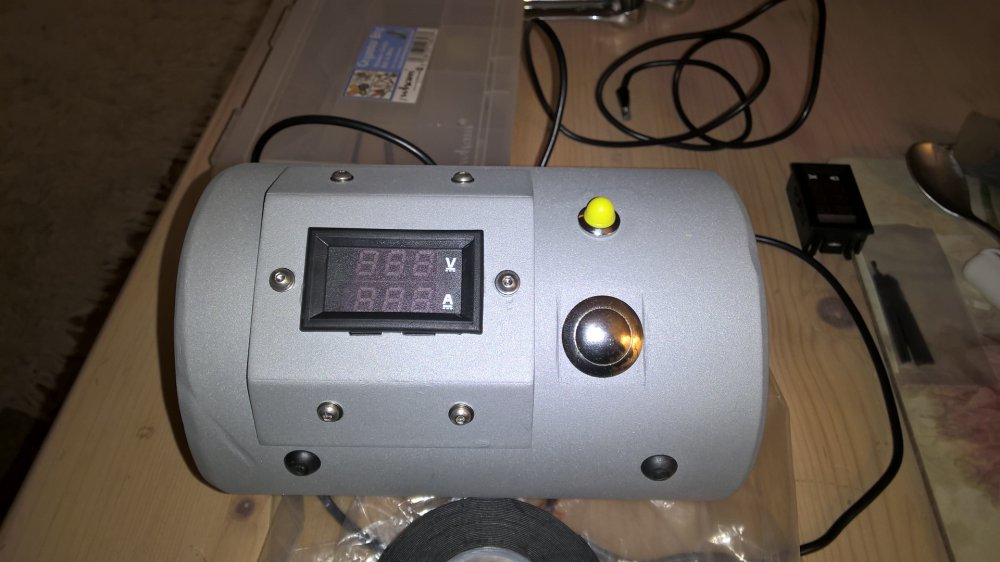

Front panel showing resting voltage – I need to charge it up! Note the redesigned light from an indoor water feature thingy - turns out the original SES 1W bulb was barely visible in ideal conditions so the new bulb is 5W and much better!



[eSCHEn]

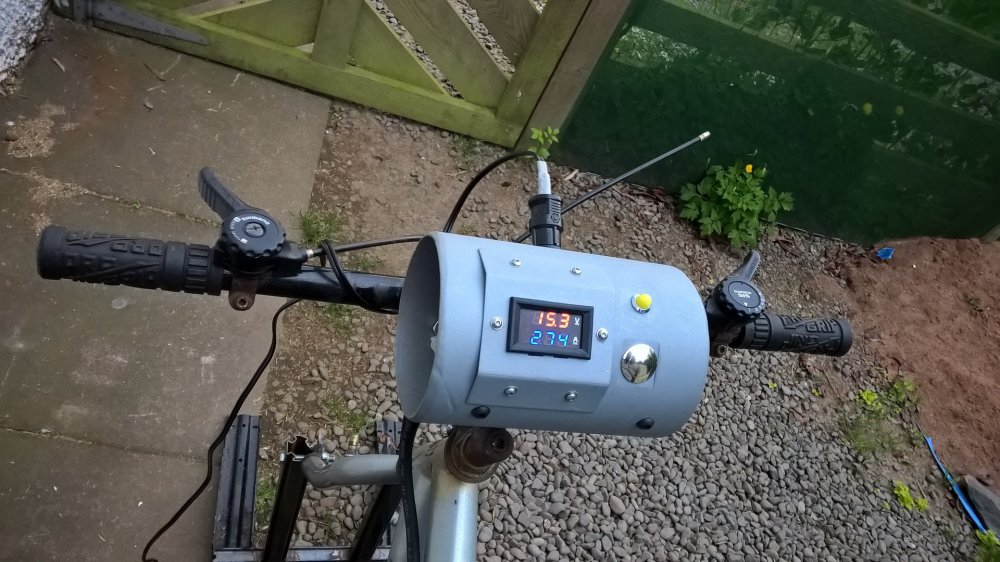

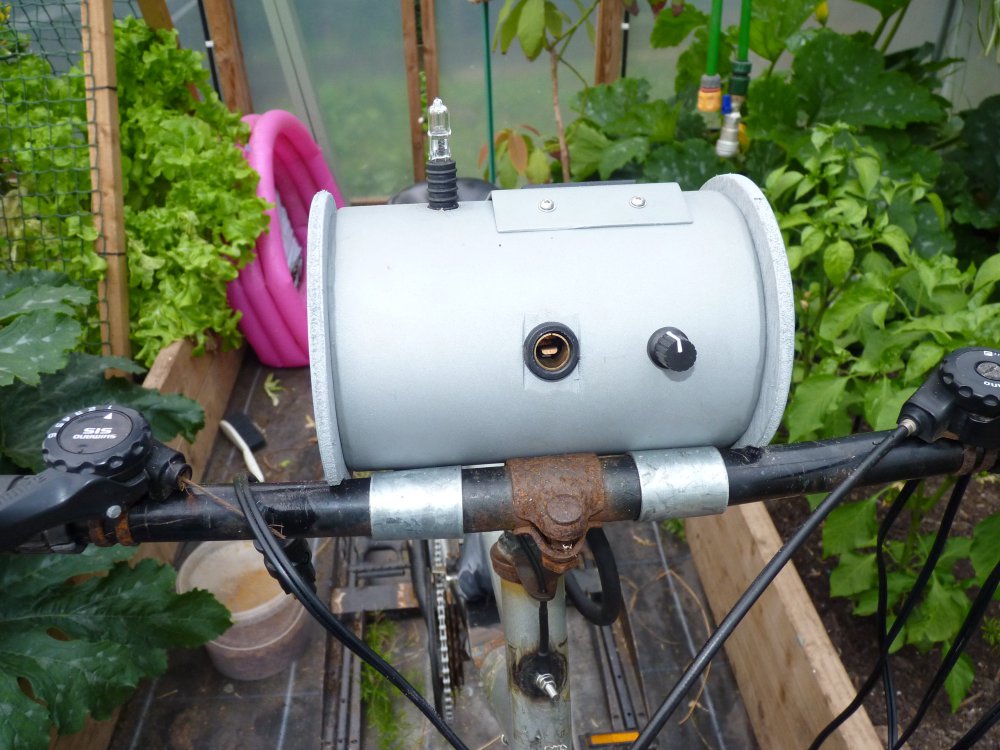

Some front panel shots and one of the load produced.

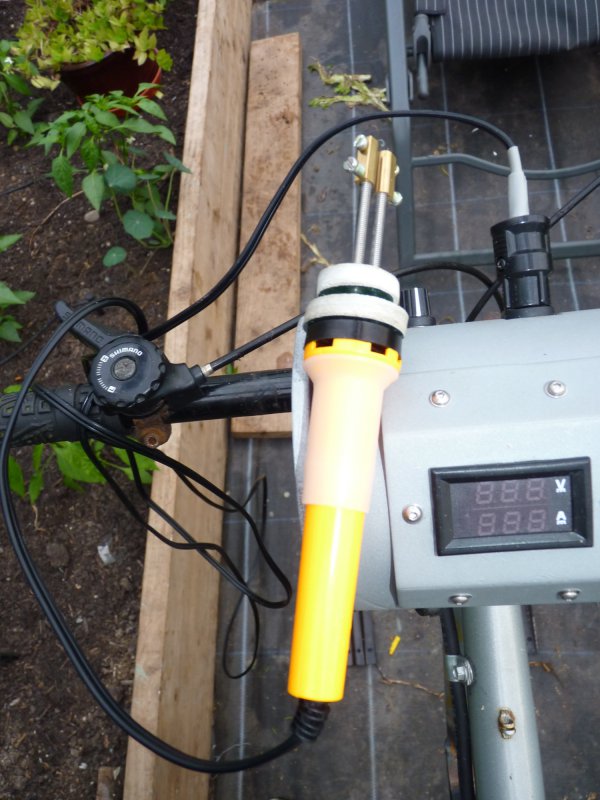

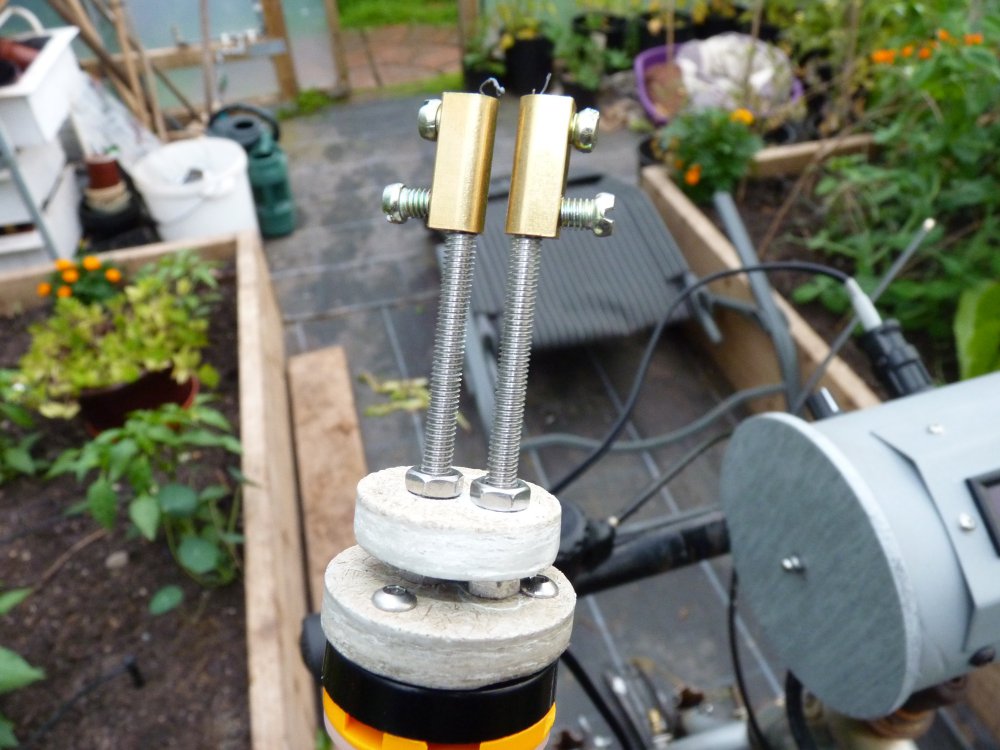

Here’s the repurposed soldering iron to hold the nichrome wire. It’s about 2” long and 28 AWG. Takes about 1.2A to run it nicely.


Ooops. 2.5A is too much!

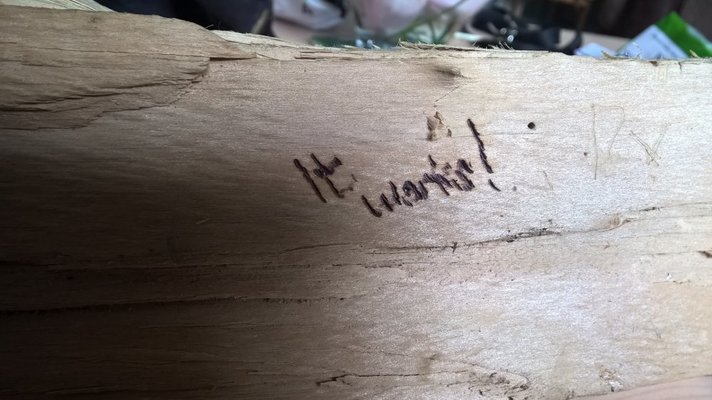

All for this end result

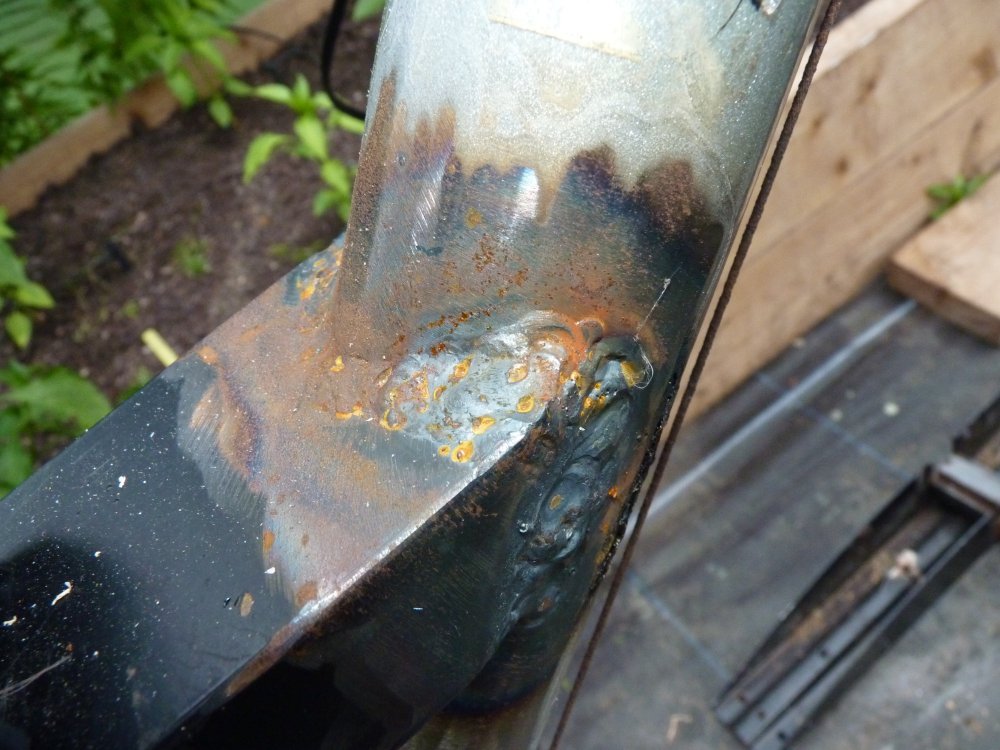

Finally some of the “welds” I did. Bear in mind I’m doing this as a favour for a mate and getting nowt but parts and consumables In other words BE KIND :*
