Punching slots in 10mm flat bar

[Irongardenartist]

I have been having my 10mm x 40mm flat bar punched through a local guy. However he is moving to a different county and aside from that I would like to do my own punching of the slots. Currently 10mm x 27mm and a 22mm round. I have a good plasma cutter but I know that punching is a better option. Looking for something that is portable.



[Mick Annick]

That’s a job for either a very big fly press or hydraulic punch, neither is cheap nor particularly portable.

Edited!



[Morrisman]

That’s a job for either a fly press or hydraulic punch, neither is cheap nor particularly portable.

It would take one heck of a big fly press to punch 10mm steel.

In the distant past I’ve done such jobs on electric punches, pre war type stuff, huge flywheel and weighing several tons.



[8ob]

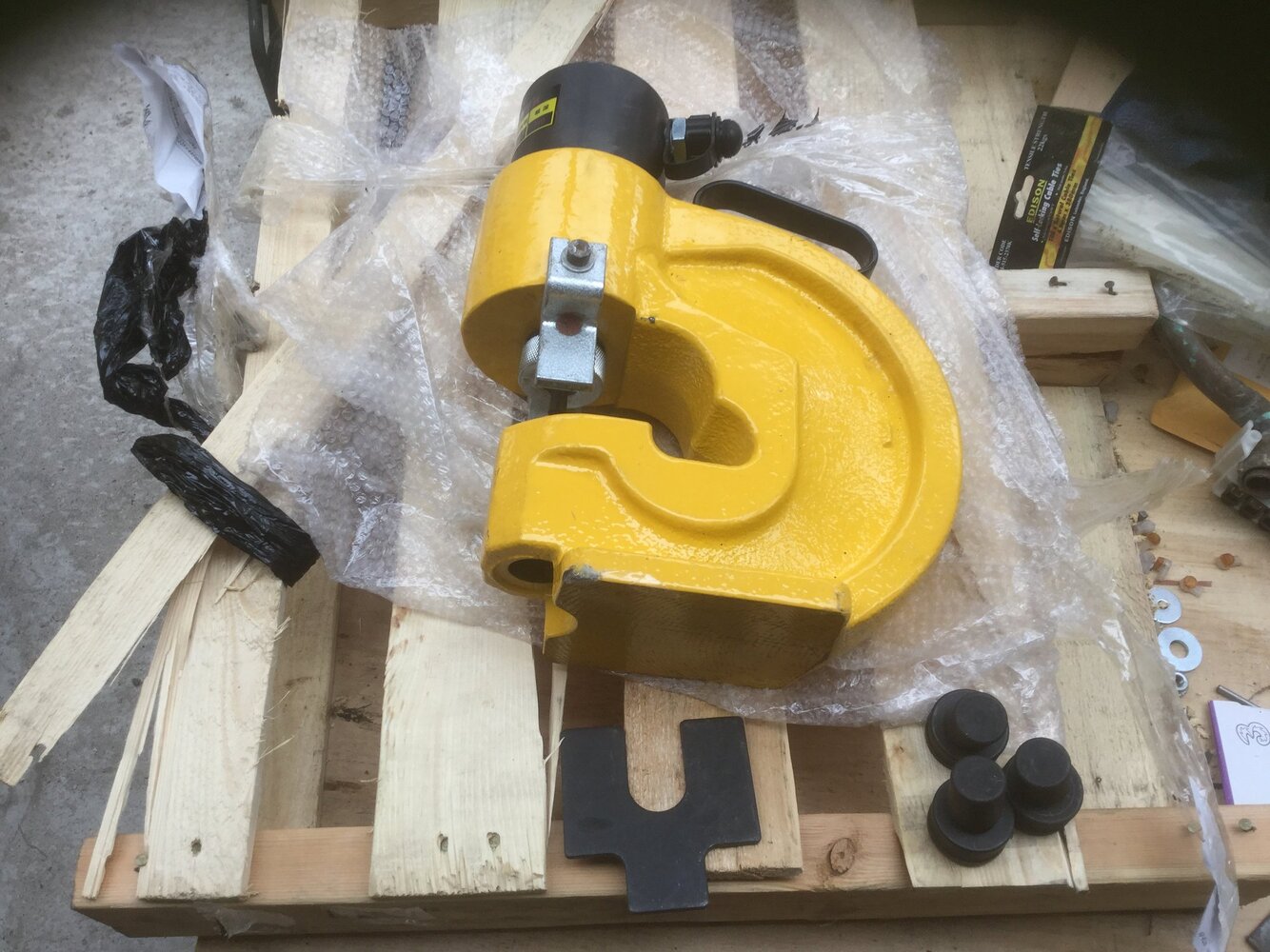

Not 100% sure of the capacity but I think the portable one I purchased would do the job.They are not expensive on aliexpress,may take a while to get here.

Bob



[Mick Annick]

What are you making? I use a fair bit of punched 40x10 but buy it in and adapt to the job as needed.

Not 100% sure of the capacity but I think the portable one I purchased would do the job.They are not expensive on aliexpress,may take a while to get here.

Bob

View attachment 515099

That’s what I had in mind.



[Agroshield]

Did you ever have a chance to look at the machine the guy is using to see what size it is?

What is your budget? What power source wil propel the machine?

How many holes/slots do you need at a time?

This machine, which has the ability to do what you want, is in the 60 tonne class:

Ironworker IW-66 | Compact & Powerful | DIMAKIN UK

The IW-66 offers 66 metric tons of power with 5 stations for punching, shearing, and notching. Compact, precise, and efficient. 24-hour UK delivery.

dimakin.co.uk

Hence, if it takes that much force to do the work in a static machine, that is the level (strength/capacity) of portable machine you need to look for.

This is a top brand comparable example in "portable", similar to the one shown by 8ob, although at 116 kg, that slightly overloads the credibility of the definition.

SP50100

SP50100, 490 kN, Punch and Die Set

www.enerpac.com

Note also that you need a pump (hand powered or electric) to push the oil into it, which is bought as a separate item.



[wyn]

Estate fencing?

I saw a while ago that uprights for estate fencing were available with the holes punched ready.
These were cheaper than I could buy the steel.
If I were doing anymore I'd go this route saves the time making the holes.

The only trouble is the rail spacing seems wide on a lot of Estate fencing and they won't keep sheep in.



[xillent]

I got all my punched flat bar from Tunley Rod, if that helps. They were excellent.

Fencing | Tunley Rod

Supplies many of the leading fencing accessory companies and also fence, gate and wrought iron manufacturers

www.tunleyrod.co.uk



[fizzy]

Did you ever have a chance to look at the machine the guy is using to see what size it is?

What is your budget? What power source wil propel the machine?

How many holes/slots do you need at a time?

This machine, which has the ability to do what you want, is in the 60 tonne class:

Ironworker IW-66 | Compact & Powerful | DIMAKIN UK

The IW-66 offers 66 metric tons of power with 5 stations for punching, shearing, and notching. Compact, precise, and efficient. 24-hour UK delivery.

dimakin.co.uk

Hence, if it takes that much force to do the work in a static machine, that is the level (strength/capacity) of portable machine you need to look for.

This is a top brand comparable example in "portable", similar to the one shown by 8ob, although at 116 kg, that slightly overloads the credibility of the definition.

SP50100

SP50100, 490 kN, Punch and Die Set

www.enerpac.com

Note also that you need a pump (hand powered or electric) to push the oil into it, which is bought as a separate item.

Those iron workers are incredible. We have shipped several Kinglsand ones for customers - they seem the best and British - or used to be.
A 60 ton machine will shear 40mm diameter bar - scary stuff



[bourbon]

we used to punch 10mm holes in the rear cross members of trucks. We used a 1500ton press, and that is defiantly not portable
