Profile corner jig

[magnet]

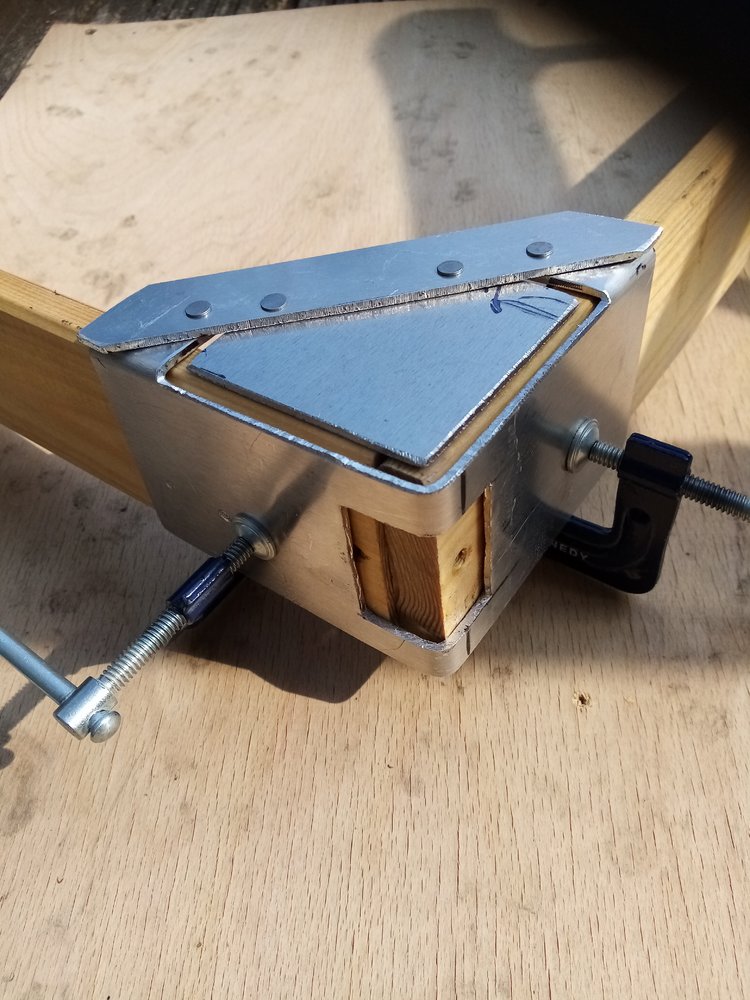

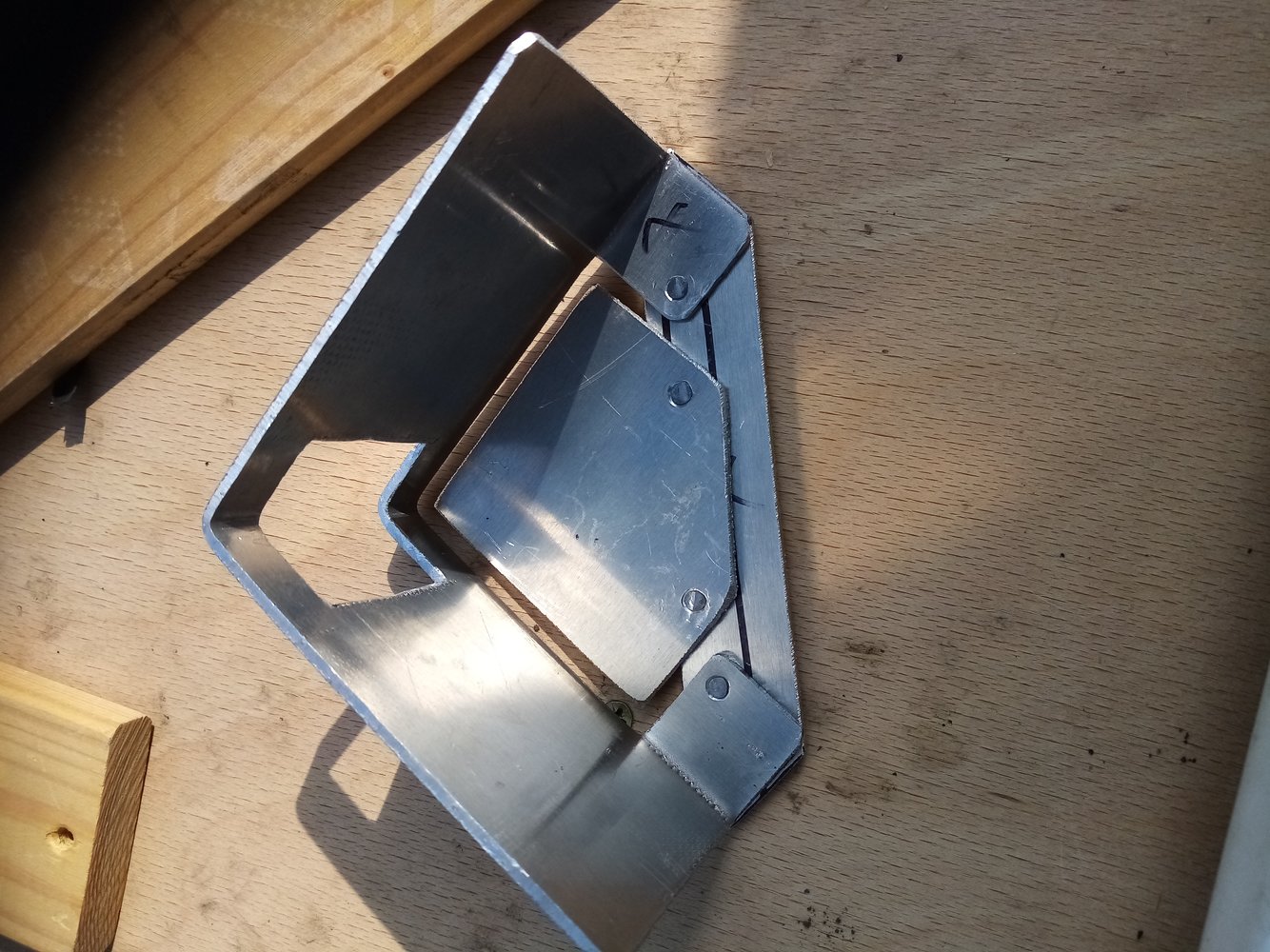

I've got a workshop base to set out for a friend. It will involve setting some profiles up. So to save a bit of time and hassle i made this jig to aid screwing them together. Keeps everything nice and square.



[Beanwood]

I've got a workshop base to set out for a friend. It will involve setting some profiles up. So to save a bit of time and hassle i made this jig to aid screwing them together. Keeps everything nice and square. View attachment 459177View attachment 459178

Have you checked it's actually 90 degrees ?





(Nice job!)



[magnet]

Have you checked it's actually 90 degrees ?





(Nice job!)

Aye......Well its near enough for pit work!



[magnet]

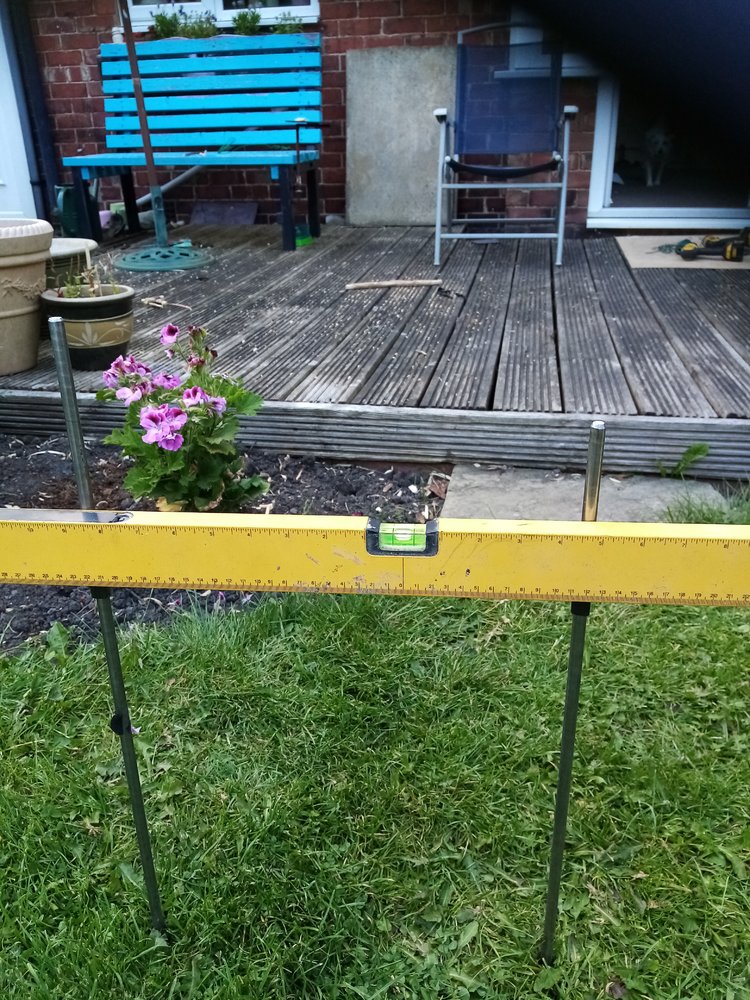

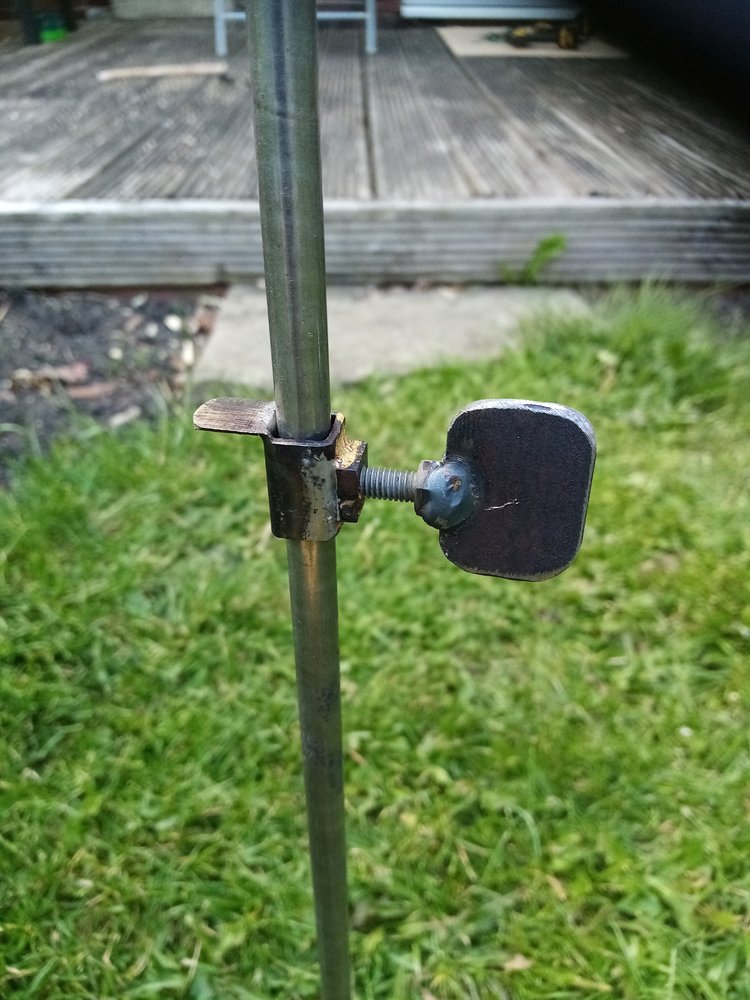

I made some of these adjustable stops to fit on my pins for transferring heights/levels. The pins are 10mm bar and the stops half inch box section with a 6mm nut brazed on. All out of the scrap at work



[Parm]

I made some of these adjustable stops to fit on my pins for transferring heights/levels. The pins are 10mm bar and the stops half inch box section with a 6mm nut brazed on. All out of the scrap at workView attachment 459192View attachment 459194

Very clever idea



[magnet]

I made this water level out a couple of large syringes and a length of garden hose. I'll be using this leveling the base for the workshop



[gaz1]

for external your jig is wrong as it dosnt square the ends correctly and steps them

however for internal its right so use the clamps from the internal side



[magnet]

Ok chief ...... Cheers

I've got a workshop base to set out for a friend. It will involve setting some profiles up. So to save a bit of time and hassle i made this jig to aid screwing them together. Keeps everything nice and square. View attachment 459177View attachment 459178

This was a complete white elephant. It can now reside in the heroic failures pile. Oh well you live and learn. The rest went swimmingly.
