M19 x 1.5 Thread Data

[Onoff]

Evening,

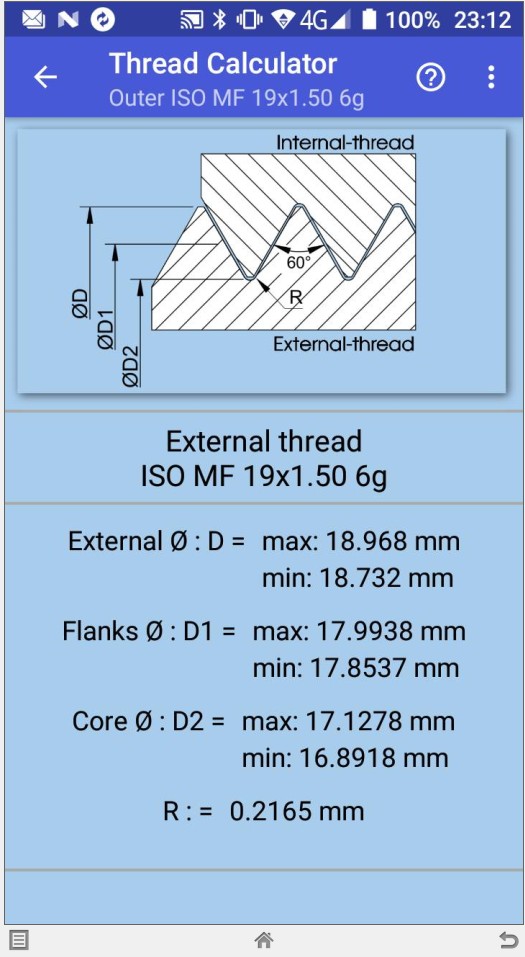

Would anyone have a link to M19x1.5 thread data? I've seen M19x1.6 go/no go rings but am after the data. Want to 3D print some custom dash cam mounts to do away with the suction cups.

Cheers



[Hood]

This what you are after?



[Pete.]

Wouldn't that be a 3/4" 16tpi?

3/4" UNF - metric equivalent 19.05mm 1.5875mm pitch.



[hotponyshoes]

I have only done a couple of 3d printed threads so far but I kind of invent my own dimensions based off the sort of thing above. I find a square/flat root and peak at half the nozzle dia seems to print best.
I have only been doing blanking covers and stuff so far rather than anything functional.



[Hopefuldave]

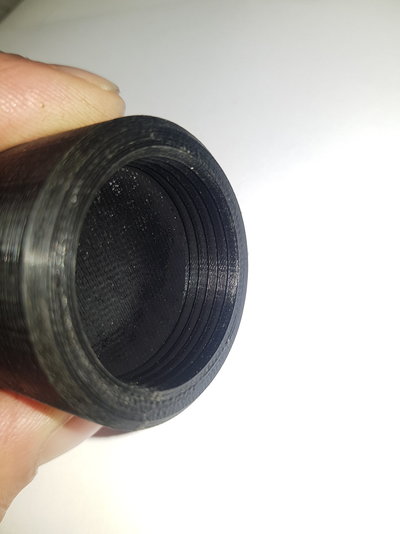

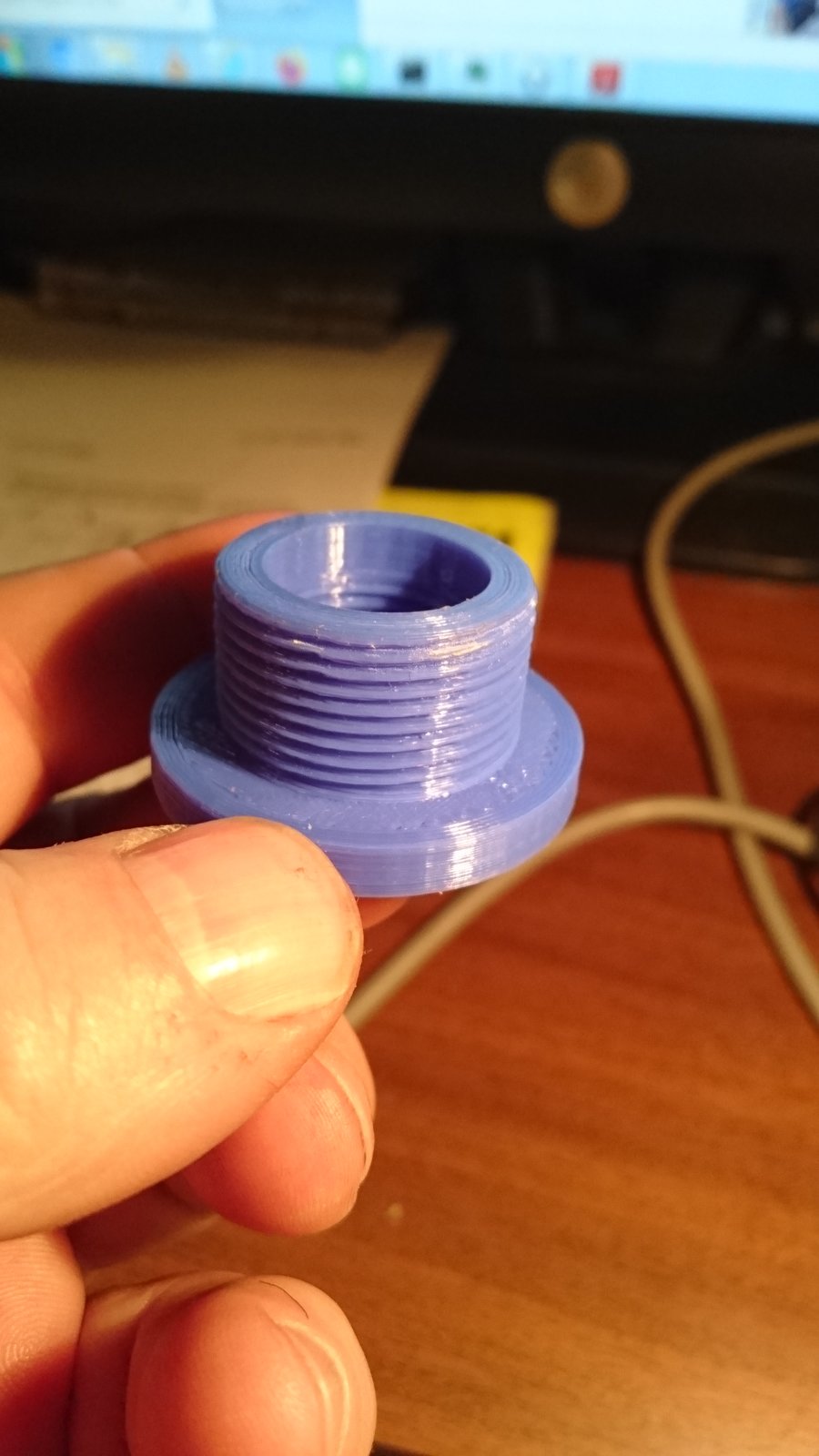

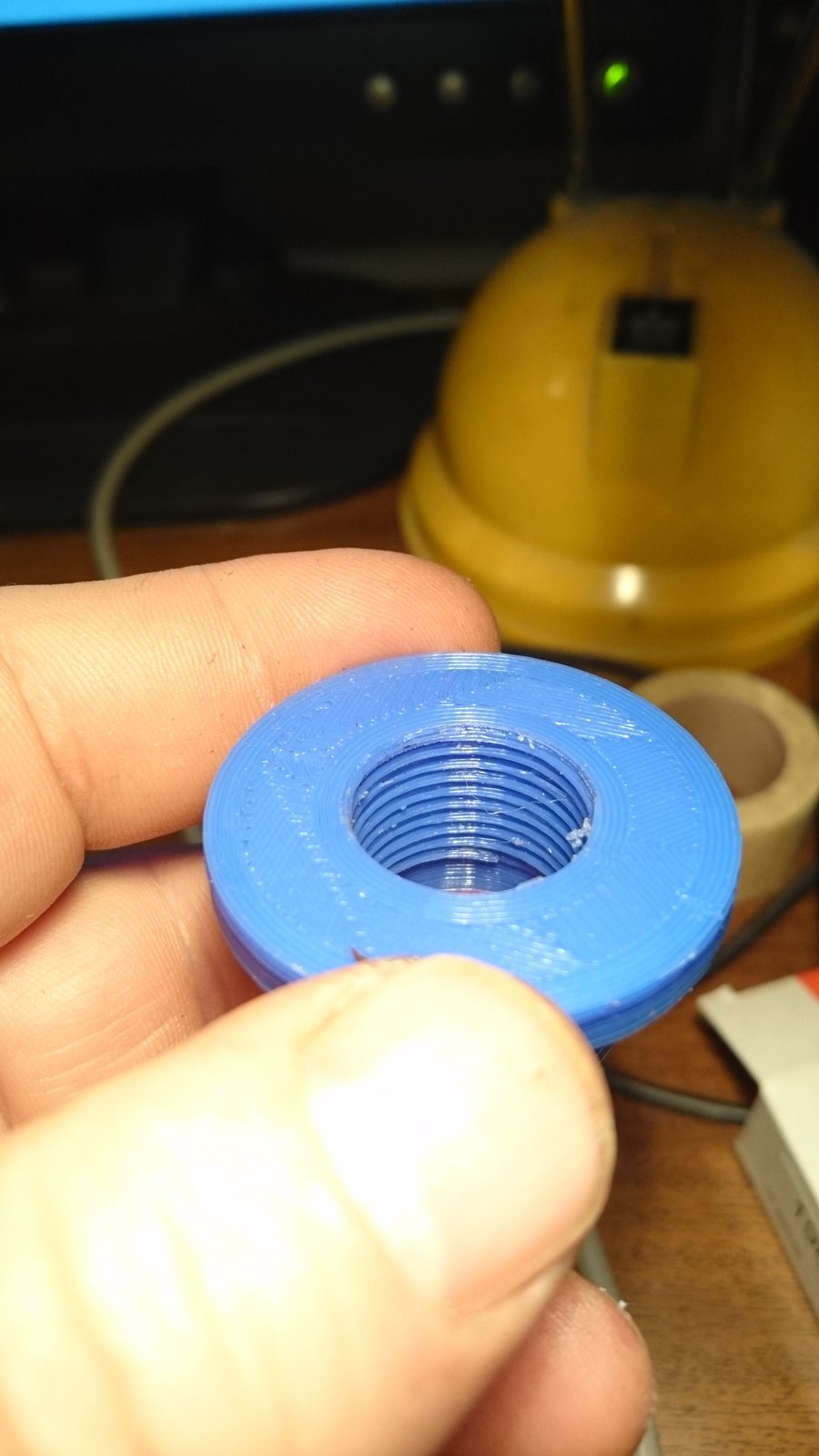

I've been printing threaded bushes etc. for a while (e.g. M20x1.5 to PG21 etc.), I have to slightly enlarge internal threads to get them to fit - it may be my printer, it seems to be about 1% undersize in X and Y (although Z's fine, so thread pitches come out right).
Go with the smallest layer thickness that produces a print before you give up in disgust, 0.1mm gives nice-looking threads with convincing profiles of 1.0 - 2mm pitches.

I use a proper cad package (TurboCAD Pro) to generate my stl files and Repetier to render to G-Code, so as long as I'm happy with 60-degree threads it does it for me (Whitworth I have to do a "helical sweep" of the 55-degree form at the diameter and pitch I want, a right pain).




Dave H. (the other one)



[Onoff]

Cheers all. Woke up this morning and my lad seems to have sussed it judging by the prototype left next to the printer. It's only to make a better mount for a cheapo dash cam. I'll post pics as it progresses.



[hotponyshoes]

I normally print a 10mm or so test ring to check the thread. If it's too bi or too small I scale it in the design software. Once correct I build the rest of the model around it.The slicer software also has a scale function so if I print a model and it's too tight I normally find scaling up or down by 2% is fine but that obviously scales the whole item not just the threaded part although it would not be an issue for the bits i have done so far.



[Onoff]

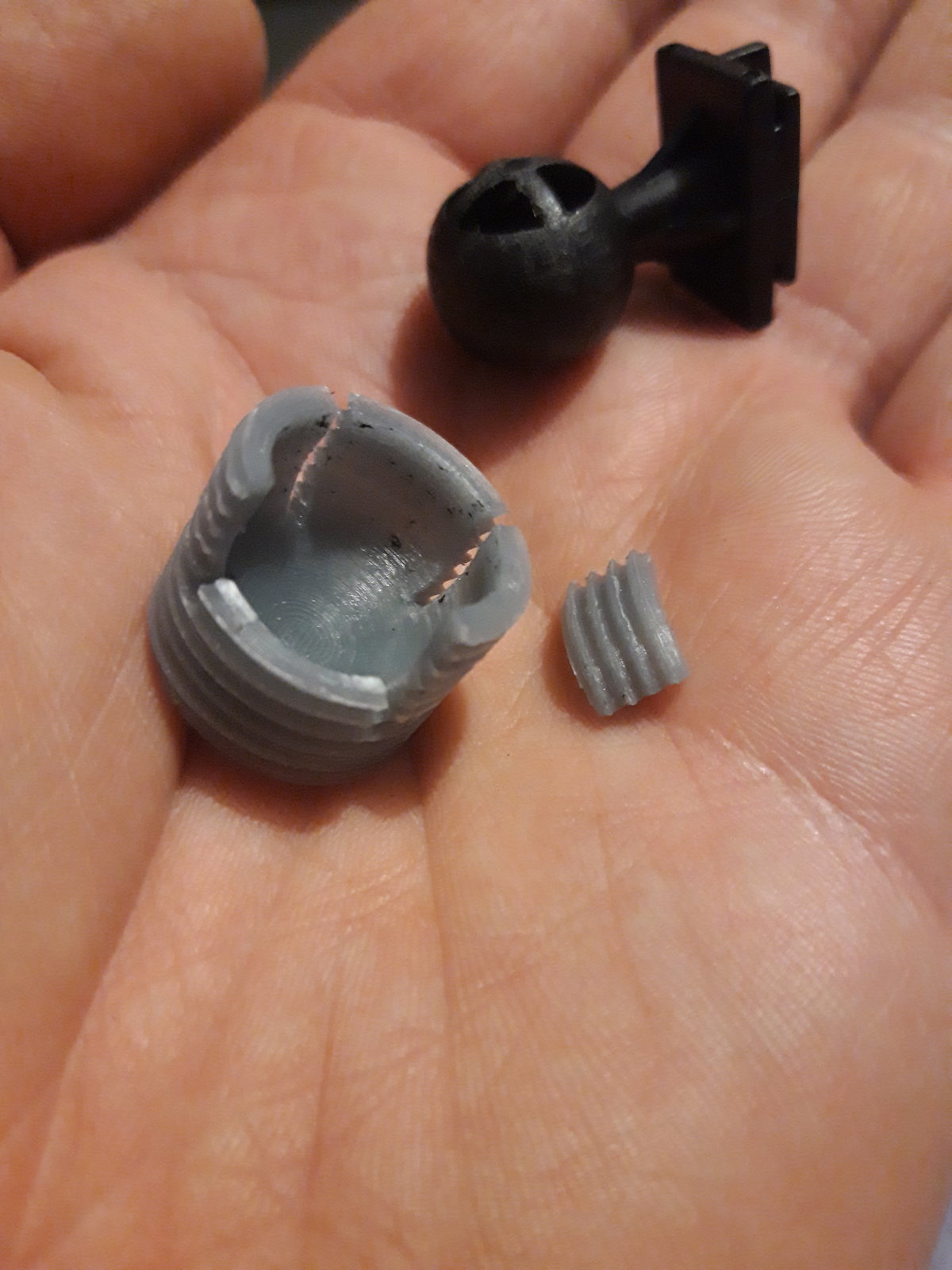

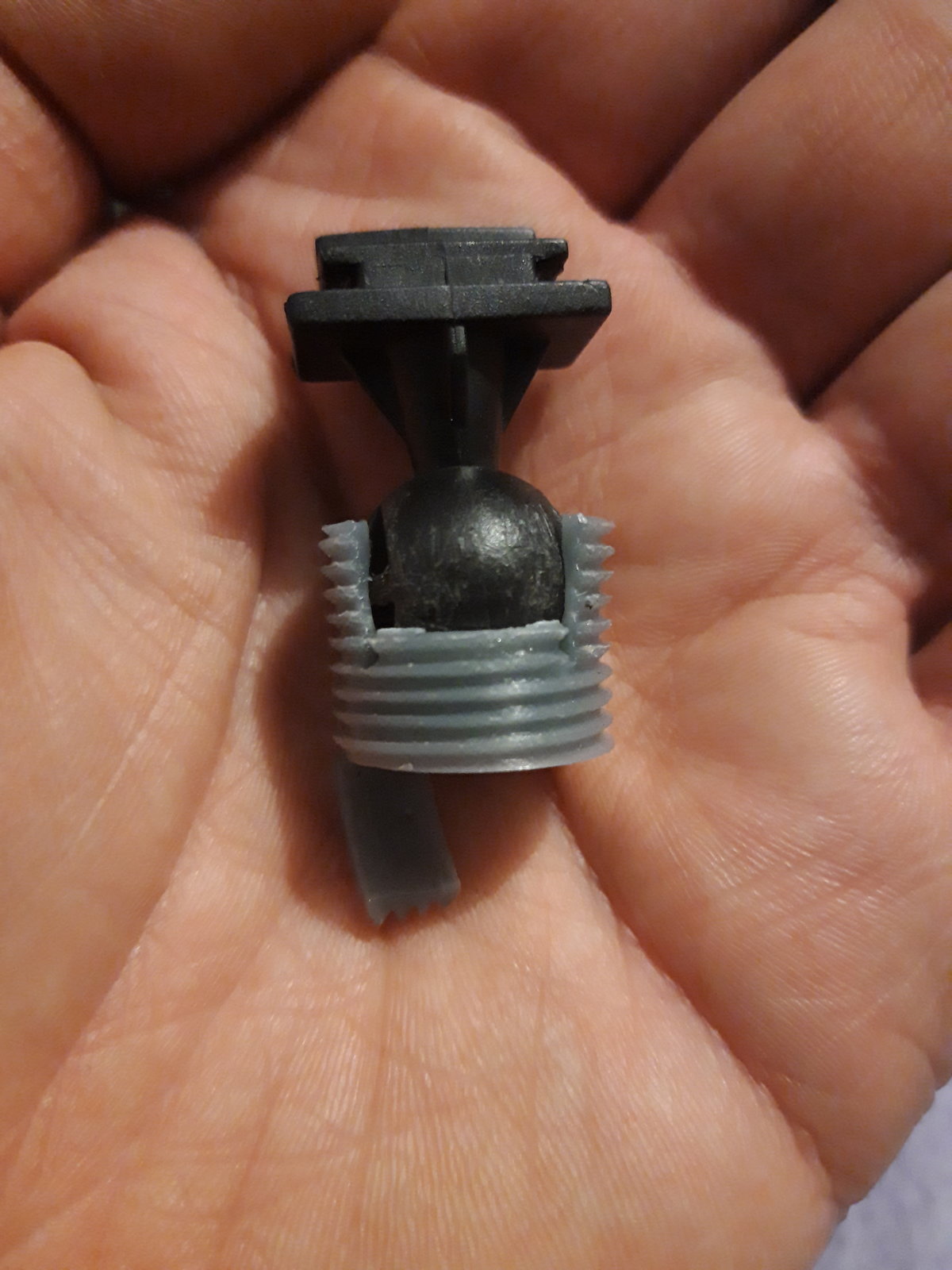

@Pete.'s UNF seemed to be the one. Printed with the spherical hollow but thinking a bit tight - it snapped! I think tbh the hollow for the sphere needs to be a tad smaller. Only done in PLA so far. Won't be any good in the car in Summer mind. Try again!



[garethp]

@Pete.'s UNF seemed to be the one. Printed with the spherical hollow but thinking a bit tight - it snapped! I think tbh the hollow for the sphere needs to be a tad smaller. Only done in PLA so far. Won't be any good in the car in Summer mind. Try again!

View attachment 213264

View attachment 213267

One of my mates had similar issues with the same joint type snapping, changing from PLA to PETG was the solution as its got a bit more flex to it.



[Wedg1e]

I did a 2" x 12 tpi in ABS to plug the nose of an artillery shell and it worked once I'd tickled it in the lathe - it was a bit on the tight side to start with and I thought it'd shear. Good fun trying to pick up the root with the threading tool (big magnifier...).
