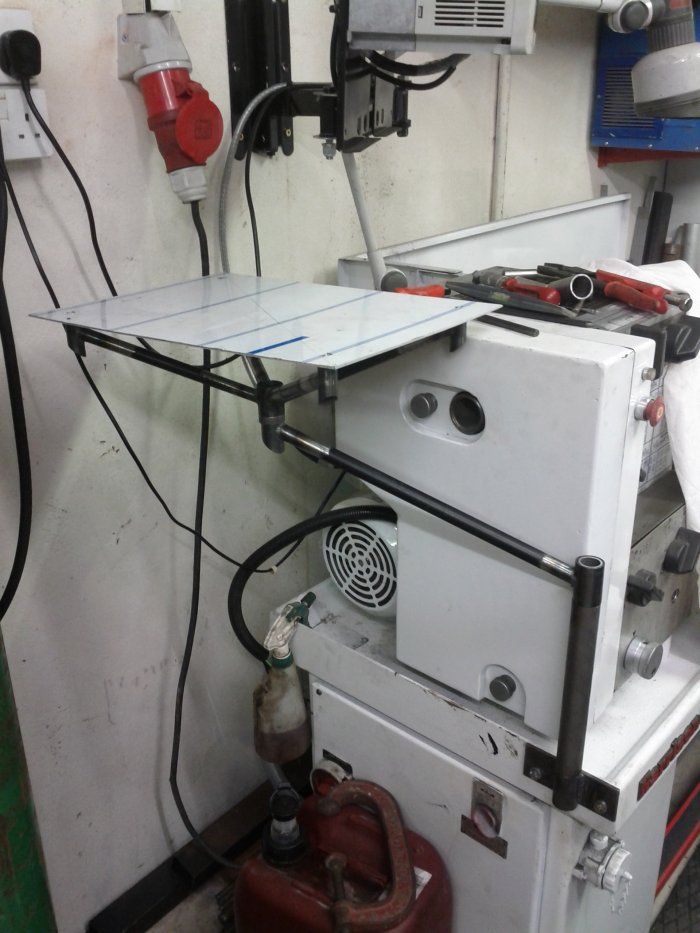

Fed up of all the clutter on the head stock I decided I needed a small table to put tooling etc, that I could move out of the way when not in use.

At first I was just going to use a TV wall stand, but the old CRT type are like rocking horse ****. So I built one instead.

Ooooh hang on: the butler informs me my bath is ready.

Pictures to follow

Now where's ducky



[FranV8]

Um, like the idea of the tooling table, but not the idea of you in the bath! Look forward to seeing the pictures. (OF THE STAND)



[Shox Dr]

You never know Fran

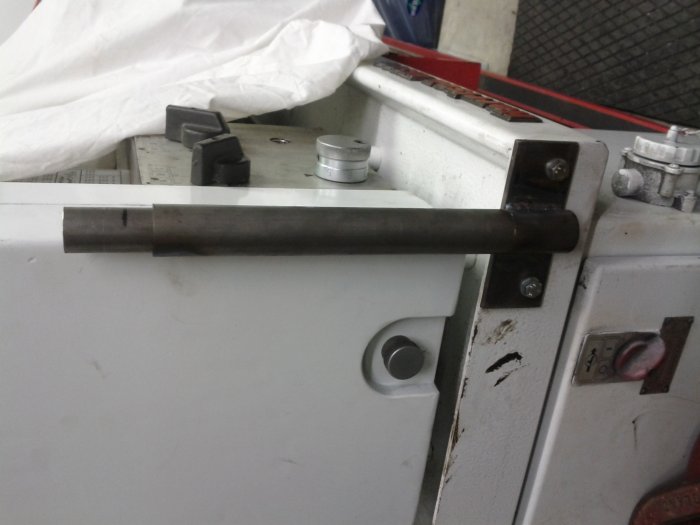

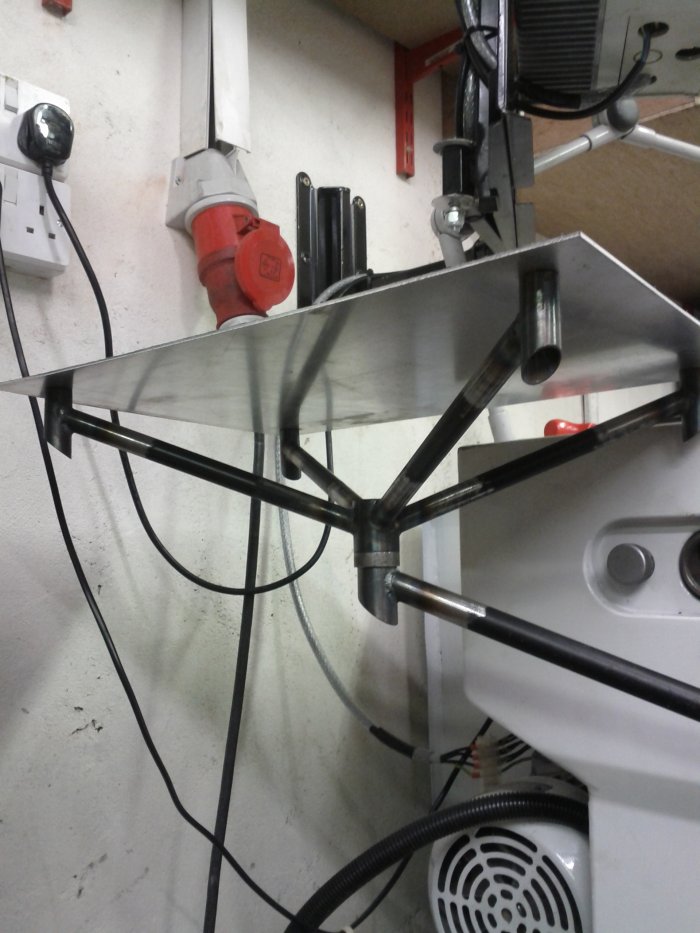

Started off by welding 4 6x20mm service washers to some .09mm toob I've had for yonks. These were then welded to 4 legs same wall but 17ishmm. In turn welded to some 37.2mmx2.6mm (1 1/4") CDS this sits on a spigot I usually use to butt the 37.22mm with. and again to the upright fixed the the lathe bed. The lower spigot was rosette welded to the upright.



[Shox Dr]

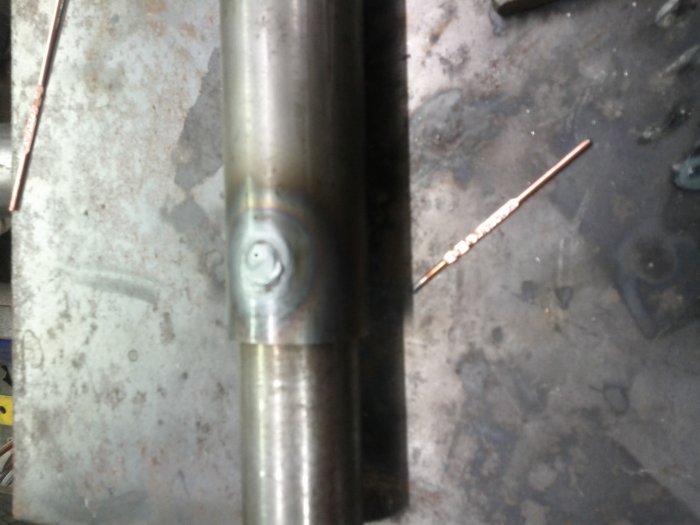

it the last picture the tube looks to be massive in relation to the filler wire, it's a bit of 1.6mm (I get my moneys worth)



[Shox Dr]

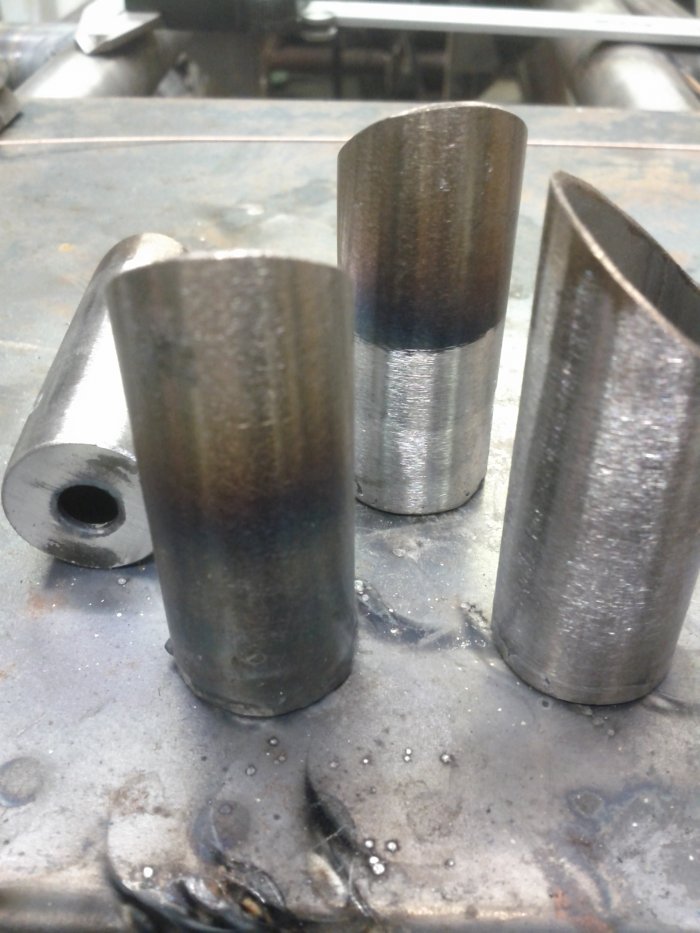

The small tubes were a loose telescopic fit (unlike the CDS) so worth keeping for the last umptine yrs It cleaned up well but was not easy to weld, I used some A18 .6mm MIG wire for table and 1.6mm A15 for the rest. All on the pedal.

er just realised I haven't got any picture of that stage so this is how it turned out



[Shox Dr]

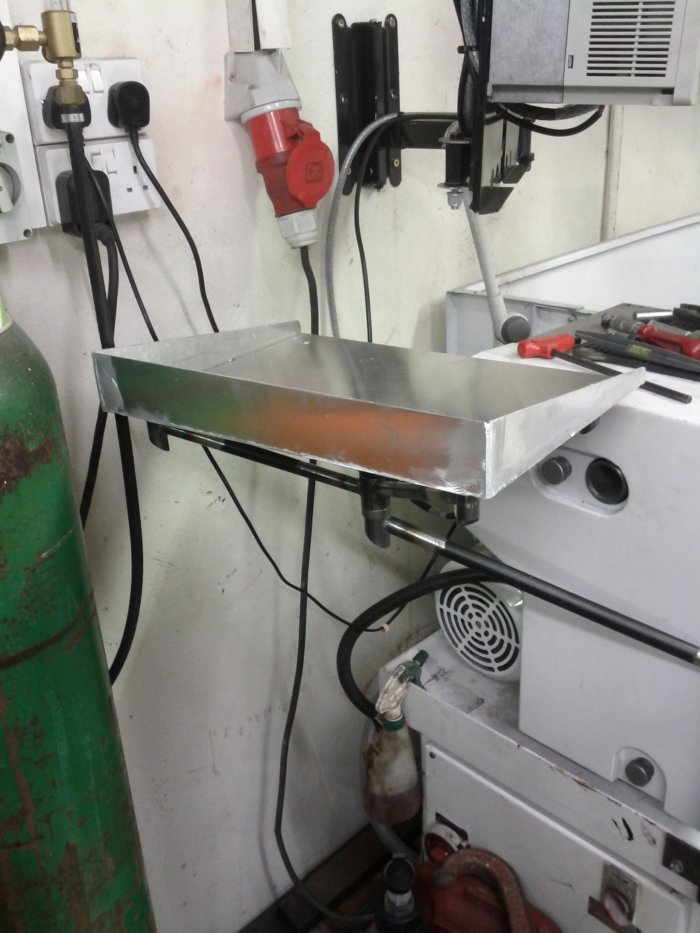

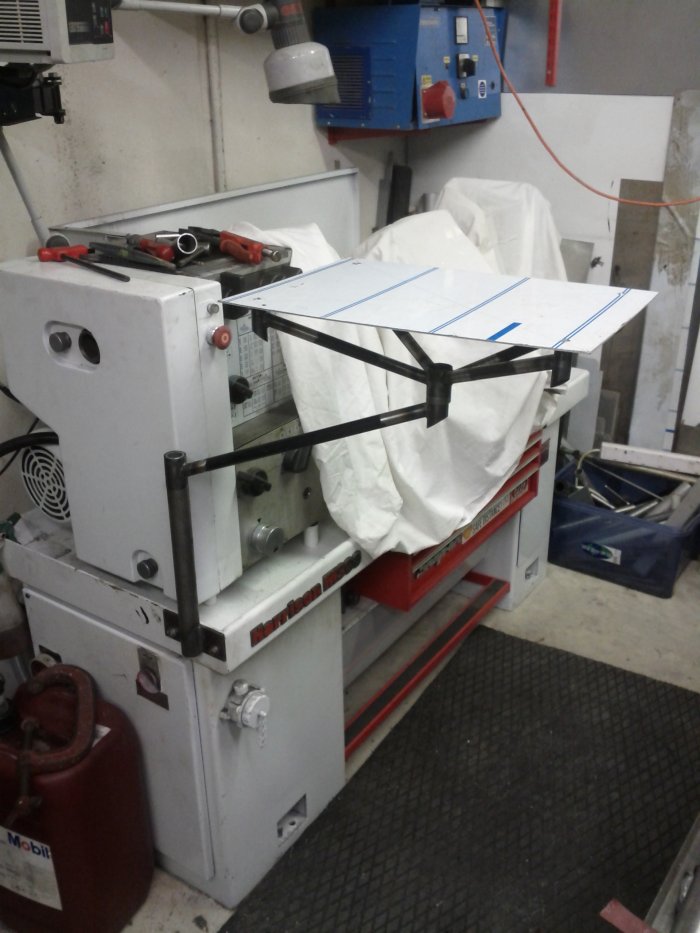

Top is some Ali sheet 440x320mm. It was welded for the most part autogenously, it needs no strength it was faster, and I'm not one for chasing dimes.

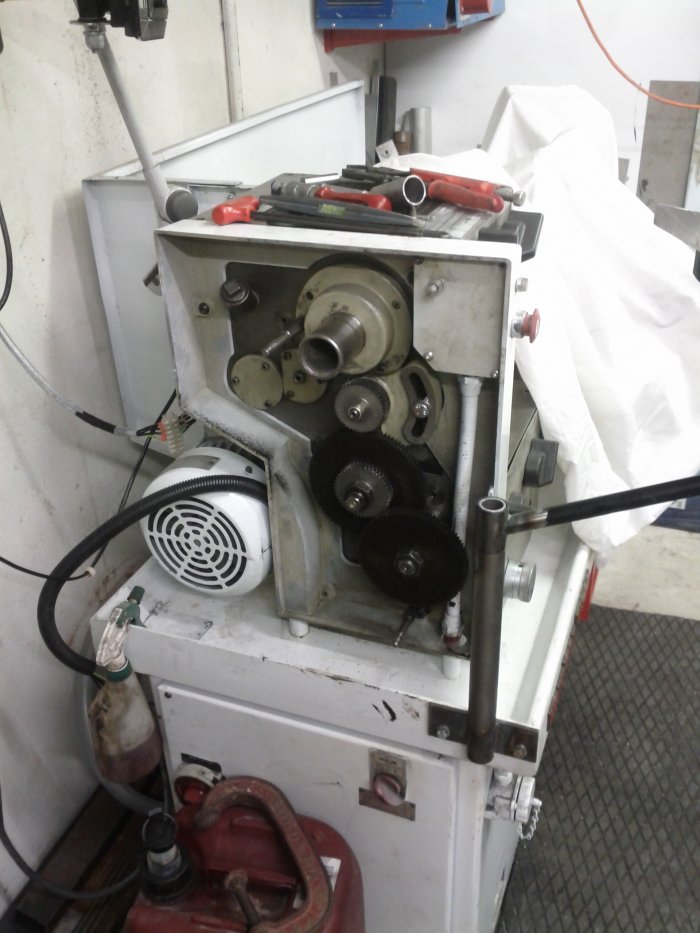

Oh and I made sure you can still remove the end cover for weekly serving and gear ratio changes.

I'll strip it down tomorrow blast it, and give it a few coats of the same stuff the lathe is painted in. Appen it'l loook all factory leek. I wonder how much 600 Group would charge for it (Mmmm rumbs chin)



I've not finished with it yet either



[Norm]

Great job Shox and nice write up, It looks excellent. I can see you adding another tier to that as I always manage to fill any shelf I put up and thanks for sparing us the Bath shots



[FranV8]

Nice table and tidy machine too.



[langy]

Nice job Dave, I think I need to make one myself now when I have some spare time.



[Shox Dr]

Cheers Guys. Just been to Ikea for some housey stuff and picked up a knife draw tidy for 59p for one side, drill sets will go at the other side I think



[stuvy]

i like the slash cuts, its the extra details that make it very nice indeed!



[Shox Dr]

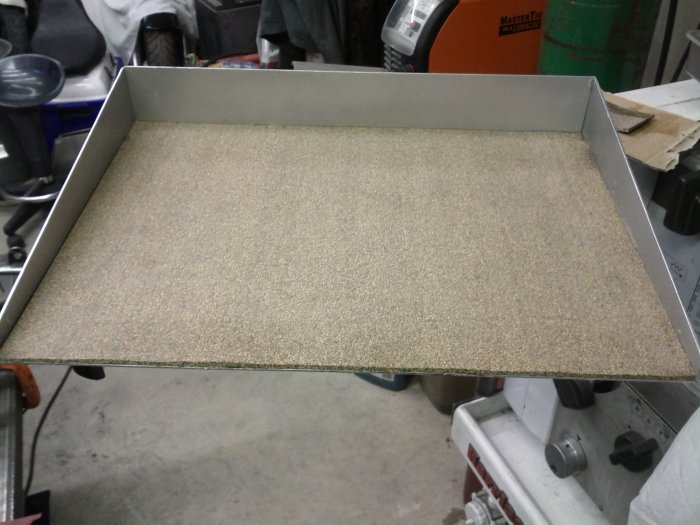

Finally another reason to use for the first time some cork and rubber matting a mate gave me. I used Contact adhesive to stick it down after I decided I couldn't be arsed to clean out the paint gun if I painted the same colour of the lathe, so used rattle cans, met Silver for the top and gloss black for the frame work, although I ran out of paint for that so no pics
