How do I test this

[Brad93]

Old man wired this Schneider starter up that I found in the skip. It had a 110v lead on it.

he has tried his 240v linisher on it and it worked then let the blue smoke out.

how do I test what is broken and can I wire this up to a small three phase drill.

The unit is a Schneider LE1D09U7.
The contractor is an LC1D09 and the overload is LRD10.

If I can test it and it still works I’ll need help wiring it haha.



[garethp]

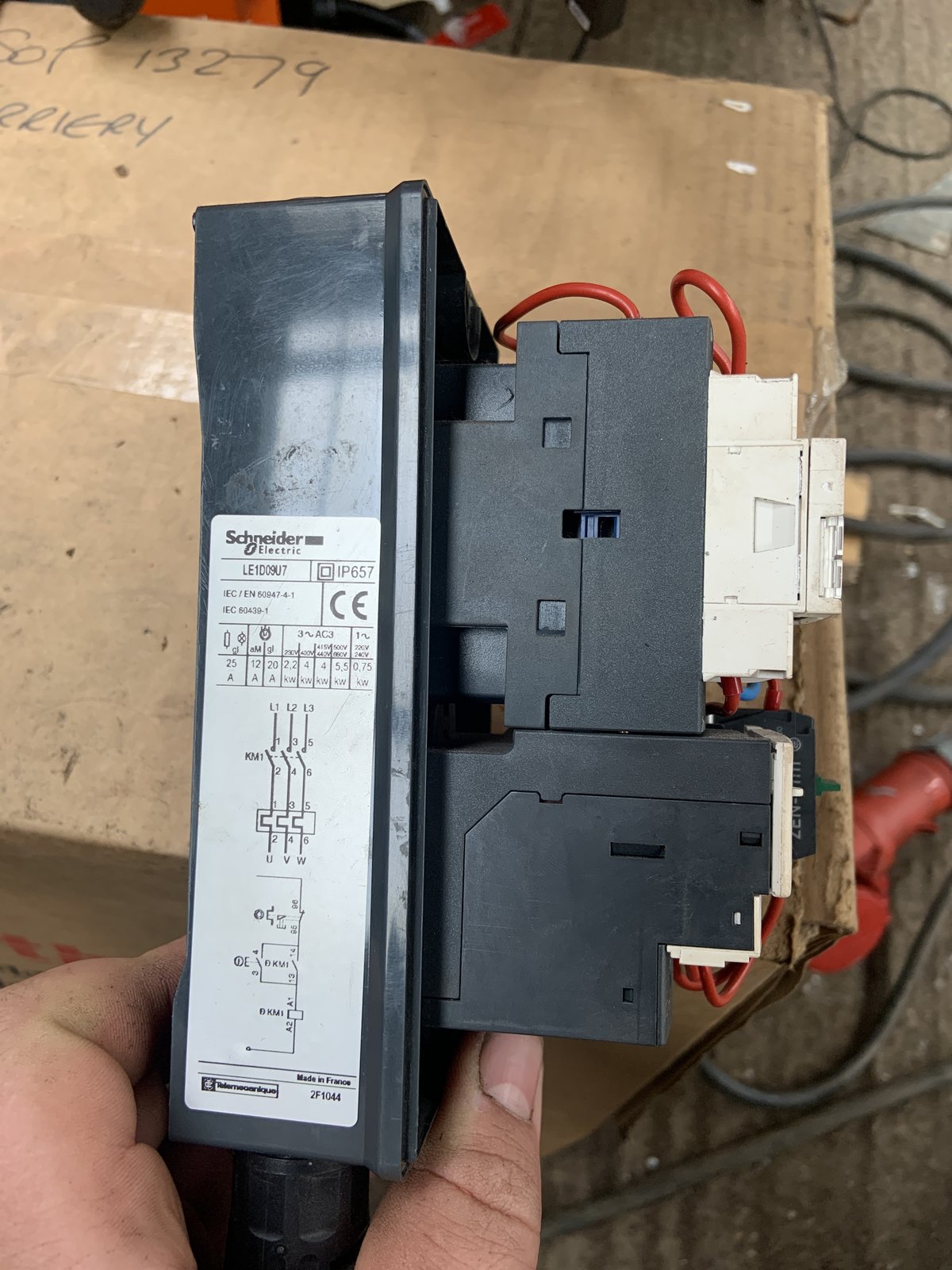

There will be a coil to pull the contactor in and that will be rated at 110v if it it had a 110 plug on it. Looking at the schematic its connections are A1/A2.

I've bought new coils in the past and they're easy to swap.



[Hopefuldave]

If it let blue smoke out it's probably the coil in the contactor (upper part), you might be able to get a replacement in the correct voltage, 240v if there's a neutral (so coil's across one of the lives and neutral) or 415 if it's on 3P + E (across two lives) - the upper section with the contact set is usually clipped onto the base withthe coil in it. Might be easier/cheaper to replace the contactor with one off EvilBay with the right coil in it?

Dave H. (the other one)



[hotponyshoes]

I loked at doing this on one.
For a decent brand like Schneider its probably cheaper to buy a complete unbranded unit from screwfix than to buy the coil like hopefulldave says..



[MCKDAVID]

I loked at doing this on one.
For a decent brand like Schneider its probably cheaper to buy a complete unbranded unit from screwfix than to buy the coil like hopefulldave says..

have a look at the coil, normally it's marked on it the input voltage, probably 110, in which case you need to swap it for a 240v one, easy enough to do, but as above OEM coils for schneider aren't cheap, don't know if you can get aftermarket ones that'll fit?



[hotponyshoes]

Good point about fitting an aftermarket one, might be a good option.
I know the coil for the one (telemequinque?) I had was double the price of the whole thing from screwfix.

Not a lot you can do to test it. You could put a multimeter across the coil wires and see if there is any resistance open circuit would suggest its completely burnt out but you might well get a reading if it's only partially burnt.

Might be worth pushing the button in and checking continuity between L1 in and L1 out etc before buying just a coil for it



[Seadog]

RS do a replacement coil - https://uk.rs-online.com/web/p/contactor-accessories/7448594?cm_mmc=UK-PLA-DS3A-_-google-_-PLA_UK_EN_Schneider_Electric_Whoop-_-Contactor+Accessories


£35



[hotponyshoes]

The whole thing I bought was about £20 from screwfix.
If you are using it multiple times a day it might be better to fix the decent one?



[Brad93]

This will probably go in the spares bin as it’s dearer to fix than buy a whole new unit with the correct coil I need.



[hotponyshoes]

My main worry would be fitting a new coil and finding out there was another reason it was skipped in the first place.



[Brad93]

My main worry would be fitting a new coil and finding out there was another reason it was skipped in the first place.

Yeah. Stupid really how can just the contractor be ⅔ the cost of replacing the whole unit?



[brightspark]

Yeah. Stupid really how can just the contractor be ⅔ the cost of replacing the whole unit?

its the resellers that make the money on them the parts are peanuts they charge 60 quid for a poxy nightstore thermostat that can be made for 10 quid



[angellonewolf]

Yeah. Stupid really how can just the contractor be ⅔ the cost of replacing the whole unit?

im finding this on a lot of stuff get stuff that you would think ok that should be worth it look at the new price £99.99 petrol strimmer

missing air filter cover and needs fuel cap total cost inc posting near £35 better off buying a working one for £35 so scrap the unit and remove the plug pull cord switches and its gone for scrap



[Brad93]

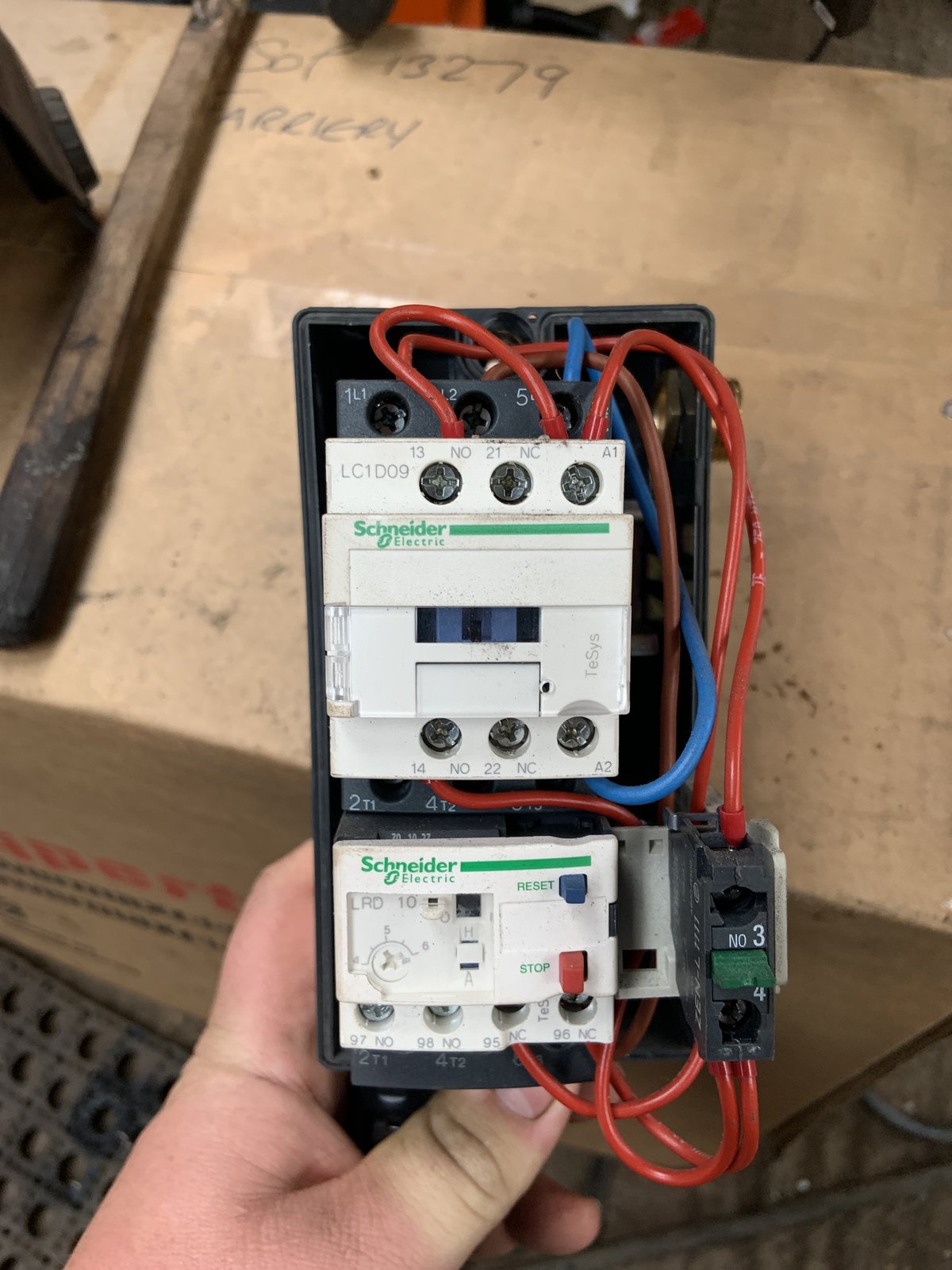

I’ve pulled the starter apart and it’s got a 110V coil. So I’ll take a punt on a new coil. Will have to be 415v as there’s no neutral on this old drill



[hotponyshoes]

What voltage do you actually want to run on it?
I have got a 3 phase one if you want it?



[Pete.]

I’ve pulled the starter apart and it’s got a 110V coil. So I’ll take a punt on a new coil. Will have to be 415v as there’s no neutral on this old drill

I think I have a starter you can have mate. Let me go out and see what it is.



[Pete.]

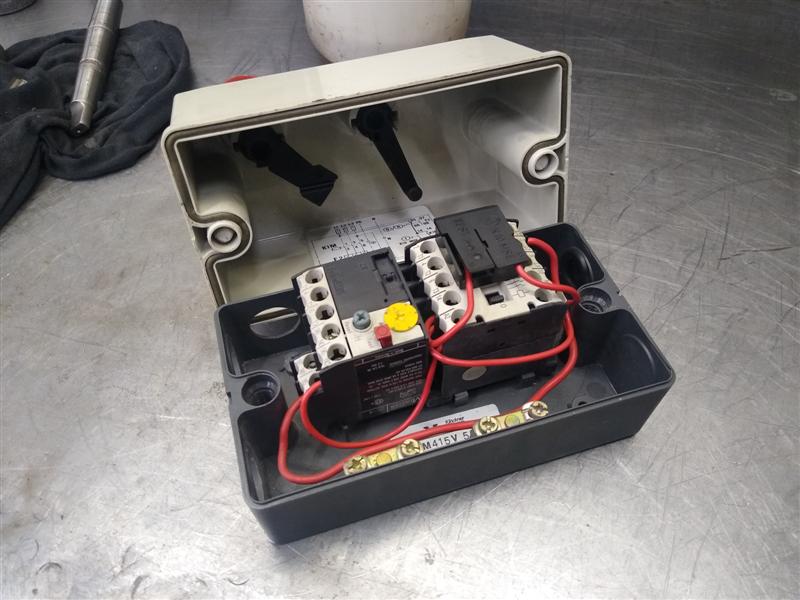

This any good to you? Says up to 3.6a on the overload.



[Robotstar5]

Most stuff seems to be disposable these days when I started in the 70's you could buy refurb kits with replacement springs, fixed and moving contacts etc. to overhaul contactors.



[Brad93]

This any good to you? Says up to 3.6a on the overload.

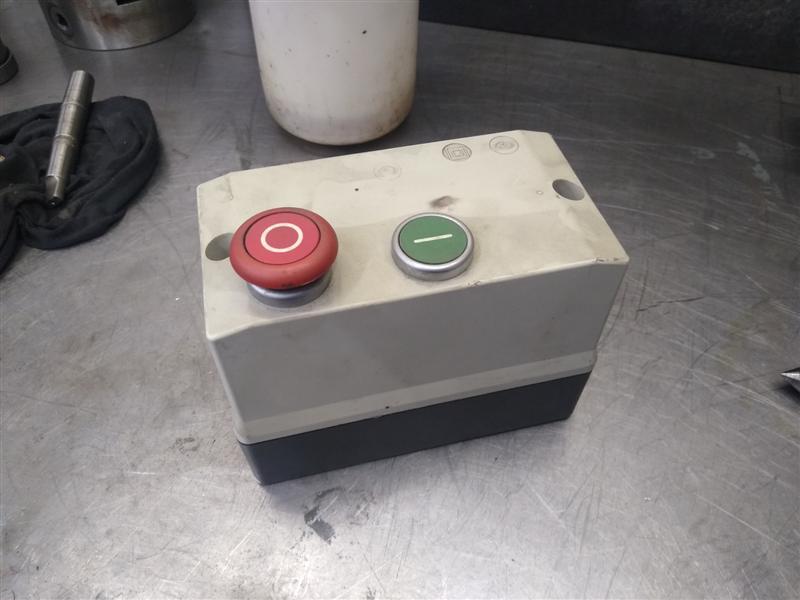

View attachment 237071

View attachment 237072

That would be ideal for the Denbigh drill



[Brad93]

This is the coil that plugs in the back of the contactor. £36

https://www.google.co.uk/amp/s/uk.rs-online.com/mobile/amp/p/contactor-accessories/3949122/

this is a complete contactor with coil

https://uk.rs-online.com/mobile/p/contactors/0187914/

£40.80

Madness.
