hooking up the foot pedal??

[John Page]

Hi all new to the forum so not sure if this is the correct place to post but here goes any way.
I have bought a Cobel Tig 200ac/dcp and it came with a foot pedal, the pedal comes with two wires from it but for the life of me I can't find where to plug it into, one of the leads goes in but there does not seem to be a place for the second wire, can any one shed any light on this please.

John



[Richard.]

Post pics of machine front and cable. Sure someone with same machine can help.



[John Page]

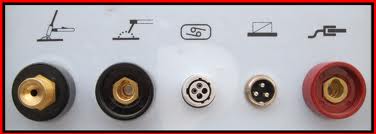

Ok got these from the web but Identical machine

One wire from the torch goes into the white socket and one from the foot pedal goes into the other socket, but I am left with another wire from the foot pedal and no where to plug it into.

John



[ben8vgte]

If you have a foot pedal connected you'd not have the torch connected, as that's the start switch just swap them and leave the torch one off.



[John Page]

The plug on the torch is a plastic one and goes into the white/grey socket one of the pedal wires goes into the 3 pin socket but the second plug from the pedal (a two pin) will not fit the socket the torch plug fits, it is a different plug altogether , I see what you are saying and it makes sense but the plugs are totally different, I think to make it work I would need an adapter or re-wire the plugs changing torch plug for the pedal plug.
Just seems weird that they supplied a pedal but no way to fit it to the machine.

John



[Richard.]

Did it not come with a manual. Contact the suppliers they might of sent wrong pedal.
