Hive wiring

[Shaun Henry]

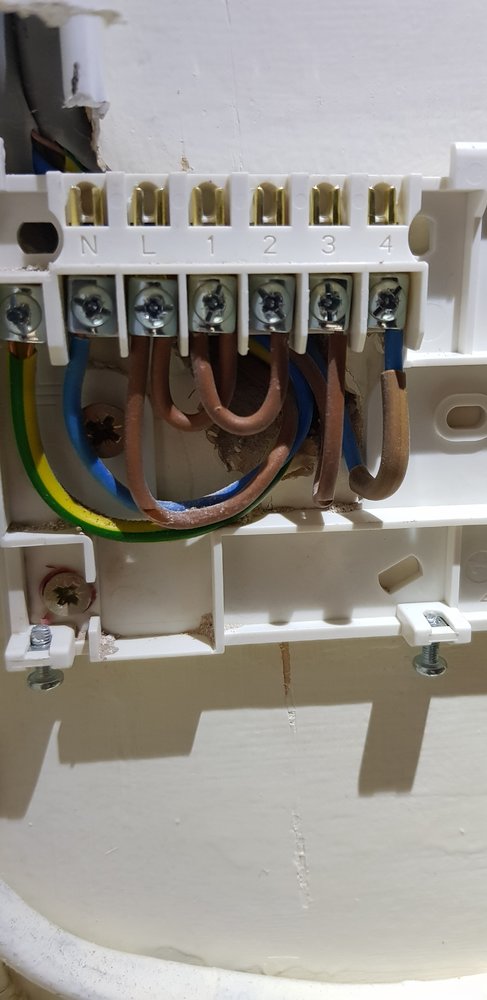

Hi All, I have a Honeywell st9100s heating control panel. I am looking to install a Hive receiver, I took the panel off and there are 2 wires looped. This is where it gets confusing. Can I do away with them?

N, L and earth are self explanatory. Slot 3 I have brown wire and slot 4 I have blue with brown sleeve.

Hive is a single receiver.

Basically what I am asking is do I need a loop and where do the wire on the right go.

Thank you in advance

Shaun



[mike os]

Yes , you only need a live to t1



[mike os]

Assuming irs a combi?



[Shaun Henry]

Thank you, yes it is a Worcester 32cdi. I need an idiots guide sometimes haha. So
Blue- N
Brown- L
Loop L to 1?
Rhs Brown in 2?
Rhs blue with brown sleeve in 3?

Thanks for your reply



[mike os]

1,3,4 I think



[Shaun Henry]

Thank you Mike

Shaun



[Kayos]

Hive is a standard backplate, should be a straight swap.



[Shaun Henry]

Thanks for your reply, just move what I see there over?



[Shaun Henry]

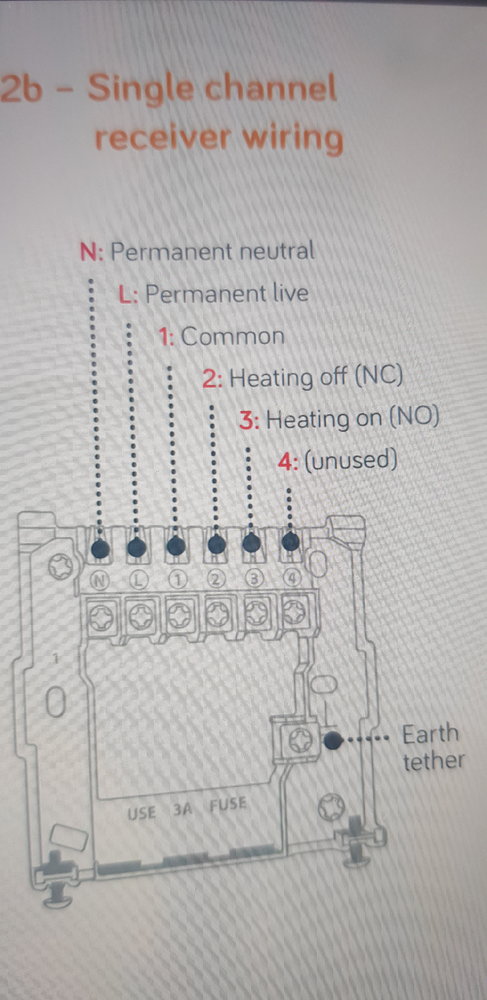

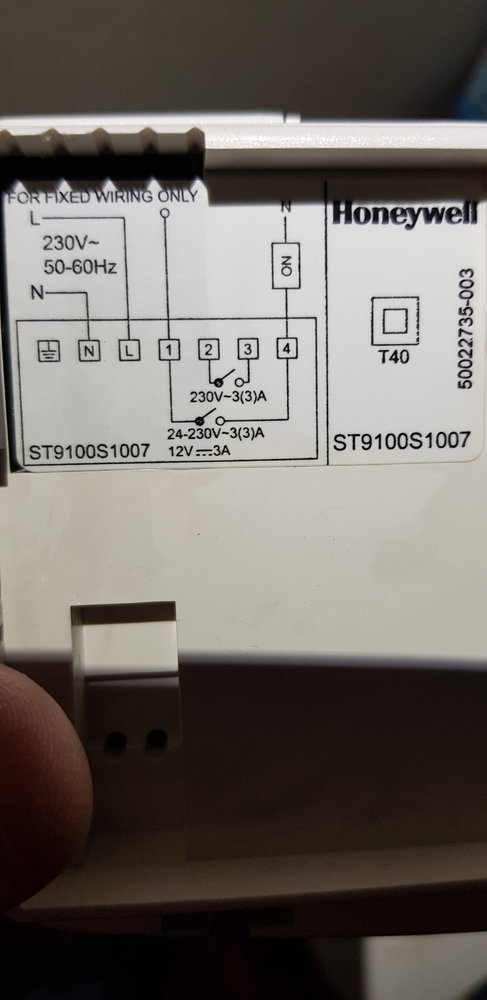

Photo 3 is the hive instructions and 4 is unused. That's what throwing me



[mike os]

I think so, not done one for a while



[Shaun Henry]

I don't mind running cables etc and basic wiring, normally get a friend. But he is busy. Thought do it myself. Sense of achievement, and cost only my time.



[mike os]

Done?



[Shaun Henry]

Not yet, have that nagging feeling that I am going to blow it or myself up. May look at it tomorrow.

Cheers for you help



[brightspark]

Not yet, have that nagging feeling that I am going to blow it or myself up. May look at it tomorrow.

Cheers for you help

wotever you do make sure a 3 amp fuse fitted then if you cock it up it wont blow it to bits



[Shaun Henry]

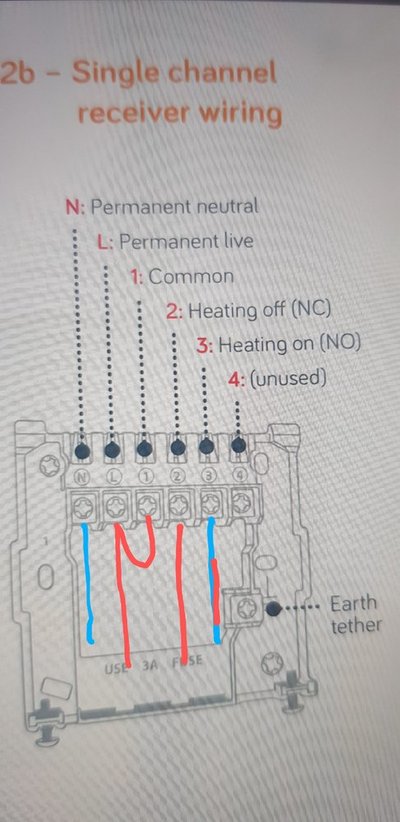

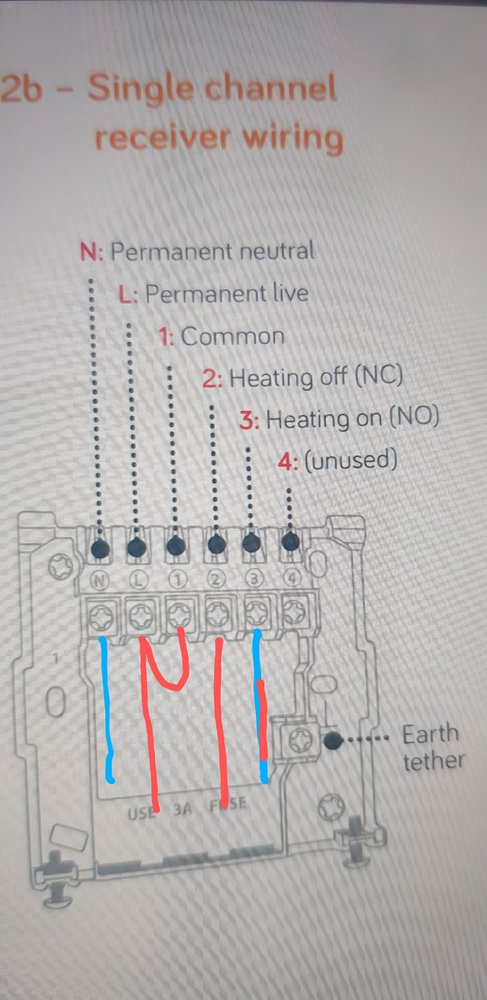

Not had a minute to do this yet. Procrastinated to long won't have time until the weekend. Does the below look right. Sorry to be a pain. Earth goes where it goes.
