Harrison 140 gear change wheel

[Mr happy]

Hi does any member of the forum know we’re I could get a 63 tooth gear for my 140 lathe i know it’s a big ask but worth a shot.
Thanks Mr Happy



[Agroshield]

I thought there were a load of helpful suggestions in your other thread here:

M

Thread 'Thread cutting'

Mar 24, 2025

Good morning
Wanting to try some imperial screw cutting on metric 140 ) gears on the lathe are 100 80 25
My other gears I have are 120 80 60 50
Advice on what I would need thanks

• Mr happy
• Replies: 20
• forum: Machining Techniques and Materials

Any or all of them are as equally applicable to a 63t gear as the sizes discussed above.

The most practical way will be a delrin one from you_engraving on eBay.



[6ply]

Hi does any member of the forum know we’re I could get a 63 tooth gear for my 140 lathe i know it’s a big ask but worth a shot.
Thanks Mr Happy

Is that one with the internal splines?



[Tigman]

I will check in my pile , have got a few doubles , dont get your hopes up can't remember what I have !



[Agroshield]

Is that one with the internal splines?

I think it is the later M-series lathes that had splined gears.

Typical 140 (L5/L6) one pictured here:

https://gandmtools.co.uk/product/harrison-72-tooth-change-gear-for-l5l6140-lathes-80210874/



[doubleboost]

Hi does any member of the forum know we’re I could get a 63 tooth gear for my 140 lathe i know it’s a big ask but worth a shot.
Thanks Mr Happy

I searched for ages trying to find one

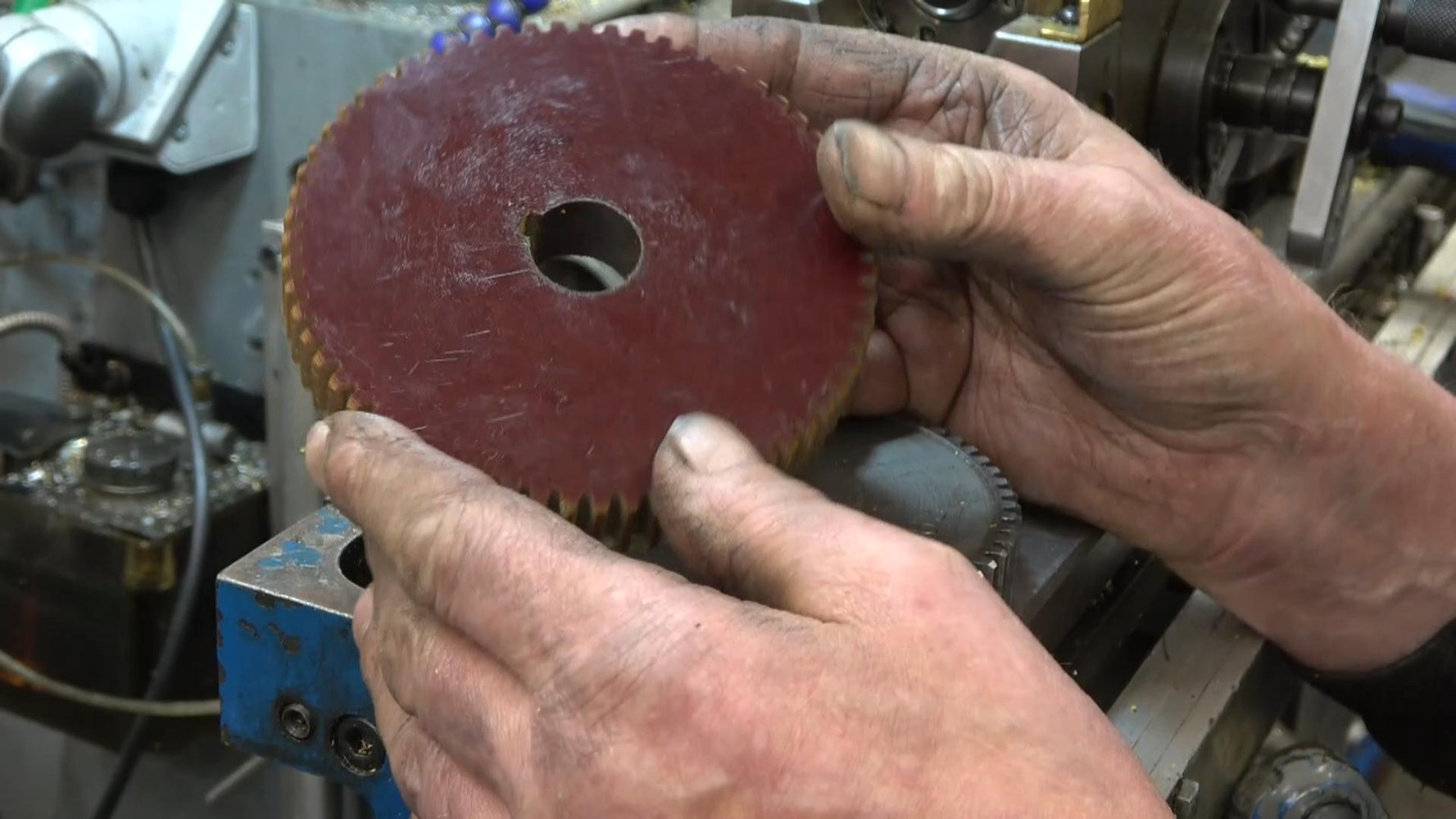

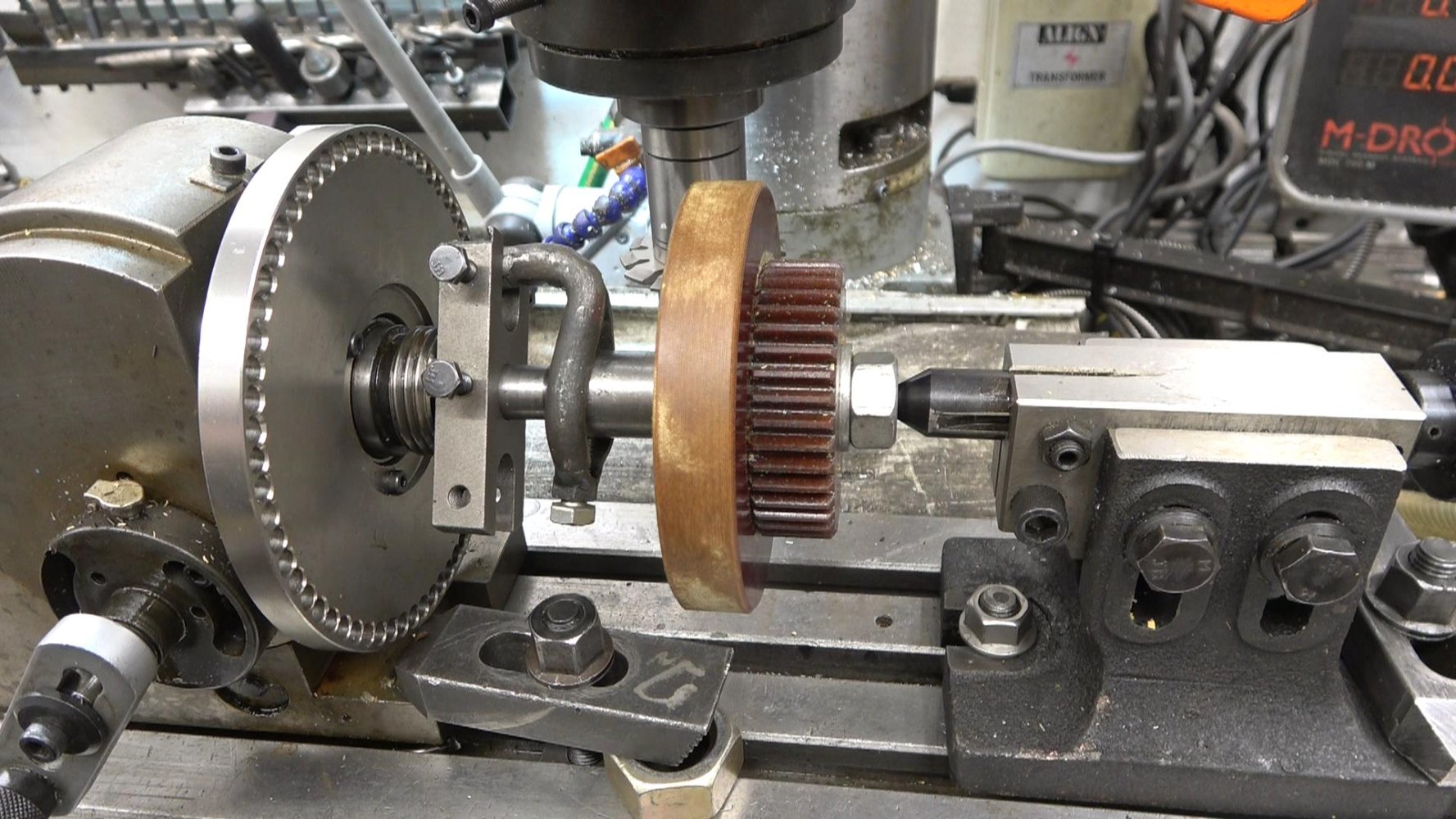

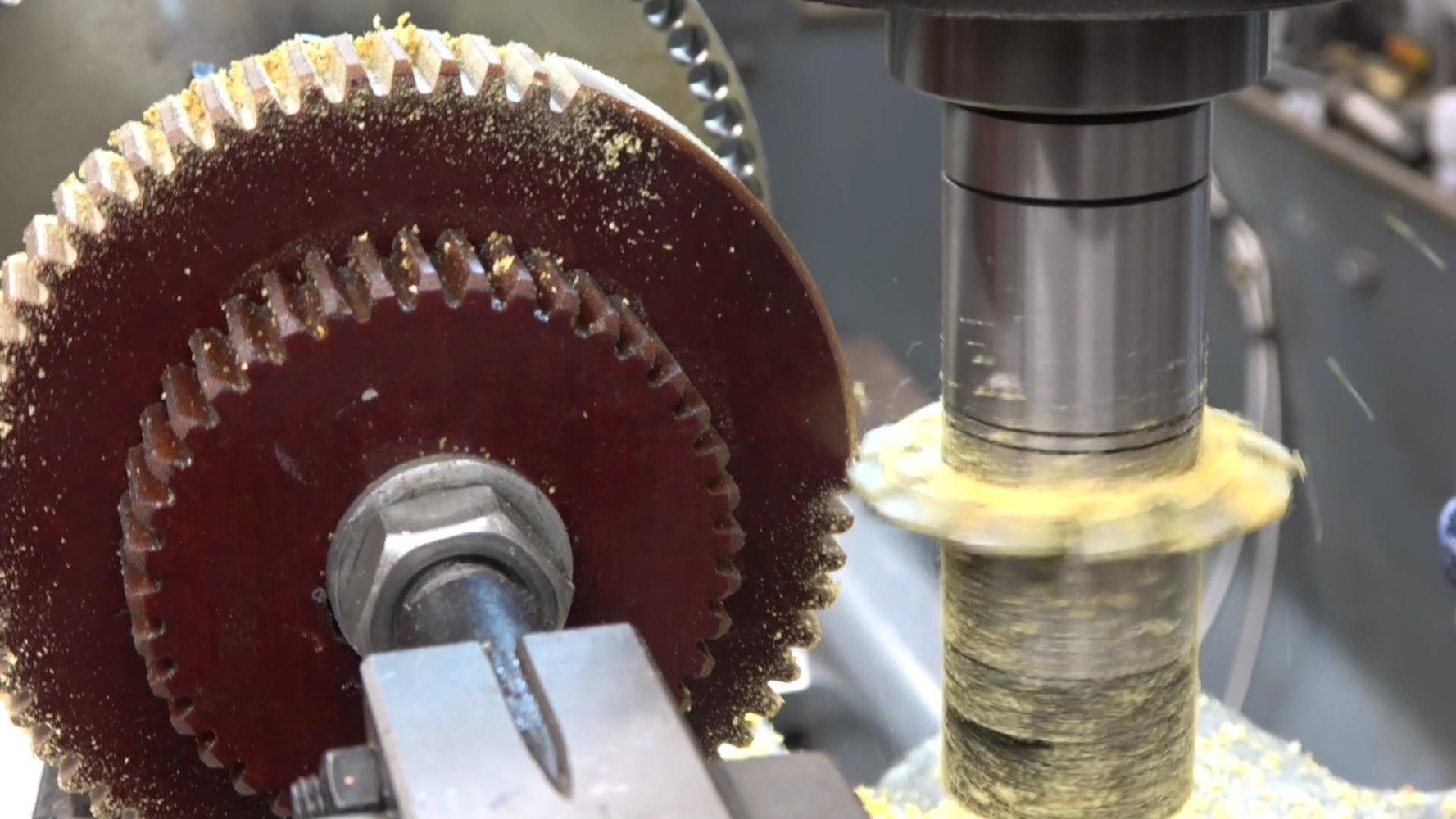

Made my own in the end.
The accuracy of the imperial threads is certainly good enough for the work i do .



[Mr happy]

Is that one with the internal splines?

No



[Tigman]

I will look tomorrow, didn't go in today !



[Tigman]

Right had a look , no I haven't got a 63t , mine are as follows 120 , 100, 80,70,60,50 ,45,40,25



[Tigman]

Got a 55t also



[doubleboost]

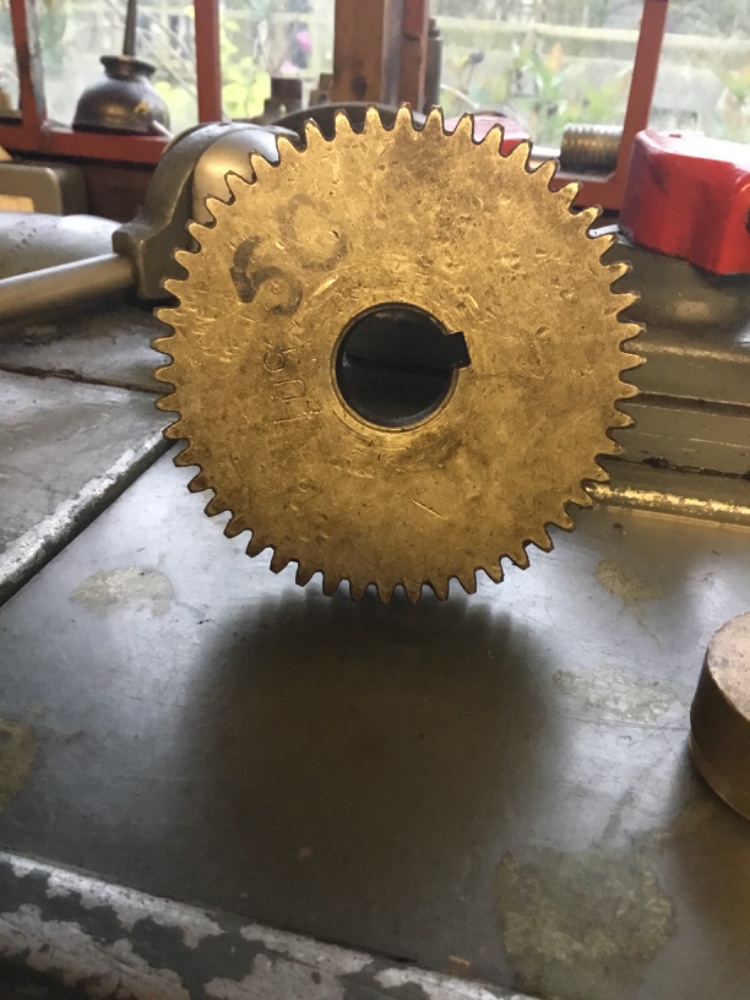

Has your gears got the single key way .
I could make you one out of Tufnell.
If you are unable to find one .



[Mr happy]

Has your gears got the single key way .
I could make you one out of Tufnell.
If you are unable to find one .

Hi John no luck thanks for your kind offer yes it’s the key way one
Alex



[iNf]

A good excuse to buy a 3d printer, then you can make any gears you want
You could also try one of the online 3d printing services. A few people on here have had other items made, some in metal 3d printing for a reasonable price.



[Brad93]

Right had a look , no I haven't got a 63t , mine are as follows 120 , 100, 80,70,60,50 ,45,40,25

That's a standard metric set



[Agroshield]

A good excuse to buy a 3d printer, then you can make any gears you want.

One of the better ideas I have seen on this is a surround for an existing smaller gear:

127T change gear to fit to 100T change gear by nglasson

This is a further refinement of my prior 127T design to enable machining of metric threads on Harrison L5 lathes. See my other designs for other lathe gear variations. http://www.thingiverse.com/nglasson/designsThe gear that this is re-mixed from takes a long time to print and it occured to me...

www.thingiverse.com

3D model for a 63t one here:

Harrison L5A Lathe Change Gear Collection by rhillman

This selection of gears allows the English version of the Harrison L5A Lathe to thread in most all metric sizes as well as fine and coarse pitch ranges. 40T - Used on the intermediate shaft for all metric pitches.50T - Used on the intermediate shaft for the "Fine" English range, with the 100T...

www.thingiverse.com



[Tigman]

Full compliment !



[Mr happy]

Has your gears got the single key way .
I could make you one out of Tufnell.
If you are unable to find one .

Hi John not been able to get one yes my gears are a single Key way if you could make one that’s great let me know what I would owe you for your time post etc thanks Alex



[doubleboost]

Hi John not been able to get one yes my gears are a single Key way if you could make one that’s great let me know what I would owe you for your time post etc thanks Alex

OK I will get it sorted for you .
