fan cooling

[Ryan spooner]

I have an old mighty mig 100xt its about 17years old and shes been faithful to me over the years but last night she thermo tripped so this morning ive bought a 230v axial fan to fit in to keep her cool.

The fan has bugger all wiring info has to female spade poles and an earth screw?

Is it 1 for mains and the other neutral? Should I wire it through the mains switch as in when welder's on so is the fan?

Many thanks Ryan



[Robotstar5]

Hi Ryan, welcome to the forum.

Connect the fan before the mains switch, fit a suitably rated in-line fuse in the live line and connect the earth terminal back to where the mains earth is connected.



[mike 109444]

FYI The neutral is also part of the mains!

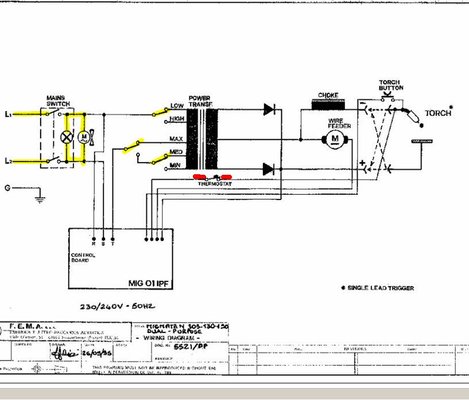

Yes you can do as is done on those SIP's fitted with a fan. See pic. The left side of diagram. The device with an M in the middle of the circle (and what looks like a fan blade!) is the fan. Try and point the fan at the transformer and the rectifier if possible.



[Ryan spooner]

Thanks guys what fuse size would you recommend?



[Ryan spooner]

Looking at the diagram is this not fused? Only at plug?



[BrokenBiker]

i have a mighty mig 100, only a few years old and the fan is wired as in the pic with no inline fuse that i can see.



[Ryan spooner]

Cheers thats tomorrow's job then



[Robotstar5]

Thanks guys what fuse size would you recommend?

It depends on the wattage (power) of the fan e.g. 200W fan = 1Amp fuse.
