Hello Guys.
More advice than a problem, I have an old Migatronic 180 Mono,I want to extend the earth(work) cable but need to I D the original cable and not sure how to do it without taking it off the machine and taking to a suppliers (No Dinse panel socket as yet)in anticipation.
Norm.



[eSCHEn]

It's standard stuff Norm. All you need is the correct cross sectional diameter (mm2). If you're going to the trouble of extending it then why not stick a panel socket on as you suggest and then it becomes a whole lot easier

Edit: forgot to say - 25mm2 will do 200A and would be the size I'd use for a (presumably) 180A machine.



[mechman]

It's standard stuff Norm. All you need is the correct cross sectional diameter (mm2). If you're going to the trouble of extending it then why not stick a panel socket on as you suggest and then it becomes a whole lot easier

Eschen.
thanks for the info, the panel socket conversion is on going (9.5mm I believe) is the correct size for socket and plug.



[Richard.]

Replace the clamp with a Female dins socket then attach a new length with a male dins to it.



[mechman]

Replace the clamp with a Female dins socket then attach a new length with a male dins to it.

I got some dinse plugs and sockets gifted and was going to use them but they are 35-50 a little large so I've cut some 15mm copper pipe slotted it and going to bush the plugs and sockets it should be ok.



[Gareth J]

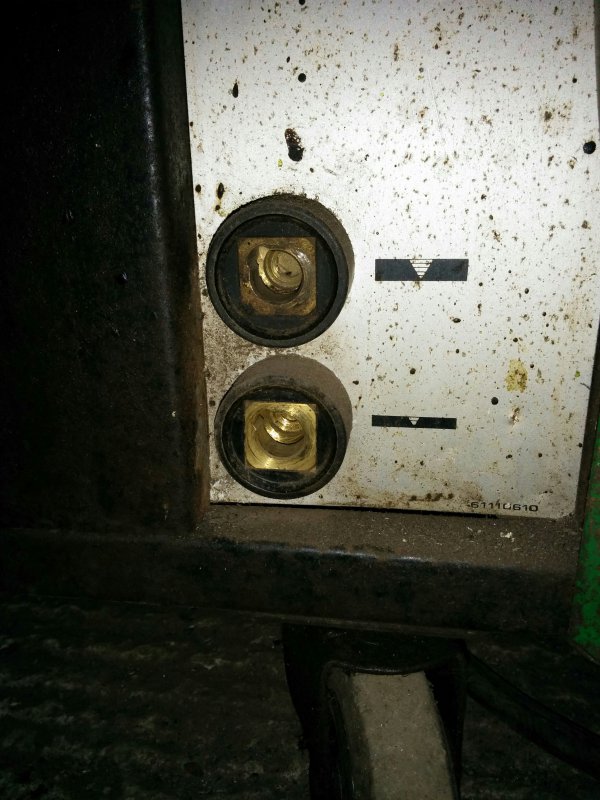

My migatronic 180(or was it 200?) Mono has a type of dinse on the front with two earthing options. Want me to check measurements? I think it's quite chunky



[mechman]

My migatronic 180(or was it 200?) Mono has a type of dinse on the front with two earthing options. Want me to check measurements? I think it's quite chunky

Mine just has the lead coming out the front with the earth clamp on, I think the Dinse panel socket type is 9.5mm.



[Gareth J]

Don't know if this is a help or not really.

It's a pretty old machine. And looks like it uses a 1/2" connector of some kind.

A more modern version might run on lighter cables. The outer diameters of both the earth and mains power cable would be around 17mm at a guess.



[Piero]

Google it.
The size of earth lead needed is related to the max power of the mig it's self
