Colchester triumph 2000

[Jacktegla]

Would anyone have access or point me in right direction to a wiring diagram for a Colchester Triumph 2000 or atleast a photo of the wiring in back of one,

Thanks



[Jaeger_S2k]



[Jacktegla]

View attachment 503364

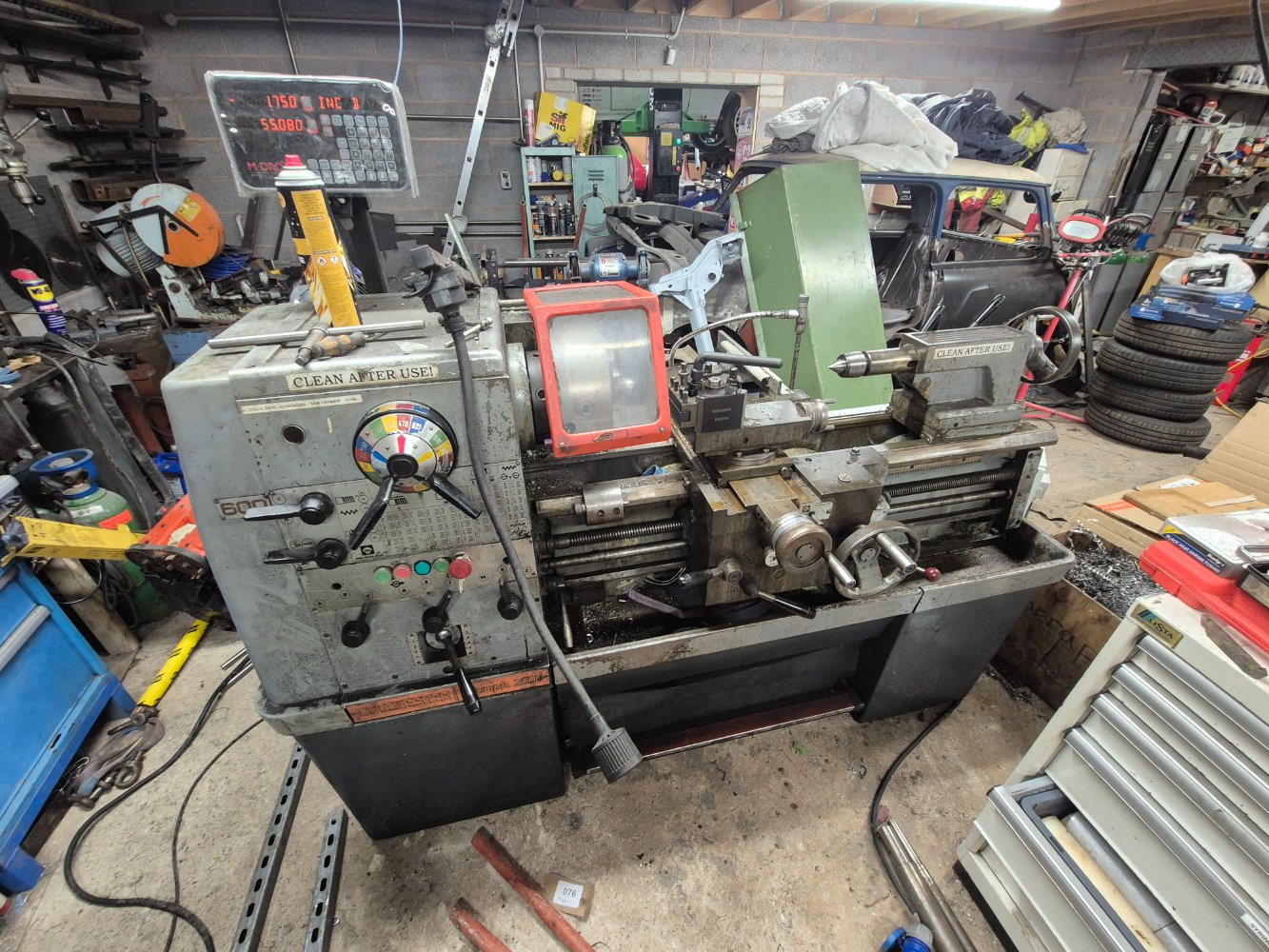

I'm pretty sure if someone has a Colchester Triumph 2000 wiring diagram that they know what a lathe looks like but eh oh here is a photo



[brewdexta]

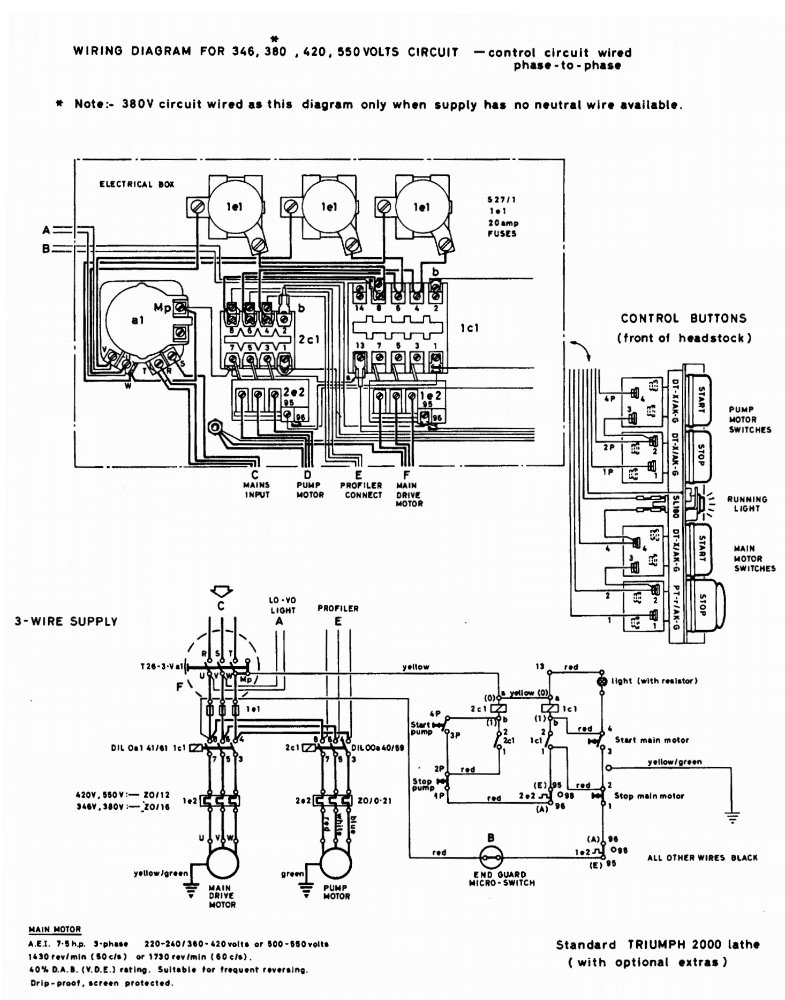

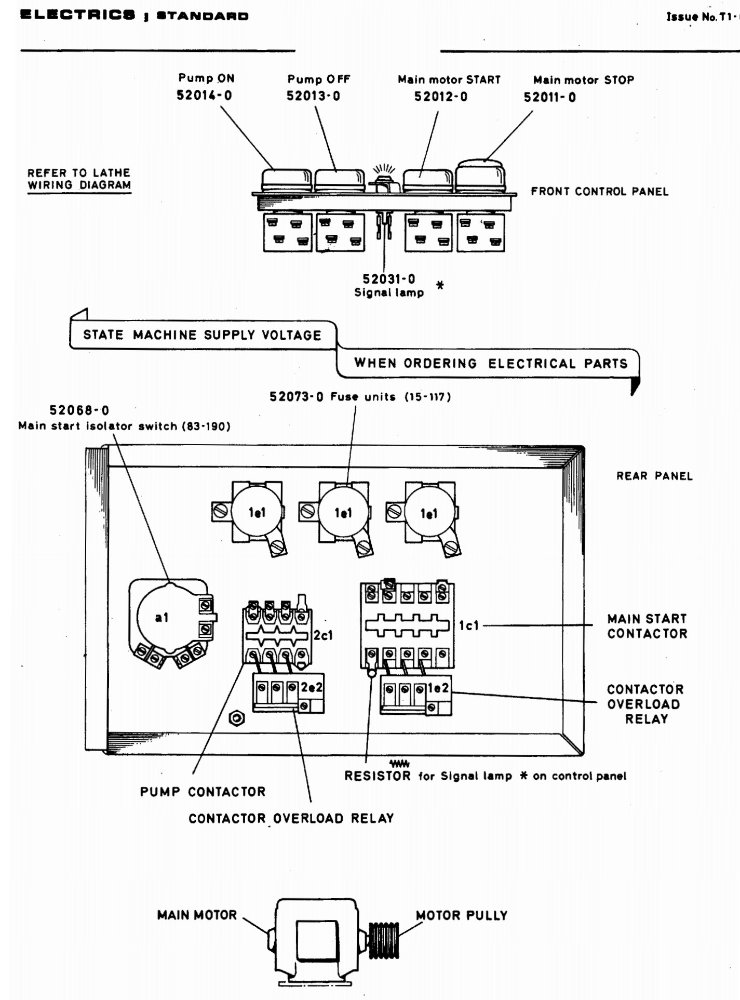

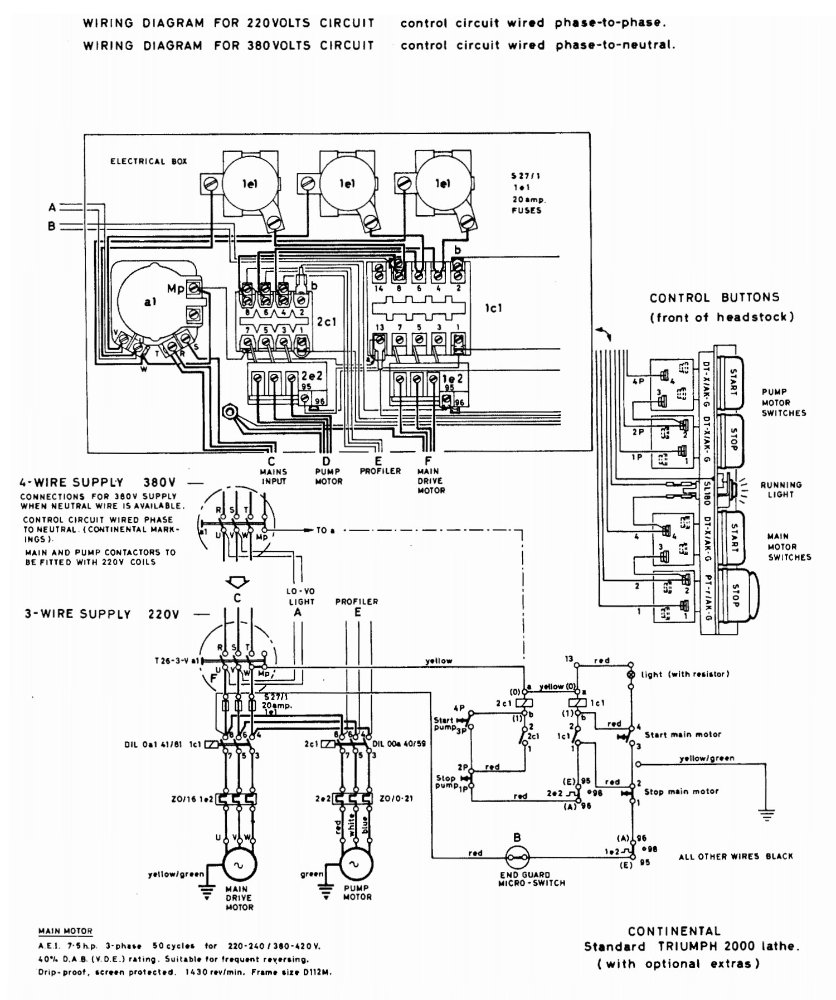

Apologies for the delay, I was on holiday. There's a wiring diagram in the workshop manual. in case you can't find the manual online, here's the 3 pages that refer to wiring/electrical

Cheers
Andy



[Jacktegla]

Apologies for the delay, I was on holiday. There's a wiring diagram in the workshop manual. in case you can't find the manual online, here's the 3 pages that refer to wiring/electrical

View attachment 503562

View attachment 503563
View attachment 503561


Cheers
Andy

Thanks appreciate that



[Beanwood]

Apologies for the delay, I was on holiday.

OMG - a 28 hour delay in responding JUST because you were on holiday…
