Castle tips?

[Pikey365]

If using a HF cutter can you drag a castletip over the cutting material? I do, am I doing wrong?



[shenion]

Yes, that is what the slots are for.

You still want to keep a small gap when starting mid-sheet or it will plug up the tip.



[Hitch]

I do aswell, never had a problem doing it. They are normally insulated from the main tip anyway.



[Pikey365]

Thankyou!

I thought I was not being stupid by letting the castle drag on the cutting surface! Please read this post 1/32 above or 1mm! Drag a castle tip across the cutting material, give your hand a rest!



[simon718]

i stand corrected mate, better safe than sorry though



[chunkolini]

Castle Tip?
Vass iss Dass?

Is it a thingy that goes over the end of nozzle to stop it dragging on the material being cut? and just slides or whatever over the workpiece?

Where do I get them from? I try to hold the end of the torch a few mm over the workpiece, this approach sounds easier.

Chunko'.



[shenion]

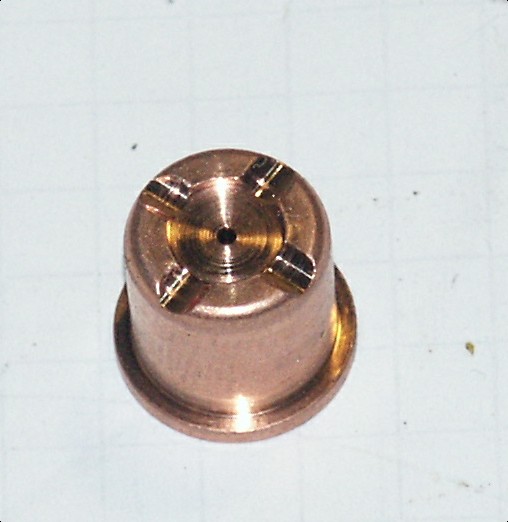

It is a tip with grooves cut in it and the orifice recessed to maintain the correct gap:



[JayRS4]

Hmmm, can you get these to fit all torches, wouldnt mind some for the cebora. The whole torch assembly seems a lot slimmer on mine, closer to a tig torch, and have never seen them advertised



[chunkolini]

That looks like a damn good idea, wher can I get them from?
Bearing in mind that these things are all basically the same, but I bet that none of them share the same dimensions. If we had a quality government everything would be standardised.

Chunko'.



[madkayaker]

They would only mess that up along with every thing else



[Drains]

That looks like a damn good idea, wher can I get them from?
Bearing in mind that these things are all basically the same, but I bet that none of them share the same dimensions. If we had a quality government everything would be standardised.

Chunko'.

Just one type of cider then Chunko?


For your non standard plasma bits, take a gander at these sites...
http://www.weldmet.co.uk/index.php/cPath/79_84
http://www.wwsgroup.co.uk/weldability/pages/products.asp?category=plasma_cutting



[madkayaker]

Don't think Chunko would mind as long as they standardized on the really strong stuff.



[Pikey365]

Newbee!

You guys have been on here for years and not heard of a castle tip? I must be in Plasma Heaven, well if I had one at the moment!



[Hitch]

They are fitted on our big hypertherm, but not the small one.
Dunno about retrofitting them...?



[chunkolini]

Re castle tips, it looks like somethng that could probably be kludged in the workshop, if I ever get round to it.......
Drains says "Just one type of cider then Chunko?" Noooo, depends on what you are after, sharp? sweet? bittersweet? blended? single variety?

Chunko'.



[shenion]

My plasma cutter had short castle tips. They were a pain as they only extend less than 0.1" from the ceramic. That makes it near impossible to follow a guide.

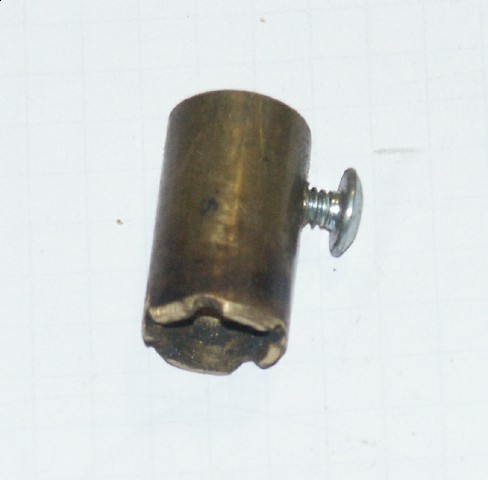

It did have a long gouging tip. So, I made this adapter:


Took just a few minutes on the lathe. Made following a template easy and it maintained the proper length.

I managed to find long castle tips so no longer need the adapter.



[gordon stephenson]

JayRS4,
My Lincoln PC40. Plasma takes the same nozzle and electrodes as the Cebora 70 and they are already the castle design.



[welder007]

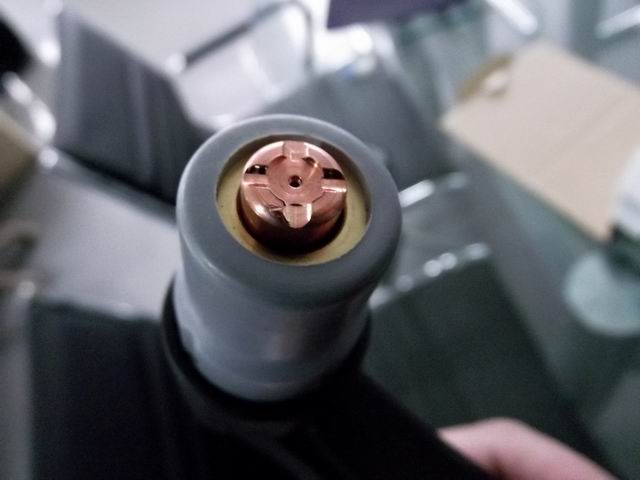

do you mean cutting tip with cross groove?

The tip is made of copper. It's not insulated from work piece. If you drag on work piece, will there be a transfer arc between electrode and this cuttng tip?



[shenion]

That is a tip designed to be dragged.

The electrode is inside the tip. The outer electrode is floating or connected to teh work.
