Bridgeport Jhead

[ukracer]

Bridgeport Jhead.
I have a bridgeport with J head pulley version. Recently I have needed to tilt the head and while cutting I have had the drive dogs keep jumping out of drive.

Having looked at a video it seems like there a 4 springs when they strip it apart but I am not sure if they put pressure on to keep the drive dogs together.
If not what are they there for?



[Brad93]

Bridgeport Jhead.
I have a bridgeport with J head pulley version. Recently I have needed to tilt the head and while cutting I have had the drive dogs keep jumping out of drive.

Having looked at a video it seems like there a 4 springs when they strip it apart but I am not sure if they put pressure on to keep the drive dogs together.
If not what are they there for?

The drive dogs on the pulley have probably rounded over.

I haven't worked on a bridgeport, but on the copy I have worked on, there was one very large, powerful spring



[500e]

PM your Email will send WS manuals
Wont be till tomorrow now



[ukracer]

The springs I refer to are just after 5 mins into this video.



[ukracer]

Not sure what those springs do yet but I do begrudge paying a tenner shipping on such a small item.



[Brad93]

Don't recall them on my beaver copy.



[ukracer]

Now the real cost of parts is surfacing.

Looks like adding some weld and machining it down. Lol



[Brad93]

Weld up and machine.

Much cheaper. Have you got a dividing head?



[ukracer]

Weld up and machine.

Much cheaper. Have you got a dividing head?

Yep.. its in bits currently. But I am putting it back together.



[500e]

You should have them, Sorry for delay WI-Fi threw a fit today



[ukracer]

You should have them, Sorry for delay WI-Fi threw a fit today

No problem chap. Appreciated your effort. Many thanks.



[ukracer]

Weld up and machine.

Much cheaper. Have you got a dividing head?

I am back on this problem. Sadly I realized I cant actually fix the issue using a machine I have to take apart of get at the part to repair. So I started looking around for second hand parts as I was trying to do a job on the mill this morning and it now jumps out of drive all of the time.

I found some bridgeport spares on Aliexpress at 50 quid but they wont ship to me. https://www.aliexpress.com/i/1005001527365711.html It also says its made out of high quality aluminium.....mm not sure myself but I am pretty sure mine is made out of steel.


I also found this on Ali express but not sure if its actually for the bridgeport or just some generic repalcement!. https://www.aliexpress.com/item/4001105199594.html?spm=a2g0o.cart.0.0.7e1238da2gkPuH&gps-id=shoppingCartRecommend&scm=1007.13440.311564.0&scm_id=1007.13440.311564.0&scm-url=1007.13440.311564.0&pvid=5c821ae9-d2d5-49c4-915d-37aff988235e&_t=gps-id:shoppingCartRecommend,scm-url:1007.13440.311564.0,pvid:5c821ae9-d2d5-49c4-915d-37aff988235e,tpp_buckets:668#2846#8111#1996&isseo=y&pdp_npi=4@dis!GBP!35.28!15.88!!!307.04!!@211b617b16970441696618074ed986!10000014425535522!rec!GB!134579034!

Are there any Decent second hand parts suppliers in the UK that people know of??



[Brad93]

Any of the machine dealers have spares.

ACU-RITE

bridgeport parts,bridgeport spares, colchester spares,bridgeport mills, digital readout systems. Also buy & sale used machine tools. Newall, Acu-rite, Sino

www.bridgeportuk.com

Bridgeport Machine Spare Parts

Manned by BRIDGEPORT LEICESTER Staff, contact AMS SPARES DEPT for all your BRIDGEPORT SPARES, REPAIRS and SERVICE tel 0844 844 9949

www.advancedmachinery.co.uk

blue diamond



[Agroshield]

Try eBay for the same part you found on Ali:

Milling Machine Part Spindle Clutch Gear Hub Step Pulley Combine CNC A3+20+57+74 | eBay

Find many great new & used options and get the best deals for Milling Machine Part Spindle Clutch Gear Hub Step Pulley Combine CNC A3+20+57+74 at the best online prices at eBay! Free delivery for many products.

www.ebay.co.uk

Secret sauce search terms seem to be 'clutch gear hub step'.

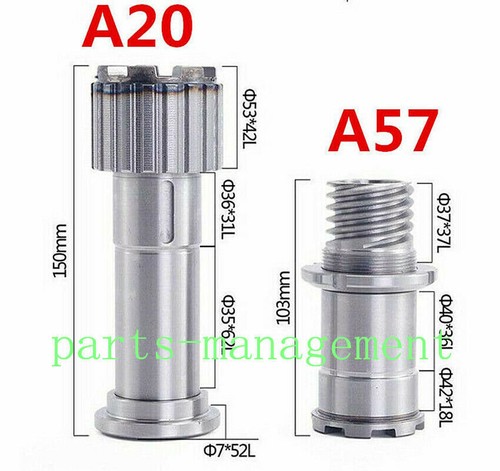

If you do repair it, and if the picture above is correct, it has seven splines so make sure your dividing head can do that number. Odd-tooth clutches were traditionally milled on a horizontal machine. With the correct width cutter, it does the left side of one tooth on entry and the right side of the opposite tooth on exit. Index six times and you are done.



[ukracer]

Try eBay for the same part you found on Ali:

Milling Machine Part Spindle Clutch Gear Hub Step Pulley Combine CNC A3+20+57+74 | eBay

Find many great new & used options and get the best deals for Milling Machine Part Spindle Clutch Gear Hub Step Pulley Combine CNC A3+20+57+74 at the best online prices at eBay! Free delivery for many products.

www.ebay.co.uk

Secret sauce search terms seem to be 'clutch gear hub step'.

If you do repair it, and if the picture above is correct, it has seven splines so make sure your dividing head can do that number. Odd-tooth clutches were traditionally milled on a horizontal machine. With the correct width cutter, it does the left side of one tooth on entry and the right side of the opposite tooth on exit. Index six times and you are done.

This is part if the problem. I can't cut on the mill as the drive part will be missing.



[ukracer]

Any of the machine dealers have spares.

Any of the machine dealers have spares.

Sadly not at the price I can afford.



[ukracer]

Ok I have took it apart and whilst the drive dogs do have small lips it seems the bearing housing was jamming in the housing.

It also had only one compression spring in the housing and 2 just sitting in the pulley.

After stripping down it was clear there is something wrong . I have watched an excellent video and he seemed to have to press bearing housing onto the drive dog spindle I think mine just pushes on.
In fact when I took it of the bearing housing was spinning freely.

Even having watched the video I am.not sure if I remembered correctly. I will check tomorrow.

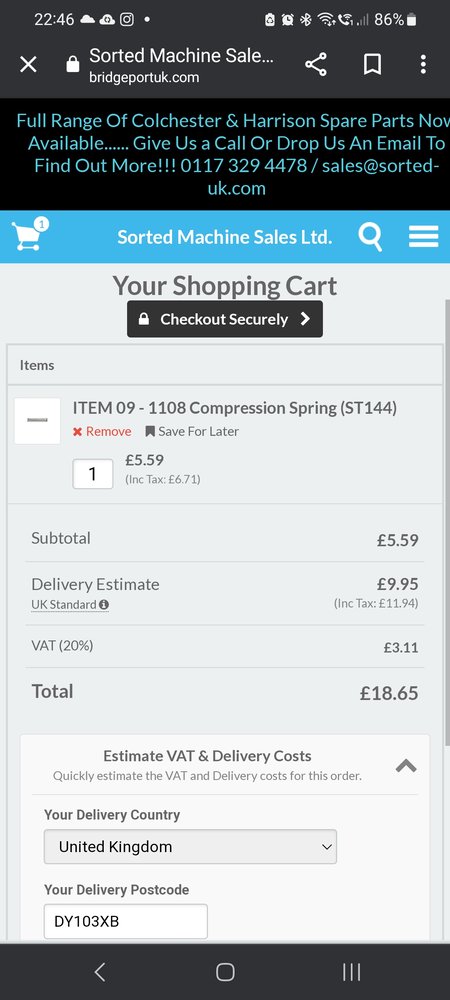

I am going to get a couple of bearing whilst it's apart. But can't find 1108 springs locally or on amazon or ebay.



[ukracer]

One of the bearings in the dealing carrier is shot.
But I am not sure of the product ID.



[Seadog]

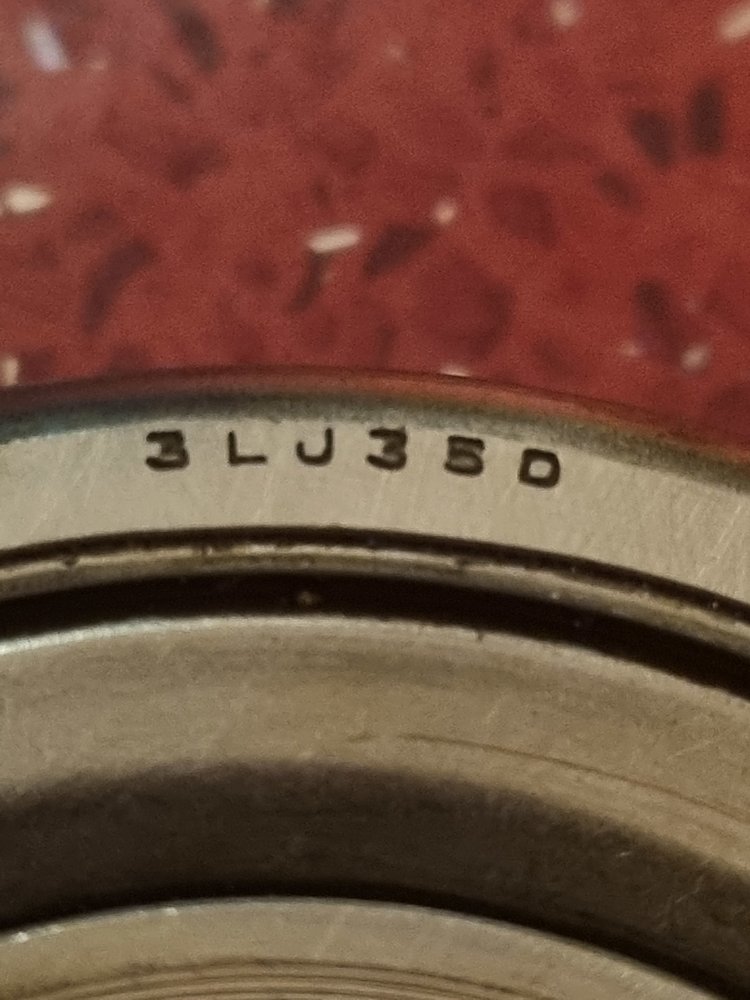

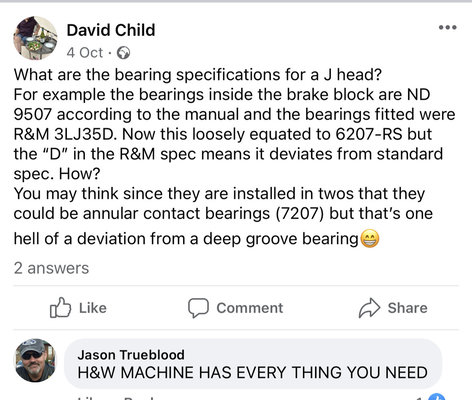

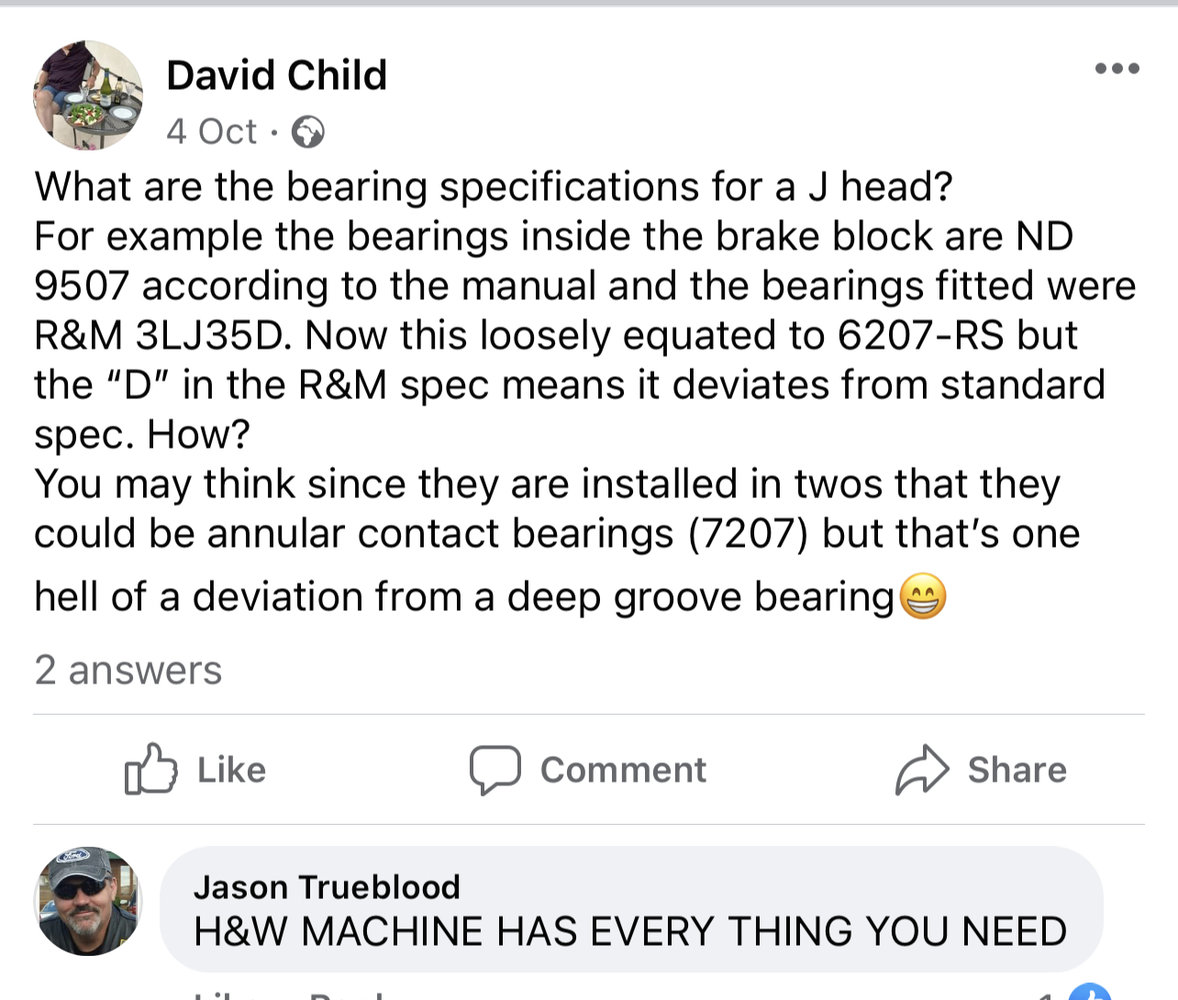

It's a 3LJ35D, like it says. I think originally a RHP designation.



[Brad93]

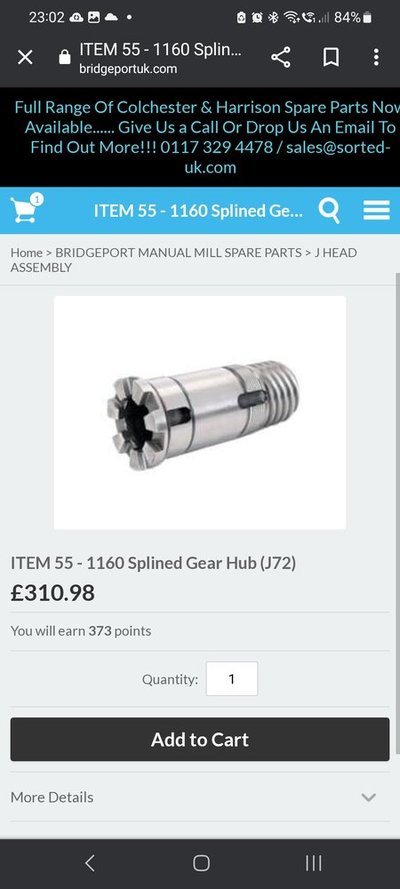

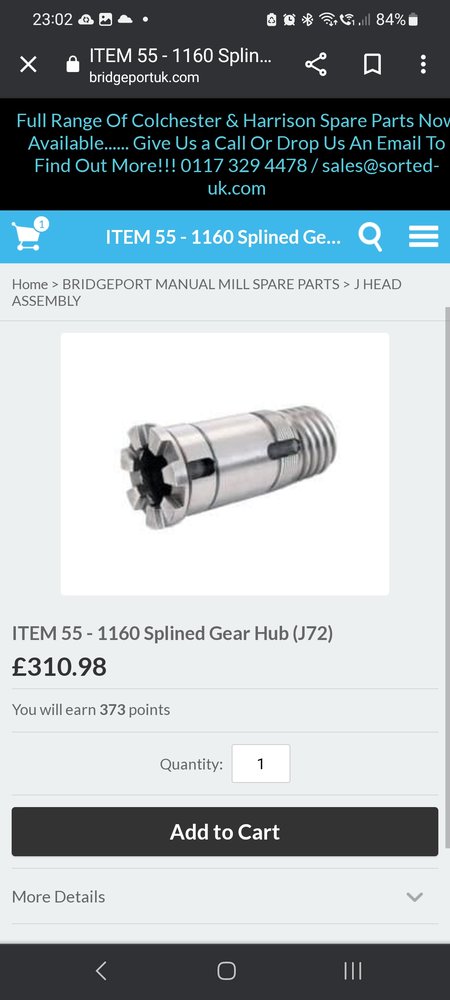

here you go
