Arcgen mv15 generator schematic

[mattg]

Hello all,

I acquired an arcgen 15mv (3 phase 15kVa) generator with a few issues.

Just wondering if anyone has a wiring diagram or sevice manual? I have one for the yanmar engine but it's a generic industrial engine one, so doesn't have details of this particular application.

I'm specifically looking for information on the circuit for the hold coil of the fuel solenoid- it seems to get power for 30 secs or so and then turn off (so engine will start and run for 30 secs then die).

Thanks
Matt



[mattg]

Just in case anyone is interested, after a bit of tracing wires I gave in and called Morris machinery who were very helpful and supplied a schematic. That lead me to the dynamo which was working....but only just, and the voltage output was not enough to keep the brain ('emergency relay') happy.

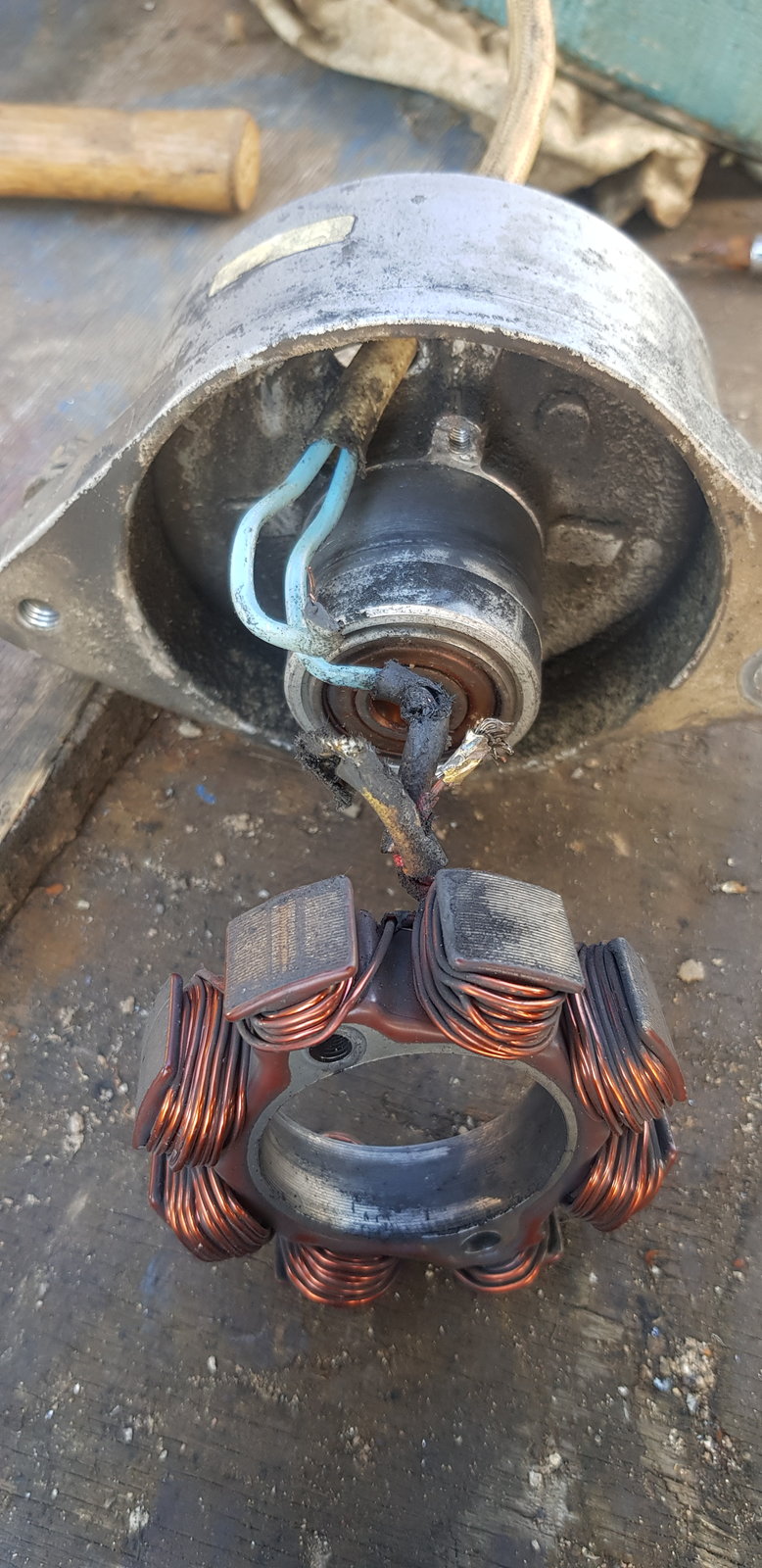

Inside the bolts holding the stator still had failed so it was rattling around. Hopefully I have the correct wire in stock and can rewind as the rattling has caused shorts between turns. At the moment I have just bypassed that function of the emergency relay.

If anyone needs the schematic in future get in touch - although probably worth talking to Morris machinery anyway as they were very helpful and friendly.

Matt
